D-Link DIR-806A Manual de usuario

Quick Installation Guide

DIR-806A

Wireless AC750 Dual Band Router

DIR-806A Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Router DIR-806A

•Power adapter DC 12V/0.5A

•Ethernet cab e

•“Quick Installation Guide” (brochure).

If any of the items are missing, p ease contact your rese er.

The “User Manual” and “Quick Installation Guide” documents are avai ab e

on D-Link website (see www.d ink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DIR-806A Quick Installation Guide

Default Settings

I address of wireless router 192.168.0.1

Username (login) admin

assword admin

Name of wireless network (SSID) 2.4GHz DIR-806A

5GHz DIR-806A-5G

Network key ( SK password)

see WPS PIN on the

barcode abe on the

bottom pane of the

device

Router DIR-806A with defau t settings cannot connect to the Internet.

To get started, p ease set your own password for access to the web-

based interface and change the WLAN name (SSID); then, if needed,

configure other settings recommended by your ISP.

DIR-806A Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a web browser.

•A web browser to access the web-based interface of the router:

◦App e Safari 8 and ater

◦Goog e Chrome 48 and ater

◦Microsoft Internet Exp orer 10 and ater

◦Microsoft Edge 20.10240 and ater

◦Mozi a Firefox 44 and ater

◦Opera 35 and ater.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

•An 802.11a, b, g, n or ac Wi-Fi adapter to create a wire ess network.

DIR-806A Quick Installation Guide

CONNECTING TO C

PC with Ethernet Adapter

1. Make sure that your PC is powered off.

2. Connect an Ethernet cab e between any of LAN ports ocated on the back

pane of the router and the Ethernet port of your PC.

3. Connect the power cord to the power connector port on the back pane of

the router, then p ug the power adapter into an e ectrica out et or power

strip.

4. Turn on the router by pressing the ON/OFF button on its back pane .

5. Turn on your PC and wait unti your operating system is comp ete y

oaded.

Now you shou d configure your PC to obtain an IP address automatica y (as

DHCP c ient).

DIR-806A Quick Installation Guide

Obtaining P Address Automatically

in OS Windows XP

1. C ick the Start button and proceed to the Control anel > Network

and Internet Connections > Network Connections window.

2. In the Network Connections window, right-c ick the re evant Local

Area Connection icon and se ect the roperties ine in the menu

disp ayed.

3. In the Local Area Connection roperties window, on the General

tab, se ect the Internet rotocol (TC /I ) ine. C ick the roperties

button.

DIR-806A Quick Installation Guide

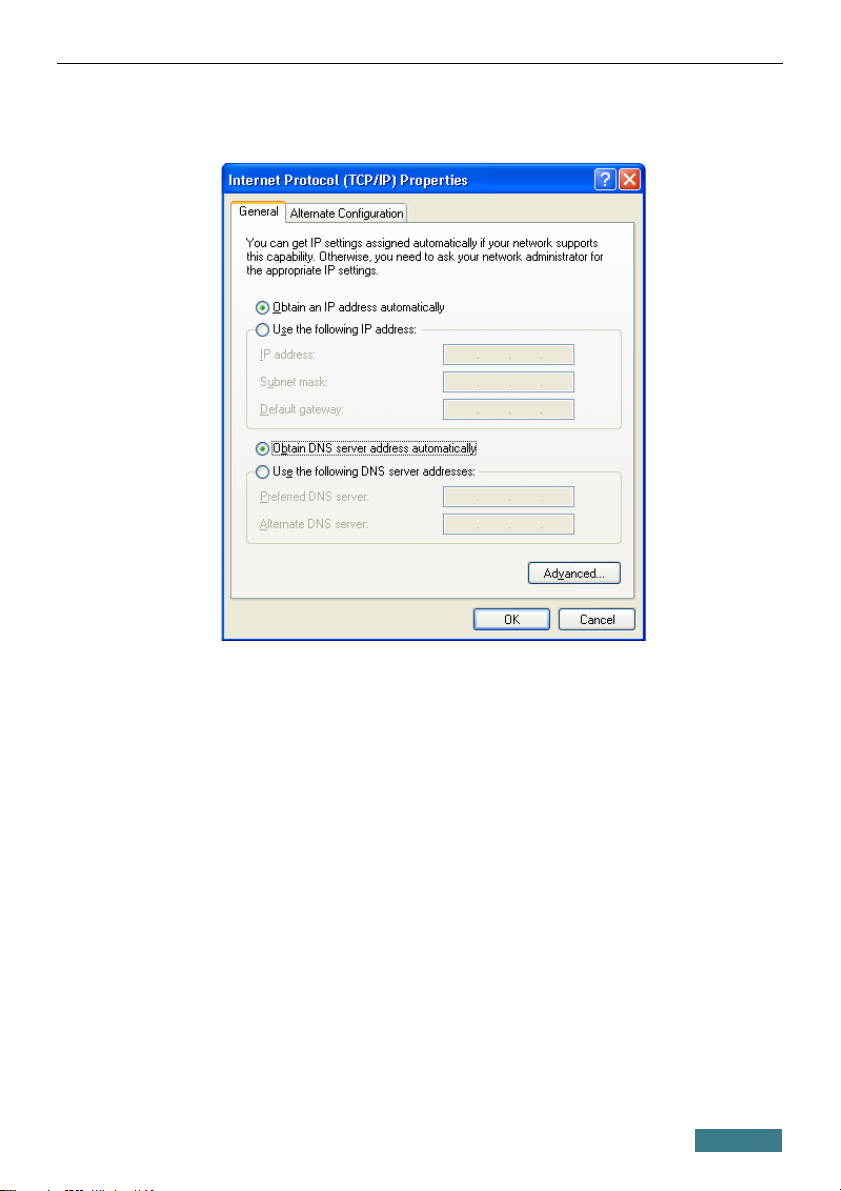

4. Se ect the Obtain an I address automatically and Obtain DNS

server address automatically radio buttons. C ick the OK button.

5. C ick the ОК button in the connection properties window.

Now your computer is configured to obtain an IP address automatica y.

DIR-806A Quick Installation Guide

Obtaining P Address Automatically

in OS Windows 7

1. C ick the Start button and proceed to the Control anel window.

2. Se ect the Network and Sharing Center section. (If the Contro Pane

has the category view (the Category va ue is se ected from the View by

drop-down ist in the top right corner of the window), choose the View

network status and tasks ine under the Network and Internet

section.)

3. In the menu ocated on the eft part of the window, se ect the Change

adapter settings ine.

4. In the opened window, right-c ick the re evant Local Area Connection

icon and se ect the roperties ine in the menu disp ayed.

5. In the Local Area Connection roperties window, on the

Networking tab, se ect the Internet rotocol Version 4 (TC /I v4)

ine. C ick the roperties button.

DIR-806A Quick Installation Guide

6. Se ect the Obtain an I address automatically and Obtain DNS

server address automatically radio buttons. C ick the OK button.

7. C ick the OK button in the connection properties window.

Now your computer is configured to obtain an IP address automatica y.

DIR-806A Quick Installation Guide

PC with Wi-Fi Adapter

1. Connect the power cord to the power connector port on the back pane of

the router, then p ug the power adapter into an e ectrica out et or power

strip.

2. Turn on the router by pressing the ON/OFF button on its back pane .

3. Turn on your PC and wait unti your operating system is comp ete y

oaded.

4. Turn on your Wi-Fi adapter. As a ru e, modern notebooks with bui t-in

wire ess NICs are equipped with a button or switch that turns on/off the

wire ess adapter (refer to your PC documents). If your PC is equipped

with a p uggab e wire ess NIC, insta the software provided with your

Wi-Fi adapter.

Now you shou d configure your Wi-Fi adapter.
