D-Link DWP-1010KT Manual de usuario

OUTDOOR 5G UNIT

& ROUTER WI-FI AX1500

DWP-1010KT

QUICK

INSTALLATION

GUIDE

INSTALLATIONSANLEITUNG

GUIDE D’INSTALLATION

INSTALLATIEHANDLEIDING

INSTRUKCJA INSTALACJI

INSTALAČNÍ PŘÍRUČKA

TELEPÍTÉSI SEGÉDLET

GHID DE INSTALARE RAPIDĂ

DWP-1010KT 1

ENGLISH

CONTENTS OF

PACKAGING

CONTENTS

DWP-1010 5G/LTE OUTDOOR UNIT

M15 AX1500 MESH ROUTER

QUICK INSTALLATION GUIDE

POLE MOUNT KIT - STAINLESS CLAMP X 2

POE INJECTOR (48V POWER SUPPLY)

AC POWER CABLE FOR POE INJECTOR

M15 POWER ADAPTER 12V/1A

10-METER OUTDOOR RJ45 CABLE

1-METER RJ45 CABLE

WALL MOUNT KIT -

SCREW ANCHOR (M6X25 MM)

SCREWS (M3.5X16 MM)

WATERPROOF SILICONE CLIP

DWP-1010KT

ENGLISH

PRODUCT SETUP

POLE-MOUNT INSTALLATION

1. Preparation: Plug the

10-meter RJ45 cable

into the device. Pull

the cable through

the connector on the

waterproof plate.

2. Slide the waterproof

silicone clip assembly

onto the RJ45 cable

and press it into the

plate.

3. Slide the waterproof

connector cover

onto the silicone clip

assembly.

4. Turn the connector

cover clockwise to

secure it to the plate.

5. Insert the SIM card into

the SIM slot (please

double-check the sim

card size before you put

it in).

6. Secure the waterproof

plate to the device by

using the M2.5 x 6mm

screws (6 pcs)

1-2

1-3

1-4

1-5

1-6

DWP-1010KT 3

ENGLISH

PRODUCT SETUP

POLE-MOUNT INSTALLATION

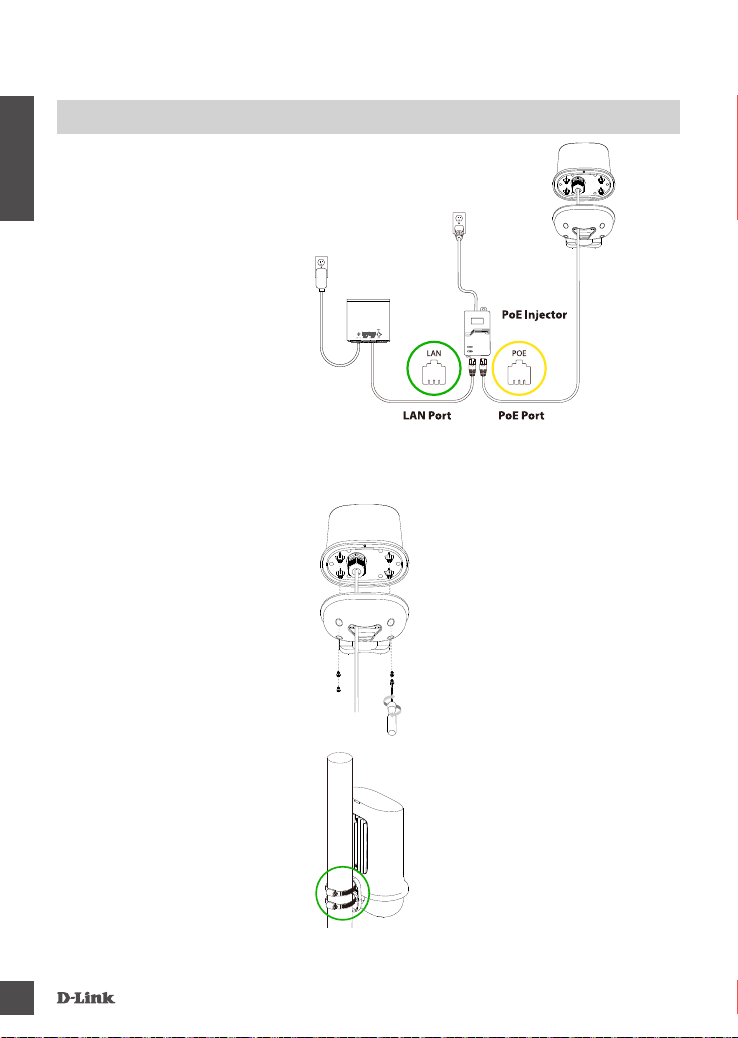

7. Pull the 10-meter RJ45

cable through the blue

base cover and plug it into

the PoE port on the PoE

injector. Connect the power

cable to the PoE injector

and plug the power cable

into a power source. In the

second phase plug 1-meter

RJ45 cable from PoE

Injector into M15 Internet

port. Connect 12V power

adapter to power source

and M15 router.

8. Secure the base cover to

the DWP-1010 by using the

M3 x 4mm screws (4 pcs).

9. Install the stainless steel

pipe clips onto the DWP-

1010 and loosely secure

it to the pole. Open the

falcon app and follow the

instructions. Lastly, secure

the device tightly to the

pole.

1-7

1-8

1-9

DWP-1010KT

ENGLISH

PRODUCT SETUP

WALL-MOUNT INSTALLATION

1. Follow steps 1-7 above and power on

the DWP-1010. When the LED lights

are on, hold the DWP-1010 against

the desired location on the wall and

adjust position if necessary. When

both LED lights are steady blue, it is

in a desirable location to receive good

signal strength.

2. After the installation location has

been determined, use the wall-mount

plate to mark and drill the holes in

the wall. Then insert the M6 x 25mm

screw anchors (4 pcs) into the wall.

3. Secure the wall-mount plate and blue

base cover to the wall by using the

M3.5 x 16mm screws (4 pcs). Make

sure the RJ45 cable is going through

the blue base cover.

4. Secure the DWP-1010 to the wall by

using the M3 x 4mm screws (4 pcs).

5. Installation is complete.

SIM

PoE

RESET WIFI

LED Indications

Connection type LED (Blue+ Green)

No Signal O󰀨

LTE / 3G Green Steady on

5G Blue Steady on

Signal strength LED (Red + Blue)

No Signal Red Flash

Poor signal Red Steady on

Mid Signal Blue Flash

Good Signal Blue Steady on

2-2

2-3

2-4

2-5

DWP-1010KT 5

ENGLISH

PRODUCT SETUP

GET THE FALCON APP

TECHNICAL SUPPORT dlink.com/support

1. Get the falcon App on the App Store

or on Google Play.

2. Use your phone to scan the QR code

and establish 5G connection with

Wi-Fi 6 mesh ready system.

3. Open the falcon app and follow the

instructions.

If your SIM card has active PIN

protection, please follow the

below instruction, before you

start the Falcon APP installation

process. Log in to the IDU device

via a web browser (default login

details) by entering 192.168.0.1.

Go to External Unit 5G > 5G/

LTE Connection and enter the

PIN Code in PIN Code eld.

Click Save.

DWP-1010KT

DEUTSCH

PAKETINHALT

INHALT

DWP-1010 5G/LTE-OUTDOOR EINHEIT

M15 AX1500 MESH-ROUTER

KURZANLEITUNG ZUR INSTALLATION

MASTMONTAGESATZ - EDELSTAHLKLEMME X 2

POE-INJEKTOR (48-V-STROMVERSORGUNG)

AC-STROMKABEL FÜR POE-INJEKTOR

M15 STROMADAPTER 12V/1A

10-METER-RJ45-KABEL FÜR DEN

AUSSENBEREICH

1-METER-RJ45-KABEL

WANDMONTAGE-KIT - SCHRAUBANKER

SCHRAUBDÜBEL (M6X25 MM)

SCHRAUBEN (M3,5X16 MM)

WASSERDICHTER SILIKONCLIP

DWP-1010KT 7

DEUTSCH

MASTMONTAGE

1. Vorbereitung: Stecken

Sie das 10-Meter-

RJ45-Kabel in das

Gerät. Ziehen Sie

das Kabel durch den

Anschluss an der

wasserdichten Platte.

2. Schieben Sie

die wasserdichte

Silikonklemme auf

das RJ45-Kabel und

drücken Sie sie in die

Platte.

3. Schieben Sie

die wasserdichte

Steckerabdeckung auf

die Silikonklammer.

4. Drehen Sie die

Steckerabdeckung

im Uhrzeigersinn, um

sie an der Platte zu

befestigen.

5. Legen Sie die SIM-Karte

in den SIM-Slot ein (bitte

überprüfen Sie die Größe

der SIM-Karte, bevor Sie

sie einlegen).

6. Befestigen Sie die

wasserdichte Platte

mit den M2,5 x 6mm

Schrauben (6 Stück) am

Gerät.

1-2

1-3

1-4

1-5

1-6

HARDWARE INSTALLATION

DWP-1010KT

DEUTSCH

POLE-MOUNT INSTALLATION

7. Ziehen Sie das 10-Meter-

RJ45-Kabel durch die

blaue Basisabdeckung

und stecken Sie es in den

PoE-Anschluss am PoE-

Injektor. Verbinden Sie das

Stromkabel mit dem PoE-

Injektor und schließen Sie

das Stromkabel an eine

Stromquelle an. In der

zweiten Phase stecken Sie

das 1-Meter-RJ45-Kabel

vom PoE-Injektor in den

M15-Internetanschluss.

Schließen Sie das

12V-Netzteil an die

Stromquelle und den M15-

Router an.

8. Befestigen Sie die

Basisabdeckung mit den

M3 x 4 mm Schrauben

(4 Stück) am DWP-1010.

9. Bringen Sie die

Edelstahlrohrschellen

am DWP-1010 an und

befestigen Sie ihn locker

am Mast. Ö󰀨nen Sie die

Falcon App und folgen Sie

den Anweisungen. Zum

Schluss befestigen Sie das

Gerät fest am Mast.

1-7

1-8

1-9

HARDWARE INSTALLATION
