D-Link DSL-302G - 8 Mbps DSL Modem Manual de usuario

D-Link DSL-302G

ADSL Ethernet/USB Modem

Manual

Version 100

Rev. 102202

Building Networks for People

TABLE OF CONTENTS

ABOUT THIS USER’S GUIDE........................................................................................................................... 1

INTRODUCTION................................................................................................................................................. 2

MODEM DESCRIPTION AND OPERATION.............................................................................................................. 2

MODEM FEATURES.............................................................................................................................................. 2

Front Panel .................................................................................................................................................... 3

Rear Panel...................................................................................................................................................... 3

LED Indicators .............................................................................................................................................. 4

Packing List................................................................................................................................................... 4

HARDWARE INSTALLATION......................................................................................................................... 5

MODEM LOCATION ............................................................................................................................................. 5

CONNECT THE POWER ......................................................................................................................................... 5

CONNECT ADSL LINE ........................................................................................................................................ 5

CONNECT MODEM TO COMPUTER ....................................................................................................................... 5

SOFTWARE INSTALLATION .......................................................................................................................... 6

INSTALL THE MODEM CONFIGURATION UTILITY ................................................................................................ 6

CONFIGURE THE MODEM .................................................................................................................................... 9

INSTALL THE USB DRIVER ............................................................................................................................... 10

MODEM DIAGNOSTICS ...................................................................................................................................... 11

ADVANCED DIAGNOSTICS................................................................................................................................. 12

FACTORY RESET ............................................................................................................................................... 13

TECHNICAL SPECIFICATIONS ................................................................................................................... 14

DSL-302G FIRMWARE UPGRADE UTILITY.............................................................................................. 15

WARRANTY AND REGISTRATION............................................................................................................. 17

About This User’s Guide

This user’s guide provides instructions on how to install the DSL-302G ADSL Modem and use it to connect a

computer (or two computers) to the Internet.

If you are using a computer with a functioning Ethernet port, you can use the Quick Installation Guide to

quickly establish your ADSL connection and access the Internet. If you want to use only the USB port for the

initial connection you will find instructions for USB operation in the section titled “USB Driver”

Terminology

This document uses the terms “Modem” (first letter upper case) to refer specifically to the DSL-302G ADSL

Modem, and “modem” (first letter lower case) to refer to all such devices including the DSL-302G. ADSL

service is provided by different types of businesses including telephone service providers, Internet service

providers and other businesses that provide computer network and telecommunications services. The term

“service provider” is used in this guide to refer to any service that sells or leases DSL services and equipment.

Before You Start

Please read and make sure you understand all the prerequisites for proper installation of your new Modem. Have

all the necessary information and equipment on hand before beginning the installation.

Low Pass Filters

ADSL and telephone services share the same copper wire to carry their respective signals, a filtering mechanism

may be necessary to avoid mutual interference. It may be necessary to install a low pass filter device (also called

micro-filter or splitter) for each telephone that shares the line with the ADSL line. Micro-filters are easy to

install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask

your service provider for more information about the use of low pass filters with your installation.

VPI and VCI Settings

For some installations, it will be necessary to configure certain settings used by the Modem for connection to the

Internet. If your Modem has not already been configured to the specific requirements of your ADSL account,

you will have to change these settings using the Configuration Utility software included with the device.

If necessary, your service provider will provide two numbers, a Virtual Path Identifier (VPI) and a Virtual

Channel Identifier (VCI) that are needed for proper configuration of the Modem. These numbers are used to

manage the service provider’s network infrastructure.

DSL-302G ADSL Ethernet Modem User’s Guide

Introduction

This section provides a brief description of the Modem, its associated technologies and a list of Modem features.

What is ADSL?

Asymmetric Digital Subscriber Line (ADSL) is an access technology that utilizes ordinary copper telephone

lines to enable broadband high-speed digital data transmission and interactive multimedia applications for

business and residential customers. For ADSL services, it is not necessary expensive new cabling or condition

the line in any way.

ADSL greatly increases the signal carrying capacity of copper telephone lines without interfering with regular

telephone services. For the ADSL user, this means faster downloads and more reliable connectivity. ADSL

devices make it possible to enjoy benefits such as high-speed Internet access without experiencing any loss of

quality or disruption of voice/fax telephone capabilities.

ADSL provides a dedicated service over a single telephone line operating at speeds of up to 8 Mbps downstream

and up to 640 Kbps upstream, depending on local telephone line conditions. A secure point-to-point connection

is established between the user and the central office of the service provider.

D-Link ADSL devices incorporate the recommendations of the ADSL Forum regarding framing, data format,

and upper layer protocols.

Modem Description and Operation

The DSL-302G ADSL Ethernet Modem is easy to install and use. You can use the Modem to connect one

computer using its Ethernet interface, and another computer using the USB interface. The Modem can be

managed through either interface. Once the Modem has been set up, the Ethernet port can be used by any

Ethernet enabled computer to connect to the Internet. To use the USB port, a special device driver must be

installed on any computer connecting to the Modem through the USB interface.

Modem Features

The DSL-302G ADSL Ethernet Modem utilizes the latest ADSL enhancements and technologies to provide a

reliable Internet portal suitable for most small to medium sized offices.

• Flexible Connectivity Choose either the USB port or the Fast Ethernet port to connect

• Multiple User Support Both port can be used simultaneously to connect two computers

• Plug and Play USB Installation The USB driver installs automatically

• Bridged Ethernet over ATM Support The DSL-302G supports RFC 1483

• Installation Wizard The easy-to-use configuration utility connects you quickly

• Auto-detect Function The device complies with the most common standards used for ADSL

connection and automatically selects the correct connection type during the initialization process

• MIB Support Built-in MIBs allow SNMP management functions

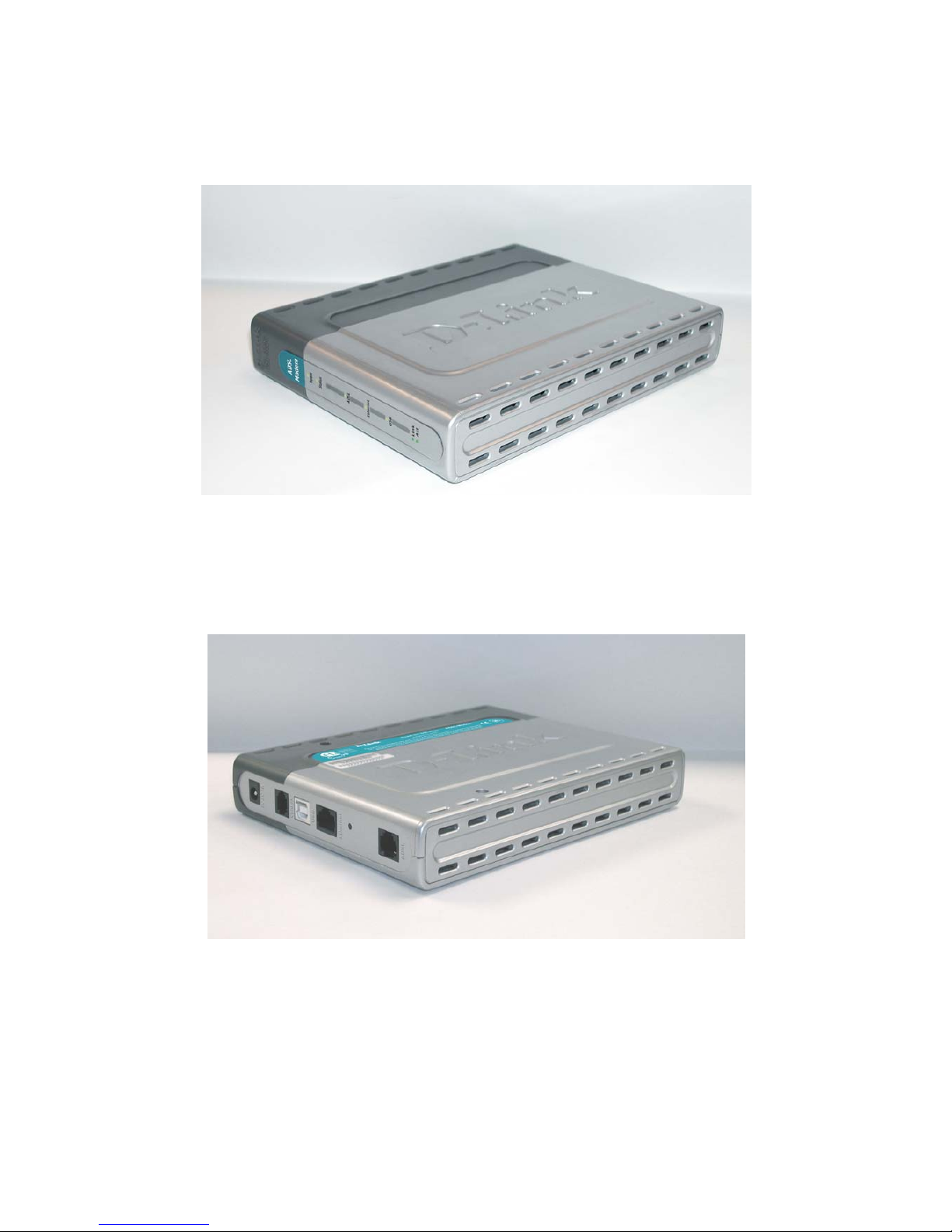

Front Panel

Place the Modem in a location that allows a view of the LED indicators. To save space you can use the feet to

stand the device on either its right or left side.

Front Panel

Rear Panel

All cable connections to the Modem are made at the rear panel. The factory reset button is located here as well.

Rear Panel

DSL-302G ADSL Ethernet Modem User’s Guide

LED Indicators

The LED Indicators read as follows:

Power Steady green light indicates the unit is powered on.

Status Lights steady green during the ADSL negotiation phase & connection stage.

ADSL: Link Steady green light indicates a valid ADSL connection. This will light after the ADSL

negotiation process has been settled.

ADSL: Act Blinking green light indicates an active WAN session.

Ethernet: Link Steady green light indicates a valid Ethernet connection.

Ethernet: Act Blinking green indicates an active Ethernet session.

USB: Link Steady green light indicates a valid USB connection.

USB: Act Blinking green indicates an active USB session

Packing List

Open the shipping carton and carefully remove all items. In addition to this User's Guide, ascertain that you have:

1. One DSL-302G ADSL Ethernet Modem

2. One DSL-302G tool kit on CD-ROM containing Autorun Utility, USB Drivers, DSL- 300 Family

Configuration Utility & This User’s Guide file

3. One twisted-pair telephone cable used for ADSL connection

4. One straight-through Ethernet cable

5. USB cable

6. One AC power adapter suitable for your electric service

7. Two feet used to stand Modem on end

8. Four feet used to flat Modem steady

9. Quick Install Guide

Hardware Installation

This chapter describes the various network cable and power connections required to use the Modem.

Modem Location

When selecting the location for the Modem be sure to allow room to access the connections on the rear panel.

You will want to place the Modem so that you will be able to see the LED indicators on the front panel. Allow

some space above the Modem for ventilation to avoid problems with overheating.

The Modem package includes two feet that can be used to stand the unit on one side if you wish to save space.

Connect the Power

Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Modem and plug

the adapter into a nearby power source. You should see the Power LED indicator light up and remain lit.

Connect ADSL Line

You can use the twisted-pair telephone ADSL cable included with the Modem to connect to your telephone line.

Simply plug one end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Modem, and

insert the other end into the telephone wall socket or low pass filter, as instructed by your service provider.

Connect Modem to Computer

The Modem may be connected to any Ethernet-ready computer or any computer with a USB port. An Ethernet-

ready computer includes any PC or notebook computer with a working 10Mbps or 100Mbps Ethernet port.

Connect to the Ethernet port with a straight-through Ethernet cable (included). The RJ-45 Ethernet port is an

MDI-X (crossed) port, and can be connected to an MDI-II (straight-through) port, such as an Ethernet port on a

computer, with a straight-through cable. Connecting an MDI-X port to another MDI-X port requires either a

cross-wired cable or a straight-through cable used with a cross-wired adapter.

The rules governing Ethernet cable lengths apply to the computer-to-Modem connection. Be sure that the cable

connecting the computer to the Modem does not exceed 100 meters.

Any computer using the USB port to connect to the Modem requires additional drivers specific to the Modem.

See the instructions in the section titled USB Drivers.

DSL-302G ADSL Ethernet Modem User’s Guide

Software Installation

In order to install the software driver for the Modem, you first need to install the DSL-300 Configuration Utility,

D-Link’s GUI based management software. This software can later be used to monitor the device or change its

settings. Install the Configuration Utility software on the PC directly connected to the device via either the

Ethernet or USB interface.

In order to install the Configuration Utility on a computer using the USB interface, two additional drivers must

be installed. A special USB driver and an Ethernet client driver must first be installed on the computer. It is

then necessary to configure the Ethernet client driver. Read the instructions in the section titled USB Driver if

you are configuring the Modem using the USB interface.

Install the Modem Configuration Utility

Install the Configuration Utility software by inserting the setup CD-ROM disc into your CD-ROM drive and

wait for the following screen prompts to appear:

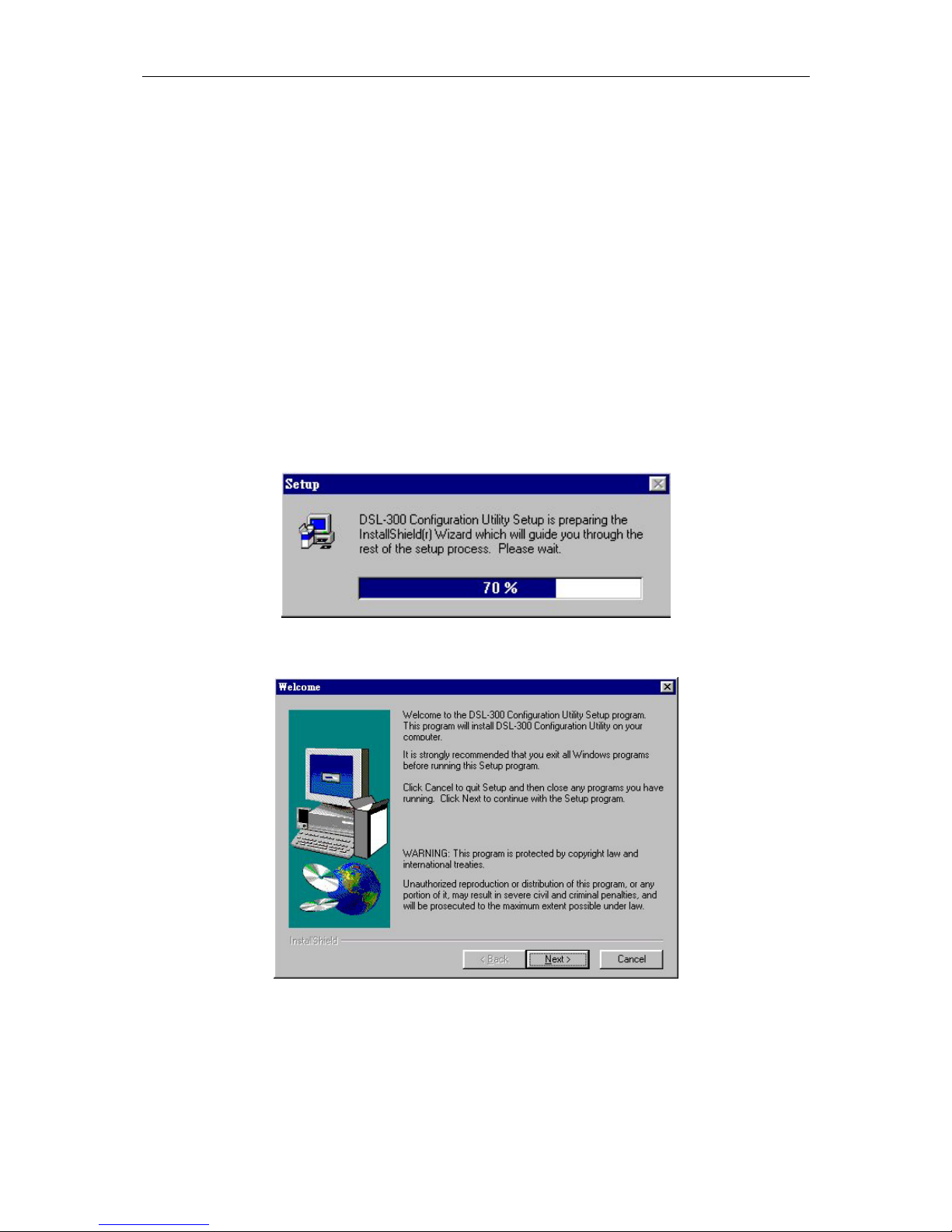

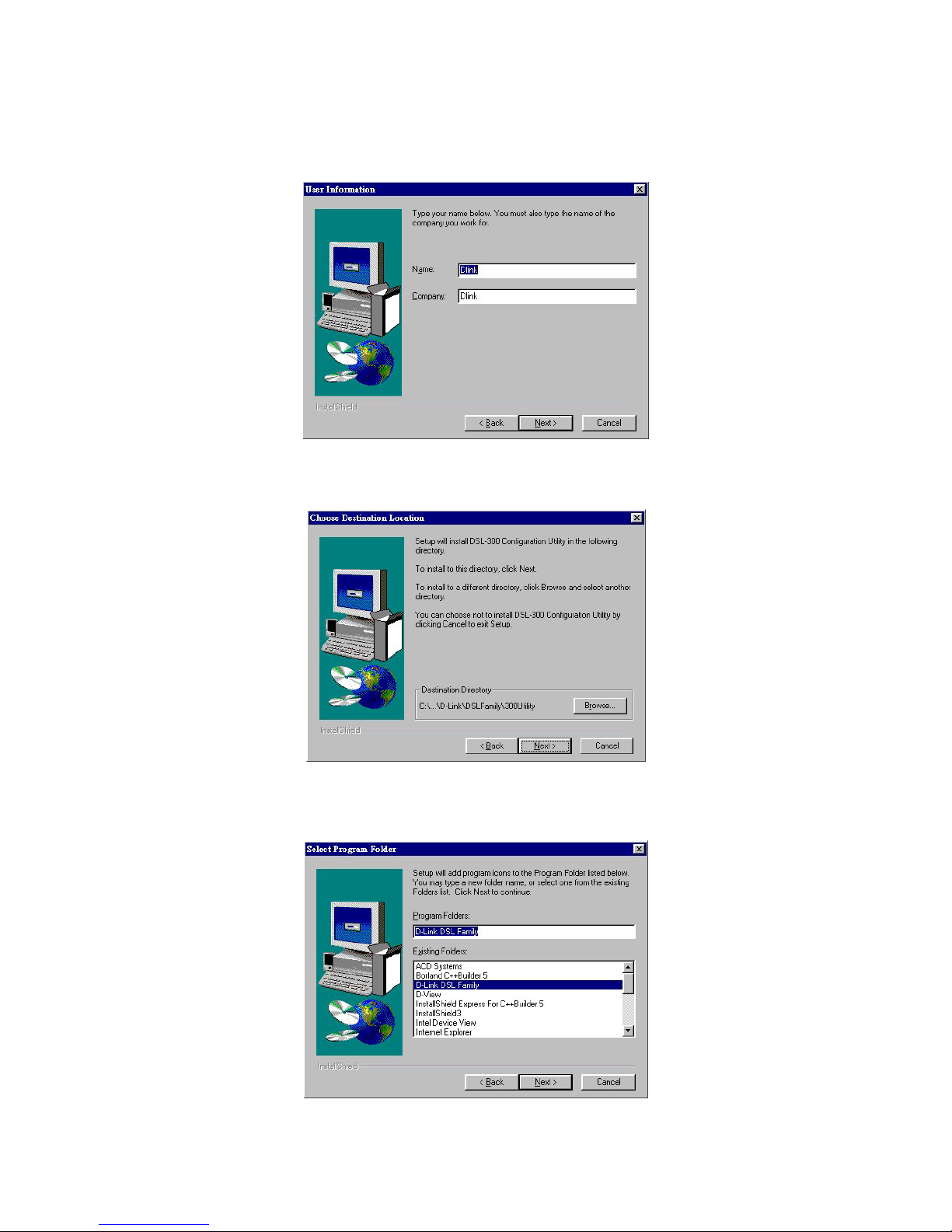

1. The Setup window informs you that it is preparing the “InstallShield Wizard”.

2. The Welcome window recommends exiting all other programs before starting the setup procedure. If you do

not wish to close other programs click Cancel, otherwise quit all other programs and click Next.

3. The User Information window asks you for your name and company name. Enter this information in the

appropriate field and click Next.

4. In the Choose Destination Location window you may accept to install the Configuration Utility in the

automatically chosen directory by clicking Next. Or you can click Browse if you wish to select a different

directory.

5. The Select Program Folder window asks you to select a different folder or you can rename the D-Link DSL

Family folder that has been created for the program icon. You can rename the folder by typing in a new

name in the “Program Folder:” field. Click Next to continue.

DSL-302G ADSL Ethernet Modem User’s Guide

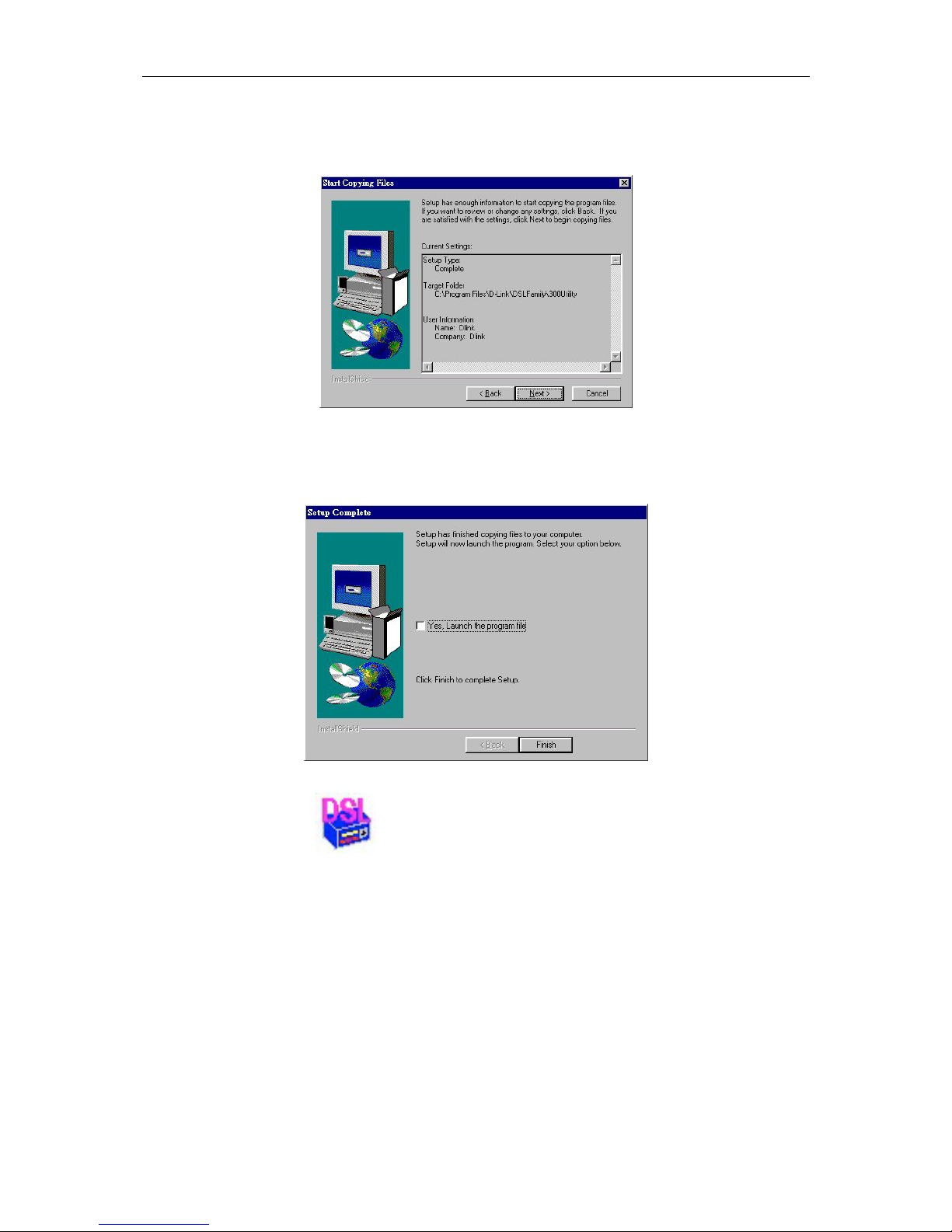

6. The Start Copying Files window provides an opportunity to review the information you have just entered. If

you are satisfied with the information as it is listed, click Next. If you need to change any of the

information click Back to go to the previous window(s) to make the changes.

7. In the Setup Complete window you are presented with the option to launch the Configuration Utility

program. If you wish to start the program now, click in the vacant box next to the “Yes, Launch the program

file” option. A check mark (√) should appear in the box indicating it has been selected. Click Finish to

launch the Configuration Utility.

A Configuration Utility icon should now be seen on your desktop screen.

Otros manuales para DSL-302G - 8 Mbps DSL Modem

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Módem de D-Link

D-Link

D-Link DWA-182 Manual de usuario

D-Link

D-Link DSL-300T Manual de usuario

D-Link

D-Link DSL-2544N Guía de configuración

D-Link

D-Link DSL-310 Manual de usuario

D-Link

D-Link DCM-201 Manual de usuario

D-Link

D-Link DSL-300T Manual de usuario

D-Link

D-Link DSL-2740E Manual de usuario

D-Link

D-Link DCM202 - Express Ethernetwork DOCSIS 2.0 Cable... Manual de usuario

D-Link

D-Link DSL-100D Manual de usuario

D-Link

D-Link SL2730EV1 Manual de usuario

D-Link

D-Link DSL-2640R Manual de usuario

D-Link

D-Link DCM-100 Manual de usuario

D-Link

D-Link DCM202 - Express Ethernetwork DOCSIS 2.0 Cable... Manual de usuario

D-Link

D-Link DFM-562E - 56 Kbps Fax Manual de usuario

D-Link

D-Link DWA-182 Manual de usuario

D-Link

D-Link DCM-301 Manual de usuario

D-Link

D-Link DSL-G604T Manual de usuario

D-Link

D-Link DSL-300I - DSL 300 - 8 Mbps Modem Manual de usuario

D-Link

D-Link DSL-2320B - 24 Mbps DSL Modem Manual de usuario

D-Link

D-Link DMW-221 Manual de usuario

D-Link

D-Link DWM-311 Manual de usuario

D-Link

D-Link Verizon DSL-2750B Manual de usuario

D-Link

D-Link DWR-910M Manual de usuario

D-Link

D-Link DSL-526B Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
