D-Link DCS-2330L Manual de usuario

DCS-2330L

Quick Install Guide

Outdoor HD Wireless Network Camera

If any of the above items are missing, please contact your reseller.

DCS-2330L Outdoor HD Wireless Network Camera

Power Adapter

Package Contents

CAT5 Ethernet Cable

Quick Install Guide

Minimum Requirements

Mobile Device

• iPhone, iPad, or Android smartphone or tablet

(Refer to the mobile app’s store page to see if your device is compatible)

Network Device and Service

• A wireless router (802.11ac/n/g) with Internet service

• An e-mail account (required to create a mydlink® account)

* If you use a mobile device with the mydlink Lite app, a PC is not required for

setup. Refer to Setting up Your Camera on page 4.

ENGLISH

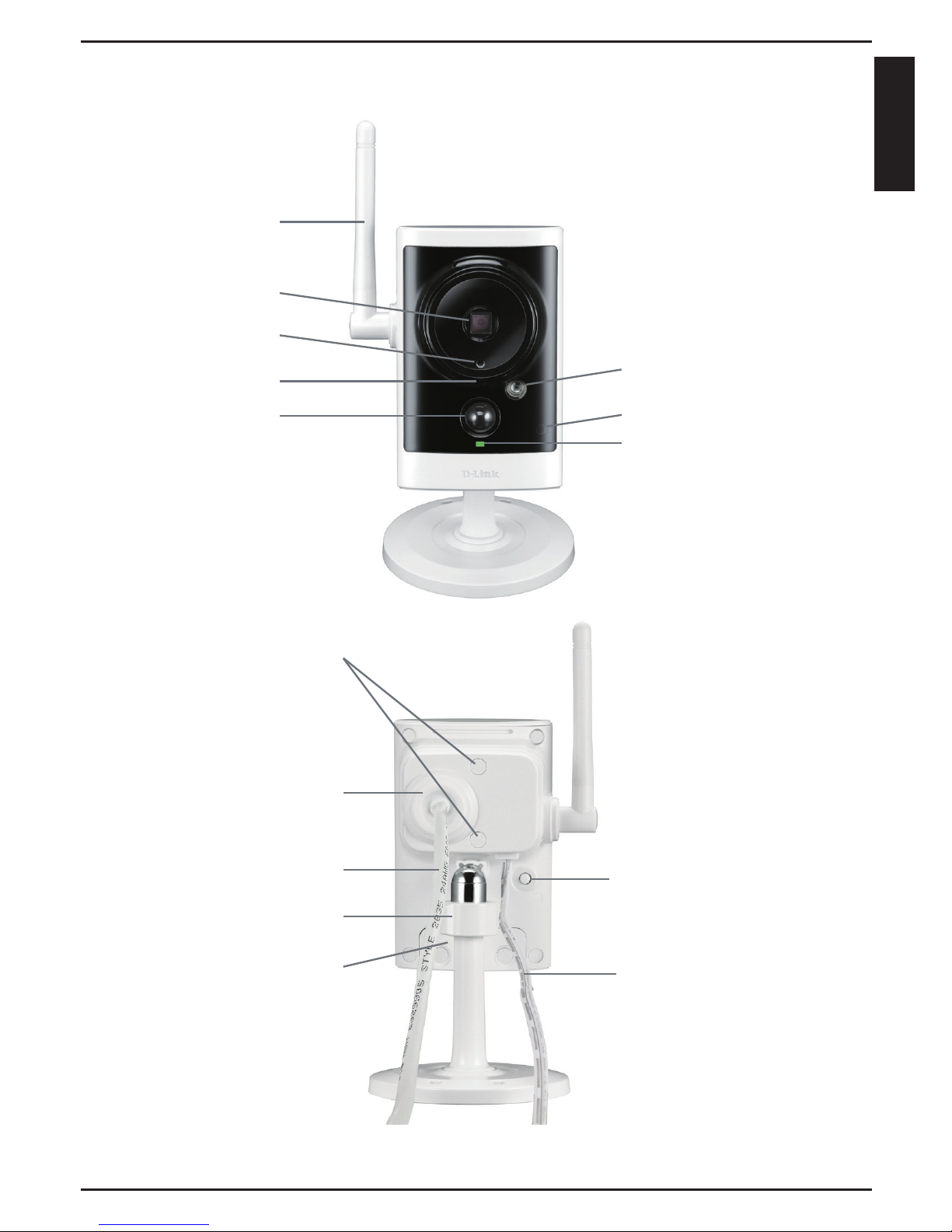

Camera Lens

Microphone IR LED

Power/Status LED

PIR Sensor WPS Status LED

Light Sensor

Antenna

Power Cable

Ethernet Cable WPS Button

Weatherproof Cover

Adjustment Ring

Weatherproof Cover

Weatherproof Screw

Coverings

Product Overview

Front

Back

ENGLISH

Setting Up Your Camera

System Requirements: Refer to the mydlink Lite app page on Apple App Store, Google Play or Windows Phone Store.

Once the mydlink Lite app is installed, tap on the icon to open the app.

Download the free mydlink Lite app on your smartphone or tablet.

3Refer to either New mydlink User or Existing mydink User on the next page.

ENGLISH

If you do not have a mydlink account, tap If you are a new user tap here located

under the Sign In button.The app will guide you through the conguration and

account creation process.

Once you log in, tap the Local icon followed by Add Camera. The app will then

guide you through the conguration process.

New mydlink User

Existing mydlink User

ENGLISH

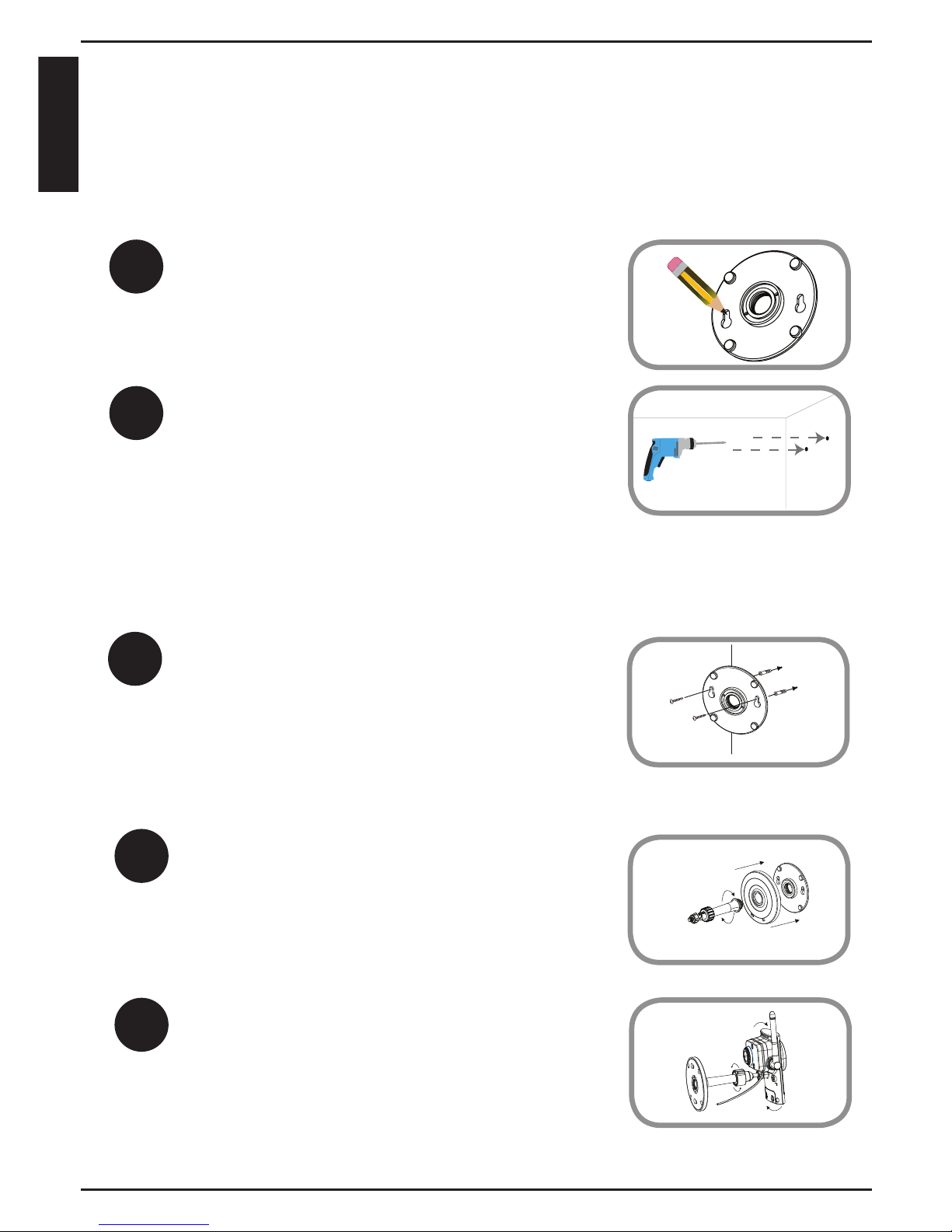

Mount the Camera

Refer to the steps below to assist you with mounting the camera.

We recommended that you congure the camera rst, before mounting it.

Place the mounting plate where you want

to position the camera and mark the holes

where you will place the screws.

Depending on the material of the wall or

ceiling, use the proper tools to drill two

holes where you drew the marks.

Note: If the wall is made out of concrete, drill

the holes first and insert the plastic anchors to

support the screws.

3When you place the mounting plate over

the holes that you drilled in the wall, make

sure you align the holes. Use the supplied

screws to attach the mounting base to the

surface of the wall.

4Place the mounting base cover on the

mounting plate. Reattach the camera

mount onto the mounting base by holding

the camera mount and twisting the camera

mount clockwise into the mounting base.

Adjust the direction of the camera as

desired, then tighten the collar on the

camera mount to lock it in place.

ENGLISH

1. What is a mydlink No.? What is it used for?

Each camera has a unique eight-digit mydlink No. which will be shown on

the label on the back of your camera. This eight-digit number identies

your device, and is required to add your device to your mydlink account.

2. What can I do if my DCS-2330L is not working correctly?

• Reset the camera (see next step) and run the setup steps starting

on page 4 again.

• To make sure your hardware is installed correctly, make sure that:

- the power LED is solid green

- your Internet connection is working

- your router’s LAN & WAN connections are working

- your router supports UPnP®

- your camera is on the same network as your mobile device/PC

- both your mobile device/PC and camera have a working Internet

connection

• If your camera is still not working, check your router and make sure it

has the latest rmware.

3. What can I do if I forget my password?

FAQs

If you forget your password, you must reset the

camera. Unfortunately, this process will change

your settings back to factory default. To reset the

camera, locate the reset button on the back of

the camera. With the camera powered on, use an

unfolded paper clip to hold the button down for

10 seconds. Run the setup procedure located on

page 4 once the camera restarts.

4. Why is there a white haze when viewing in night vision mode?

When viewing in night vision mode, the IR lights on the camera may be

reecting o a nearby surface. Try repositioning the camera in order to

avoid glare from IR LEDs.

Reset button

located under

the weather

proof cover.

ENGLISH

Technical Support

This guide is only for the rst time conguration. Please refer to the

user manual to learn more or visit http://www.mydlink.com for more

information. Also feel free to contact us. U.S. and Canadian customers

can contact D-Link Technical Support through our website.

http://support.dlink.com

USA

http://support.dlink.ca

Canada

Version 1.1

March 10, 2015

RMN0101123

Corporation or its subsidiaries. Other trademarks are the property of their respective owners. Maximum

wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput

will vary. Network conditions and environmental factors, including volume of network trac, building

materials and construction, and network overhead, lower actual data throughput rate. Environmental

factors will adversely aect wireless signal range. Product specications, size and shape are subject to

change without notice, and actual product appearance may dier from that depicted on the packaging.

Visit dlink.com (US) or dlink.ca (Canada) for more details.
