D-Link DU-CV Manual de usuario

DU-CV

USB Video Capture Device

User’s Manual

Rev.04 (April,2001)

M20010402

Print in Taiwan

Table of Contents

Introduction…………………………………….

System Requirement………………………..

USB Video Capture Device Diagram………

Hardware Installation………………………

Driver and Utility Installation……………...

Set Video Capture Filter ,Video Pin & Video

Crosssbar……………………………………….

Set Video Crossbar…………………………….

Snapshot………………………………………..

Uninstalling The USB Video Capture Device

Specifications…………………………………

Connection Diagram………………………

Installing Video Capture Application…………... 18

Introduction

Thank you for the purchase of the USB Video Capture Device.

Applying state of the art technology, the USB Video Capture

Device attached through either RCA jack or S-Video to a

camcorder, VCR, DVD allowing the user to perform basic features

of a USB grabber and comes with a snapshot button to capture

images for multimedia applications. It can be used with any PC

with Windows OS and comes bundled with a full line of software

for video and image editing functions.

System Requirement

Pentium 133 or above CPU, Pentium II 350 recommended

32 MB of system RAM

One USB port

Microsoft Windows 98 or above

20MB hard disk space

USB Video Capture Device Diagram

Snapshot Button

USB Connector

Composite RCA Connector

S-Video

Connector

Hardware installation

Plug in the USB adapter of the Video Capture Device into the

USB port on your PC or any USB hub attached to the PC.

Note:

The Add New Hardware Wizard will start automatically once the

Video Capture Device has been plugged in.

The LED indicator of the Video Capture Device will be active

after the USB host controller detects the USB device properly.

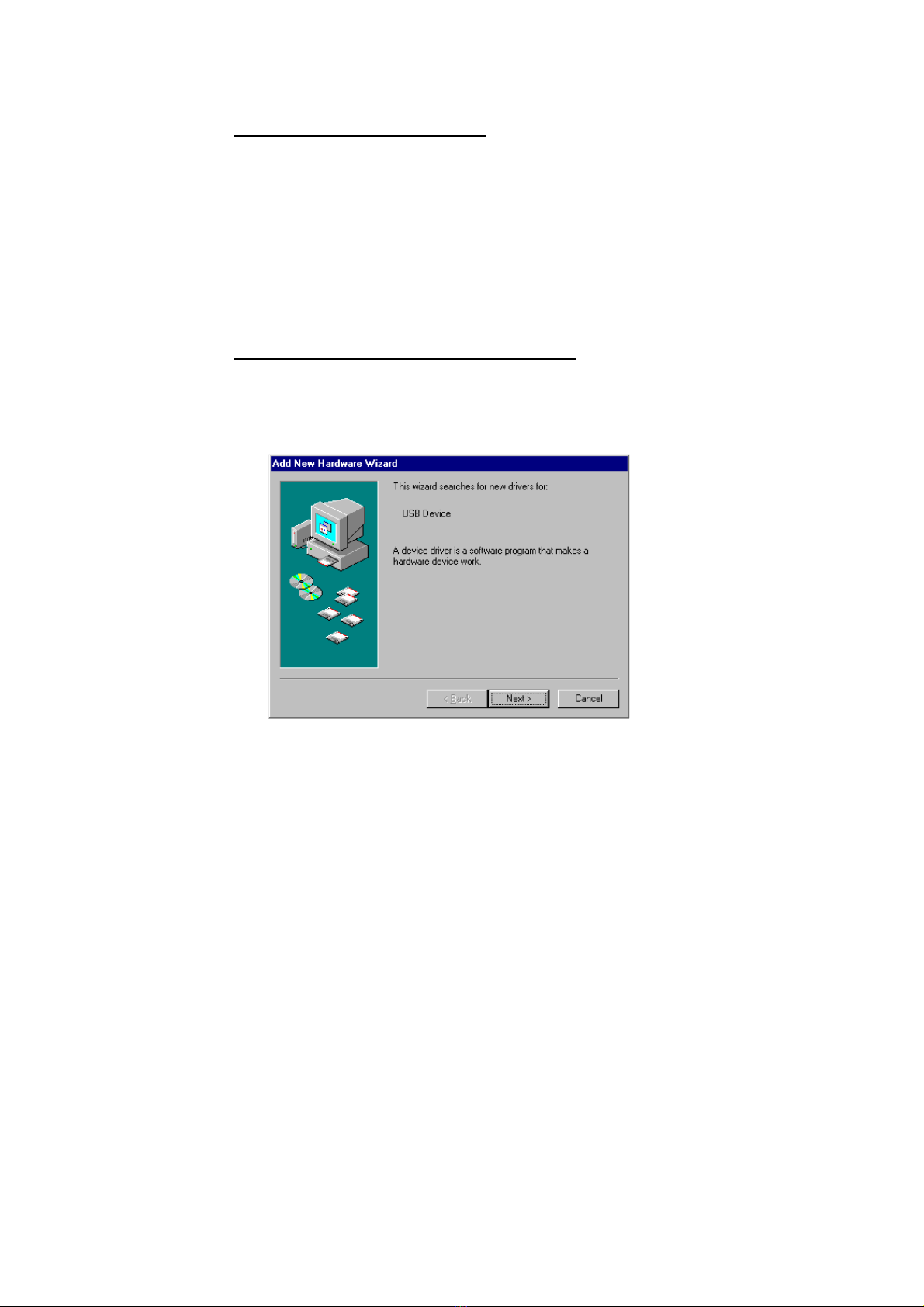

Driver and Utility installation

Once the USB Video Capture Device has been installed, Windows

will detect the device and prompt “Add New Hardware Wizard”

dialog box on the screen. Click on Next button to continue.

Select the “Search for the best driver for your device” and click

on the Next button.

Select the “Floppy disk driver” and insert the driver diskette that

came with the USB Video Capture Device into the floppy drive.

Then click on the Next button.

Click on the Next button, then Windows will copy all required

files from the driver diskette to the system.

Click on the Finish button to complete the driver installation.

Once the driver installation is completed, the USB Video Capture

Device can be executed by selecting the “Amcap” icon in Drive

A: as illustrated below:

Note:

Please be reminded to activate the USB Video Capture Device.

You need to select “Device” from the menu bar and in the

selection item choose “D-Link USB Video Capture Device”.

Also to initiate preview you need to select “Options” from the

menu bar and in the selection item choose “Preview”.

It is advisable to create a short-cut on your desk top for easier

access in future usage.

Set Video Capture Filter, Video Pin &

Crossbar

The driver provides “Video Capture Filter” and “Video Capture

Pin” and “Video Crossbar” options to adjust quality, format for

display and video source.

Set Video Capture Filter

When you run the video application software, such as the USB

Video Capture Device, select the “Options” menu then choose

“Video Capture Filter”.

The Properties dialog box appears with 4 different choice of

1. Video Decoder

2. Advanced

3. Camera Control

4. Video Proc Amp
