D-Link DWA-645 Manual de usuario

Quick Install Guide

Wireless Notebook Adapter

Version 1.0

DWA-645

• A notebook computer with an available 32-bit Cardbus Type II slot

• Windows® XP SP2 or Windows 2000 SP4

• 20MB Hard Disk Space

• CD-ROM Drive

• An 802.11g or 802.11b access point (for Infrastructure mode), or

another 802.11n or 802.11g wireless adapter (for Ad-Hoc mode.)

Package Contents

D-Link DWA-645

Wireless Notebook Adapter

System Requirements

If any of the above items are missing, please contact your reseller.

Manual, software, and

warranty on CD

Hardware Overview

Activity LED

A blinking light indicates data is

being transmitted.

Link LED

A steady light indicates a connection to

a wireless network.

Wireless Installation

Considerations

The D-Link wireless adapter lets you access your network using a wireless

connection from virtually anywhere within the operating range of your wireless

network. Keep in mind, however, that the number, thickness and location of

walls, ceilings, or other objects that the wireless signals must pass through,

may limit the range. Typical ranges vary depending on the types of materials

and background RF (radio frequency) noise in your home or business. The

key to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link adapter

and other network devices to a minimum - each wall or ceiling can

reduce your adapter’s range from 3-90 feet (1-30 meters.) Position

your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that

is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be

almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42

feet (14 meters) thick! Position devices so that the signal will travel

straight through a wall or ceiling (instead of at an angle) for better

reception.

3. Building Materials make a difference. A solid metal door or aluminum

studs may have a negative effect on range. Try to position access

points, wireless routers, and computers so that the signal passes

through drywall or open doorways. Materials and objects such as

glass, steel, metal, walls with insulation, water (ﬁsh tanks), mirrors, ﬁle

cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from

electrical devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products

such as ceiling fans, lights, and home security systems), your

wireless connection may degrade dramatically or drop completely.

Make sure your 2.4GHz phone base is as far away from your

wireless devices as possible. The base transmits a signal even if

the phone in not in use.

Adapter Installation

Warning: Do NOT install the DWA-645 Cardbus Adapter into your

computer before installing the driver software from the D-Link CD.

Turn on the computer and Insert the D-Link DWA-645 Driver CD in the

CD-ROM drive. The step-by-step instructions that follow are shown

in Windows XP. The steps and screens are similar for the other

Windows operating systems.

If the CD Autorun function does not automatically start on your

computer, go to Start > Run. In the run box type “D:\DWA645.exe”

(where D: represents the drive letter of your CD-ROM drive).

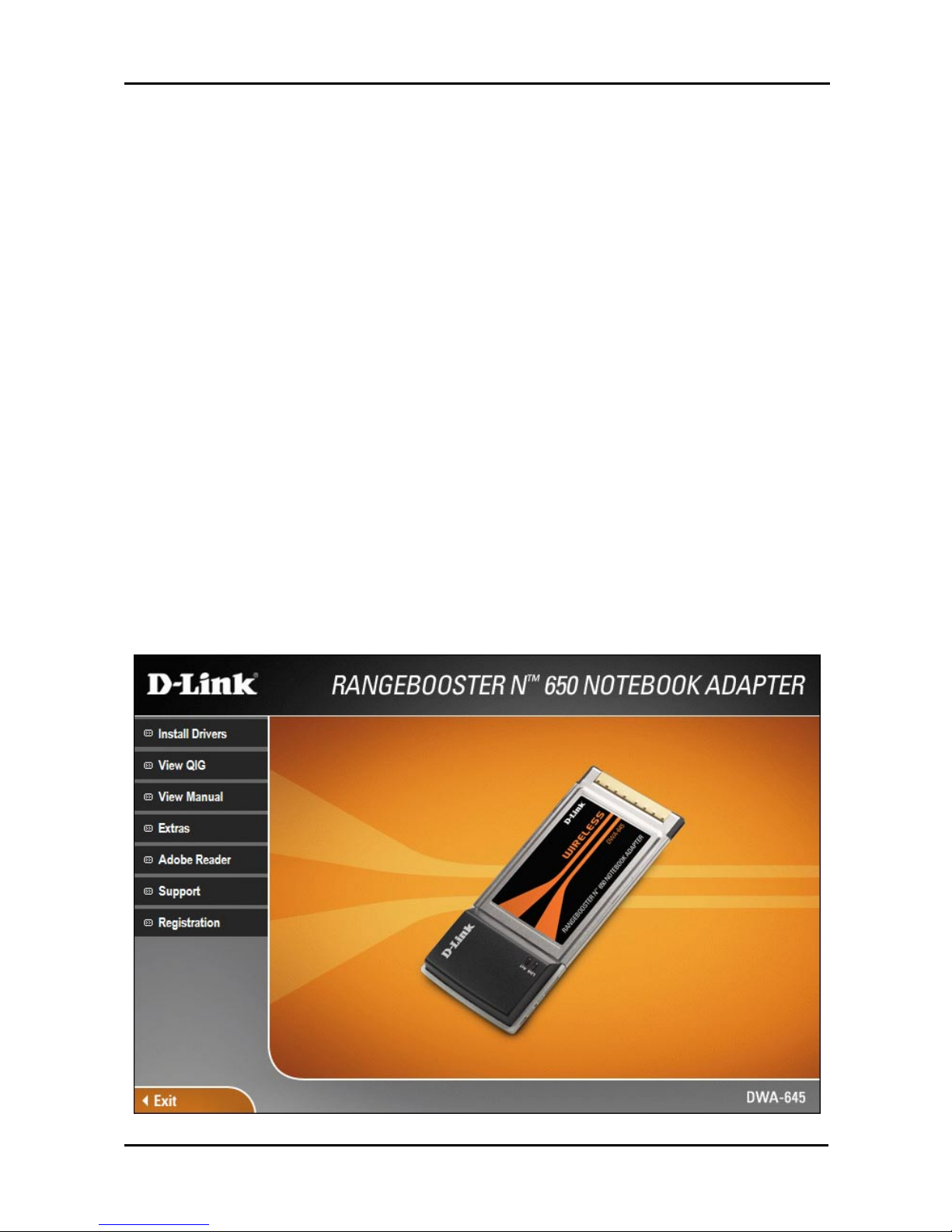

When the autorun screen appears, click Install Drivers.

The InstallShield Wizard window

will appear.

By default setup will install to

the default location: C:\Program

Files\D-Link\DWA-645, where C:

represents the drive letter of your

hard drive. To install to a different

location click Browse and specify

the location.

Select the Program Files folder

location.

Click Next

The D-Link conﬁguration wizard

will now appear.

If you are using Windows® XP

(SP2), you will have the option to

use either the D-Link utility or the

built-in Windows® Wireless utility.

Insert the adapter into an available

cardbus slot on your computer.

If the Found New Hardware Wizard

appears, click Cancel.

Enter the network name (SSID)

manually. If you enter the SSID

incorrectly, you will automatically

be brought to the site survey page.

Click Scan to display the site

survey page.

Click Next

Click on the network name (SSID)

and click Next.

Click Finish to continue. If you are

prompted to reboot your computer,

select Yes, I want to restart my

computer now.

Click Next

Click Finish

Connect to a Wireless Network

The D-Link DWA-645 uses the Wireless Connection Manager

as the management software. The manager provides the user

an easy interface to change any settings related to the wireless

adapter. Clicking on the D-Link icon on your desktop will start the

Conﬁguration.

If you are using the Windows® XP Wireless Zero Conﬁg, please skip

to page 11.

This window will allow you to see available wireless networks in your

area. Simply click the network (SSID) you want to connect to and

click the Connect button.

If you are attempting to connect to a secure network, You must supply

the encryption key that is on the router or access point you are trying

to connect to.

Please refer to the manual on the CD for more information on Wireless

Security.

If the network you are connecting to is using WEP, enter the WEP

key for the network and click OK.

If the network you are connecting to is using WPA-PSK, enter the

passphrase for the network and click OK.
