D-Link DHP-600AV Manual de usuario

User Manual

DHP-600AV/DHP-601AV

Version 2.0 | 12/10/2014

PowerLine AV2 1000 Gigabit Adapter/

PowerLine AV2 1000 Gigabit Adapter starter kit

2D-Link DHP-600AV/DHP-601AV User Manual

D-Link reserves the right to revise this publication and to make changes to the content herein without obligation to notify any

person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of

their respective companies.

from D-Link Corporation, Inc.

Revision Date Description

1.0 May 27, 2013 • Initial release for hardware revision A1

2.0 December 10, 2014 • Hardware revision B1

Preface

3D-Link DHP-600AV/DHP-601AV User Manual

Table of Contents

Product Overview.............................................................. 4

Package Contents...............................................................4

System Requirements........................................................4

Introduction.........................................................................5

Features................................................................................5

Hardware Overview ...........................................................6

LEDs........................................................................................... 6

Connection ............................................................................. 7

Hardware Installation ....................................................... 8

Push Button Security .........................................................9

PowerLine Installation Considerations........................ 12

Important Safety Instructions....................................... 13

Troubleshooting ..............................................................14

Technical Specications..................................................15

Contacting Technical Support ........................................16

Warranty...........................................................................17

Registration .....................................................................18

4D-Link DHP-600AV/DHP-601AV User Manual

Section 1 - Product Overview

DHP-600AV

• D-Link DHP-600AV PowerLine AV2 1000 Gigabit Adapter

• Ethernet Cable

• Quick Install Guide

DHP-601AV

• Two D-Link DHP-600AV PowerLine AV2 1000 Gigabit Adapters

• Two Ethernet Cables

• Quick Install Guide

System Requirements

• At least two available outlet

• Gigabit Ethernet-enabled device such as game console, laptop, desktop and TV setupbox

Product Overview

Package Contents

5D-Link DHP-600AV/DHP-601AV User Manual

Section 1 - Product Overview

Introduction

The DHP-600AV is a fast, 1000 Mbps1PowerLine AV2 1000 Gigabit Adapter which allows you to connect your home computers,

networking devices, and gaming devices through the most pervasive medium in your house - the electric powerlines - and

share Internet connections and printers, transfer les, play games, and more.2

Features

• Provides Ethernet to PowerLine Connection

• Fast Data Transfer Rate of Up to 1000 Mbps1

• One Gigabit Ethernet Port

• Plug & Play, Easy Installation

• Push Button Security

6D-Link DHP-600AV/DHP-601AV User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

Ethernet LED

• Solid. The Ethernet port is linked.

• O. There is no Ethernet connection.

Powerline LED

• Solid. The device is connected to a PowerLine network.

• Off. The device has not found any other compatible

PowerLine devices using the same encryption key.

The color indicates the PowerLine link rate:

• Green. The PowerLine link rate is excellent.

• Amber. The PowerLine link rate is good.

• Red. The PowerLine link rate is fair.

Power LED

• Solid. The device is receiving electrical power.

• Blinking. The device is setting itself up after reset or

simple connect button was pressed.

• O. The device is not receiving electrical power.

7D-Link DHP-600AV/DHP-601AV User Manual

Section 1 - Product Overview

Hardware Overview

Connection

Simple Connect Button

Press to secure your network or reset

your device back to the factory default

settings. Refer to “Push Button Security”

on page 9 for more information.

Reset Button

Press and hold the button for 10 seconds

to reset to the factory default settings.

Gigabit Ethernet Port

Connect a CAT5 Ethernet cable to your

PC or Ethernet device.

8D-Link DHP-600AV/DHP-601AV User Manual

Section 2 - Installation

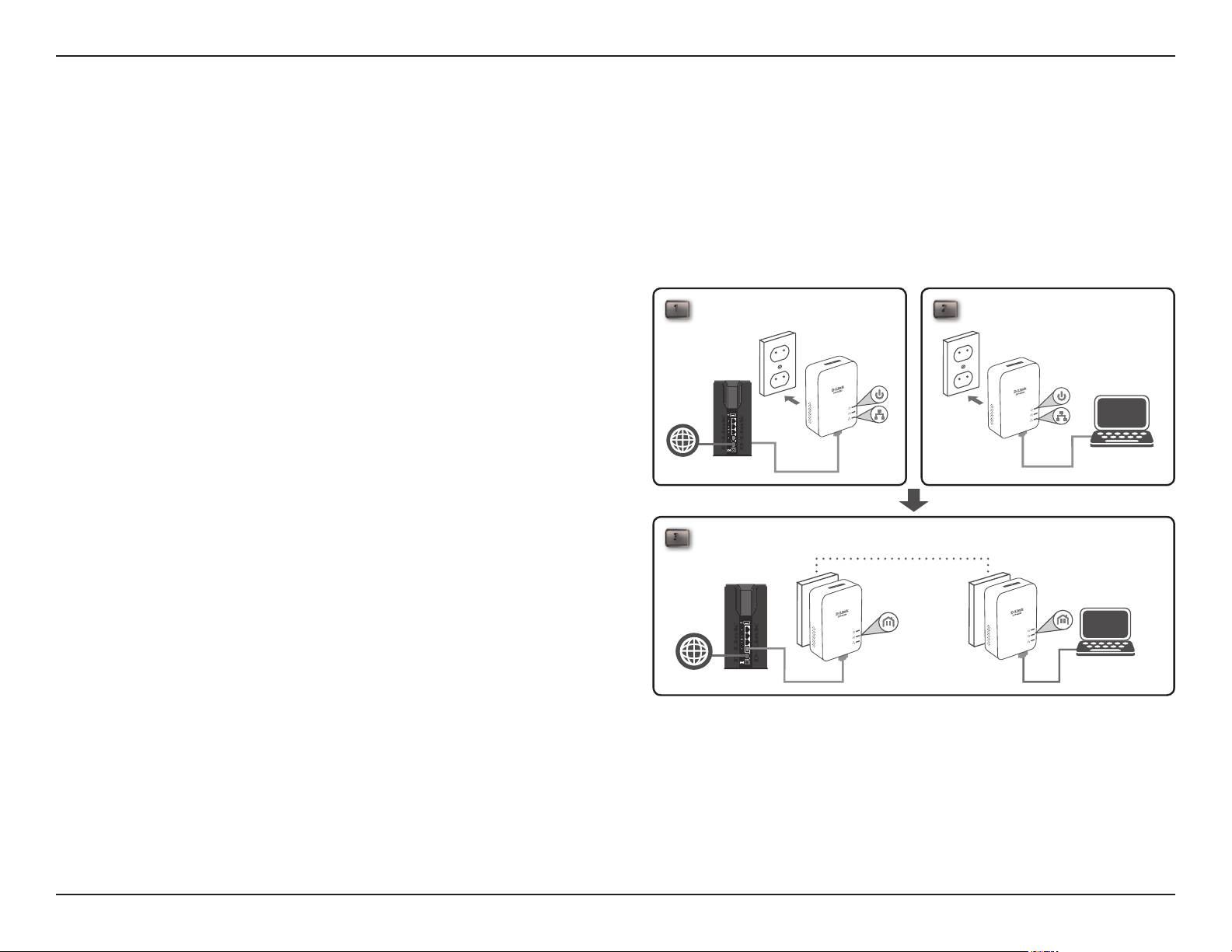

Hardware Installation

Power

Plug the DHP-600AV into an AC wall outlet or power strip.

Note:Power supply is conrmed when the Power LED on the DHP-600AV is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to the network cable

connector located on the DHP-600AV and attach the other

end of the Ethernet cable to the network or PC. Network

connectivity is conrmed when the Ethernet LED on the

DHP-600AV is illuminated.

DHP-600AV

3ROOM A ROOM B

DHP-600AVDHP-600AV

1 2

ROOM A ROOM B

RouterInternet

DHP-600AV

RouterInternet

9D-Link DHP-600AV/DHP-601AV User Manual

Section 2 - Installation

Understanding PowerLine AV2 1000 Gigabit Adapter Security

The PowerLine AV2 1000 Gigabit Adapters on the same network must use an identical encryption key. The default encryption

key of each PowerLine AV2 1000 Gigabit Adapter is HomePlugAV. All PowerLine AV2 1000 Gigabit Adapters with the default

encryption key can communicate with each other.

It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to

protect your network from unauthorized access via the PowerLine network. To create a private encryption key instead of the

default encryption key, please follow the steps below:

1. All Adapters

Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlugAV (default value). If

the encryption key is not set to the default value, press the reset button for 10 seconds to reset it to the default value.

2. First Adapter

Press Simple Connect Button of the rst adapter for no more than three seconds.

The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption

key that each PowerLine AV2 1000 Gigabit Adapter will use.

Push Button Security

10D-Link DHP-600AV/DHP-601AV User Manual

Section 2 - Installation

3. Second Adapter

Within two minutes of pushing the Simple Connect Button on the rst adapter, press the Simple Connect Button on second

adapter in your PowerLine network for no more than three seconds. The Power LED will start blinking after you release the

button.

Note: Both Simple Connect Buttons must be pressed within two minutes.

After the above network security setup steps, your PowerLine network will be securely congured with the same network

encryption key. The adapters will memorize the security settings even if they are unplugged.

Note: To change the private encryption key, please reset the adapter back to its default value by pressing the reset button for

10 seconds and then follow the security setup procedure above.

4. Adding More Adapters

If you would like to add more than two adapters, press the Simple Connect Button of the additional adapter for no more than

three seconds. The Power LED will start blinking after you release the button.

Then press the Simple Connect Button of any adapter in your existing PowerLine network for no more than three seconds.The

Power LED will start blinking after you release the button.

Note: Both Simple Connect Buttons must be pressed within two minutes.

After the above network security setup steps, your PowerLine network will be securely congured with the same network

encryption key.
