Cypress SIO-7300 Manual de usuario

Page 1

Ethernet SIO"

SIO-7300"

Serial Input and Output

Product Manual

Cypress Integration Solutions 35+ Years of Access Control Ingenuity CypressIntegration.com

SIO-7300_MAN 210108

Page 2

Speciﬁcations

Part Number

SIO-7300

UPC: 816684003066

Ethernet Serial Input Output Unit

Physical

Aluminum enclosure

4.50” x 3.07” x 2.02” / 0.445 lbs

Environmental

Storage Temperature

-40˚C to 100˚C

Operating Temperature

-30˚C to 60˚C

Electrical

Supply Voltage

8-16Vdc Current 300mA

SPDT Relays

Max Switching

220Vdc 30W (resistive) 1A / 250Vac 37.5VA 1A

Running Spec with load

30Vdc 1A (resistive) / 125 Vac 0.3A (resistive), 1x105 operations @ 20˚C

Data I/O

Interface

Wiegand (4 - 248 bits)

Strobed Rising (MR-5) (4 - 248 bits)

Strobed Rising (Dorado 644) (4 - 248 bits)

Strobed Rising (MagTek) (4 - 248 bits)

Strobed Falling (4 - 248 bits)

Unsupervised F/2F (4 - 248 bits)

Network

Speciﬁcations

Network Interface

RJ45 Ethernet 10Base-T or 100Base-TX (auto-sensing)

Compatibility

Ethernet: Version 2.0/IEEE 802.3 (electrical), Ethernet II frame type

Protocols Supported

TCP/IP, ARP, UDP/IP, ICMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, SMTP

Note: For standard use cases, the SIO-7300 uses TCP/IP

Cypress SIO-7300 - Speciﬁcations

Overview

The SIO-7300 is a TCP/IP device that supports Wiegand I/O, digital I/O, analog inputs and relay outputs, and is

controlled by a network controller using the SIO protocol. The SIO-7300 allows the use of a single Wiegand reader

without a traditional access control system. It can also be used as a remote Wiegand output device, controlled by a host

device on the network.

Page 3

Cypress SIO-7300 - Table of Contents

Topic

Page

Overview and Speciﬁcations

Dimensions

Pin Designations

Circuit Board Assembly Features

Status LED Behavior

RJ45 LED Behavior

Input Mode Wiring Diagram

Output Mode Wiring Diagram

DIP Switches

11-12

Conﬁguring Network Settings (Overview and Connecting to the SIO-7300)

13-15

Conﬁguring Network Settings (Connecting via Telnet)

16-19

Conﬁguring Network Settings (Connecting via web browser)

20-22

Conﬁguring Network Settings (Default network settings)

Packet Structure

Status Values

25-26

Reader Data Formats

Sample Packets

28-36

I/O Pins Overview

37-38

LED I/O

AUX I/O

40-41

Analog Inputs

42-43

Relay Outputs

44-45

Page 4

SIO-7300 Enclosure

Dimensions

Cypress SIO-7300 - Unit Dimensions

ø 0.120 X 4

3.065"

2.770"

4.0625"

2.660"

2.940"

SIO-7300

Dimensions in inches.

Page 5

Cypress SIO-7300 - Pin Designations

J1 - 2 pins

1 - Power (8-16V DC, 12V Nominal)

2 - Ground

J2 - 8 pins

1 - RS-485 A

2 - RS-485 B

3 - 5V DC (Output)

4 - Analog 2 (Input)

5 - Analog 1 (Input)

6 - LED (Input/Output)

7 - Wiegand Data 1 (Input/Output)

8 - Wiegand Data 0 (Input/Output)

J3 - 10 pins

1 - Relay 2 Normally Open

2 - Relay 2 Common

3 - Relay 2 Normally Closed

4 - Relay 1 Normally Open

5 - Relay 1 Common

6 - Relay 1 Normally Closed

7 - Ground

8 - AUX 1 (Input/Output)

9 - AUX 2 (Input/Output)

10 - AUX 3 (Input)

1 8 - 16VDC

2 Ground

Status LED

1 RS-485 A

2 RS-485 B

3 +5V Out

4 AN 2 IN

5 AN 1 IN

6 LED I/O

7 D1 I/O

8 D0 I/O

Relay 2 N.O. 1

Relay 2 COM 2

Relay 2 N.C. 3

Relay 1 N.O. 4

Relay 1 COM 5

Relay 1 N.C. 6

Ground 7

AUX 1 I/O 8

AUX 2 I/O 9

AUX 3 IN 10

SIO-7300

Page 6

Cypress SIO-7300 - Circuit Board Assembly Features

DIP Switches

J1 Header

Status LED

J2 Header

J3 Header

RJ45 Port

Heat Sink Screw

Page 7

Cypress SIO-7300 - Status LED Behavior

Status LED

Run Mode

Solid Red - SIO-7300 is powered on. "

Oﬀ- SIO-7300 is not powered on."

Conﬁguration Mode

Solid Green - SIO-7300 is powered on and conﬁguration settings have been applied."

Flashing Green - When the Network Settings are defaulted, the status LED will ﬂash green for approximately 8

seconds until the network settings are applied. When the default network settings and conﬁguration settings are

applied, the status LED will be solid green. "

Oﬀ- SIO-7300 is not powered on.

Page 8

Cypress SIO-7300 - RJ45 LED Behavior

Activity LED (right)

Link LED

(left)

RJ45 Port

Link LED (left)

Activity LED (right)

Color

Meaning

Color

Meaning

OFF

No Link

OFF

No Activity

Amber

10 Mbps

Amber

Half-Duplex

Green

100 Mbps

Green

Full-Duplex

Page 9

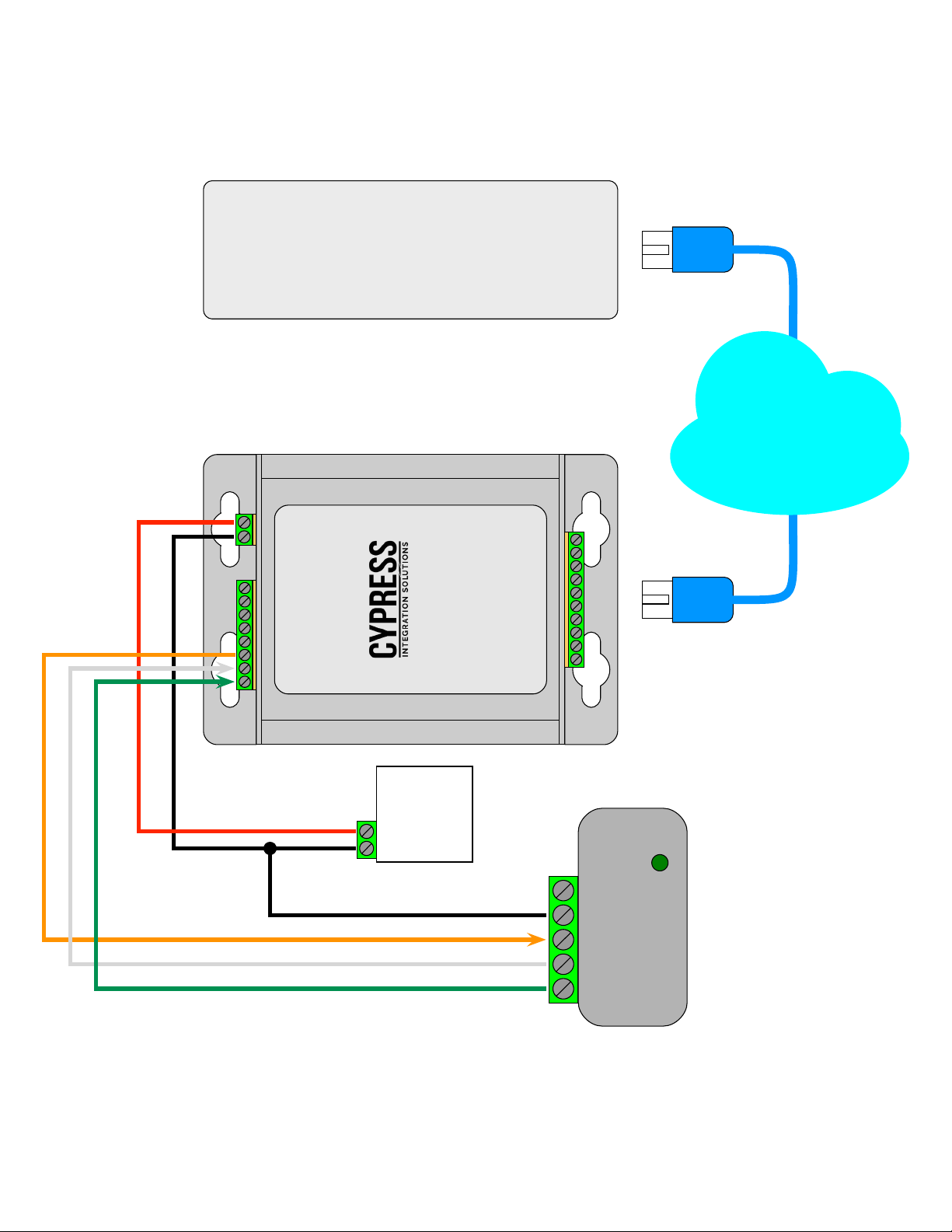

Cypress SIO-7300 - Input Mode Wiring Diagram

Card

Reader

Power

Ground

LED IN

Data 1

Data 0

1 8 - 16VDC

2 Ground

Status LED

1 RS-485 A

2 RS-485 B

3 +5V Out

4 AN 2 IN

5 AN 1 IN

6 LED I/O

7 D1 I/O

8 D0 I/O

Relay 2 N.O. 1

Relay 2 COM 2

Relay 2 N.C. 3

Relay 1 N.O. 4

Relay 1 COM 5

Relay 1 N.C. 6

Ground 7

AUX 1 I/O 8

AUX 2 I/O 9

AUX 3 IN 10

SIO-7300

Host Device

Network

DC Power

Supply

Power

Ground

Page 10

Cypress SIO-7300 - Output Mode Wiring Diagram

1 8 - 16VDC

2 Ground

Status LED

1 RS-485 A

2 RS-485 B

3 +5V Out

4 AN 2 IN

5 AN 1 IN

6 LED I/O

7 D1 I/O

8 D0 I/O

Relay 2 N.O. 1

Relay 2 COM 2

Relay 2 N.C. 3

Relay 1 N.O. 4

Relay 1 COM 5

Relay 1 N.C. 6

Ground 7

AUX 1 I/O 8

AUX 2 I/O 9

AUX 3 IN 10

SIO-7300

Host Device

Network

Ground

LED Out

Data1

Data 0

N.O.

COM

Access

Control

Panel

DC Power

Supply

Power

Ground
