CPRO-3D42S
4 by 2 HDMI Switcher with HEAC
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
LQWRDQ\ODQJXDJHRUFRPSXWHUÀOHLQDQ\IRUPRUE\DQ\PHDQV³
electronic, mechanical, magnetic, optical, chemical, manual, or
RWKHUZLVH³ZLWKRXWH[SUHVVZULWWHQSHUPLVVLRQDQGFRQVHQWIURP
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
$OZD\VIROORZEDVLFVDIHW\SUHFDXWLRQVWRUHGXFHWKHULVNRIÀUH
electrical shock and injury to persons.
7RSUHYHQWÀUHRUVKRFNKD]DUGGRQRWH[SRVHWKHXQLWWRUDLQ
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
VXIÀFLHQWVSDFHIRUDLUWRFLUFXODWHDURXQGWKHXQLW
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VS1 09/02/12 First Release
VR2 06/03/12 CEC function on output 1 only
VR3 13/12/12 Testing Model
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features .................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Remote Control................................5
6.4 RS232 Protocol and Command......6
7. Connection Diagram ............................ 7
6SHFLÀFDWLRQV ........................................ 8
9. Acronyms ............................................... 9
1
1. INTRODUCTION
This is a high performance HDMI™ Switcher with four HDMI inputs &
two outputs HDMI™ Switcher, the output ports support Audio Return
Channel (ARC) from a compaitble ARC TV and HDMI Ethernet
&KDQQHO+(&IROORZLQJWKH+'0,VSHFLÀFDWLRQ
The HDMI Switcher provides an S/PDIF link from the HDMI signal and
RXWSXWWKURXJKWKH$5&SRUWWRDQ$95DPSOLÀHUWRJHWDXGLRIURP
the sink.
The HEC feature adds a network connection to the HDMI link 100Mbps
Ethernet connection. Using an HDMI with HEAC cable allows for the
convenient integration of internet capable HEAC Televisions into the
end user’s home network system.
2. APPLICATIONS
Simultaneously display a HDMI source on 2 TVs/displays
Connect internet capable devices through HEC to network routers/
modems
Connect network attached media streaming devices to
compatible HEAC TV
Showroom displays
Educational demonsrations
Commercial usage
3. PACKAGE CONTENTS
4 × 2 HDMI Switcher with HEAC
5 V/2.6 A DC power supply adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Source equipment with HDMI output connector(s)
Displays TV with HDMI HEAC input connector(s)
2
5. FEATURES
6XSSRUWVPXOWLSOH[HG+'0,LQSXWDQGRXWSXW
Two output ports supporting Ethernet Channel (HEC) and Audio
5HWXUQ&KDQQHO$5&IROORZLQJWKH+'0,VSHFLÀFDWLRQ
HDMI supports:
Audio Return Channel (ARC)
3D
+'0,(WKHUQHW&KDQQHO+(&HQDEOLQJKLJKVSHHGELGLUHFWLRQDO
networking at up to 100 Mb/sec
'HHS&RORUVXSSRUWELW
EDID optiions include Standard, TV or Lock EDID feature
Supports CEC bypass on HDMI OUT 1
Audio support:
HDMI compatible audio interface
S/PDIF pass through
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
INPUT TVSTD LOCK POWEREDID
3D2CH 4321
BITSTREAM
LPCM 5.1/7.1
1 52 3 4
1
IR Remote Control Sensor
2
Audio/3D Content Indicator
The system will automatically detect incoming audio/video signal
type and the green LEDs will illuminate accordingly.
3
Input Selection
Press input button to select input source, the Blue LED will illuminate
accordingly. If none of the LEDs are illuminated then no input
has been selected, this is to allow the device to access the ARC
feature alone.
4
EDID Selection
The EDID control button selects
between using the EDID from the
display attached to Output 1/TV or
using the onboard EDID/STD (the
Green LED will illuminate accordingly).
When the EDID button is pressed for
longer then 3 seconds, the RED LED will
illuminate to indicate that the EDID is already locked to STD or TV
EDID as you selected accordingly. When EDID is set on STD audio
will support PCM 2CH, video modes supported are listed in the
table above.
5
Power Button
Press this button to switch on the device or press it again to set it to
standby mode.
8 10 12
RGB 999
Y444 9 8 8
Y422 9
XvYCC 9 8 8
4
6.2 Rear Panel
DC 5V
HDMI IN
1 2
RS-232
HDMI OUT
1 2 1 2 1 2 3 4
ETHERNET
SPDIF/ARC
OUT
1 2 3 4
1
RS-232
7KLVVORWLVWRFRQQHFWZLWKD3&RUFRQWUROV\VWHPZLWK'VXESLQ
FDEOHIRU56FRQWURO)RUGHWDLO56FRPPDQGVSOHDVHUHIHU
to Section 6.4.
2
HDMI OUT 1~2/ARC 1~2/ETHERNET 1~2
HDMI/HEAC equipped TVs or displays will pass the Ethernet and
Audio signals via HDMI cable back to the HDMI Output port, the
splitter will separate the Ethernet and audio, and will output audio
IURPWKH$5&DQGELGLUHFWLRQDOGDWDVWUHDPVWKURXJKWKH(WKHUQHW
SRUWV,IWKHGLVSOD\KDVDEXLOWLQWXQHURUDQDWWDFKHG'9'SOD\HU
audio content can be sent “upstream” from the TV back to the
DXGLRV\VWHPWREHRXWSXWLQPXOWLFKDQQHODXGLR
The HDMI Switcher can use the HDMI Ethernet Channel (HEC) to
consolidate video, audio and data streams into a single HDMI
cable connection to an Ethernet Hub/modem in order to access
the internet and also incorporates a dedicated data channel
LQWRWKH+'0,OLQNHQDEOLQJKLJKVSHHGELGLUHFWLRQDOQHWZRUNLQJ
at up to 100 Mb to control and search from the sink (please see
Section 6 for connection diagram). The HDMI output number is
correspondingto ARC and Ethernet output number.
Note 1: Be sure to connect devices with a suitable HDMI cable
designed to support the Ethernet Channel functionality, either the
standard HDMI cable with Ethernet or High Speed HDMI cable with
Ethernet.
5
Note 2: When the HDMI output has both Audio and ARC at the
same time the ARC will be the prioritized.
3
HDMI INPUT 1~4
Connect to HDMI or DVI sources equipment such as DVD player or
VHWWRSER[IRULQSXWYLGHRDQGDXGLRVHQGLQJ
Note A: This system was tested with 24 AWG cables. If using cables
RIDQRWKHUVSHFLÀFDWLRQWKHSHUIRUPDQFHRIWKLVV\VWHPPD\YDU\
Note B:&DEOHGLVWDQFHWHVWHGZLWKD6RQ\36DQGļ6DPVXQJ
UA40B700 12-bit LED TV.
Note C: Figures provided in this manual are for reference only,
DFWXDOÀJXUHVPD\YDU\GHSHQGLQJRQWKHVRXUFHHTXLSPHQW
and display being used along with the type of cables and their
VSHFLÀFDWLRQV
4
Power
Plug the DC 5 V power supply into the unit and connect the
adaptor to an AC wall outlet.

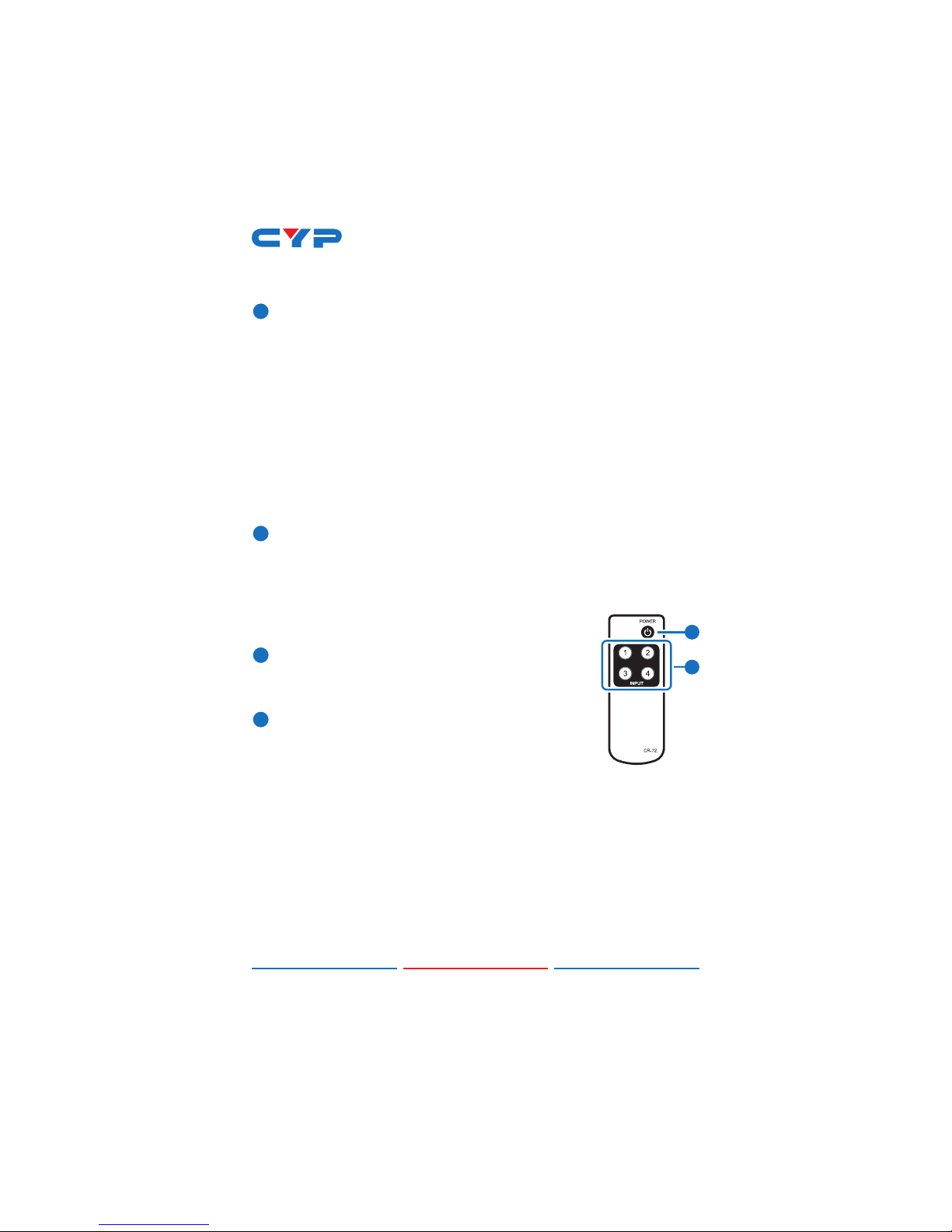

6.3 Remote Control
1Power button
Press to switch On the device, press it again to
set the device in standby mode.
2INPUT 1~4
Press the desire input button to select the input
source.
2
1
