QUICK START GUIDE

CY3641 PROGRAMMING KIT

Kit Contents:

1. CY3641 Programming Board

2. USB Standard-A to Mini-B cable

3. Quick Start Guide (this document)

4. IC CY29412FLXI

(placed inside the socket)

The CY3641 Programming Kit enables quick and easy Programming of Cypress’s

High Performance Programmable Oscillator (CY29411, CY29412)

• Download and install the latest kit software onto

your PC from www.cypress.com/CY364X

• Connect the board to your PC using the provided

USB cable

• The Status LED (Green) turns ON after the kit

driver enumeration is complete

Steps to successfully program the clock device

using this Programming kit.

• Ensure default jumpers setting as mentioned

in Table overleaf

• Run the Clock Programmer software tool

1. Select CY294xx from the Device List

2. Select 0x55 for target I

C address

3. Click Connect

4. Open the JEDEC le from <Install_Directory>

\CY364x Programming Kit\<version>\Firmware\

CY3641\CY3641 Kit LVPECL 2.5V 156.25MHz)

5. Click Program

• While eFuse programming is underway you

will notice Power LED (LED2) to glow Amber

Downloaded from Arrow.com.

QUICK START GUIDE

CY3641 PROGRAMMING KIT

All trademarks or registered trademarks referenced herein are the property of their respective owners.

002-18660 Rev.*A

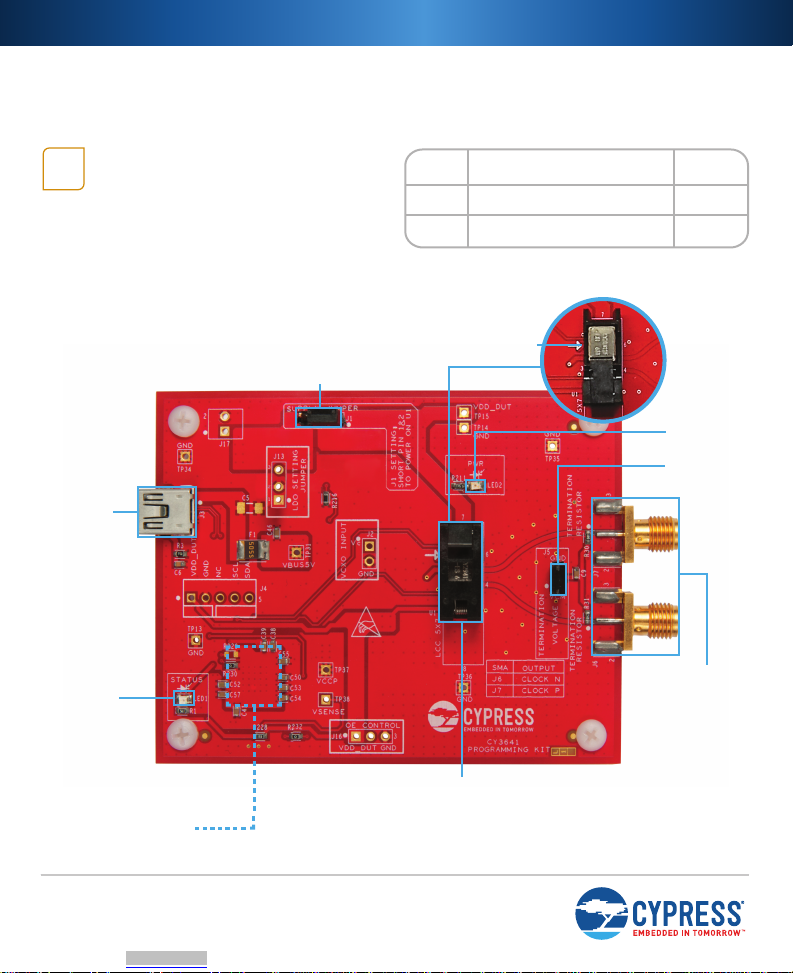

CY3641 Board Details

Table: Jumpers Default Position

• CY3641 comes with two SMA connectors,

which could be used to measure clock

parameters of the programmed part

• Please refer Section 5 Additional Features

of CY3641 in the Kit Guide for details

Main Power Supply Jumper (J1)

Power LED

Pin1

Termination

Jumper (J5)

Differential

Clock Output

Socket for 8-pin LCC 7mm x 5mm

* Component is on the bottom-side of the Programming Board

USB Mini-B

Connector

Status LED

PSoC 5LP

(CY8C5868LTI-LP039)*

Purpose

Power on CY29412

Jumper

Default

Position

1 - 2

Termination voltage set to GND
