2-Mbit (128K x 16) Static RAM

CY62137EV30

MoBL®

Cypress Semiconductor Corporation • 198ChampionCourt • San Jose,CA 95134-1709 • 408-943-2600

Document #: 38-05443 Rev. *B Revised February 14, 2006

Features

• Very high speed: 45 ns

• Wide voltage range: 2.20V–3.60V

• Pin-compatible with CY62137CV30

• Ultra-low standby power

—Typical standby current: 1µA

—Maximum standby current: 7µA

•Ultra-low active power

— Typical active current: 2 mA @ f = 1 MHz

• Easy memory expansion with CE, and OE features

• Automatic power-down when deselected

• CMOS for optimum speed/power

• Byte power-down feature

• Offered in Pb-free 48-ball VFBGA and 44-pin TSOPII

package

Functional Description[1]

The CY62137EV30 is a high-performance CMOS static RAM

organized as 128K words by 16 bits. This device features ad-

vanced circuit design to provide ultra-low active current. This

is ideal for providing More Battery Life™ (MoBL®) in portable

applications such as cellular telephones. The device also has

an automatic power-down feature that significantly reduces

power consumption by 90% when addresses are not toggling.

The device can also be put into standby mode reducing power

consumption by more than 99% when deselected (CE HIGH

or both BLE and BHE are HIGH). The input/output pins (I/O0

through I/O15) are placed in a high-impedance state when:

deselected (CE HIGH), outputs are disabled (OE HIGH), both

Byte High Enable and Byte Low Enable are disabled (BHE,

BLE HIGH), or during a write operation (CE LOW and WE

LOW).

Writing to the device is accomplished by asserting Chip En-

able (CE) and Write Enable (WE) inputs LOW. If Byte Low

Enable (BLE) is LOW, then data from I/O pins (I/O0through

I/O7), is written into the location specified on the address pins

(A0through A16). If Byte High Enable (BHE) is LOW, then data

from I/O pins (I/O8through I/O15) is written into the location

specified on the address pins (A0through A16).

Reading from the device is accomplished by asserting Chip

Enable (CE) and Output Enable (OE) LOW while forcing the

Write Enable (WE) HIGH. If Byte Low Enable (BLE) is LOW,

then data from the memory location specified by the address

pins will appear on I/O0to I/O7. If Byte High Enable (BHE) is

LOW, then data from memory will appear on I/O8to I/O15. See

the truth table at the back of this data sheet for a complete

description of read and write modes.

The CY62137EV30 is available in 48-ball VFBGA and 44-pin

TSOPII packages.

Note:

1. For best practice recommendations, please refer to the Cypress application note “System Design Guidelines” on http://www.cypress.com.

agram

128K x 16

RAM Array I/O

– I/O

ROW DECODER

COLUMN DECODER

A11

SENSE AMPS

DATA IN DRIVERS

I/O

– I/O

BHE

Power -Down

Circuit BHE

BLE

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 2 of 12

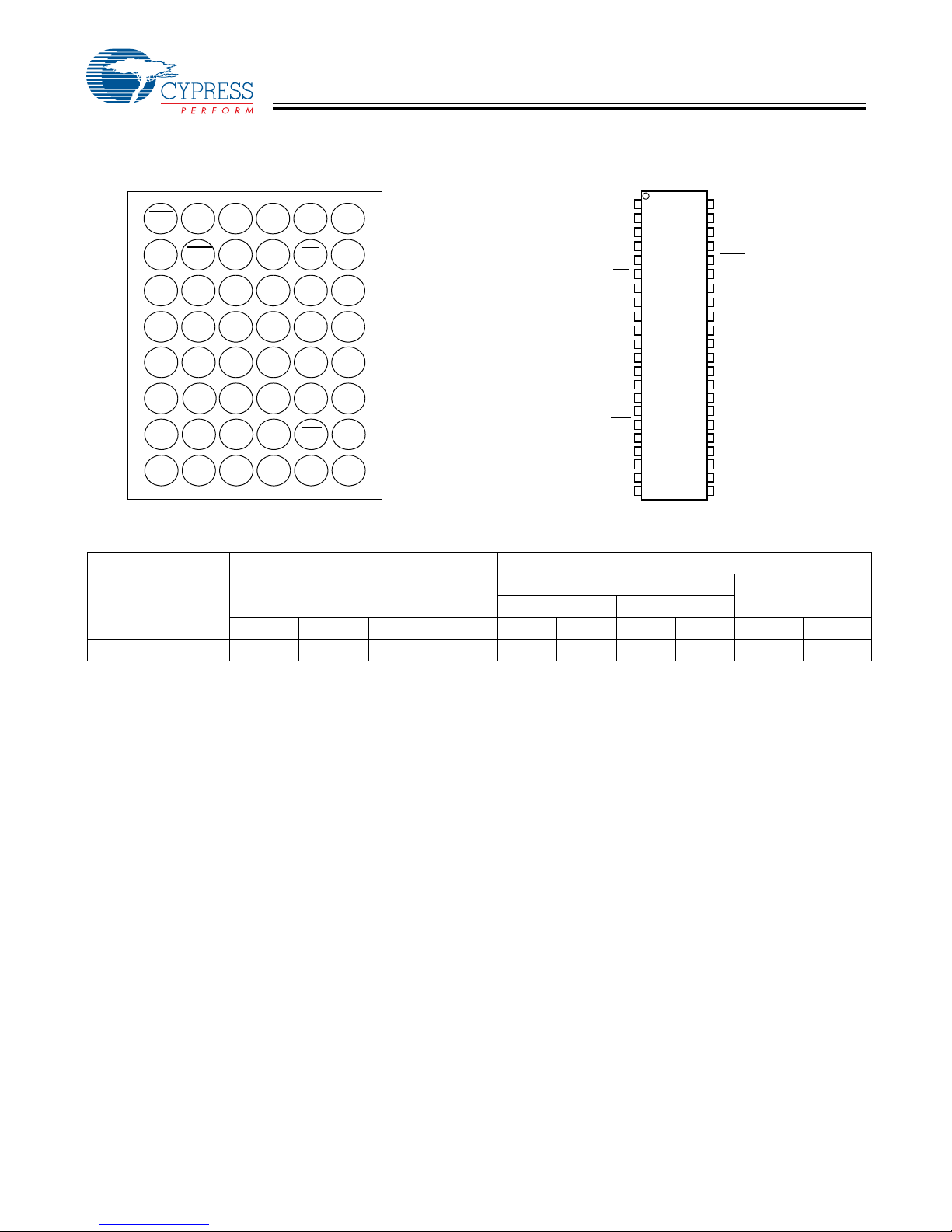

Pin Configurations[2, 3]

VFBGA (Top View) 44 TSOP II (Top View)

Product Portfolio

Product VCC Range (V) Speed

(ns)

Power Dissipation

Operating ICC (mA) Standby ISB2 (µA)

f = 1MHz f = fmax

Min. Typ.[7] Max. Typ.[7] Max. Typ.[7] Max. Typ.[7] Max.

CY62137EV30-45LL 2.2V 3.0V 3.6V 45 ns 2 2.5 15 20 1 7

Note:

2. NC pins are not connected on the die.

3. Pins D3, H1, G2, and H6 in the BGA package are address expansion pins for 4 Mb, 8 Mb, 16 Mb, and 32 Mb, respectively.

A11

A10

A3CE

I/O10

I/O8

I/O9

I/O11

I/O13

I/O12

I/O14

I/O15

VSS

Vss

I/O0

BHE

BLE

VCC

I/O2

I/O1

I/O3

I/O4

I/O5I/O6

I/O7

A15

A14

A13

A12

NC NC

A16

Vcc

14 31

15 29

VCC

A16

A15

A14

A13

VSS

I/O15

I/O2

I/O0

I/O1

BHE

I/O3

21 23

VSS

I/O6

I/O4

I/O5

I/O7

BLE

VCC

I/O14

I/O13

I/O12

I/O11

I/O10

I/O9

I/O8

A10

A11

A12 NC

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 3 of 12

Maximum Ratings

(Above which the useful life may be impaired. For user guide-

lines, not tested.)

Storage Temperature ................................–65°C to + 150°C

Ambient Temperature with

Power Applied ...........................................–55°C to + 125°C

Supply Voltage to Ground

Potential .............................–0.3V to 3.9V (VCC(MAX) + 0.3V)

DC Voltage Applied to Outputs

in High-Z State[4, 5]...............–0.3V to 3.9V (VCC MAX + 0.3V)

DC Input Voltage[4, 5]........... –0.3V to 3.9V (VCC MAX + 0.3V)

Output Current into Outputs (LOW) ............................20 mA

Static Discharge Voltage ......................................... > 2001V

(per MIL-STD-883, Method 3015)

Latch-up Current ....................................................> 200 mA

Operating Range

Device Range Ambient

Temperature VCC[6]

CY62137EV30-45LL Industrial –40°Cto+85°C 2.2Vto3.6V

Electrical Characteristics Over the Operating Range

Parameter Description

Test Conditions 45 ns

UnitMin. Typ.[7] Max.

VOH Output HIGH Voltage IOH = –0.1 mA VCC = 2.20V 2.0 V

IOH = –1.0 mA VCC = 2.70V 2.4 V

VOL Output LOW Voltage IOL = 0.1 mA VCC = 2.20V 0.4 V

IOL = 2.1mA VCC = 2.70V 0.4 V

VIH Input HIGH Voltage VCC = 2.2V to 2.7V 1.8 VCC + 0.3 V

VCC= 2.7V to 3.6V 2.2 VCC + 0.3 V

VIL Input LOW Voltage VCC = 2.2V to 2.7V –0.3 0.6 V

VCC= 2.7V to 3.6V –0.3 0.8 V

IIX Input Leakage Current GND < VI< VCC –1 +1 µA

IOZ Output Leakage

Current GND <VO <VCC,Output Disabled –1 +1 µA

ICC VCC Operating Supply

Current f = fMAX = 1/tRC VCC = VCCmax

IOUT = 0 mA

CMOS levels

15 20 mA

f = 1 MHz 2.0 2.5

ISB1 Automatic CE

Power-down Current

— CMOS

Inputs

CE1> VCC – 0.2V, CE2 <0.2V

VIN > VCC – 0.2V, VIN <0.2V)

f = fMAX (Address and Data Only),

f = 0 (OE and WE), VCC = 3.60V

17µA

ISB2 Automatic CE

Power-down Current

— CMOS Inputs

CE1> VCC – 0.2V or CE2< 0.2V,

VIN > VCC – 0.2V or VIN < 0.2V,

f = 0, VCC = 3.60V

17µA

Notes:

4. VIL(min.) = –2.0V for pulse durations less than 20 ns.

5. VIH(max)=VCC+0.75V for pulse durations less than 20ns.

6. Full Device AC operation assumes a 100 µs ramp time from 0 to Vcc(min) and 200 µs wait time after VCC stabilization.

7. Typical values are included for reference only and are not guaranteed or tested. Typical values are measured at VCC = VCC(typ.), TA= 25°C.

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 4 of 12

Capacitance (for all packages)[8]

Parameter Description Test Conditions Max. Unit

CIN Input Capacitance TA= 25°C, f = 1 MHz,

VCC = VCC(typ) 10 pF

COUT Output Capacitance 10 pF

Thermal Resistance

Parameter Description Test Conditions BGA TSOP II Unit

ΘJA Thermal Resistance

(Junction to Ambient)[8] Still Air, soldered on a 3 × 4.5 inch, two-layer

printed circuit board 75 77 °C/W

ΘJC Thermal Resistance

(Junction to Case)[8] 10 13 °C/W

AC Test Loads and Waveforms

Parameters 2.50V 3.0V Unit

R1 16667 1103 Ω

R2 15385 1554 Ω

RTH 8000 645 Ω

VTH 1.20 1.75 V

Data Retention Characteristics (Over the Operating Range)

Parameter Description Conditions Min. Typ.[7] Max. Unit

VDR VCC for Data Retention 1 V

ICCDR Data Retention Current VCC= 1V

CE > VCC – 0.2V,

VIN > VCC – 0.2V or VIN < 0.2V

0.8 3 µA

tCDR[8] Chip Deselect to Data

Retention Time 0ns

tR[9] Operation Recovery Time tRC ns

VCC

OUTPUT

30 pF

INCLUDING

JIG AND

SCOPE

GND 90%

10% 90%

10%

Rise Time = 1 V/ns Fall Time = 1 V/ns

OUTPUT V

Equivalent to: THÉVENIN EQUIVALENT

ALL INPUT PULSES

RTH

Data Retention Waveform[10]

Notes:

8. Tested initially and after any design or process changes that may affect these parameters.

9. Full device operation requires linear VCC ramp from VDR to VCC(min.) >100 µs or stable at VCC(min.) >100 µs.

VCC(min)

tCDR

VDR >1.5V

DATA RETENTION MODE

VCC

CE or

BHE.BLE

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 5 of 12

Switching Characteristics Over the Operating Range [11]

Parameter Description

45 ns

UnitMin. Max.

Read Cycle

tRC Read Cycle Time 45 ns

tAA Address to Data Valid 45 ns

tOHA Data Hold from Address Change 10 ns

tACE CE LOW to Data Valid 45 ns

tDOE OE LOW to Data Valid 22 ns

tLZOE OE LOW to LOW Z[12] 5ns

tHZOE OE HIGH to High Z[12, 13] 18 ns

tLZCE CE LOW to Low Z[12] 10 ns

tHZCE CE HIGH to High Z[12, 13] 18 ns

tPU CE LOW to Power-Up 0 ns

tPD CE HIGH to Power-Down 45 ns

tDBE BLE/BHE LOW to Data Valid 45 ns

tLZBE BLE/BHE LOW to Low Z[12] 5ns

tHZBE BLE/BHE HIGH to HIGH Z[12, 13] 18 ns

Write Cycle[14]

tWC Write Cycle Time 45 ns

tSCE CE LOW to Write End 35 ns

tAW Address Set-Up to Write End 35 ns

tHA Address Hold from Write End 0 ns

tSA Address Set-Up to Write Start 0 ns

tPWE WE Pulse Width 35 ns

tBW BLE/BHE LOW to Write End 35 ns

tSD Data Set-Up to Write End 25 ns

tHD Data Hold from Write End 0 ns

tHZWE WE LOW to High-Z[12, 13] 18 ns

tLZWE WE HIGH to Low-Z[12] 10 ns

Notes:

10.BHE.BLE is the AND of both BHE and BLE. The chip can be deselected by either disabling the chip enable signals or by disabling both BHE and BLE.

11. Test conditions for all parameters other than tri-state parameters assume signal transition time of 3 ns (1V/ns) or less, timing reference levels of VCC(typ)/2, input

pulse levels of 0 to VCC(typ.), and output loading of the specified IOL/IOH as shown in the “AC Test Loads and Waveforms” section.

12.At any given temperature and voltage condition, tHZCE is less than tLZCE, tHZBE is less than tLZBE, tHZOE is less than tLZOE, and tHZWE is less than tLZWE for any

given device.

13.tHZOE, tHZCE, tHZBE, and tHZWE transitions are measured when the outputs enter a high- impedance state.

14.The internal Write time of the memory is defined by the overlap of WE, CE = VIL, BHE and/or BLE = VIL. All signals must be ACTIVE to initiate a write and any

of these signals can terminate a write by going INACTIVE. The data input set-up and hold timing should be referenced to the edge of the signal that terminates

the write.

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 6 of 12

Switching Waveforms

Read Cycle 1 (Address Transition Controlled)[15, 16]

Read Cycle No. 2 (OE Controlled)[16, 17]

Notes:

15.The device is continuously selected. OE, CE = VIL, BHE and/or BLE = VIL.

16.WE is HIGH for read cycle.

17.Address valid prior to or coincident with CE and BHE, BLE transition LOW.

ADDRESS

DATA OUT PREVIOUS DATA VALID DATA VALID

tRC

tAA

tOHA

50%

DATA VALID

tRC

tACE

tLZBE

tLZCE

tPU

DATA OUT HIGH IMPEDANCE IMPEDANCE

ICC

ISB

tHZOE

tHZCE

tPD

HIGH

VCC

SUPPLY

CURRENT

tHZBE

BHE/BLE tLZOE

ADDRESS

tDBE

tDOE

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 7 of 12

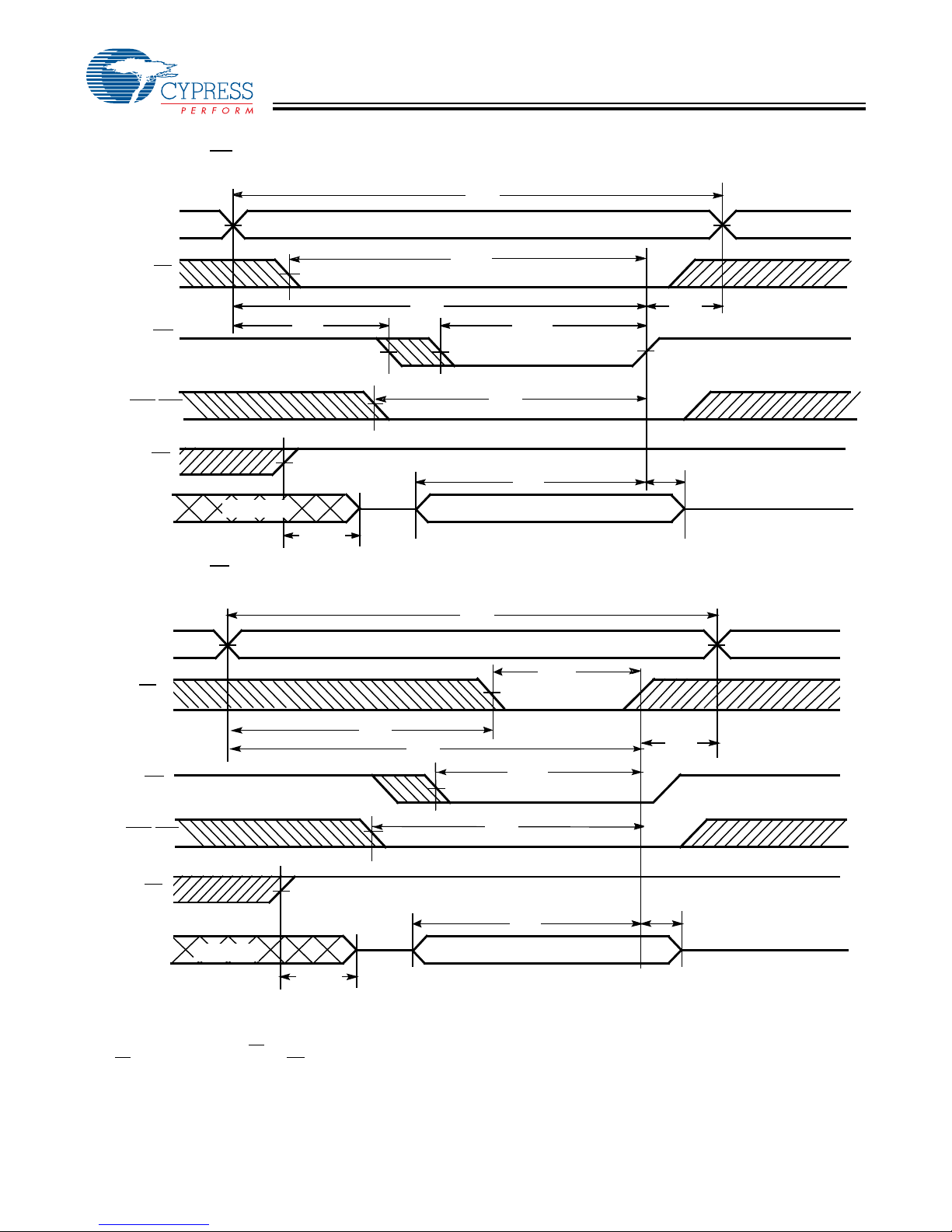

Write Cycle No. 1 (WE Controlled)[14, 18, 19]

Write Cycle No. 2 (CE Controlled)[14, 18, 19]

Notes:

18.Data I/O is high impedance if OE = VIH.

19.If CE goes HIGH simultaneously with WE = VIH, the output remains in a high-impedance state.

20.During this period, the I/Os are in output state and input signals should not be applied.

Switching Waveforms (continued)

tHD

tSD

tPWE

tSA

tHA

tAW

tWC

DATA I/O

ADDRESS

tHZOE

DATAIN

NOTE20

BHE/BLE tBW

tSCE

tHD

tSD

tPWE

tHA

tAW

tSCE

tWC

tHZOE

DATAIN

ADDRESS

DATA I/O

NOTE 20

BHE/BLE tBW

tSA

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 8 of 12

Write Cycle No. 3 (WE Controlled, OE LOW)[19]

Write Cycle No. 4 (BHE/BLE Controlled, OE LOW)[19]

Switching Waveforms (continued)

DATAIN

tHD

tSD

tLZWE

tPWE

tSA

tHA

tAW

tSCE

tWC

tHZWE

ADDRESS

DATAI/O NOTE 20

tBW

BHE/BLE

DATA I/O

ADDRESS

tSD

tSA

tHA

tAW

tWC

DATAIN

NOTE 20

tBW

BHE/BLE

tSCE

tPWE

tHZWE tHD

tLZWE

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 9 of 12

Truth Table

CE WE OE BHE BLE Inputs/Outputs Mode Power

H X X X X High Z Deselect/Power-down Standby (ISB)

X X X H H High Z Deselect/Power-down Standby (ISB)

L H L L L Data Out (I/OO–I/O15) Read Active (ICC)

L H L H L Data Out (I/OO–I/O7);

I/O8–I/O15 in High Z Read Active (ICC)

L H L L H Data Out (I/O8–I/O15);

I/O0–I/O7 in High Z Read Active (ICC)

L H H L L High Z Output Disabled Active (ICC)

L H H H L High Z Output Disabled Active (ICC)

L H H L H High Z Output Disabled Active (ICC)

L L X L L Data In (I/OO–I/O15) Write Active (ICC)

L L X H L Data In (I/OO–I/O7);

I/O8–I/O15 in High Z Write Active (ICC)

L L X L H Data In (I/O8–I/O15);

I/O0–I/O7 in High Z Write Active (ICC)

Ordering Information

Speed

(ns) Ordering Code Package

Diagram Package Type Operating

Range

45 CY62137EV30LL-45BVXI 51-85150 48-ballVeryFinePitch BGA (6mm ×8mm ×1 mm) (Pb-free) Industrial

45 CY62137EV30LL-45ZSXI 51-85087 44-pin TSOP II (Pb-free)

[+] Feedback

CY62137EV30

MoBL®

Document #: 38-05443 Rev. *B Page 10 of 12

Package Diagrams

A1 CORNER

0.75

Ø0.30±0.05(48X)

Ø0.25 M C A B

Ø0.05 M C

0.15(4X)

0.21±0.05

1.00 MAX

SEATING PLANE

0.55 MAX.

0.25 C

0.10 C

A1 CORNER

TOP VIEW BOTTOM VIEW

234

3.75

5.25

465231

6.00±0.10

8.00±0.10

6.00±0.10

1.875

2.625

0.26 MAX.

48-pin VFBGA (6 x 8 x 1 mm) (51-85150)

51-85150-*D

[+] Feedback

Tabla de contenidos

Otros manuales de Hardware de computadora de Cypress

Cypress

Cypress CYUSB3ACC-004A Manual de usuario

Cypress

Cypress 001-07160 Manual de usuario

Cypress

Cypress PSoC DESIGNER ImageCraft M8C Manual de usuario

Cypress

Cypress EZ-PD CCG3 Manual de usuario

Cypress

Cypress CY8CKIT-035 Manual de usuario

Cypress

Cypress CY8C22113 Manual de usuario

Cypress

Cypress AutoStore STK17T88 Instrucciones de instalación y funcionamiento

Cypress

Cypress CY8CKIT-038 Manual de usuario

Cypress

Cypress FM33256B Manual de usuario

Cypress

Cypress CY14B101P Manual de usuario

Cypress

Cypress CP-259H Manual de usuario

Cypress

Cypress S6E2DH series Manual de usuario

Cypress

Cypress CY8CKIT-031 Manual de usuario

Cypress

Cypress DCT-7 Manual de instalación

Cypress

Cypress CY14B101Q1 Manual de usuario

Cypress

Cypress CMIR-44 Manual de usuario

Cypress

Cypress MB2198-01 Manual de usuario

Cypress

Cypress CY62136VN Manual de usuario

Cypress

Cypress DCT-7 Manual de usuario

Cypress

Cypress CY62137FV30 Manual de usuario

Cypress

Cypress CY14E256L Manual de usuario

Cypress

Cypress CY14B104LA Manual de usuario

Cypress

Cypress CY8CKIT-029 PSoC Manual de usuario

Cypress

Cypress AN20639 Instrucciones de instalación y funcionamiento

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
