CY62146E MoBL®

4-Mbit (256K x 16) Static RAM

Cypress Semiconductor Corporation • 198 Champion Court • San Jose,CA 95134-1709 • 408-943-2600

Document Number: 001-07970 Rev. *D Revised February 01, 2008

Features

■Very high speed: 45 ns

■Wide voltage range: 4.5V–5.5V

■Ultra low standby power

❐Typical standby current: 1 μA

❐Maximum standby current: 7 μA

■Ultra low active power

❐Typical active current: 2 mA at f = 1 MHz

■Easy memory expansion with CE and OE features

■Automatic power down when deselected

■CMOS for optimum speed and power

■Available in Pb-free 44-pin TSOP II package

Functional Description

The CY62146E is a high performance CMOS static RAM

organized as 256K words by 16 bits. This device features

advanced circuit design to provide ultra low active current. It is

ideal for providing More Battery Life™(MoBL®) in portable appli-

cations such as cellular telephones. The device also has an

automatic power down feature that reduces power consumption

whenaddressesarenottoggling. Placing the device into standby

mode reduces power consumption by more than 99% when

deselected (CE HIGH). The input and output pins (IO0through

IO15) are placed in a high impedance state when:

■Deselected (CE HIGH)

■Outputs are disabled (OE HIGH)

■Both Byte High Enable and Byte Low Enable are disabled

(BHE, BLE HIGH)

■Write operation is active (CE LOW and WE LOW)

To write to the device, take Chip Enable (CE) and Write Enable

(WE) inputs LOW. If Byte Low Enable (BLE) is LOW, then data

from IO pins (IO0through IO7) is written into the location

specified on the address pins (A0through A17). If Byte High

Enable (BHE) is LOW, then data from IO pins (IO8through IO15)

is written into the location specified on the address pins (A0

through A17).

To read from the device, take Chip Enable (CE) and Output

Enable (OE) LOW while forcing the Write Enable (WE) HIGH. If

Byte Low Enable (BLE) is LOW, then data from the memory

location specified by the address pins appears on IO0to IO7. If

Byte High Enable (BHE) is LOW, then data from memory

appears on IO8to IO15. See Table 1 for a complete description

of read and write modes.

For best practice recommendations, refer to the Cypress

application note AN1064, SRAM System Guidelines.

256K x 16

RAM Array IO0–IO7

ROW DECODER

COLUMN DECODER

A11

A12

A13

A14

A15

SENSE AMPS

DATA IN DRIVERS

A3IO8–IO15

BHE

A16

A10

BLE

A17

Logic Block Diagram

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 2 of 11

Pin Configuration

Figure 1. 44-Pin TSOP II (Top View) [1]

Product Portfolio

Product Range VCC Range (V) Speed

(ns)

Power Dissipation

Operating ICC, (mA) Standby, ISB2

(μA)

f = 1 MHz f = fmax

Min Typ[2] Max Typ [2] Max Typ [2] Max Typ [2] Max

CY62146ELL Ind’l/Auto-A 4.5 5.0 5.5 45 2 2.5 15 20 1 7

14 31

15 29

19 27

21 23

BHE

BLE

Notes

1. NC pins are not connected on the die.

2. Typical values are included for reference only and are not guaranteed or tested. Typical values are measured at VCC = VCC(typ), TA= 25°C.

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 3 of 11

Maximum Ratings

Exceeding maximum ratings may impair the useful life of the

device. These user guidelines are not tested.

Storage Temperature.................................. –65°C to +150°C

Ambient Temperature with

Power Applied ............................................ –55°C to +125°C

Supply Voltage to Ground Potential..................–0.5V to 6.0V

DC Voltage Applied to Outputs

in High-Z State [3, 4] ..........................................–0.5V to 6.0V

DC Input Voltage [3, 4].......................................–0.5V to 6.0V

Output Current into Outputs (LOW).............................20 mA

Static Discharge Voltage............................................>2001V

(MIL-STD-883, Method 3015)

Latch up Current......................................................>200 mA

Operating Range

Device Range Ambient

Temperature VCC [5]

CY62146ELL Ind’l/Auto-A –40°C to +85°C 4.5V–5.5V

Electrical Characteristics

Over the Operating Range

Parameter Description Test Conditions 45 ns (Ind’l/Auto-A) UnitMin Typ [2] Max

VOH Output HIGH Voltage IOH = –1.0 mA 2.4 V

VOL Output LOW Voltage IOL = 2.1 mA 0.4 V

VIH Input HIGH Voltage 4.5 < VCC < 5.5 2.2 VCC + 0.5 V

VIL Input LOW Voltage 4.5 < VCC < 5.5 –0.5 0.8 V

IIX Input Leakage Current GND <VI< VCC –1 +1 μA

IOZ OutputLeakage Current GND <VO <VCC,Output Disabled –1 +1 μA

ICC VCC Operating Supply

Current f = fmax = 1/tRC VCC = VCCmax

IOUT = 0 mA, CMOS levels 15 20 mA

f = 1 MHz 2 2.5

ISB2 [6] Automatic CE Power

down Current — CMOS

Inputs

CE > VCC – 0.2V, VIN > VCC – 0.2V or VIN < 0.2V,

f = 0, VCC =VCC(max) 17μA

Capacitance

Tested initially and after any design or process changes that may affect these parameters.

Parameter Description Test Conditions Max Unit

CIN Input Capacitance TA= 25°C, f = 1 MHz,

VCC = VCC(typ) 10 pF

COUT Output Capacitance 10 pF

Thermal Resistance

Tested initially and after any design or process changes that may affect these parameters.

Parameter Description Test Conditions TSOP II Unit

ΘJA Thermal Resistance

(Junction to Ambient) Still Air, soldered on a 3 × 4.5 inch, two layer

printed circuit board 77 °C/W

ΘJC Thermal Resistance

(Junction to Case) 13 °C/W

Notes

3. VIL(min) = –2.0V for pulse durations less than 20 ns for I < 30 mA.

4. VIH(max) = VCC + 0.75V for pulse durations less than 20 ns.

5. Full Device AC operation assumes a minimum of 100 μs ramp time from 0 to VCC (min) and 200 μs wait time after VCC stabilization.

6. Only chip enable (CE) and byte enables (BHE and BLE) is tied to CMOS levels to meet the ISB2 / ICCDR spec. Other inputs are left floating.

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 4 of 11

Figure 2. AC Test Loads and Waveforms

Parameters 5.0V Unit

R1 1800 Ω

R2 990 Ω

RTH 639 Ω

VTH 1.77 V

Data Retention Characteristics

Over the Operating Range

Parameter Description Conditions Min Typ[2] Max Unit

VDR VCC for Data Retention 2 V

ICCDR [6] Data Retention Current VCC = 2V, CE > VCC – 0.2V,

VIN > VCC – 0.2V or VIN < 0.2V 17μA

tCDR [7] Chip Deselect to Data

Retention Time 0ns

tR [8] Operation Recovery Time tRC ns

Figure 3. Data Retention Waveform

VCC

OUTPUT

30 pF

INCLUDING

JIG AND

SCOPE

GND 90%

10% 90%

10%

Rise Time = 1 V/ns Fall Time = 1 V/ns

OUTPUT V

Equivalent to: THÉVENIN EQUIVALENT

ALL INPUT PULSES

RTH

Notes

7. Tested initially and after any design or process changes that may affect these parameters.

8. Full device operation requires linear VCC ramp from VDR to VCC(min) >100 μs or stable at VCC(min) >100 μs.

VCC(min)

tCDR

VDR >2.0V

DATA RETENTION MODE

VCC

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 5 of 11

Switching Characteristics

Over the Operating Range [9, 10]

Parameter Description 45 ns (Ind’l/Auto-A) Unit

Min Max

Read Cycle

tRC Read Cycle Time 45 ns

tAA Address to Data Valid 45 ns

tOHA Data Hold from Address Change 10 ns

tACE CE LOW to Data Valid 45 ns

tDOE OE LOW to Data Valid 22 ns

tLZOE OE LOW to LOW-Z[11] 5ns

tHZOE OE HIGH to High-Z[11, 12] 18 ns

tLZCE CE LOW to Low-Z[11] 10 ns

tHZCE CE HIGH to High-Z[11, 12] 18 ns

tPU CE LOW to Power Up 0 ns

tPD CE HIGH to Power Down 45 ns

tDBE BLE/BHE LOW to Data Valid 22 ns

tLZBE BLE/BHE LOW to Low-Z[11] 5ns

tHZBE BLE/BHE HIGH to HIGH-Z[11, 12] 18 ns

Write Cycle [13]

tWC Write Cycle Time 45 ns

tSCE CE LOW to Write End 35 ns

tAW Address Setup to Write End 35 ns

tHA Address Hold from Write End 0 ns

tSA Address Setup to Write Start 0 ns

tPWE WE Pulse Width 35 ns

tBW BLE/BHE LOW to Write End 35 ns

tSD Data Setup to Write End 25 ns

tHD Data Hold from Write End 0 ns

tHZWE WE LOW to High-Z[11, 12] 18 ns

tLZWE WE HIGH to Low-Z[11] 10 ns

Notes

9. Test conditions for all parameters other than tri-stateparameters assume signal transition time of 3 ns (1V/ns) or less, timing reference levels of 1.5V, input pulse levels

of 0 to 3V, and output loading of the specified IOL/IOH as shown in AC Test Loads and Waveforms on page 4.

10.AC timing parameters are subject to byte enable signals (BHE or BLE) not switching when chip is disabled. See application note AN13842 for further clarification.

11. At any temperature and voltage condition, tHZCE is less than tLZCE, tHZBE is less than tLZBE, tHZOE is less than tLZOE, and tHZWE is less than tLZWE for any device.

12.tHZOE, tHZCE, tHZBE, and tHZWE transitions are measured when the outputs enter a high-impedance state.

13.The internal write time of the memory is defined by the overlap of WE, CE = VIL, BHE, BLE or both = VIL. All signals must be active to initiate a write and any of these

signals can terminate a write by going inactive. The data input setup and hold timing must be referenced to the edge of the signal that terminates the write.

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 6 of 11

Switching Waveforms

Figure 4. Read Cycle No.1: Address Transition Controlled. [14, 15]

Figure 5. Read Cycle No. 2: OE Controlled [15, 16]

PREVIOUS DATA VALID DATA VALID

tAA

tOHA

tRC

ADDRESS

DATA OUT

50%

DATA VALID

ACE

LZBE

LZCE

HIGHIMPEDANCE

HZOE

HZCE

HZBE

LZOE

DBE

DOE

IMPEDANCE

HIGH

DATA OUT

SUPPLY

CURRENT

BHE/BLE

ADDRESS

Notes

14.The device is continuously selected. OE, CE = VIL, BHE, BLE, or both = VIL.

15.WE is HIGH for read cycle.

16.Address valid before or similar to CE, BHE, BLE transition LOW.

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 7 of 11

Figure 6. Write Cycle No 1: WE Controlled [13, 17, 18]

Figure 7. Write Cycle 2: CE Controlled [13, 17, 18]

Switching Waveforms (continued)

tHD

tSD

tPWE

tSA

tHA

tAW

tWC

tHZOE

DATAIN

NOTE 19

tBW

tSCE

DATA IO

ADDRESS

BHE/BLE

tHD

tSD

tPWE

tHA

tAW

tSCE

tWC

tHZOE

DATAIN

tBW

tSA

ADDRESS

DATA IO

BHE/BLE

NOTE 19

Notes

17.Data IO is high impedance if OE = VIH.

18.If CE goes HIGH simultaneously with WE = VIH, the output remains in a high impedance state.

19.During this period, the IOs are in output state. Do not apply input signals.

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 8 of 11

Figure 8. Write Cycle 3: WE controlled, OE LOW [18]

Figure 9. Write Cycle 4: BHE/BLE Controlled, OE LOW [18]

Switching Waveforms (continued)

DATAIN

tHD

tSD

tLZWE

tPWE

tSA

tHA

tAW

tSCE

tWC

tHZWE

tBW

NOTE 19

ADDRESS

DATA IO

BHE/BLE

tWC

DATA

tSCE

PWE

tHZWE

tLZWE

NOTE 19

DATA IO

ADDRESS

BHE

/BLE

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 9 of 11

Table 1. Truth Table

CE WE OE BHE BLE Inputs/Outputs Mode Power

H X X X X High-Z Deselect/Power down Standby (ISB)

L X X H H High-Z Output Disabled Active (ICC)

L H L L L Data Out (IO0–IO15) Read Active (ICC)

LHLHLDataOut(IO

0–IO7);

IO8–IO15 in High-Z Read Active (ICC)

L H L L H Data Out (IO8–IO15);

IO0–IO7 in High-Z Read Active (ICC)

L H H L L High-Z Output Disabled Active (ICC)

L H H H L High-Z Output Disabled Active (ICC)

L H H L H High-Z Output Disabled Active (ICC)

L L X L L Data In (IO0–IO15) Write Active (ICC)

L L X H L Data In (IO0–IO7);

IO8–IO15 in High-Z Write Active (ICC)

L L X L H Data In (IO8–IO15);

IO0–IO7 in High-Z Write Active (ICC)

Ordering Information

Speed

(ns) Ordering Code Package

Diagram Package Type Operating

Range

45 CY62146ELL-45ZSXI 51-85087 44-pin Thin Small Outline Package II (Pb-free) Industrial

CY62146ELL-45ZSXA 51-85087 44-pin Thin Small Outline Package II (Pb-free) Automotive-A

Contact your local Cypress sales representative for availability of these parts.

[+] Feedback[+] Feedback

CY62146E MoBL®

Document Number: 001-07970 Rev. *D Page 10 of 11

Package Diagrams

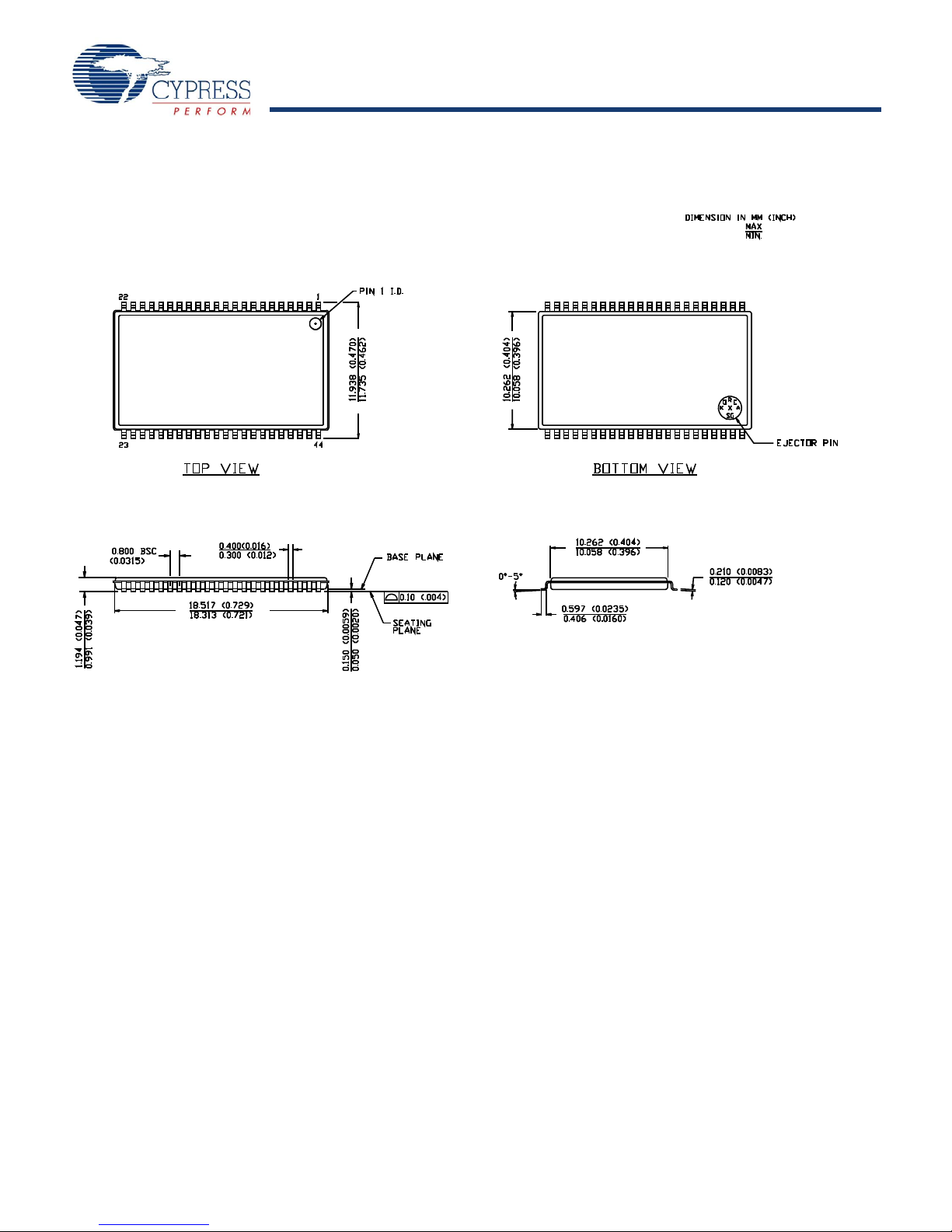

Figure 10. 44-Pin TSOP II, 51-85087

51-85087-*A

[+] Feedback[+] Feedback

Tabla de contenidos

Otros manuales de Hardware de computadora de Cypress Semiconductor

Cypress Semiconductor

Cypress Semiconductor CY7C1546V18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1410AV18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1350G Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY3215-DK Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1386DV25 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1347G Manual de usuario

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1355C Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1566V18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1361C Manual de usuario

Cypress Semiconductor

Cypress Semiconductor Perform CY62136EV30 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C291A Manual de usuario

Cypress Semiconductor

Cypress Semiconductor Perform CY7C1413BV18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1386D Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY3215-DK Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1006D Manual de usuario

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1471V25 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor AutoStore STK14CA8 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY62138FV30 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY8C21234 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor Perform CY7C1561V18 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY7C1354CV25 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1371D Manual de usuario

Cypress Semiconductor

Cypress Semiconductor CY62167EV30 Manual de usuario

Cypress Semiconductor

Cypress Semiconductor MoBL CY62126EV30 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
