CMSI-8H8HS

8 x 8 HDMI Matrix

Operation Manual

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 11/11/11 Preliminary Release

RDV2 13/12/11 Power Supply Change

RDV3 15/02/12 LAN Function

VS0 29/03/12 Updated format, diagrams, and

statements

DRAFT

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

6.3 Side Panel .........................................5

6.4 Remote Control................................5

6.5 RS-232 Pin Assignment .....................6

6.6 RS-232 Commands...........................7

7. Connection Diagram ............................ 8

8. Specications ........................................ 9

9. Acronyms ............................................. 10

DRAFT

1. INTRODUCTION

The 8×8 HDMI Matrix supports the transmission of Video (up to 1080p

Full HD/1920×1200@60 Hz) with multichannel digital audio from up to

eight high denition sources to up to eight HDMI outputs and allows

the display of any source device on any output display. Also, the unit

can be controlled via IR, RS-232 or the front panel button controls.

2. APPLICATIONS

• Video/TV wall display

• Commercial advertising and display

• Lecture room display and control

• Hyper market demonstration and control

3. PACKAGE CONTENTS

• 8×8 HDMI Matrix

• 1×24 V/6.25 A DC Adaptor

• 1×Remote Control

• Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI equipped input source devices with HDMI cables

• HDMI equipped output displays (TVs or monitors) or HDMI equipped

AV receivers with HDMI cables

DRAFT

5. FEATURES

• HDMI, HDCP1.1 and DVI compliant

• Supports HDMI v1.4 features including 3D

• Supports audio sampling rate up to 192 kHz

• Supports resolutions VGA~WUXGA and 480i~1080p dependent upon

the output display’s EDID settings

• Supports 3D signal display dependent upon the output display's

EDID settings

• Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters

at 12-bit resolution and HDMI output up to 15 meters at 8-bit/12-bit

• Supports IR extension

• Supports RS-232, remote control and on-panel control

• 2U size design

DRAFT

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWER LOCK

MENU OUTA 1B2C3D4

E5F6G7H8

8X8 HDMI MATRIX CMSI-8H8HS

2 3 4 5 61

LCD:Displays the source device input setting (1~8)of each of the

HDMI outputs (A~H).

POWER: Press this button to power the device on/off. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

LOCK: Press this button to lock all the buttons on the panel, press

again to unlock. The LED will illuminate green when locked.

IR: IR Receiver window (accepts the remote control signal of this

device only).

MENU: Press this button to change the EDID setting from STD

(internal) 1 to TV (external) 2 and then press it again to conrm the

selection.

Note: For the 'TV' EDID setting, the unit will read and store the

EDID information of the display connected to HDMI output A. For

the 'STD' EDID setting, the unit's built-in EDID setting will be used

(1080p@60 Hz/12-bit for video and LPCM 2-channle for audio).

1~8/A~H and OUT/IN: Press the Out or In button to select the

output or input mode and then press the required number button

to make the selection accordingly.

For example, if outputs A~D need to be set to input 1 and outputs

E~H need to be set to input 2 then the following sequence of

button presses need to be performed:

Press: Out →A→B→C→D→In→1→Menu,

and then press: Out→E→F→G→H→In→2→Menu.

Note: If the menu button is not pressed the selection will not be

changed.

DRAFT

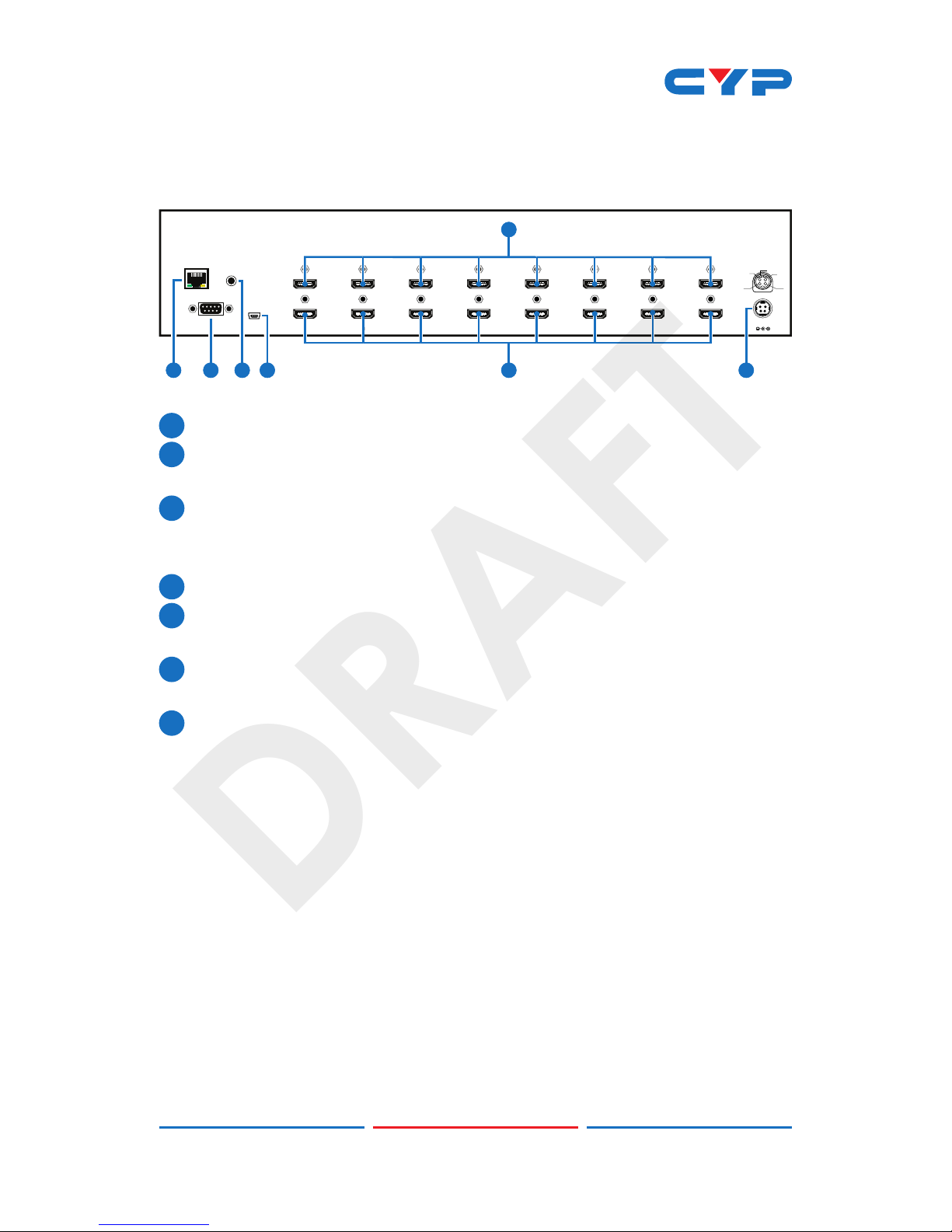

6.2 Rear Panel

LAN

DC 24V

IR-In

RS-232 Service

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

HDMI Out

HDMI In

V+

GND

V+

GND

V+

2 3

4 71 6

LAN: Reserved.

RS-232: Connect to a PC or laptop with D-Sub 9-pin female cable

for the transmission of RS-232 commands.

IR In: Connect the supplied IR extender (included in the package)

for IR signal reception. Ensure that remote being used is within the

direct line-of-sight of the IR extender.

Service: Manufacturer use only.

HDMI Out A~H: Connect to HDMI equipped TVs or monitors for

display of the HDMI input source signal.

HDMI In 1~8: Connect to the HDMI input source devices such as a

DVD player or a Set-top Box with HDMI cables or DVI to HDMI cables.

DC 24V: Plug the 24 V DC power supply (included in the package)

into the unit and connect the adaptor to an AC outlet.

DRAFT

6.3 Side Panel

VENTILATOR: These are fan ventilator areas, DO NOT block these

areas or cover them with any object. Please allow adequate

space around the unit for air circulation.

6.4 Remote Control

1POWER: Press this button to

switch on the device or set it to

'Standby' mode.

IN: Input ports selection 1~8.

OUT: Output ports selection A~H.

DRAFT
