CYP CMSI-88 Manual de usuario
DRAFT

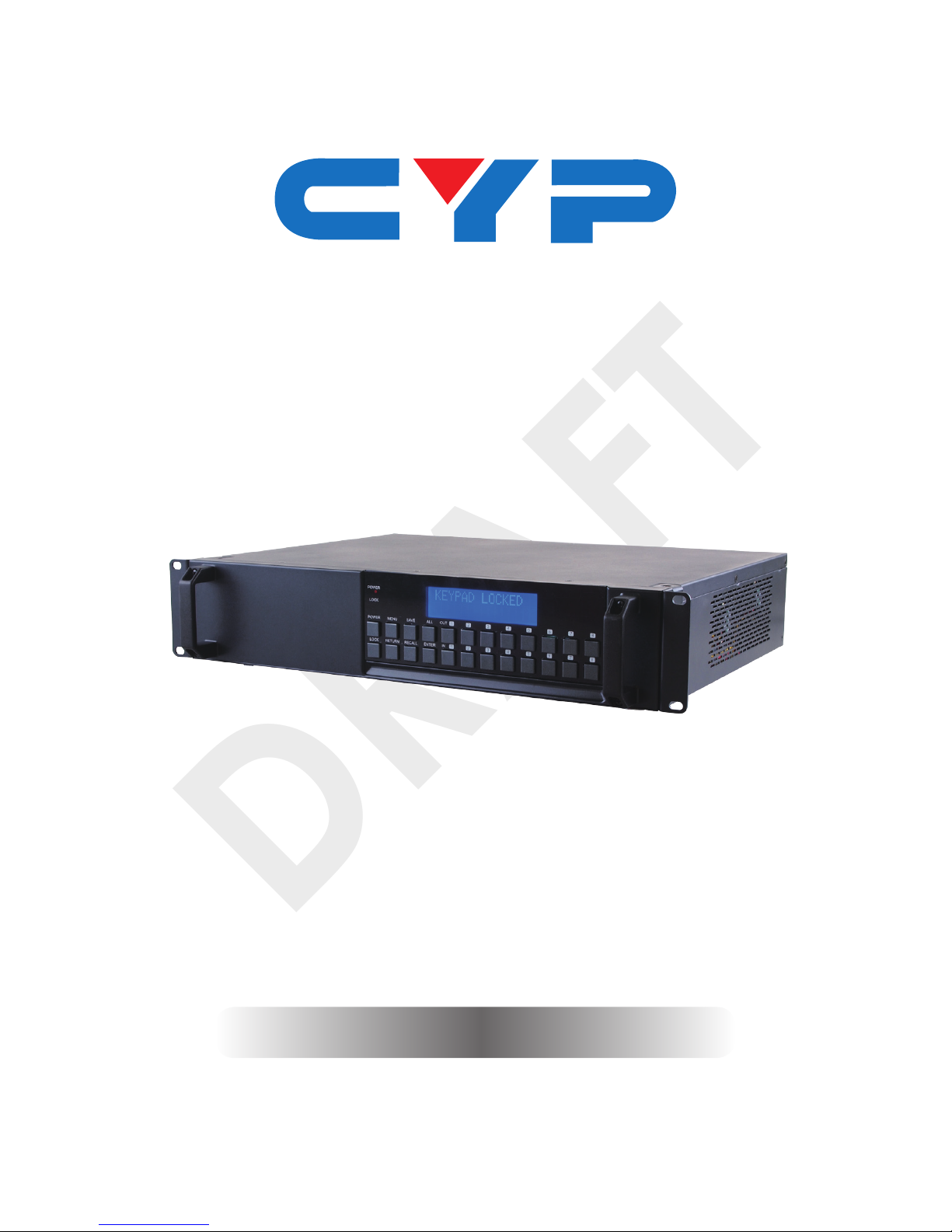

CMSI-88
Modularized Matrix
Operation Manual
Operation Manual
DRAFT
DRAFT
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version 1.0 September 2012
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
DRAFT
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 27/11/14 Preliminary Release
DRAFT
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................5
6.3 RS-232 Protocols ...............................6
6.4 RS-232 & Telnet Command .............7
6.5 Telnet Control ...................................9
6.6 Web GUI Control ............................11
7. Connection Diagram .......................... 13
8. Specications ...................................... 15
8.1 CAT5e/6/7 Cable Specication ...19
9. Acronyms ............................................. 19
DRAFT
1
1. INTRODUCTION
The Modularized Matrix series are designed to route the signal of 8
sources to any connected 8 displays, providing resolution up to Full HD
1080p/4Kx2K and WUXGA (1920x1200@60HzRB). Besides the regular
matrix functionality, the matrix models are very attractive to the
integrators because of their great exibility, with the most advanced
modularization design these models can be setup as a matrix of HDMI,
DVI-D, CAT5e/6/7, VGA or their any combinations all you need to do
is to swap the input or output modules as you wish. Refers to section 8
for available module boards.
2. APPLICATIONS
• Public information display
• Educational demo
• Professional Presentation
• Advertising display
• Hospital Operation Room
3. PACKAGE CONTENTS
• 1 x Enclosure of Modularized 88 Matrix (including control board, &
powers)
• 1 x Input Module Board of HDMI/DVI/CAT5e/6/7 or VGA(Optional)
• 1 x Output Module board of HDMI/DVI/CAT5e/6/7 (Optional)
• 1 x IR Blaster
• 1 x IR Extender
• 1 x Power Cord
• Operation manual
4. SYSTEM REQUIREMENTS
Input source equipments like PC/Laptop/DVD/Blu-ray players output
display TV/monitor or CAT5e/6/7 to HDMI receivers.
DRAFT
2
5. FEATURES
• HDMI, HDCP 1.1 and DVI 1.0 compliant
• Changeable input and output boards
• Input and output module types can be mixed with HDMI, DVI,
CAT5e/6/7 and VGA interfaces
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Supports a wide range of PC and HDTV resolutions from VGA to
WUXGA and 480i to 1080p or 4Kx2K
• Supports RS-232, Telnet and Web GUI controls
• Supports redundant power supply
• HDMI cable length with a resolution 1080p/8bits&12bits the Input/
Output source can be 15m/15m(8bits) and 10/10m(12bits) away
• EDID modes:
a. Standard mode: Factory Default
b. Automatic mode: Taking EDID from the lowest output port
c. Manual mode: Can assign any output to any input port
• CAT5e/6/7 cable length with a resolution 1080p/8bits&12bits the
Input/Output source can be 100m/100m away
• 5PlayTM convergence: Video, Audio, PoE, Ethernet & Control (IR &
RS-232)
• 4Play convergence: Video, Audio, PoE & Control (IR & RS-232)
• 3Play convergence: Video, Audio & Control (IR & RS-232)
DRAFT
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
6
12
1POWER button & LED: Press this button to turn On the device or
press it again to switch to standby mode. The LED will illuminate
when the power is in standby mode. If the LED is ashing it means
the temperature inside is too high and air circulation is highly
suggested.
2LCM: Displays the setting information of each input and output
and other setting information according to the selection.
3LOCK button & LED: Press this button to lock all the function buttons
on panel. The LED will illuminate, to unlock press it again.
4RETURN: Press this button to return back/exit the current selection.
5MENU: Press this button to enter into the menu selections of
A. EDID
1. Auto EDID: Base on the rst connected output TV/Display’s
EDID from 1~8 ports.
2. Standard EDID: Use the built-in EDID which supports video
up to 1080p@60/WUXGA@60RB and audio supports LPCM
2CH.
3. Manual EDID: Support independent EDID by appoint input
and output ports.
B. IP
DRAFT
4
1. IP address,
2. Netmask,
3. Gateway.
C. Temperature
1. Temperature 1,
2. Temperature 2, these gures shows the temperature of the
device inside.
D. LCM Contrast Range from 1~4
6◄►: Use these buttons to ip the LCM’s page for displaying
the current I/O status or when entering into the menu for detail
selection.
7SAVE: Press this button to save the present setting of the I/O. There
are 3 sets available for saving.
8RECALL: Press this button to recall from the saving settings of 1~3.
9ENTER: Press this button every time to conrm the setting or the
selection.
10 ALL: Press this button to select all outputs to one input.
11 OUT/IN: Press this button to select input source to displaying on
output display. The sequence should be OUT/IN→number(s) for
output source→OUT/IN→a number for input display→Enter.
12 1~8: Press these numbers when selecting input output ports.
DRAFT
5
6.2 Rear Panel
54
1
2
3
100-240VAC
50/60 Hz
OUTPUT
MODULE
INPUT
MODULE
RS232 CONTROL IR ALL
OUTIN
SERVICE OUTPUT 0
IR IN
Note: The above panel is an illustration of HDMI I/O.
1OUTPUT 1~8: Connect to HD or 3D TV/monitors with HDMI cables up
to 8 displays.
2CPU
a. RS-232: Connect with D-Sub 9-pin cable from the PC/Laptop
device for RS-232 control over the Matrix or the connected
device(s).
b. CONTROL: Connect to an active network line for LAN serving
and Telnet/Web GUI control.
c. IR OUT/IN: Reserved.
d. SERVICE: This port is reserved for rmware update only.
e. OUTPUT 0: Connect to DVI/HDMI (with DVI to HDMI adaptor)
monitor/TV for instant output image viewing.
3INPUT 1~8: Connect to source equipment such as Blu-ray/PS3
players up to 8 sets with HDMI cables.
4POWER & POWER Supply: The device will automatically turns ON
when connecting with power supply.
5Ventilation Fan: This fan will automatically turns ON when the
device is switch to ON. Do not block this port of the device or
cover it with any object. Please allow adequate space around
the unit for air circulation.
