CyberData Alteva Manual de usuario

SIP-enabled IP Ceiling Speaker

Setup Guide (Alteva)

CyberData Corporation • 3 Justin Court • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193

www.CyberData.net

The IP Endpoint Company

All manuals and user guides at all-guides.com

all-guides.com

Server Setup Guide 930628A CyberData Corporation

1.0 Setup Diagram

Figure 1 is a setup diagram for a single VoIP Ceiling Speaker configuration. In this configuration, the

VoIP Ceiling Speaker acts as a standalone SIP telephony device.

Figure 1. Setup Diagram

2.0 Host Environment

Hardware Type

Hardware Version

Software Type

Software Version

Table 1. Host Environment Details

Description

IP Phone

IP Address: ______________________

CyberData VoIP Ceiling Speaker

IP Address: _____________________

Alteva IP-PBX Server

IP Address: _____________________

PoE Switch

All manuals and user guides at all-guides.com

Server Setup Guide 930628A CyberData Corporation

3.0 Test Setup Equipment

VoIP Ceiling Speaker

Notes:

IP (SIP) Phone

Notes:

PoE Switch

Notes:

Table 2. Test Setup Equipment

Equipment Model Version

All manuals and user guides at all-guides.com

Server Setup Guide 930628A CyberData Corporation

4.0 Procedure

1. After you have spoken to your Alteva service dept and they have assigned a user license and

account to you, complete the following instructions:

2. Open the devices web interface by navigating to the IP address of the device. If you are unsure

of the device IP please do the following:

a. Make sure that your device is plugged into your network and powered on (this device must

be plugged into power over ethernet).

b. Use a paperclip to press and hold the RTFM button through the hole on the front of the

device until it beeps. See Figure 2.

Figure 2. RTFM Button

c. You will hear the IP address spoken to you by the device.

3. When prompted, type the username and password to get into the configuration page (the

default username and password are both admin).

Caution

If you hold the button for longer than five seconds, the device will reboot and restore

the factory default settings.

GENERAL ALERT

RTFM button

All manuals and user guides at all-guides.com

Server Setup Guide 930628A CyberData Corporation

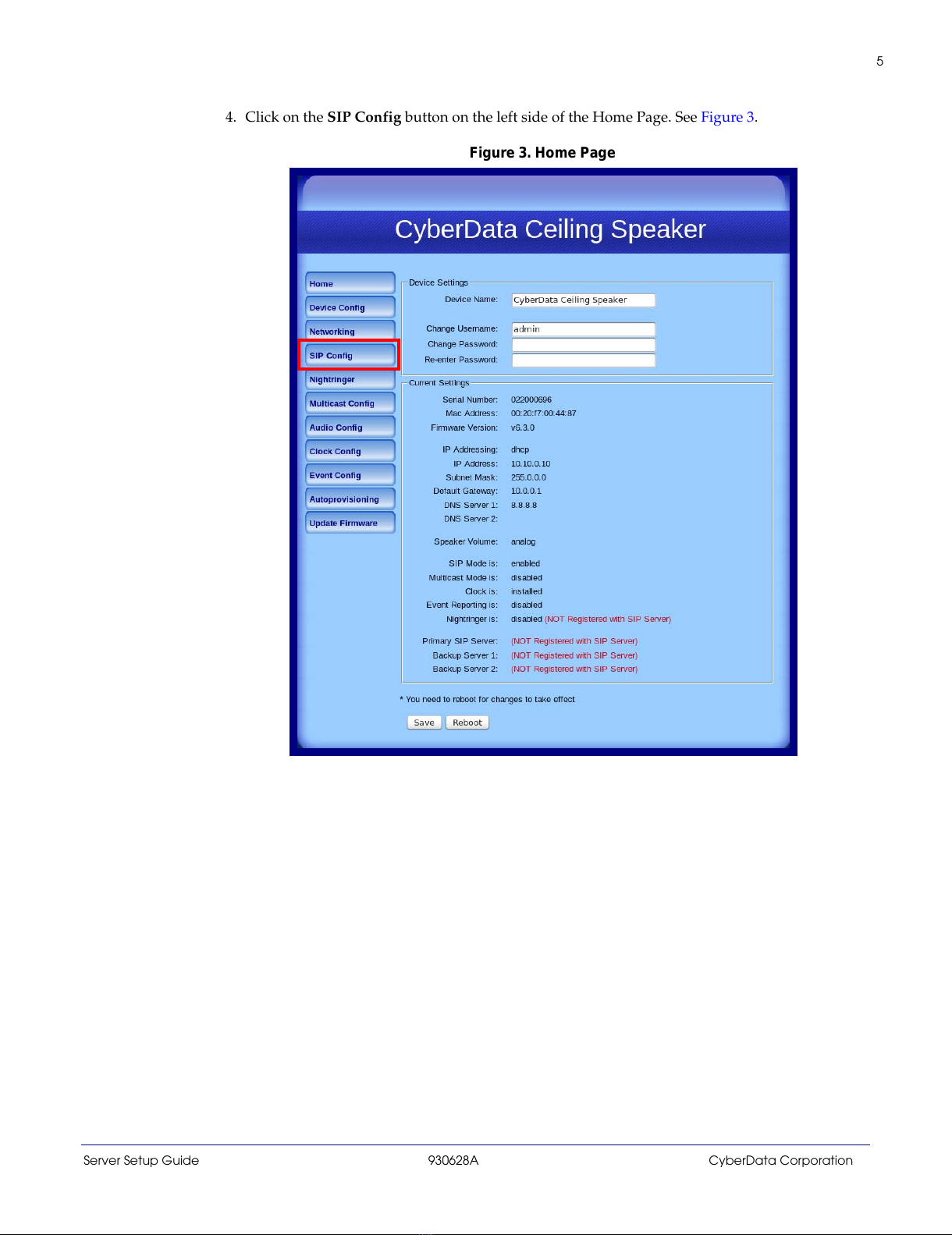

4. Click on the SIP Config button on the left side of the Home Page. See Figure 3.

Figure 3. Home Page

All manuals and user guides at all-guides.com

Server Setup Guide 930628A CyberData Corporation

5. Enter the information as shown in Figure 4.

Note The information in Figure 4 will be provided by your service representative.

Figure 4. SIP Configuration Page

6. Click Save.

7. Click Reboot.

8. You are now ready to use your SIP-enabled IP Ceiling Speaker.

sip.XXXXX.com

USER_ID

AUTH_Username

sip.XXXXX.com

5060

Proxy Registrar Address

Outbound Proxy Registrar

(may not be needed in all cases)

SIP User ID

IP Auth Username

IP Auth Password

All manuals and user guides at all-guides.com

all-guides.com
