INSTRUCTION MANUAL

MODEL 3016-2124 Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

1.4 Environmental Use Information 8

2.0 Installation 9

2.1 Mechanical 9

2.2 Rear Panel Inputs & Outputs 10

2.3 Front Panel Controls & Indicators 10

2.4 Operation 11

2.5 Menu Settings 12

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

3016-2124- Manual_Rev.0 Page 2 8/02/12

MODEL 3016-2124-Downconverter

1.0 General

1.1 Equipment Description

The 3016-2124 Downconverter converts 21 to 24 GHz to 70 ± 18 MHz in 125 kHz steps (1 kHz opt -X1008).

This unit combines a multi-band block downconverter with a 3-4 GHz to 70 MHz agile downconverter to

obtain the wide tuning range. Synthesized local oscillators (LO) provide frequency selection. Multi-function

switches select the input frequency, gain, and other parameters. Front panel LEDs provide indication of DC

power, PLL alarm or Remote operation. Gain is adjustable manually (MGC) over a 0 to +30 dB range. The

frequency and gain are remotely selectable. Parameter selection and frequency and gain settings appear on the

LCD display. Connectors are 2.92 mm female for the RF, and BNC female for the IF and external 10 MHz

reference input and output. Other connector options are available. The unit is powered by a 100-240 ±10%

VAC power supply, and is contained in a 1 3/4” X 19” X 18” rack mount chassis.

EXECUTE

MODEL 3016

CROSS TECHNOLOGIES INC.

REMOTE POWERALARM

DOWNCONVERTER

RF MONITOR

F=23123.125

G=+10 Ref = AUTO-I

FRONT

GND

J10

J18

10 MHZ REF 10 MHZ

AND

MONITOR EXT REF

CONTROL

OUTPUT INPUT

IF OUT

RF IN

234 6789

J20

REAR

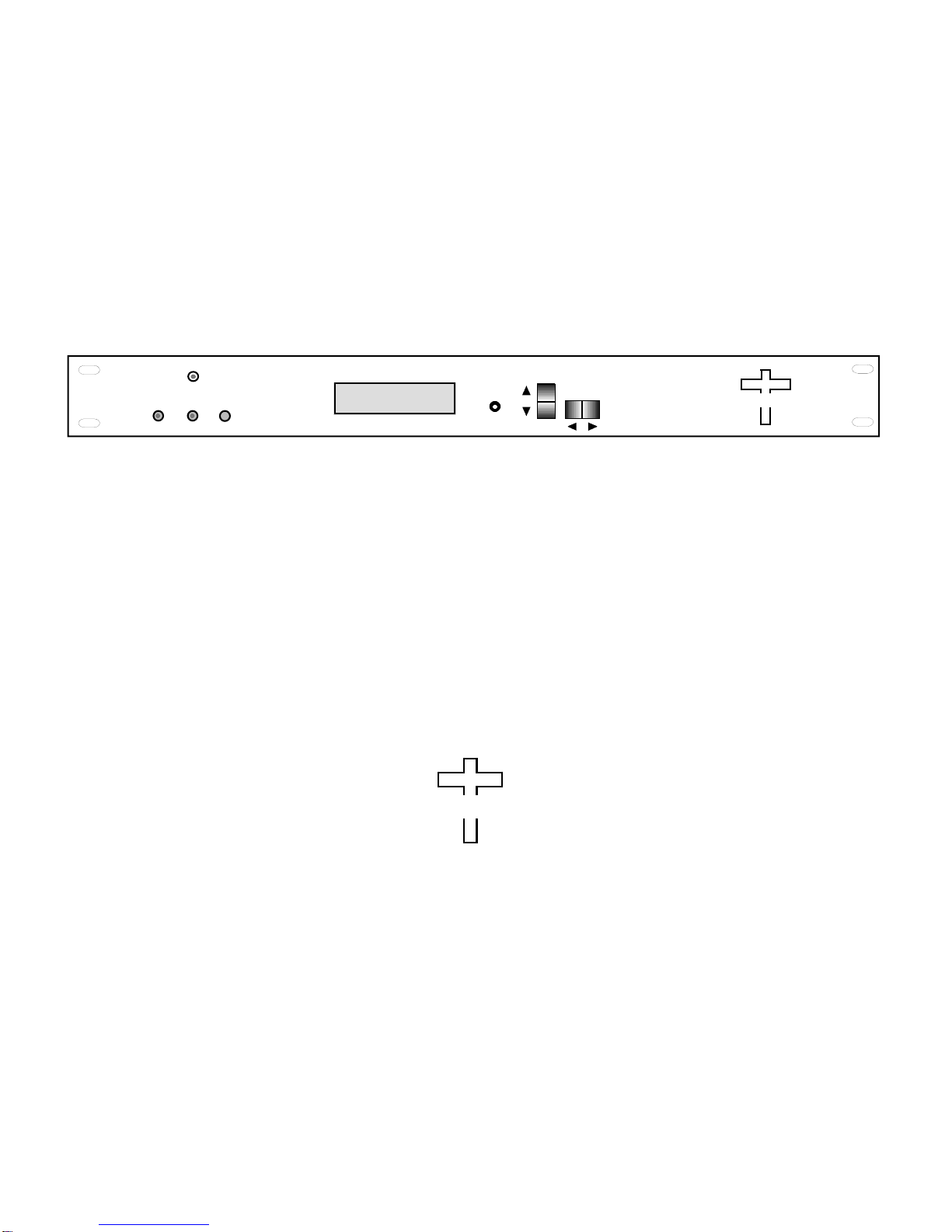

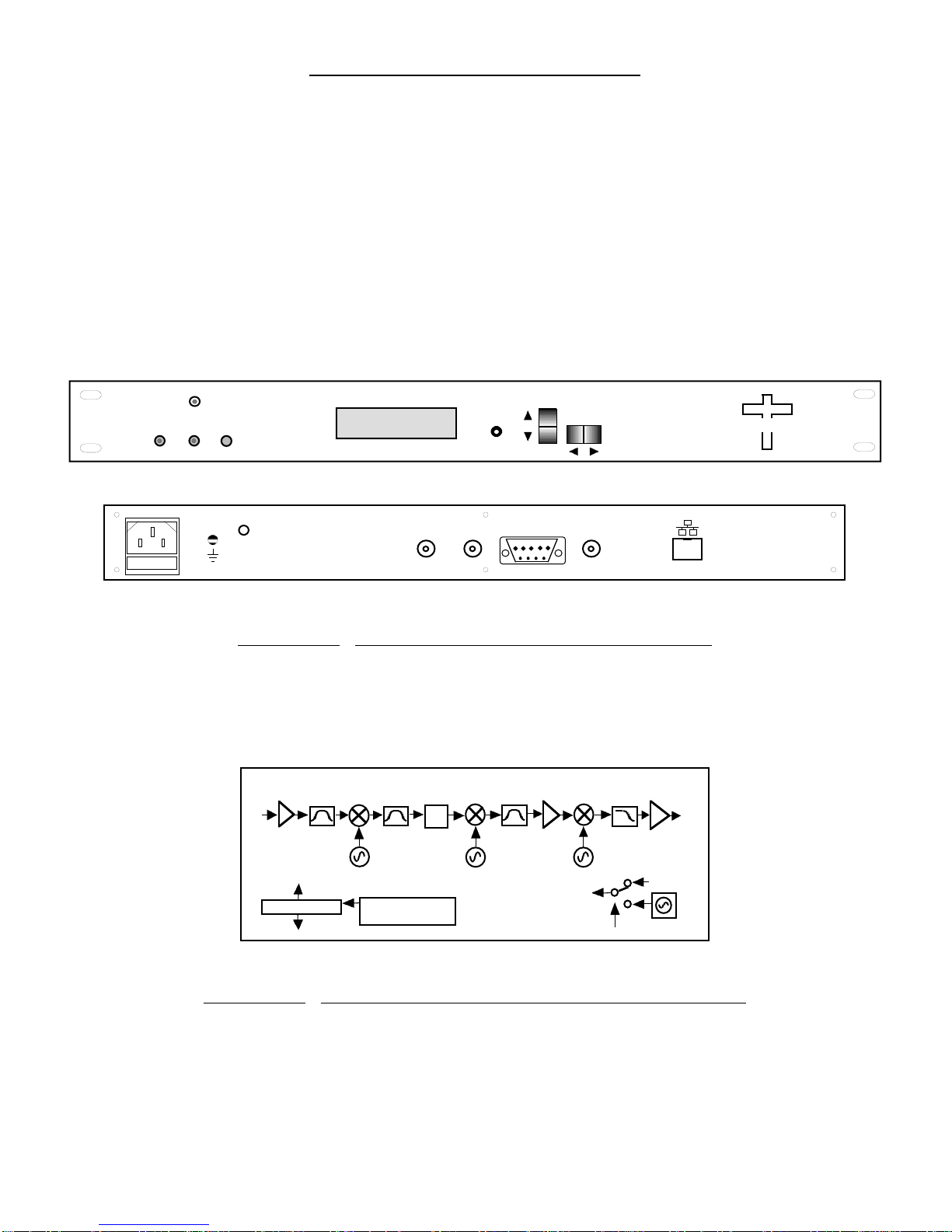

FIGURE 1.1 Model 3016-2124 Front and Rear Panels

3 to 4 GHz

BP 2400 MHz

5.4

6.4

GHz

var

atten

3 to 4

GHz 70

MHz

OUT

2470

2330

MHz

200 MHz

18,19,20

GHz

SW,PLL,ATT,VCC CONTROL

M&C

CONTROLLER 23123.125 MHz

G=10 REF=AUTO

EXT

10MHz

INT 10MHz

10MHz

VCOs

3016-2124

Block Diagram

21 to 24 GHz

FIGURE 1.2 Model 3016-2124 Downconverter Block Diagram

3016-2124- Manual_Rev.0 Page 3 8/02/12

1.2 Technical Characteristics

3016-2124- Manual_Rev.0 Page 4 8/02/12

Channel

Characteristics

nthesizer

Characteristics

< -50 dBC for two carriers each at -5 dBm out

Intermod

±3.0 dB, 21-24 GHz; ±1.5 dB, an

1 GHz band; ± 1.0 dB, 36 MHz BWFre

uenc

Res

onse <-50 dBc, in bandS

urious Res

onse

125 kHz minimum,

(

1 kHz O

t -X1008

)

Fre

uenc

Ste

Invertin

or Non-invertin

(

user selectable

)

Fre

uenc

Sense 0.02 ns/MHz2

arabolic

;

0.05ns/MHz linear

;

1 ns ri

36 MHz BWGrou

Dela

max.

3 dBm ± 3 dB10 MHz In/Out Level

± 0.01

m max. over tem

internal ref.

;

ext. ref. in

utFre

uenc

Accurac

> 50 dB, min.Ima

e Re

ection 30 to +30.0 dB Max./ 0.0 to +30.0 dB ran

1 dB ± 1 dB ste

sGain Max./Ran

(

ustable

)

Other

100-24 ±10% VAC

47-63 Hz

60 watts max.Power 19 inch

1RU Standard Chassis 1.75” hi

h X 18.0” dee

Size DB9

(

female

)

- NO or NC contact closure on AlarmAlarm / Remote Connector BNC

(

female

)

50Ω

works for 50 or 75 ohms10MHz Connectors 2.92 mm

(

female

BNC

75Ω

(

female

(

50ΩIF O

t - S29

)

10090807060

1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise @ Frequency

Controls, Indicators

RS232C, 9600 baud

(

RS422/485/o

t. -Q, Ethernet/o

t -W8, -W18, -W28Remote

Direct readout LCD; manual or remote selectionFre

uenc

/Gain Selection Green LED

;

Red LED

Yellow LEDPower

Alarm

Remote

TABLE 1.1 3016-2124 Downconverter Specifications*

20 dB

(

max.

ain

)

Noise Fi

ure

max. -50 to -30 dBmIn

ut Level Ran

21 to 24 GHzFre

uenc

+10 dBmOut

ut 1 dB Com

ression -20 to 0 dBmOut

ut Level Ran

Out

Characteristics

(

)

Characteristics

(

)

70 ± 18 MHzFrequenc

50Ω/ 18 dB

(

50Ω

works for 50 or 75 ohms

)

edance / Return Loss

50Ω/18 dB t

14 dB min.Im

edance / Return Loss

RF Mon.

-3 ±3 dB

50 ohm- W73

IF Mon.

-20dB

50 ohm- W71

Available

tions

Test Data- W16

1 KHz Ste

Ethernet with TCP/IP

Telenet

Ethernet with Web Browser & SNMP

Ethernet with Web Browser

(

)

See Table 2.2 - PG 9Connector / Im

edance

- X1008

- W28

- W18

- W8 RS485 Remote Interface-

*+0 to +50 degrees C; Specifications subject to change without notice.

-01

S29

W16

W70

X1008

Bundled

tions

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - option -Q)

Female DB-9

PC Com Port Male DB-9

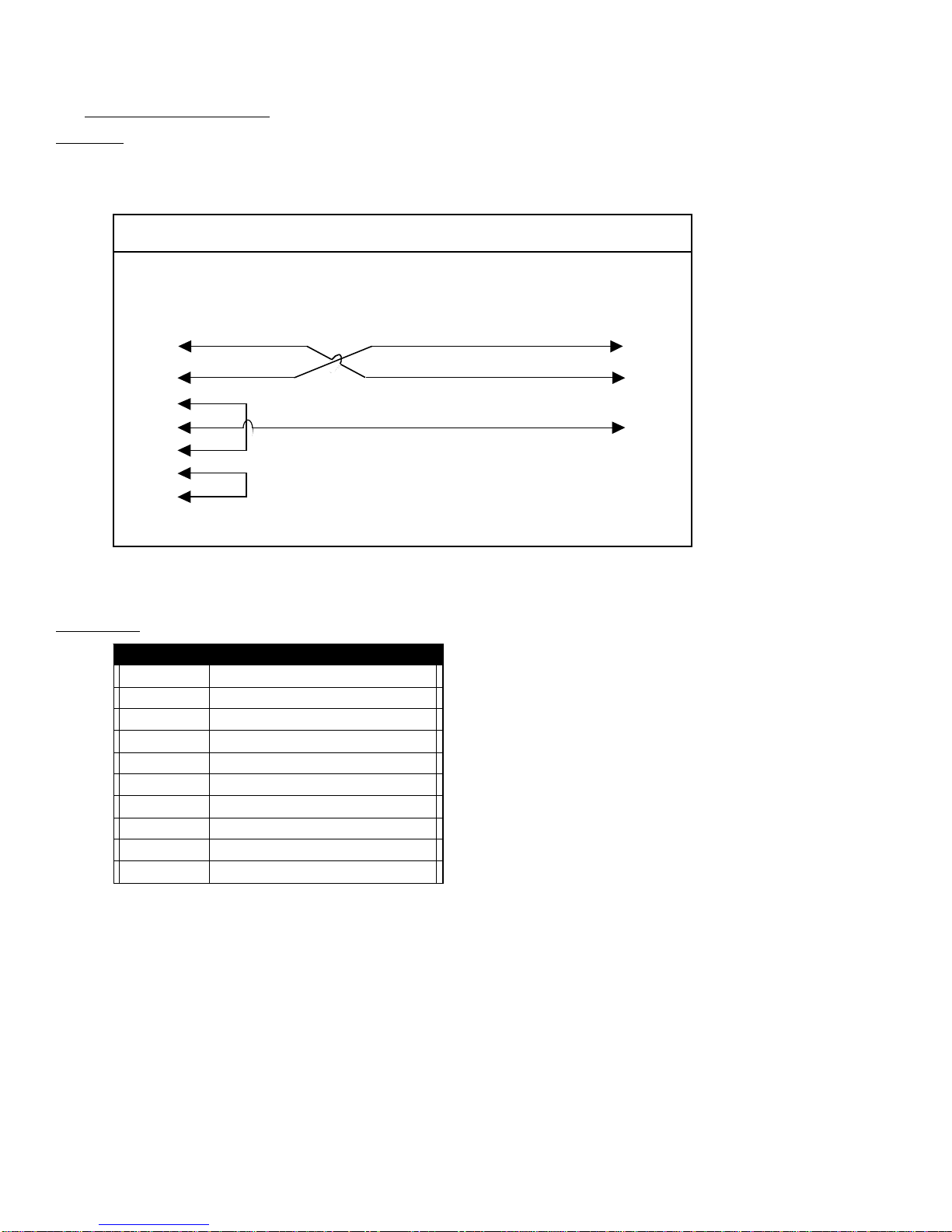

M&C Cable Diagram - Cross Technologies Frequency Converters

Connector: Rear panel, DB-9 female

J10 Pinouts (RS485/RS422)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

3016-2124- Manual_Rev.0 Page 5 8/02/12

B) Status Requests

Table 1.1 lists the status requests for the 2016-03 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

TABLE 1.1 3016-2124 Statuss Requests

Status Requests

TABLE 1.1 3016-2124 Status Requests

Command Syntax* Description

Command Status {aaS1} Returns {S1bbbbbbbcccIA} where:

• bbbbbbb = Rx frequency (in kHz)

• ccc = Rx gain

• I = Spectrum invert; 1 = inverted, 0=normal

• A = summary alarm; 1 = alarmed, 0 = normal

10MHz Reference Status {aaS2}* Returns {aaS2xy} where:

• x = 0 if Internal reference mode is selected

• x = 1 if external reference mode is selected

• x = 2 if auto reference mode is selected

• y = 0 if the internal reference is active

• y = 1 if the external reference is active

3016-2124- Manual_Rev.0 Page 6 8/02/12

C) Commands - Table 1.1 lists the commands for the 3016-2124 and briefly describes them. After a

command is sent the 3016-2124 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only - option -Q)

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 3016-2124 Com

mands

Commands

Command Syntax* Description

Set Receiver Frequency {aaC2xxxxx} where:

• xxxxxxx = 5 characters

• Range: 21000 to 24000 kHz, in 125kHz steps

Set Receiver Gain {aaC4xx} where:

• xxx = 3 characters

• Range: 0 to 30 (0.0 dB to +30 dB, in 1.0 dB steps)

Set Spectrum Invert {aaC7x} where x =:

• 0 to disable spectrum invert

• 1 to enable spectrum invert

Enable External 10MHz IN {aaCEx} where x =:

• 0 to select Internal Reference Mode

• 1 to select External Reference Mode

• 2 to select Auto Reference Mode

Enable Remote # Just # sign

Disable Remote {aaCR0} {CR and zero}

3016-2124- Manual_Rev.0 Page 7 8/02/12

1.4 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between units

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connection to the Branch

(use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

3016-2124- Manual_Rev.0 Page 8 8/02/12

2.0 Installation

2.1 Mechanical

The 3016-2124 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis.

A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 3016-2124 can be

secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 3016-2124 is assembled.

POWER

SUPPLY

••••••••

•••••••••••••••

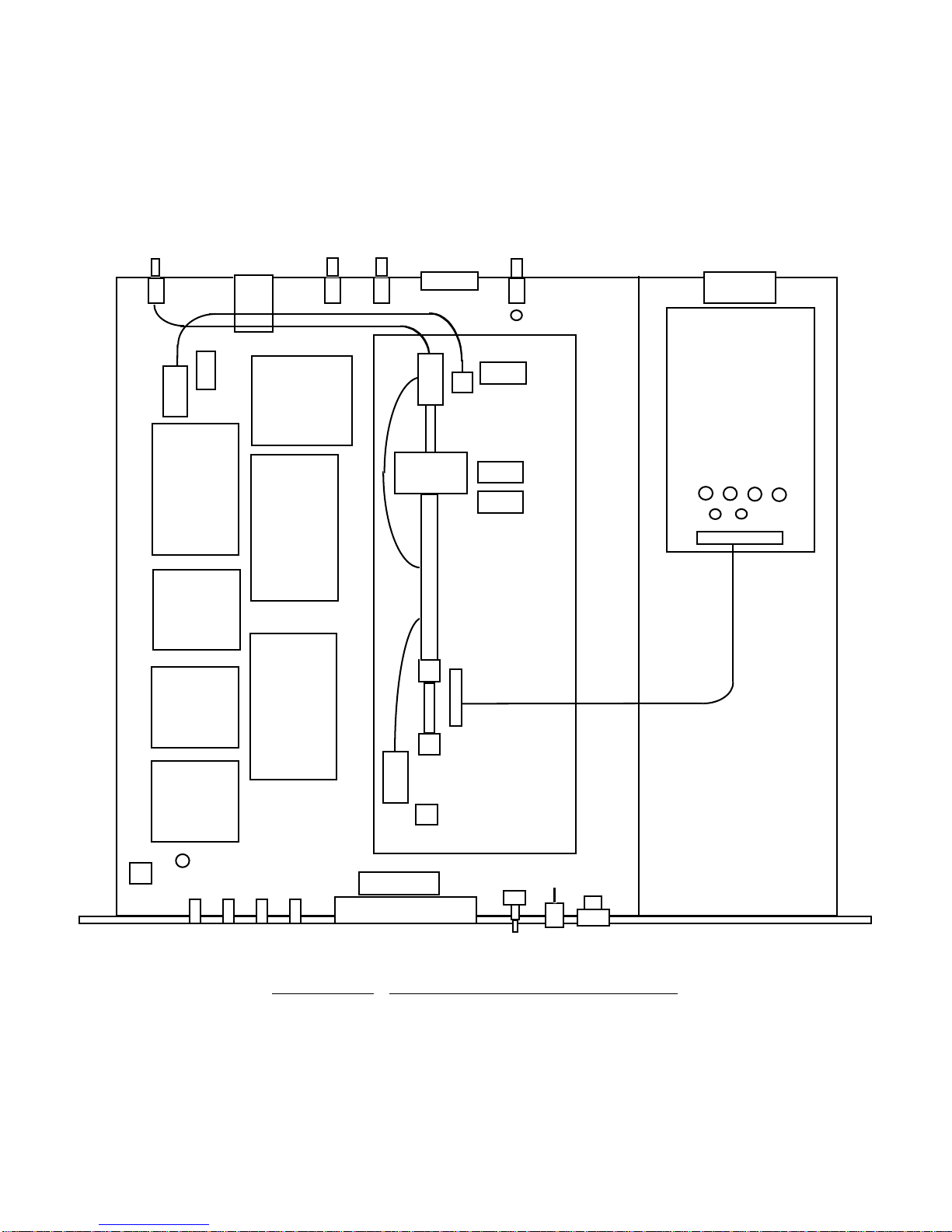

FIGURE 2.1 3016-2124 Mechanical Assembly

3016-2124- Manual_Rev.0 Page 9 8/02/12

2.2 Rear Panel Input/Output Signals

Figure 2.2 shows the input and output connectors on the rear panel.

GND

J1 J10

AND

MONITOR

CONTROL

5 4 3 2 1

9 8 7 6

J10 - MONITOR AND CONTROL

DB9 female connector.

See Table 2.1.

RF IN

J18 J3

10 MHZ

EXT REF

J2 - RF IN

21 to 24 GHz

-50 to -30 dBm input

J1 - IF OUT

70 ±18 MHz

-30 to -10 dBm input

INPUT

J18 - 10 MHz REF OUTPUT

10 MHz reference output,

3 ± 3 dBm, 50 ohms

BNC (female) connector.

AC - POWER IN

AC input for switching power supply.

100-240 VAC, 47-63 Hz.

J20 - Ethernet Connection

RJ45 Ethernet Connector

Option -W8).

J20J2

J3 - 10 MHz EXT REF INPUT

10 MHz reference input,

3 ± 3 dBm, 75 ohms

BNC (female) connector.

IF OUT 10 MHZ

EXT REF

OUTPUT

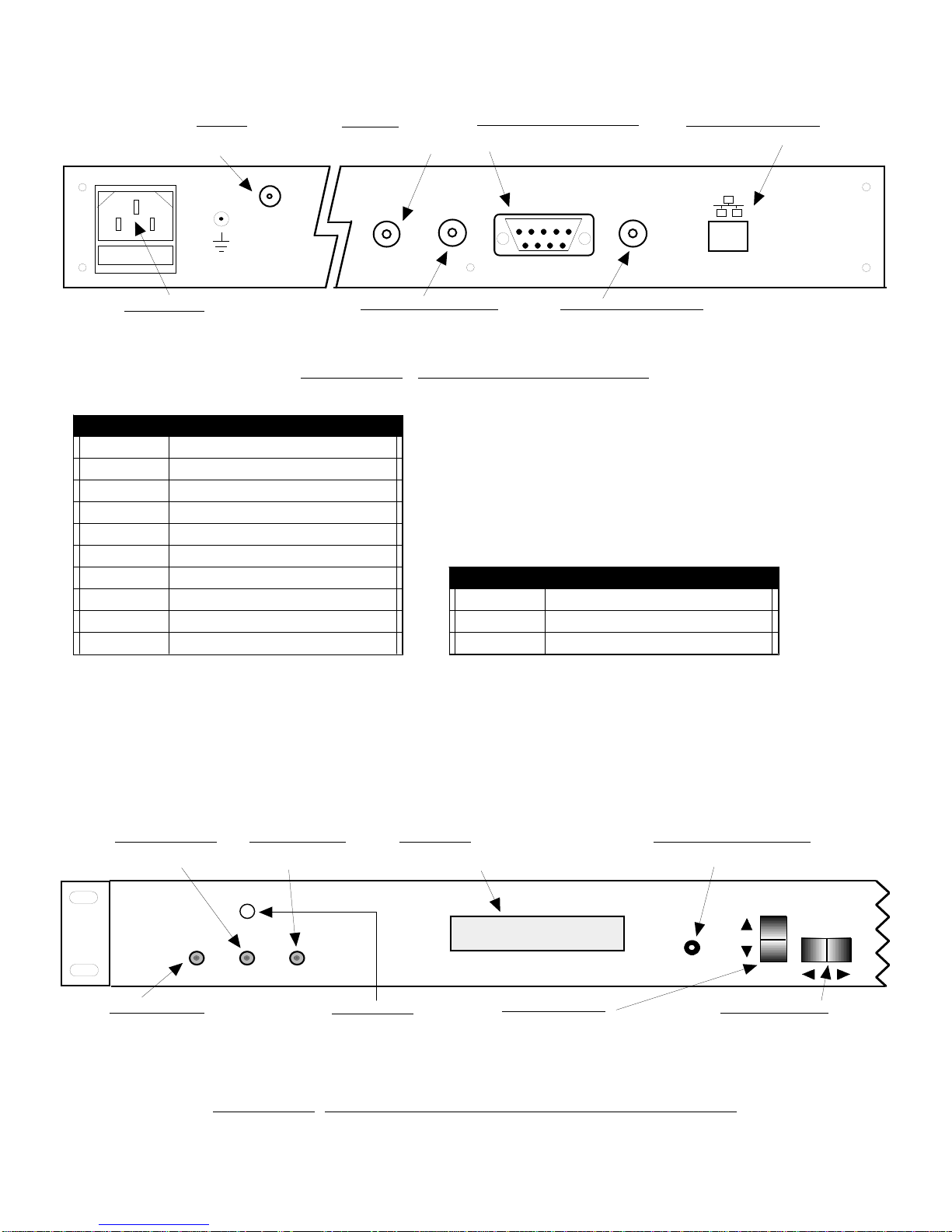

FIGURE 2.2 3016-2124 Rear Panel I/Os

TABLE 2.1 JJ10

2.1 J10 Pinouts (RS-232C*)

Pin Function

1 Not Used

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4 Not Used

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Closed

8 Not Used

9 Alarm Relay: Normally Open

TABLE 2.2 Connectors/Impedance

2.2 Connectors/Impedance

S29 2.92mm (RF), 50 ohm BNC (IF)

SS29 2.92mm (RF), SMA (IF)

*Remote Serial Interface

Interface: DB-9 Female

Protocol: RS-232C, 9600 baud rate, no parity,

8 data bits, 1 start bit, 1 stop bit

2.3 Front Panel Controls and Indicators

Figure 2.3 shows the front panel controls and indicators.

EXECUTE

REMOTE POWER

LCD DISPLAY

Display shows frequency in MHz and Gain

in dB, and is used to change settings in

Program mode.

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS6 - POWER LED

Green LED indicates

presence of DC power.

DS2 - REMOTE LED

Yellow LED indicates

remote operation.

S2 - VERT. TOGGLE

Vertical toggle switch that controls

values in the Menu items when in

program mode. Does not function

in the normal display mode

S3 - HORIZ. TOGGLE

Horizontal toggle switch that

controls which values are being

adjusted. Does not function in the

normal display mode

ALARM

DS3 - ALARM LED

Red LED indicates

downconverter alarm.

RF MONITOR

F=23123.125

G=+10 Ref = AUTO-I

DS1 RF Monitor

-3 dB monitor of

RF In

FIGURE 2.3 3016-2124 Front Panel Controls and Indicators

3016-2124- Manual_Rev.0 Page 10 8/02/12

Tabla de contenidos

Otros manuales de Convertidor de medios de Cross Technologies

Cross Technologies

Cross Technologies 2016-26 Manual de usuario

Cross Technologies

Cross Technologies 2415 0925 Series Manual de usuario

Cross Technologies

Cross Technologies 2117-8485 Manual de usuario

Cross Technologies

Cross Technologies 2016-75-213 Manual de usuario

Cross Technologies

Cross Technologies 4115-41-212 Manual de usuario

Cross Technologies

Cross Technologies 2015-03A Manual de usuario

Cross Technologies

Cross Technologies 1584 Manual de usuario

Cross Technologies

Cross Technologies 3116-7786-2150 Manual de usuario

Cross Technologies

Cross Technologies 2099-2424 Manual de usuario

Cross Technologies

Cross Technologies 4116-31-184 Manual de usuario

Cross Technologies

Cross Technologies 2016-25-01 Manual de usuario

Cross Technologies

Cross Technologies 2017-0923 370 Series Manual de usuario

Cross Technologies

Cross Technologies 2416 02I Series Manual de usuario

Cross Technologies

Cross Technologies 2117-7172 Manual de usuario

Cross Technologies

Cross Technologies 3116-145-1600 Manual de usuario

Cross Technologies

Cross Technologies 4116-285-2450 Manual de usuario

Cross Technologies

Cross Technologies 2416 25 Series Manual de usuario

Cross Technologies

Cross Technologies 2005-10 Manual de usuario

Cross Technologies

Cross Technologies 2099-10 Manual de usuario

Cross Technologies

Cross Technologies 2005 Manual de usuario

Cross Technologies

Cross Technologies 2116-184 Manual de usuario

Cross Technologies

Cross Technologies 3116-192 Manual de usuario

Cross Technologies

Cross Technologies 2415-x02 Manual de usuario

Cross Technologies

Cross Technologies 2016-1522 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
