Crestron SmarTouch ST-1700C Manual de usuario

Crestron ST-1700C

1-Way Wireless RF Touchpanel

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron ST-1700C 1-Way Wireless RF Touchpanel

Contents

1-Way Wireless RF Touchpanel: ST-1700C 1

Introduction ...............................................................................................................................1

Specifications ..............................................................................................................2

Physical Description....................................................................................................3

Industry Compliance ...................................................................................................5

Setup ..........................................................................................................................................6

Applying Power........................................................................................................... 6

Identity Codes..............................................................................................................6

Configuring the Touchpanel........................................................................................7

Uploading and Upgrading .........................................................................................11

General Use and Safety ............................................................................................. 17

Recommended Touchpanel Cleaning........................................................................ 17

Programming ...........................................................................................................................18

Programming with the Crestron AppBuilder............................................................. 18

Programming with SIMPL™ Windows.................................................................18

Programming with VisionTools™Pro-e ....................................................................22

Virtual Feedback .......................................................................................................22

“Quick” Pushbuttons ................................................................................................. 28

Reserved Join Numbers............................................................................................. 29

Problem Solving ...................................................................................................................... 30

Troubleshooting......................................................................................................... 30

Further Inquiries ........................................................................................................ 31

Firmware Upgrades ................................................................................................... 31

Future Updates .......................................................................................................... 31

Appendix: Engraveable Pushbutton Installation......................................................................32

Software License Agreement................................................................................................... 33

Return and Warranty Policies .................................................................................................. 35

Merchandise Returns / Repair Service ...................................................................... 35

CRESTRON Limited Warranty.................................................................................35

Operations Guide – DOC. 6050 Contents •i

Crestron ST-1700C 1-Way Wireless RF Touchpanel

1-Way Wireless RF Touchpanel:

ST-1700C

Introduction

The ST-1700C 1-Way Wireless RF SmarTouch™ Touchpanel (the touchpanel) gives

users customized command of their control environment. Available in both a domestic

and an international version (STI-1700C), the lightweight, hand-held touchpanel, with

long-life NiMH battery and RF wireless communication with a range of up to 300 feet,

allows complete freedom of movement, indoors or out. Customized graphic icons and

10 programmable “quick” pushbuttons let users easily control any function.

Included with the ST-1700C are a Crestron High Performance Rechargeable Battery

Pack (ST-BTPN) and a Docking Station (ST-DSN) that docks the touchpanel and/or

recharges the ST-BTPN. An external power pack (PW-1215 for domestic use or PWI-

1215 for international use) is also provided to power the touchpanel. Refer to the latest

revisions of the documentation supplied with these items for descriptions and details.

The following table provides a functional summary of the ST-1700C.

•

5.7" (14.78 cm) Active Color Matrix Display

• 320x240 Screen Resolution

• 63MIPs ColdFire Processor Running ISYS Generation Firmware

• 16 Bit Non-Palette Graphics

• 64,000-color ISYS engine

• 4 MB of Flash (3MB Reserved For User Display Lists)

• 8 MB of SDRAM (Synchronous Dynamic RAM) for Panel Firmware

• Power Up on Last Page

• Display On From Hardkey Disabled

• Built-in 10 "quick" Pushbuttons

− Engraveable*

− Operate Without Waking Display

• Long-Life NiMH Battery

− Fast Charging

− No Battery Memory

• Compatible with Existing CNRFGWA RF Gateway

• 1-Way RF Communication, Range up to 300 Feet

*Supplied with standard legends. Customizable Engraving Button Kit sold separately. See Appendix on page

32 for details.

Operations Guide – DOC. 6050 1-Way Wireless RF Touchpanel: ST-1700C •1

1-Way Wireless RF Touchpanel Crestron ST-1700C

Specifications

Specifications for the ST-1700C are given in the following table.

ST-1700C 1-Way Wireless RF Touchpanel Specifications

SPECIFICATION DETAILS

Power Options

ST-BTPN (or equivalent)

AC: Domestic External Adapter

AC: International External Adapter

ST-DSN

Rechargeable NiMH battery pack (included)

(4100 mAh capacity after full charge. Operating time

depends on usage.)1

12VDC, 1.5A, 120VAC Input (included)

(P/N PW-1215 or equivalent)

12VDC, 1.5A, 230VAC Input (included with international

version touchpanel)

(P/N PWI-1215 or equivalent)

Docking Station/charger with external power pack

(included)

Default NET ID 3

Default RF ID 10

Default Timeouts 10 minute for standby

30 minutes for power down

Signal Join Maximums 999 digital

Control System Update Files 2, 3, 4

2-Series Control System Update

CEN/CN-TVAV Update File

CNMSX-AV/Pro Update File

CNRACKX/-DP Update File

ST-CP Update File

Version C2-2004.CUZ or later

Version 5.10.13V.UPZ or later

Version 5.10.11X.UPZ or later

Version 5.10.11W.UPZ or later

Version 4.02.02S.UPZ or later

Acceptable File Extensions6

.vtz

.csf

projectname.vtz (compiled file)

ST1700C.vx.xxx.x.csf (panel firmware)

RF Specifications 1-Way Wireless RF Touchpanel, 433.92 MHz, Range

up to 300 feet5

Memory 4 MByte flash memory (3 Mbytes available for user

programming)

8 MByte SDRAM for firmware storage

EEPROM for NV storage of last page and join #s

Touchscreen Dimensions Height: 3.700 in (9.017 cm)

Width: 4.700 in (11.938 cm)

Touchscreen Resolution 320 x 240 pixels, 64K color ISYS engine

Touchscreen LCD STN color, dot matrix type

Touchscreen Illumination Backlit fluorescent

Touchscreen Composition Resistive Membrane

Operating Temperature 50° to 113°F (10° to 45°C)

Humidity 10% to 90% RH (non-condensing)

Overall Dimensions Width: 8.75 in (22.23 cm)

Height: 3.62 in (9.19 cm)

Depth: 5.43 in (13.79 cm)

Weight (without battery pack) 1.85 lb (0.84 kg)

1. Battery life is 180 minutes continuous usage with background lighting at full brightness. Actual operating

time depends on usage and settings for background brightness and timeouts.

2. The latest versions can be obtained from the Downloads | Software Updates section of the Crestron website

(www.crestron.com). Refer to NOTE after last footnote.

3. Crestron 2-Series control systems include the AV2, PAC2, PRO2, and RACK2.

4. CNX update files are required for either CNMSX-AV/Pro or CNRACKX/-DP. Filenames for CNX update

files have a UPZ extension and ST-CP files are in one EXE or zipped UPZ file. To avoid program

problems, make certain you are using the update file with the correct suffix letter (e.g., S, V, W, X).

2 •1-Way Wireless RF Touchpanel: ST-1700C Operations Guide – DOC. 6050

Crestron ST-1700C 1-Way Wireless RF Touchpanel

5. Requires Crestron CNRFGWA 1-Way RF Receiver, or ST-CP SmarTouch Control Processor.

6. Extension requires a prefix specific to the touchpanel type. In DETAILS, projectname represents the

assigned project name, and vx.xxx.x represents a version number.

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers only. New users may be required to register to obtain access to certain areas of

the site (including the FTP site).

Physical Description

The touchpanel has a 5.7-inch (14.48 cm) active matrix color display panel with 320 x

240 resolution and 16-bit non-palette graphics. The electronic hardware is housed in a

high impact, black molded plastic enclosure, shown below. Connectors to power the

unit and upload touchscreen projects are located on the sides of the unit.

Operations Guide – DOC. 6050 1-Way Wireless RF Touchpanel: ST-1700C •3

1-Way Wireless RF Touchpanel Crestron ST-1700C

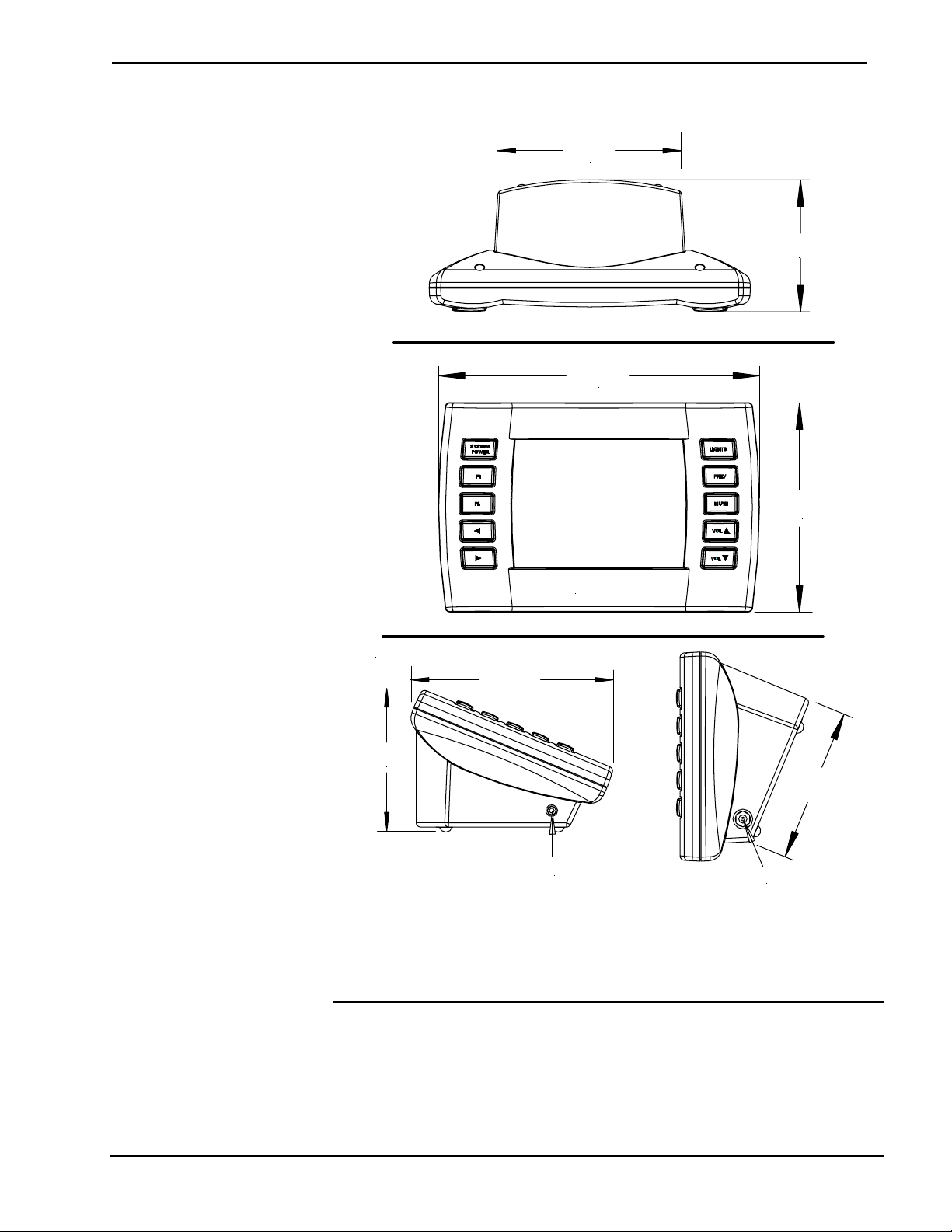

ST-1700C 1-Way Wireless RF Touchpanel Physical Views

CRESTRON

5.012 in

12.730 cm

3.596 in

9.134 cm

8.750 in

22.225 cm

5.700 in

14.478 cm

4.236 in

10.760 cm

Upload

connector Power

connector

Top view

Front view

Side views

3.620 in

9.195 cm

5.430 in

13.793 cm

The battery compartment, located on the underside of the unit, holds one Crestron ST-

BTPN, rechargeable power pack. There are also four rubber feet on the underside of

the unit for stability and to prevent slippage.

WARNING: To avoid shock hazard and possible damage to the unit, do not use

touchpanel in rain or expose it to unnecessary moisture.

4 •1-Way Wireless RF Touchpanel: ST-1700C Operations Guide – DOC. 6050

Crestron ST-1700C 1-Way Wireless RF Touchpanel

Industry Compliance

As of the date of manufacture, this unit has been tested and found to comply with

specifications for CE marking and standards per EMC and Radio Communications

Compliance Labeling (N11785).

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. The equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Operations Guide – DOC. 6050 1-Way Wireless RF Touchpanel: ST-1700C •5

1-Way Wireless RF Touchpanel Crestron ST-1700C

Setup

Applying Power

The touchpanel can be powered via an external AC power pack, while resting in the

ST-DSN, or via the ST-BTPN. Each of these supplied items has its own Operations

Guide which details proper usage. Refer to the table below for the required document

number.

NOTE: The battery can be charged only if the touchpanel is in the docking station.

The touchpanel will function when powered by the external power pack, but this

configuration will not charge the battery.

ST-1700C Power Source Options

POWER SOURCE OPTION MODEL DOCUMENT

NUMBER *

Battery Pack ST-BTPN 6088

Docking Station ST-DSN 6095

Domestic External Power Pack or PW-1215 5762

International External Power Pack PWI-1215 5763

* The latest revision may have a revision letter after the document number (i.e., 6088A).

Identity Codes

The ST-1700C touchpanel uses two distinct types of identity codes: Cresnet identity

(NET ID), and RF ID. These codes are assigned to the touchpanel from the Interface

Submenu when the unit is configured. Refer to “Setup Menu” on page 7. For the

touchpanel to be identified within the Cresnet system, these assignments must match

assignments made in the SIMPL™Windows®program.

NET ID

Every equipment and user interface within the Cresnet system requires a unique NET

ID. The NET ID is a two-digit hexadecimal number that can range from 03 to FE. The

NET ID of the unit must match the NET ID specified in the SIMPL Windows program.

The NET ID is used when the touchpanel is wired directly to the control system during

uploading a VisionTools™Pro-e (VT Pro-e) project or upgrading the touchpanel

firmware.

RF ID

Every ST-1700C touchpanel communicating with a Cresnet control system via a

CNRFGWA requires a unique RF ID to secure RF communications. There are 15

useable codes for multiple touchpanel(s) ranging from 01 to 0F (hexadecimal number).

The RF ID of the unit must match the RF ID specified in the SIMPL Windows

program.

NOTE: Do not set the RF ID to “00”; it is not supported in SIMPL Windows.

6 •1-Way Wireless RF Touchpanel: ST-1700C Operations Guide – DOC. 6050

Otros manuales para SmarTouch ST-1700C

Tabla de contenidos

Otros manuales de Panel táctil de Crestron

Crestron

Crestron C2N-FT-TPS4 Manual de usuario

Crestron

Crestron TS-770 Manual de usuario

Crestron

Crestron TPMC-9 Manual de usuario

Crestron

Crestron Isys TPS-12B Manual de usuario

Crestron

Crestron Isys TPS-5000 Manual de usuario

Crestron

Crestron Isys TPMC-4SM Instrucciones de funcionamiento originales

Crestron

Crestron Isys i/O TPMC-15-CH Manual de usuario

Crestron

Crestron Lsys TPS 2000L Manual de usuario

Crestron

Crestron DualTouch DTT-17 Manual de usuario

Crestron

Crestron TSW-730 Manual de usuario

Crestron

Crestron Isys TPS-3000 Manual de instrucciones

Crestron

Crestron Prodigy PTX3 Manual de usuario

Crestron

Crestron SmarTouch STX-1700CXP Manual de usuario

Crestron

Crestron Wallmount Touchpanel Manual de usuario

Crestron

Crestron Isys TPS-6 Manual de usuario

Crestron

Crestron TST-902 Manual de usuario

Crestron

Crestron STX-1550C Manual de usuario

Crestron

Crestron TPMC-8L Manual de usuario

Crestron

Crestron Isys TPS-4500LV Manual de usuario

Crestron

Crestron TPMC-V12 & TPMC-V15 Manual de usuario

Crestron

Crestron TS-1542 Manual de usuario

Crestron

Crestron STX-1700CXPW Manual de usuario

Crestron

Crestron TSW-570PR Series Manual de usuario

Crestron

Crestron TPS-FPAR6000L Manual de usuario

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario
