Crestron DualTouch DTT-18 Manual de usuario

Crestron DTT-18

DualTouch™ Technology Touchpanel

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

DualTouch™ Technology Touchpanel Crestron DTT-18

Contents

DualTouch™ Technology Touchpanel: DTT-18 1

Introduction ........................................................................................................................1

Features and Functions .............................................................................................................. 1

Specifications ............................................................................................................................ 3

Physical Description .................................................................................................................. 4

Industry Compliance.................................................................................................................. 9

Setup.................................................................................................................................10

Mounting ................................................................................................................................. 10

Hardware Hookup.................................................................................................................... 11

Display Settings....................................................................................................................... 13

Using the Pen........................................................................................................................... 16

Cleaning................................................................................................................................... 17

Alternative Mounting .............................................................................................................. 17

Problem Solving ...............................................................................................................18

Troubleshooting....................................................................................................................... 18

Further Inquiries ...................................................................................................................... 19

Future Updates......................................................................................................................... 19

Return and Warranty Policies...........................................................................................20

Merchandise Returns / Repair Service..................................................................................... 20

CRESTRON Limited Warranty............................................................................................... 20

Operations Guide – DOC. 6290 Contents •

DualTouch™ Technology Touchpanel Crestron DTT-18

DualTouch™ Technology

Touchpanel: DTT-18

Introduction

Features and Functions

The DTT-18 is an 18-inch touchpanel designed for use with the UPX-2 Universal

Presentation System. The Crestronexclusive DualTouch™ Technology (patent

pending) allows the DTT-18 to function both as a touchpanel and a pen-based

annotation device to produce an amazingly flexible presentation solution.

Crestron DualTouch Technology touchpanels employ a combination of analog

resistive touch sensing for fingertip-operated touchpanel control and the exclusive

Wacom®pen-based technology for precise drawing and annotation. Switching

between modes is automatic and instantaneous, disabling the analog membrane

whenever the pen is sensed allowing users to rest the palm of their hand naturally on

the screen while drawing.

Functional Summary

• Provides the primary user interface for the Crestron UPX-2 Universal

Presentation Processor

• Displays high-resolution RGB video from the UPX-2

• 18-inch color display with 1280 x 1024 native resolution

• Employs DualTouch Technology to support touchpanel control and pen-

based annotation as part of a complete UPX system

• Includes a tabletop stand with versatile tilt and rotation adjustments

NOTE: The DTT-18 can only be used with the UPX-2.

Operations Guide – DOC. 6290 DualTouch™ Technology Touchpanel: DTT-18 •1

Crestron DTT-18 DualTouch™ Technology Touchpanel

DTT-18 DualTouch Technology Touchpanel and UPX-2 Universal Presentation Processor Typical Application

•DTT-18: DualTouch™ Technology Touchpanel Operations Guide – DOC. 6290

DualTouch™ Technology Touchpanel Crestron DTT-18

Specifications

The following table provides a summary of specifications for the DTT-18.

DTT-18 Specifications

SPECIFICATION DETAILS

Power Requirements 72 Watts (4 Amps @ 18 Volts DC) Power Supply Included

Connectors Integral breakout cable

Video One 29-pin DVI Male Connector, DB15HD/VGA adaptor included

(connects RGB output from output port A of the UPX-2 using VGA

adaptor)

RS-232 One DB9 Female Connector, bi-directional port. Not used with the

UPX-2.

USB One USB A Female Connector for Communications connection to

the UPX-2 Processor (to any of the four USB UPX-2 ports)

Power One 4-pin Connector for Power Supply

Controls and Indicators DVI/VGA Switch – Selects Input Type

Display Controls – Four Pushbuttons for Setup Controls

Power – One Pushbutton to turn On/Off

PWR LED – Indicates power status and presence of video signal

Status LED - Indicates sensing of Annotation Pen

Annotation Pen

Pen Pressure 512 levels

Pen Switches Eraser and a Side Switch – functionality to be defined in future

release

Accuracy Center ±0.02 in

Reading Height 0.2 in

Report Rate 205 points/second

Display

Display Type Active Matrix Color LCD

Screen Size 18.1 inch (45.97 cm) diagonal

Active Area 14.1 inch x 11.3 inch

Resolution 1280 x 1024 pixels (SXGA)

Color Depth 16,777,216 (24 bit)

Contrast Ratio 300:1

Brightness 180 cd/m2

Viewing Angle ±80 degrees horizontal, ±80 degrees vertical

Touchscreen Resistive Membrane

Screen Tilt Adjustable from 13 to 70 degrees

Display Rotation ±180 degrees

Operating Environment Temperature: 41° to 95°F (5° to 35°C)

Humidity: 20% to 80% RH (non-condensing)

Dimensions Height: 17.02 in (43.23 cm) - Without stand 16.01 in (40.67 cm)

Width: 18.43 in (46.81 cm)

Depth without stand: 2.88 in (7.32 cm)

Weight: 17.0 lbs (7.71 kg)

Operations Guide – DOC. 6290 DualTouch™ Technology Touchpanel: DTT-18 •3

Crestron DTT-18 DualTouch™ Technology Touchpanel

Physical Description

The electronic hardware is housed in a high impact, black molded plastic enclosure,

shown in the following illustration. This touchpanel is designed for placement on a

counter. It possesses an adjustable tilt stand that permits an angular adjustment range

from 13 to 70 vertical degrees and rotation through 180 degrees.

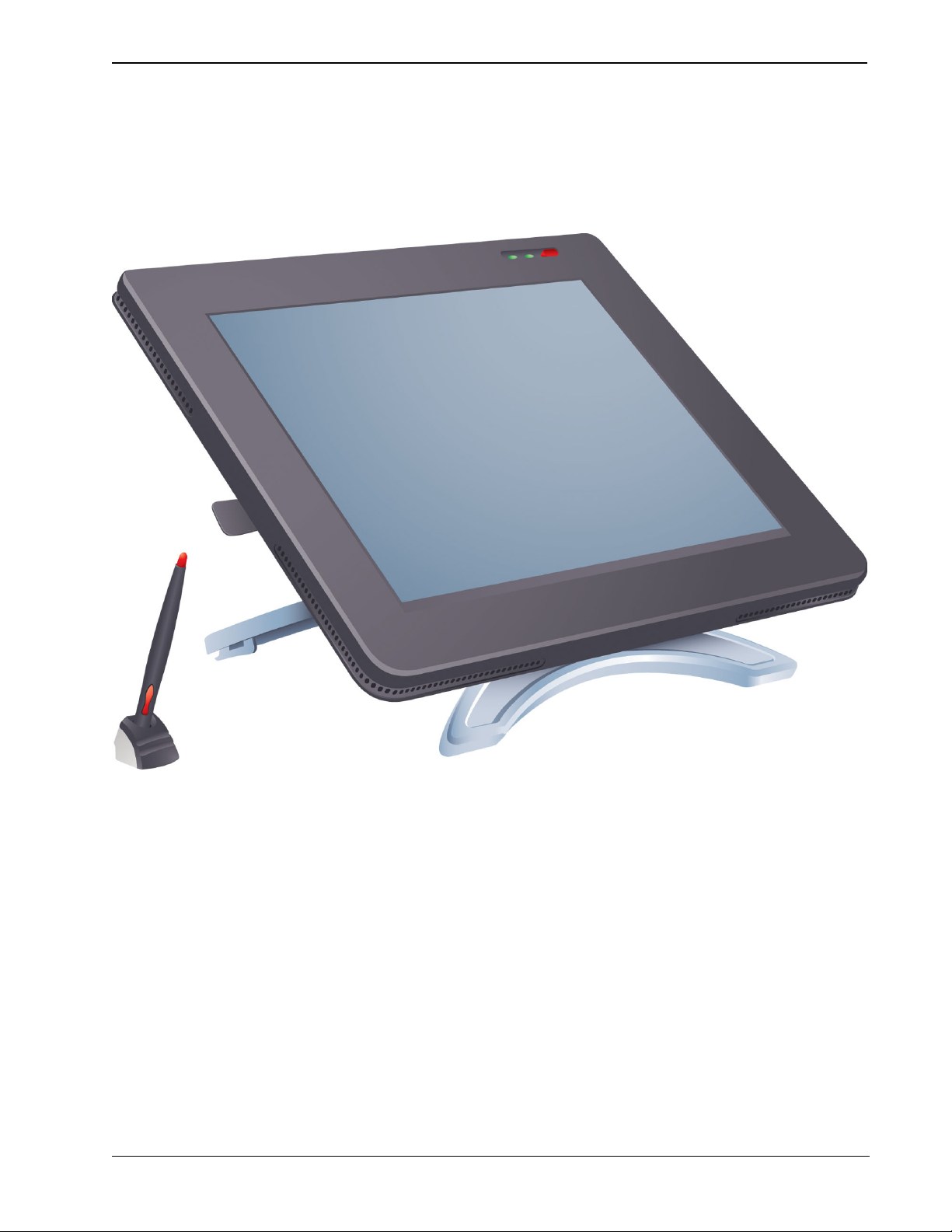

DTT-18 Front View

•DTT-18: DualTouch™ Technology Touchpanel Operations Guide – DOC. 6290

DualTouch™ Technology Touchpanel Crestron DTT-18

Physical View – Front and Bottom

18.43 in

(46.81 cm)

14.22 in

(36.12 cm)

2.38 in

(6.05 cm)

2.88 in

(7.32 cm)

11.38 in

(28.91 cm)

16.01 in

(40.67 cm)

Operations Guide – DOC. 6290 DualTouch™ Technology Touchpanel: DTT-18 •5

Crestron DTT-18 DualTouch™ Technology Touchpanel

Physical View – Side

15.81 in

(41.16 cm)

8.53 in

(21.67 cm)

7.60 in

(19.30 cm)

17.02 in

(43.23 cm)

•DTT-18: DualTouch™ Technology Touchpanel Operations Guide – DOC. 6290
