Crestron STX-1700C

2-Way RF Wireless Touchpanel

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron STX-1700C 2-Way RF Wireless Touchpanel

Contents

2-Way RF Wireless Touchpanel: STX-1700C 1

Introduction ...............................................................................................................................1

Functions and Features ................................................................................................ 1

Roaming Feature .........................................................................................................2

Specifications ..............................................................................................................3

Physical Description....................................................................................................4

Industry Compliance ...................................................................................................6

Setup ..........................................................................................................................................6

Applying Power........................................................................................................... 6

Identity Codes..............................................................................................................7

Configuring the Touchpanel........................................................................................8

General Use and Safety .............................................................................................12

Recommended Touchpanel Cleaning........................................................................ 12

Programming Software............................................................................................................12

Earliest Version Software Requirements for the PC .................................................12

Programming with the Crestron SystemBuilder........................................................13

Programming with SIMPL Windows ........................................................................13

Programming with VT Pro-e..................................................................................... 18

Optional Pushbuttons.................................................................................................18

Reserved Join Numbers............................................................................................. 18

Uploading and Upgrading........................................................................................................ 19

Communication Settings ...........................................................................................20

Uploading a VT Pro-e Project ...................................................................................24

Firmware Upgrades ................................................................................................... 25

Problem Solving ...................................................................................................................... 27

Troubleshooting......................................................................................................... 27

Out of Range Feature.................................................................................................28

Further Inquiries ........................................................................................................ 29

Future Updates .......................................................................................................... 29

Appendix A: Optimum RF Reception Guidelines ...................................................................30

Minimize Interference ............................................................................................... 30

Gateway Placement ...................................................................................................30

Antenna Orientation .................................................................................................. 30

Appendix B: Installation of Optional Pushbuttons ................................................................. 32

Software License Agreement................................................................................................... 33

Return and Warranty Policies .................................................................................................. 35

Merchandise Returns / Repair Service ...................................................................... 35

CRESTRON Limited Warranty.................................................................................35

Operations Guide – DOC. 6226A Contents •i

Crestron STX-1700C 2-Way RF Wireless Touchpanel

2-Way RF Wireless Touchpanel:

STX-1700C

Introduction

Functions and Features

The STX-1700C is a two-way wireless radio frequency (RF) compact color

touchpanel that provides a user interface to a Crestron®remote control system

(herein referred to as the Cresnet®system). The touchpanel is a handheld, transceiver

that communicates through Crestron’s gateway/transceiver, the STRFGWX (sold

separately), to the Cresnet system. The two-way communications provide the control

of third party and Cresnet devices and provide dynamic on-screen feedback for real-

time confirmation of commands. Up to 15 touchpanels can communicate with one

STRFGWX. RF signals can travel from a minimum of three feet up to a maximum of

50 feet indoors (150 feet outdoors). Additional range can be obtained (for roaming)

by using multiple STRFGWX gateways (sold separately) distributed throughout any

particular area or installation. The location and the antenna position of the

STRFGWX are important factors in the RF reception/transmission. The range of the

touchpanel is also dependent on its placement and the construction of the building in

which it is used. The touchpanel is also available in an international version, the

STXI-1700C.

Functional Summary

• 5.7" (14.48 cm) active color matrix display

• 320 x 240 screen resolution

• 63MIPs ColdFire processor running Crestron Isys®generation firmware

• 16-bit non-palette graphics

• 64,000-color Crestron Isys engine

• 4 MB of Flash (approx. 3MB for user display lists)

• 8 MB of SDRAM (Synchronous Dynamic RAM) for panel firmware

• Long-life NiMH battery

− Fast charging

− No battery memory

• Compatible with existing STRFGWX RF gateway

• Roaming capability with additional RF Gateways

NOTE: The STX-1700C is supplied with an optional bezel, two 5-button switch

actuators, and ten black pushbuttons (blank), five for each side of the LCD screen.

You can use these buttons to access any frequently used commands. Refer to

Operations Guide - DOC. 6226A 2-Way RF Wireless Touchpanel: STX-1700C •1

2-Way RF Wireless Touchpanel Crestron STX-1700C

“Appendix B: Installation of Optional Pushbuttons” for instructions to install the

optional switches, buttons, and bezel.

NOTE: Two options, 1700C-BTNB (black buttons) or 1700C-BTNS (silver buttons)

can be purchased to provide custom engraved buttons for your touchpanel. Contact

Crestron customer support for more information.

Included with the STX-1700C are a Crestron High Performance Rechargeable

Battery Pack (ST-BTPN) and a Docking Station (ST-DSN) that docks the touchpanel

and/or recharges the ST-BTPN. An external power pack (PW-1215 for domestic use

or PWI-1215 for international use) is also provided to power the touchpanel. Refer to

the latest revisions of the documentation supplied with these items for descriptions

and details.

Roaming Feature

This feature allows an STX-1700C to extend its range from room to room by using

multiple STRFGWX RF gateways. For proper communication, the RF Channel

(refer to “Cresnet Interface Menu” on page 9) must be the same for the touchpanel

with respect to all gateways in the system. For information on modifying a SIMPL

Windows program for roaming, refer to page 17. For information on optimum RF

reception, refer to “Appendix A: Optimum RF Reception Guidelines” on page 30.

NOTE: Minimum distance between multiple gateways for roaming is three feet; the

maximum is 80 feet. Crestron recommends placing gateways 60 feet apart for

optimum roaming.

2 •2-Way RF Wireless Touchpanel: STX-1700C Operations Guide - DOC. 6226A

Crestron STX-1700C 2-Way RF Wireless Touchpanel

Specifications

The table below provides a summary of specifications for the STX-1700C.

Specifications of the STX-1700C Touchpanel

SPECIFICATION DETAILS

Power Options

ST-BTPN

AC: Domestic External Adapter

AC: International External Adapter

ST-DSN

Rechargeable NiMH battery pack (included)

4100 mAh capacity after full charge.

(Operating time depends on usage.)1

12VDC, 1.5A, 120VAC Input (included)

(P/N PW-1215 or equivalent)

12VDC, 1.5A, 230VAC Input (included with

international version touchpanel)

(P/N PWI-1215 or equivalent)

Docking Station/charger with external power

pack (included)

Default Net ID 03

Default RF ID/RF Channel 1/0

Default Timeouts 10 minute for standby

30 minutes for power down

Signal Join Maximums 999 (digital), 256 (analog), 127 (serial)

Control System Update Files 2, 3, 4

2-Series Control System

CEN/CN-TVAV

CNMSX-AV/PRO

CNRACKX/-DP

ST-CP

Version C2-2004.CUZ or later

Version 5.10.13V.UPZ or later

Version 5.10.11X.UPZ or later

Version 5.10.11W.UPZ or later

Version 4.02.02S.UPZ or later

Acceptable file extensions5

.vtz

.csf

projectname.vtz (compiled file)

STX1700C.vx.xxx.x.csf (panel firmware)

STRFGWX firmware Version 2.4.1 (2843.upg) or later

RF Specifications 2-Way Wireless RF at 418 MHz, approx. 50 ft.

indoor and 150 ft. outdoor ranges6

Memory 4 MB flash memory (3 Mbytes available for

user programming)

8 MB SDRAM for firmware storage

Touchscreen Dimensions Height: 3.700 in (9.017 cm)

Width: 4.700 in (11.938 cm)

Touchscreen Resolution 320 x 240 pixels

Touchscreen LCD Active matrix, 64K colors

Touchscreen Illumination Backlit fluorescent

Touchscreen Composition Resistive Membrane

Touchscreen Viewing Angles ±65° horizontal, +65°/-40° vertical

Operating Temperature 50° to 113°F (10° to 45°C)

Humidity 10% to 90% RH (non-condensing)

Overall Dimensions Width: 8.75 in (22.23 cm)

Height: 3.85 in (9.78 cm)

Depth: 5.51 in (14.00 cm)

Weight71.85 lb (0.84 kg)

1. Battery life is 180 minutes continuous usage with background lighting at full brightness. Actual

operating time depends on usage and settings for background brightness and timeouts.

2. The latest versions can be obtained from the Crestron website. Refer to NOTE after last footnote.

Operations Guide - DOC. 6226A 2-Way RF Wireless Touchpanel: STX-1700C •3

2-Way RF Wireless Touchpanel Crestron STX-1700C

3. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product

Catalog for a complete list of 2-Series control systems..

4. CNX update files are required for either CNMSX-AV/PRO or CNRACKX/-DP. Filenames for CNX

update files have a UPZ extension and are in one EXE or zipped UPZ file. To avoid program problems,

make certain you are using the update file with the correct suffix letter (e.g., S, V, W, X).

5. Extension requires a prefix specific to the touchpanel type. In DETAILS, projectname represents the

assigned project name, and vx.xxx.x represents a version number.

6. Requires Crestron STRFGWX 2-Way RF Gateway/Transceiver.

7. The weight listed is for the touchpanel and does not include the ST-BTPN, ST-DSN or external power

pack.

NOTE: Crestron software and any files on the website are for Authorized Crestron

dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may

be required to register to obtain access to certain areas of the site (including the FTP site).

Physical Description

The touch-sensitive viewing screen is located on the front of the STX-1700C. The

electronic hardware is housed in a black and silver molded plastic enclosure, shown

below. Connectors to upload touchscreen projects via a personal computer (PC) and to

power the unit using the external power pack are located on the left and right sides of

the unit, respectively. Refer to illustrations on the next page.

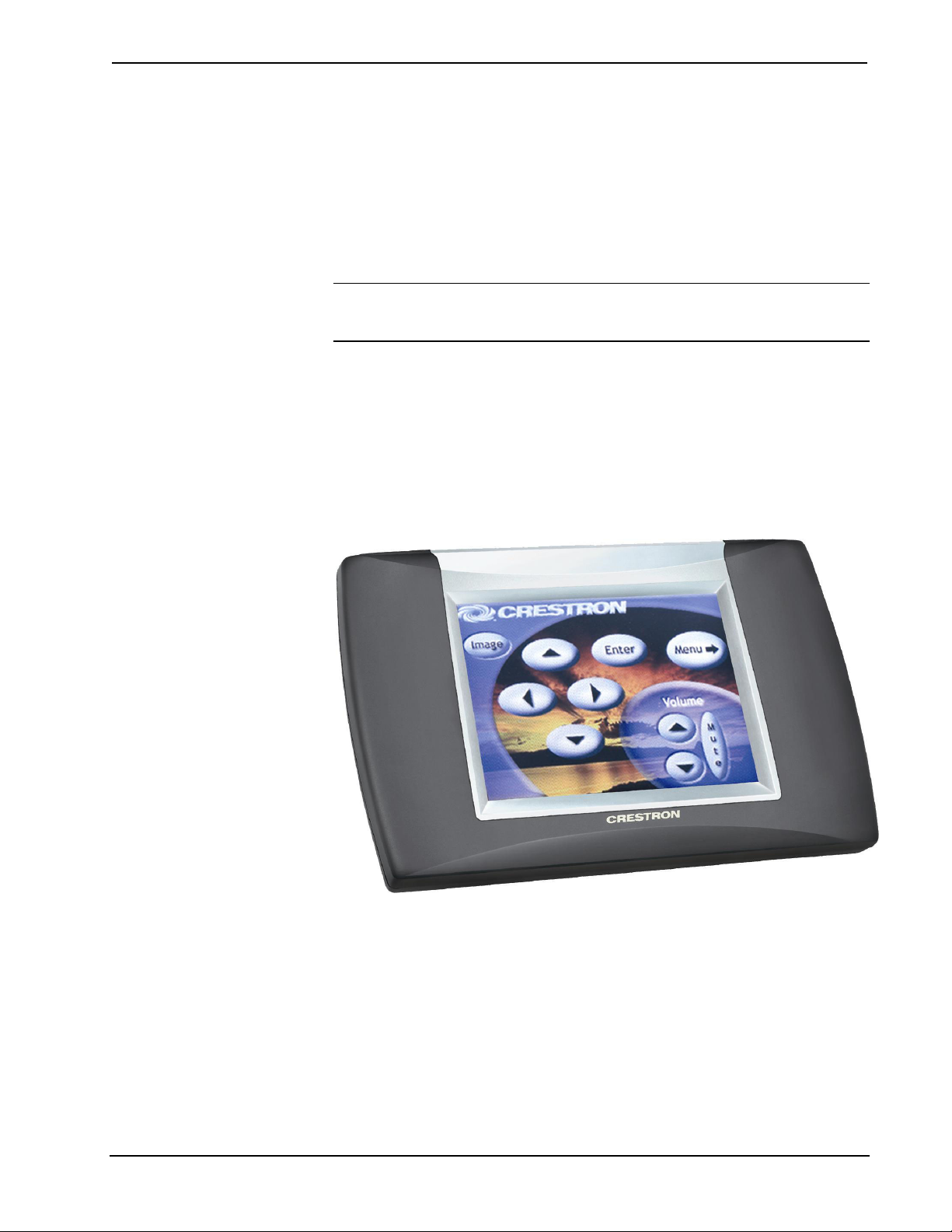

Physical View of STX-1700C

4 •2-Way RF Wireless Touchpanel: STX-1700C Operations Guide - DOC. 6226A

Crestron STX-1700C 2-Way RF Wireless Touchpanel

Physical Views (continued)

3.56 in

(9.04 cm)

8.75 in

(22.22 cm)

5.70 in

(14.48 cm)

Top view

Front view

Side views

3.85 in

(9.78 cm)

5.51 in

(14.00 cm)

4.24 in

(10.76 cm)

5.01 in

(12.73 cm)

upload

connector

Cresnet

Power

connector

The underside of the unit contains the battery compartment that holds one ST-BTPN.

Contacts for the ST-DSN are through the ST-BTPN. Four rubber feet on the

underside of the unit are for stability and to prevent slippage on flat surfaces.

Operations Guide - DOC. 6226A 2-Way RF Wireless Touchpanel: STX-1700C •5

2-Way RF Wireless Touchpanel Crestron STX-1700C

Industry Compliance

As of the date of manufacture, this unit has been tested and found to comply with

specifications for CE marking and standards per EMC and Radio Communications

Compliance Labeling.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. The equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

■Reorient or relocate the receiving antenna.

■Increase the separation between the equipment and transceiver.

■Connect the equipment into an outlet on a circuit different from that to which the

transceiver is connected.

■Consult the dealer or an experienced radio/TV technician for help.

Setup

Applying Power

The touchpanel can be powered via the ST-BTPN, while docked in the ST-DSN, or

via the external power pack. Each of these items has its own Operations Guides

which details proper usage. Refer to the table below for the required document

number.

STX-1700C Power Source Options

POWER SOURCE OPTION MODEL DOCUMENT

NUMBER*

Battery Pack** ST-BTPN 6088

Docking Station ST-DSN 6095

Domestic External Power Pack, or PW-1215 5764

International External Power Pack PWI-1215 5765

* The latest revision may have a revision letter after the document number (i.e., 6088A).

** The battery pack does not “trickle” charge when the external power pack is used to power the

touchpanel.

6 •2-Way RF Wireless Touchpanel: STX-1700C Operations Guide - DOC. 6226A

Tabla de contenidos

Otros manuales de Panel táctil de Crestron

Crestron

Crestron DualTouch DTT-17 Manual de usuario

Crestron

Crestron TST-600 Manual de usuario

Crestron

Crestron Prodigy PTX3 Manual de usuario

Crestron

Crestron Smart Touch C2N-IRGW Manual de usuario

Crestron

Crestron TPS-FPAR3100L Manual de usuario

Crestron

Crestron Isys TPS-4L Cómo utilizar

Crestron

Crestron STX-1550CW Manual de usuario

Crestron

Crestron Isys TPS-4500 Manual de usuario

Crestron

Crestron TSW-570 Manual de usuario

Crestron

Crestron TSW-570 Manual de usuario

Crestron

Crestron TPMC-3X Series Manual de usuario

Crestron

Crestron TSW-770R Series Manual de usuario

Crestron

Crestron TPMC-4SMD-FD Instrucciones de funcionamiento originales

Crestron

Crestron TPMC-9 Manual de usuario

Crestron

Crestron TPMC-V12 & TPMC-V15 Manual de usuario

Crestron

Crestron STX-1700CXPW Manual de usuario

Crestron

Crestron Isys TPS-6L Cómo utilizar

Crestron

Crestron MT-500C Manual de usuario

Crestron

Crestron Wallmount Touchpanel Manual de usuario

Crestron

Crestron TS-70 Series Manual de usuario

Crestron

Crestron Isys TPS-3000 Manual de usuario

Crestron

Crestron TSW-730 Manual de usuario

Crestron

Crestron Isys TPS-4000L Manual de usuario

Crestron

Crestron 3200 Series Manual de usuario

Manuales populares de Panel táctil de otras marcas

FlowLine

FlowLine Data loop Manual de usuario

ALPEX

ALPEX AEx-8 P Series Manual de usuario

Ltech

Ltech E5S Manual de usuario

Harman

Harman AMX MODERO S MSD-701-L2 Manual de usuario

Acnodes

Acnodes PC 1150 Manual de usuario

AIS

AIS IP10IA99 series Manual de usuario

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manual de usuario

YASKAWA

YASKAWA TP 610C Manual de usuario

B&R

B&R Power Panel C Series Manual de usuario

Beijer Electronics

Beijer Electronics X2 control Manual de usuario

AXIOMTEK

AXIOMTEK GOT321W-521 Manual de usuario

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manual de usuario

Qomo

Qomo QIT1386 Manual de usuario

DFI

DFI KS104-CD Manual de usuario

AMX

AMX AXP-PPC Guía

Sartorius

Sartorius X3 PR 5410 Manual de usuario

AMX

AMX Modero X Series Manual de usuario

Advantech

Advantech TPC-30 Series Manual de usuario
