Crestron HD-RX-4K-510-C-E Manual de usuario

The Crestron® HD-RX-4K-510-C-E and HD-RX-4K-410-C-E are 4K

multiformat AV switches and receivers. The devices provide enhanced

HDMI® video switching and audio presentation capabilities in areas such

as conference rooms and classrooms.

In the Box

1 HD-RX-4K-510-C-E or HD-RX-4K-410-C-E Multiformat AV

Switch and Receiver

Additional Items

4 Anchor, Drywall, Plastic (2053825)

5 Connector, 2-Pin (2003574)

2 Connector, 2-Pin (2044402)

3 Connector, 3-Pin (2003575)

5 Connector, 5-Pin (2003577)

1 Power Cord, 6 ft 7 in. (2 m) (2001134)

4 Screw, 8-15A x 3/4 in., Flat Head, Phillips (2053836)

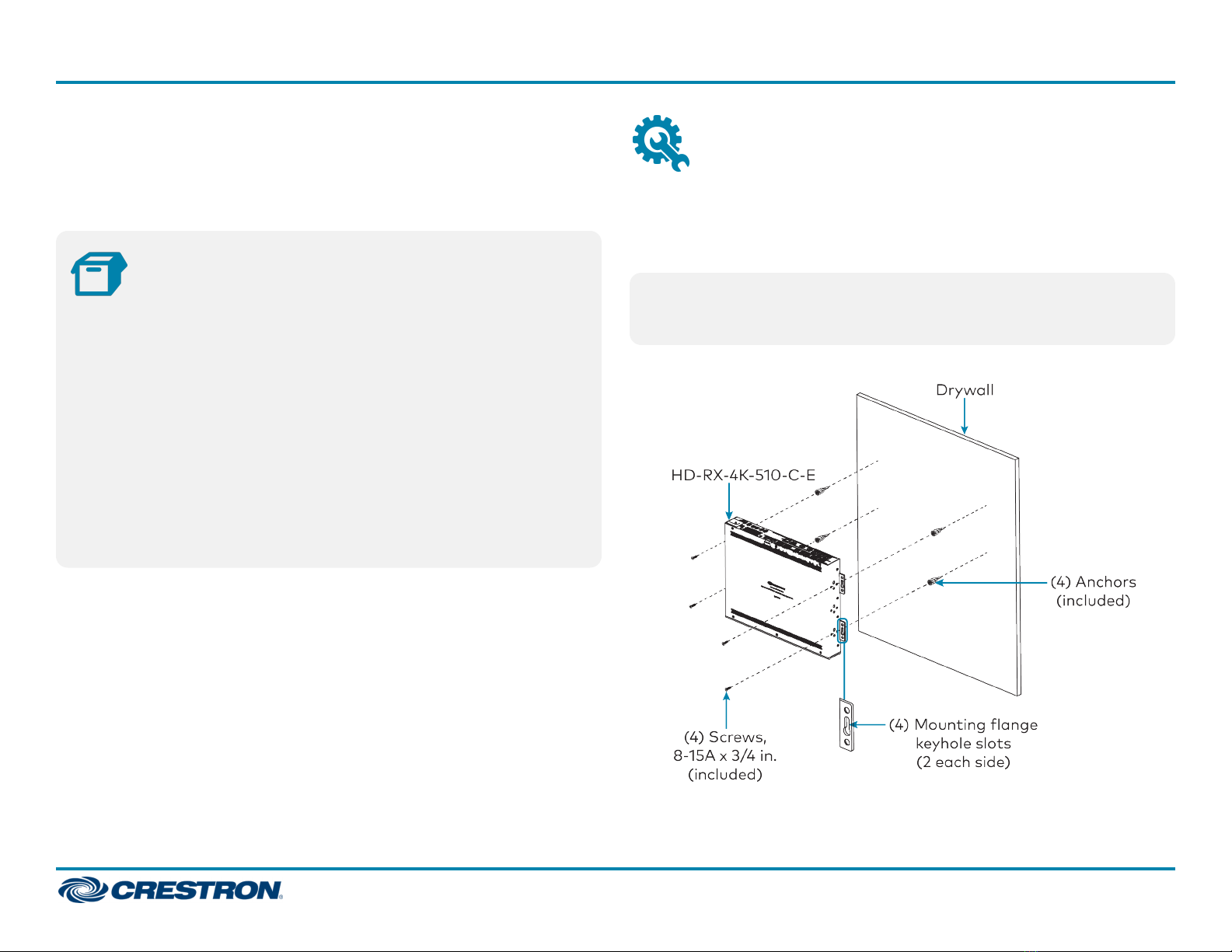

Install the Device

To install the device, mount it onto drywall. Use the four included drywall

anchors and the four included 8-15A x 3/4 in. flat head Phillips screws

(one screw for each keyhole slot in the four mounting flanges of the

device).

NOTE: For safety reasons, it is recommended that the mounting

height of the device be no more than 6-1/2 ft (2 m) from the floor or

any platform above which the device is mounted.

Drywall Mounting (HD-RX-4K-510-C-E Shown)

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E Quick Start

Connect the Device

Connect the device as required for the application.

Front Panel Connection (HD-RX-4K-510-C-E Shown)

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E Quick Start

Rear Panel Connections (HD-RX-4K-510-C-E Shown)

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E Quick Start

NOTES:

lCabling that connects the device to a DM Lite™ transmitter is

designed for intrabuilding use only.

lThe HD-RX-4K-510-C-E can power three DM Lite transmitters

simultaneously. The HD-RX-4K-410-C-E can power two DM Lite

transmitters simultaneously. Do not connect power to DM Lite

transmitters that are to be connected to the HD-RX-4K-510-

C-E or HD-RX-4K-410-C-E.

lThe device is grounded by connection of the included power cord

to an AC power outlet with proper grounding.

lThere are no user-serviceable parts inside this device. If repair of

the device is needed, contact an authorized Crestron dealer for

return of the device to the factory.

LINE 1-2 Connector Pin Assignments

The LINE 1 and LINE 2 connectors use 5-pin terminal blocks for balanced

or unbalanced analog audio inputs.

LINE Connector

Refer to the following table and diagrams for LINE analog audio input pin

assignments and wiring information.

LINE Balanced and Unbalanced Audio Input Pin Assignments

Signal Name Balanced Audio Input Unbalanced Audio Input

+ L+ L+ In

− L− L− Signal return, jumper to GND

G Shield/ground Ground

+ R+ R+ In

− R− R− Signal return, jumper to GND

LINE Balanced and Unbalanced Audio Input Wiring

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E Quick Start

AUX OUT 1-2 Connector Pin Assignments

The AUX OUT 1 and AUX OUT 2 connectors use 5-pin terminal blocks for

balanced or unbalanced analog audio outputs.

AUX OUT 1-2 Connector

Refer to the following table and diagrams for AUXOUT analog audio

output pin assignments and wiring information.

AUX OUT Balanced and Unbalanced Audio Output Pin Assignments

Signal Name Balanced Audio Output Unbalanced Audio Output

+ L+ L+ Out

− L− Open

G Shield/ground Common ground

+ R+ R+ Out

− R− Open

AUX OUT Balanced and Unbalanced Audio Output Wiring

LED Indicators

Refer to the following table for information about the LED indicators on

the device.

LED Indicators

LED

Indicator Color Meaning

PWR Amber Power is being applied to the device. The device is

booting.

Green Power is being applied to the device. The device is

operational.

INPUT 1-5

or 1-4

(model

dependent)

Green The corresponding input is routed to the HDMI®

output.

Amber The corresponding input is detected but is not

routed to the HDMI output.

AUTO Green Automatic routing is enabled.

SETUP Red The SETUP button is pressed.

DM LITE Green A DM Lite™ link is established.

Flashing

amber

Non-HDCP video is detected.

Steady

amber

HDCP video is detected.

LAN Green An Ethernet link is established.

Flashing

amber

Data activity is occurring on the Ethernet link.

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E Quick Start

Configure the Device

Using the web interface, configure the HD-RX-4K-510-C-E or

HD-RX-4K-410-C-E. The device also hosts the configuration of the

connected DM Lite transmitters.

To access the web interface, open a web browser and then go to the IP

address of the HD-RX-4K-510-C-E or HD-RX-4K-410-C-E. By default,

DHCP is enabled. To display the IP address on the connected HDMI

display, press the SETUP button on the front panel of the device. If a

transmitter has a SETUP button, pressing the button on the transmitter

will also display the IP address of the HD-RX-4K-510-C-E or HD-RX-4K-

410-C-E.

To log in to the web interface, enter the user name and password.

The default user name and password are both

admin

Upgrade the Firmware

Before using the device, upgrade the firmware. The latest firmware can be

downloaded from the HD-RX-4K-510-C-E and HD-RX-4K-410-C-E

product pages on the Crestron website (www.crestron.com).

Connect to the Cloud

The Crestron XiO Cloud™ service allows supported Crestron devices

across an enterprise to be managed and configured from one central and

secure location in the cloud. Supported devices are preconfigured to

connect to the service. Use of the service requires a registered Crestron

XiO Cloud account.

To connect the device to the Crestron XiO Cloud service:

1. Record the MAC address and serial number that are labeled on the

shipping box or rear panel of the device. The MAC address and serial

number are required in order to add the device to the Crestron XiO

Cloud environment.

2. Do either of the following:

lIf you have a Crestron XiO Cloud account, go to

https://portal.crestron.io to access the Crestron XiO Cloud service.

lIf you do not have a Crestron XiO Cloud account, go to

www.crestron.com/xio-cloud-registration to register for an

account.

For detailed information about using the Crestron XiO Cloud service,

refer to the Crestron XiO Cloud Service User Guide (Doc. 8214) at

www.crestron.com/manuals.

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E Quick Start

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron XiO Cloud, and DM Lite are either trademarks or

registered trademarks of Crestron Electronics, Inc. in the United States and/or other

countries. HDMI and the HDMI logo are either trademarks or registered trademarks of

HDMI Licensing LLC in the United States and/or other countries. Other trademarks,

registered trademarks, and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products. Crestron disclaims

any proprietary interest in the marks and names of others. Crestron is not responsible

for errors in typography or photography.

Doc ID 8496A

2054222

11/12/19

HD-RX-4K-510-C-E and HD-RX-4K-410-C-E Quick Start
