DM-MD8X1-4K-C/HD-MD8X1-4K

4K Scaling Auto-Switchers

Supplemental Guide

Crestron Electronics, Inc.

The product warranty can be found at www.crestron.com/legal/sales-terms-conditions-warranties.

The specific patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specific information, visit www.crestron.com/legal/open-source-software.

Crestron, the Crestron logo, 3-Series, Crestron Connect It, Crestron Toolbox, DigitalMedia, DM, and DM 8G+ are either trademarks or

registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT and the HDBaseT Alliance logo are

either trademarks or registered trademarks of the HDBaseT Alliance in the United States and/or other countries. HDMI and the HDMI logo are

either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries. Other trademarks, registered

trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or

photography.

This document was written by the Technical Publications department at Crestron.

Supplemental Guide – DOC. 7718B Contents •i

Contents

Introduction 1

Physical Description 2

Front Panel .................................................................................................................... 2

Rear Panel..................................................................................................................... 3

Built-In System Configuration and Control Software 5

Crestron Connect It Functionality 5

Configuration 6

Adjustable Underscan.................................................................................................... 6

Configuration Using the Web Interface .................................................................... 6

Configuration Using SIMPL Windows...................................................................... 6

User-Selectable Output Resolution................................................................................ 7

Configuration Using the Web Interface .................................................................... 7

Configuration Using SIMPL Windows...................................................................... 7

Standby Timeout ........................................................................................................... 8

Configuration Using the Web Interface .................................................................... 8

Configuration Using SIMPL Windows...................................................................... 8

Display Mode................................................................................................................. 9

Configuration Using the Web Interface .................................................................... 9

Configuration Using SIMPL Windows...................................................................... 9

EDID ............................................................................................................................ 10

Connection to a Third-Party HDBaseT Receiver (DM-MD8X1-4K-C Only) ................... 11

Troubleshooting 12

Appendix. Pin Assignments 13

Supplemental Guide – DOC. 7718B DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers •1

DM-MD8X1-4K-C/HD-MD8X1-4K:

4K Scaling Auto-Switchers

Introduction

The Crestron®DM-MD8X1-4K-C and HD-MD8X1-4K are ultra high-definition presentation

switchers that integrate a multiformat auto-switcher, 4K video scaler, audio DSP, and

control interface. The devices also provide out-of-the-box Crestron Connect It™ cable

caddy collaboration.

This guide provides information about the following:

•Physical description of the front and rear panels of the DM-MD8X1-4K-C and

HD-MD8X1-4K

•Crestron Connect It functionality

•Configuration of some of the capabilities of the DM-MD8X1-4K-C and

HD-MD8X1-4K, for example, adjustable underscan

•Troubleshooting

•Pin assignments

For installation information, refer to the DM-MD8X1-4K-C/HD-MD8X1-4K DO Guide

(Doc. 7652) at www.crestron.com/manuals.

2•DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers Supplemental Guide – DOC. 7718B

Physical Description

This section provides information about the connectors, controls, and indicators on the front

and rear panels of the DM-MD8X1-4K-C and HD-MD8X1-4K.

Front Panel

The following illustration shows the front panel of the DM-MD8X1-4K-C.

NOTE: For illustrative purposes, the front panel of the DM-MD8X1-4K-C is shown below.

The front panel of the HD-MD8X1-4K is the same as the front panel of the

DM-MD8X1-4K-C.

Front Panel (DM-MD8X1-4K-C Shown)

COMPUTER:USB Type B female;

USB computer console port;

For setup only

PWR:Bicolor green/amber LED, indicates operating power supplied from ac line

power, turns amber while booting and green when operating

MSG: Red LED, indicates an error message has been generated

HW-R: Recessed push button for hardware reset, reboots the device

SW-R: Recessed push button for software reset, restarts the software program

SETUP: (Applicable only to a configuration in which a DigitalMedia™ switcher is not

used) Red LED and recessed push button for Ethernet setup of the default static IP

address of the device

NOTE: The default static IP address of the DM-MD8X1-4K-C is 192.168.1.200.

The default static IP address of the HD-MD8X1-4K is 192.168.1.201.

IR IN:Infrared sensor;

IR Frequency: 36 to 38 kHz;

IR Formats: Crestron format, RC5;

Allows control from IR wireless remotes using the Crestron or RC-5 command sets

NOTE: If the DM-MD8X1-4K-C or HD-MD8X1-4K is used without a control system, the

IR IN sensor cannot be used. The IR IN sensor can be used for fully customizable

applications through integration of the DM-MD8X1-4K-C or HD-MD8X1-4K with an

external 3-Series®Control System with custom programming.

AUTO INPUT SELECT: Push button and bicolor green/amber LED, selects

auto-switching mode

VGA INPUT SELECT 1-4: Push buttons for manual input selection and corresponding

bicolor green/amber LEDs that indicate the current active input and signal presence at

each corresponding VGA input





 

Supplemental Guide – DOC. 7718B DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers •3

HDMI INPUT SELECT 1-4: Push buttons for manual input selection and

corresponding bicolor green/amber LEDs that indicate the current active input and

signal presence at each corresponding HDMI®input

VOLUME: Continuous turn rotary encoder, adjusts the analog audio output volume

Rear Panel

The following illustration shows the rear panel of the DM-MD8X1-4K-C.

NOTE: For illustrative purposes, the rear panel of the DM-MD8X1-4K-C is shown below.

The rear panel of the HD-MD8X1-4K-C is similar to the rear panel of the DM-MD8X1-4K-C;

however, only the DM-MD8X1-4K-C includes the DM OUT and MIC IN connectors.

Rear Panel (DM-MD8X1-4K-C Shown)

VGA IN 1-4: HD15 female;

Analog VGA/RGB/video inputs;

Signal Types: VGA, RGB, component, S-video, or composite;

Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC or PAL;

Input Level: 0.5 to 1.5 Vp-p with built-in DC restoration;

Input Impedance: 75 Ohms nominal;

Sync Detection: RGBHV, RGBS, RGsB, YPbPr;

Sync Input Level: 3 to 5 Vp-p;

Sync Input Impedance: 2.2k Ohms

NOTE: The VGA inputs can accept component, composite, and S-video signals using

an appropriate adapter (not included). However, input sync detection is not provided for

composite or S-video signal types.

AUDIO IN 1-4: 3.5 mm TRS mini phone jacks;

Unbalanced stereo line-level analog audio inputs;

Input Impedance: 32k Ohms unbalanced;

Maximum Input Level: 2.8 Vrms unbalanced

NOTE: If an HDMI input is selected but no digital audio signal is detected, the

corresponding analog audio input is activated (AUDIO 1 for HDMI 1, AUDIO 2 for

HDMI 2, and so on). The analog audio inputs do not pass audio if the HDMI video input

resolution is higher than 1920 x 1200.

        



4•DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers Supplemental Guide – DOC. 7718B

HDMI IN 1-4: 19-pin Type A HDMI female;

Digital video/audio inputs;

Signal Types: HDMI, DVI, or Dual-Mode DisplayPort

NOTE: The HDMI inputs require an appropriate adapter or interface cable to

accommodate a DVI or Dual-Mode DisplayPort signal. The CBL-HD-DVI interface cable

is sold separately.

HDMI OUT:19-pin Type A HDMI female;

Digital video/audio output;

Signal Types: HDMI, DVI

NOTE: The HDMI output requires an appropriate adapter or interface cable to

accommodate a DVI or Dual-Mode DisplayPort signal. The CBL-HD-DVI interface cable

is sold separately.

DM OUT: (DM-MD8X1-4K-C only) 8-pin RJ-45 female, shielded;

DM 8G+®output, HDBaseT®standard compliant;

PoDM PSE (Power Sourcing Equipment) port (HDBaseT PoE compatible);

Connects to the DM 8G+ input of a DigitalMedia receiver or other DM®device or to an

HDBaseT device via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable;

Green LED indicates DM link status;

Solid amber LED indicates HDCP video;

Blinking amber LED indicates non-HDCP video

NOTE: The DM-MD8X1-4K-C cannot connect to an Ethernet LAN over a DM

connection. It must be connected using its onboard LAN port.

NOTE: Any wiring that is connected to a PoDM or HDBaseT PoE PSE port is for

intrabuilding use only and should not be connected to a line that runs outside of the

building in which the PSE is located.

MIC IN: (DM-MD8X1-4K-C only) 3-pin 3.5 mm detachable terminal block;

Balanced microphone audio input;

Input Level: -60 to 0 dBV, 1 Vrms maximum;

Input Impedance: 6.5k Ohms balanced;

Phantom Power: 48 Vdc, software enabled/disabled

LAN: 8-pin RJ-45 female;

10BASE-T/100BASE-TX Ethernet port;

Green LED indicates Ethernet link status;

Amber LED indicates Ethernet activity

Ground ( ): 6-32 screw, chassis ground lug

100-240 V~1.4 A 50/60 Hz: IEC 60320 C14 mains power inlet;

Mates with removable power cord, included

AUDIO OUT: 5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio output;

Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;

Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

IR OUT: 3.5 mm mini-phone jack;

IR/serial output port;

IR output up to 1.2 MHz;

1-way serial TTL/RS-232 (0-5 volts) up to 115.2k baud

Supplemental Guide – DOC. 7718B DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers •5

NOTE: If the DM-MD8X1-4K-C or HD-MD8X1-4K is used without a control system, the

IR OUT port cannot be used. The IR OUT port can be used for fully customizable

applications through integration of the DM-MD8X1-4K-C or HD-MD8X1-4K with an

external 3-Series Control System with custom programming.

COM: 5-pin 3.5 mm detachable terminal block;

Bidirectional RS-232 port;

Up to 115.2k baud, hardware and software handshaking support

NOTE: If the DM-MD8X1-4K-C or HD-MD8X1-4K is used without a control system, the

COM port supports basic display device control only. The COM port can be used for

fully customizable applications through integration of the DM-MD8X1-4K-C or HD-

MD8X1-4K with an external 3-Series Control System with custom programming.

USB 1-4: USB Type A female;

USB 2.0 host ports for TT-100 series Crestron Connect It cable caddies

(sold separately);

Also enable firmware update via USB flash drive

For pin assignment information, refer to the Appendix on page 13.

Built-In System Configuration and Control Software

Built-in software of the DM-MD8X1-4K-C and HD-MD8X1-4K enables complete system

configuration and control without the need for additional programming. For additional

information, refer to the Software Features of the DM-MD8X1-4K-C and

HD-MD8X1-4K Operations Guide (Doc. 7772) at www.crestron.com/manuals.

NOTE: The DM-MD8X1-4K-C and HD-MD8X1-4K can optionally be controlled by an

external 3-Series Control System rather than by the built-in software. When a control system

is added to the IP table, functionality of the built-in software is disabled.

Crestron Connect It Functionality

The DM-MD8X1-4K-C and HD-MD8X1-4K provide built-in Crestron Connect It functionality,

allowing USB connections of up to four TT-100 series Crestron Connect It cable caddies

(sold separately). The auto-switching inputs of the DM-MD8X1-4K-C and HD-MD8X1-4K

support individual HDMI, VGA, and analog audio connections at each cable caddy.

6•DM-MD8X1-4K-C and HD-MD8X1-4K: 4K Scaling Auto-Switchers Supplemental Guide – DOC. 7718B

Configuration

In addition to the built-in software, the DM-MD8X1-4K-C and HD-MD8X1-4K can be

configured using the web interface. SIMPL Windows can also be used to configure the

DM-MD8X1-4K-C and HD-MD8X1-4K.

This section provides information about configuration of the following:

•Adjustable underscan

•User-selectable output resolution

•Standby timeout

•Display mode

•EDID

•Connection to a third-party HDBaseT receiver (DM-MD8X1-4K-C only)

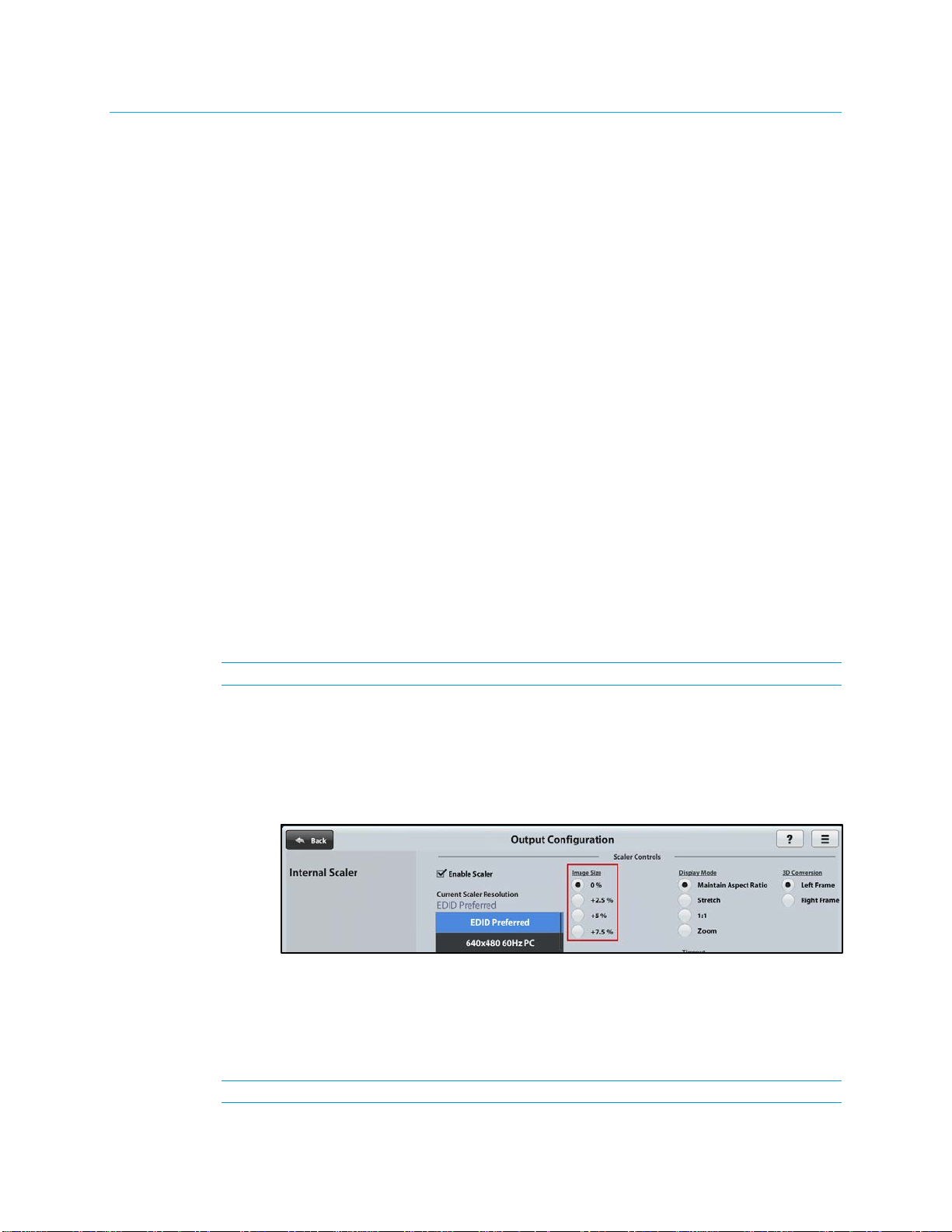

Adjustable Underscan

If content does not fit properly on a display, adjustments to underscan may be desired.

Adjusting the underscan reduces the image size by the specified percentage so that the

entire video frame is displayed.

To adjust underscan, use the web interface or SIMPL Windows as discussed in the

following sections.

Configuration Using the Web Interface

An overview of the steps necessary to adjust the underscan setting is as follows:

NOTE: For detailed information, refer to the online help of the web interface.

1. On the Main Setup page, click the INTERNAL SCALER Settings button.

The Output Configuration page for the internal scaler opens.

2. In the Image Size list, click the radio button that corresponds to the desired

underscan setting.

Output Configuration Page for Internal Scaler—Image Size (Underscan) Configuration

Configuration Using SIMPL Windows

Using SIMPL Windows, adjust underscan in subslot 02 of the Outputs slot for the

DM-MD8X1-4K-C or HD-MD8X1-4K. Set the <Scaler_Underscan_Mode> analog input join

to the desired value.

NOTE: For detailed information, refer to the SIMPL Windows help file.

Otros manuales para DM-MD8X1-4K-C

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Crestron

Crestron

Crestron CEN-SW-POE-5 Manual de usuario

Crestron

Crestron GREEN LIGHT GLPX-HSW-FT Manual de usuario

Crestron

Crestron Network Device PWE-4803RU Manual de usuario

Crestron

Crestron HD-SCALER-HD-E Dibujo dimensional

Crestron

Crestron DM NVX Series Manual de usuario

Crestron

Crestron ZUM-FLOOR-HUB Dibujo dimensional

Crestron

Crestron DigitalMedia XiO Director DM-XIO-DIR-ENT Manual de usuario

Crestron

Crestron HD-RX-4K-510-C-E-SW4 Manual de usuario

Crestron

Crestron CLW-SLVS1 Manual de usuario

Crestron

Crestron Prodigy P-LSWEX Manual de usuario

Crestron

Crestron DM Lite HD-RX-4K-510-C-E Manual de usuario

Crestron

Crestron infiNET CLW-SLVS1RF Manual de usuario

Crestron

Crestron QM-WMC Cómo utilizar

Crestron

Crestron CEN-SWPOE-24 Manual de usuario

Crestron

Crestron SIGNAMAX C-300 Series Manual de usuario

Crestron

Crestron GreenLight DIN-8SW8 Instrucciones de funcionamiento originales

Crestron

Crestron DigitalMedia XiO Director DM-XIO-DIR-160 Dibujo dimensional

Crestron

Crestron DigitalMedia DM-MD6X1 Manual de usuario

Crestron

Crestron DM-MD8X1-4K-C Dibujo dimensional

Crestron

Crestron CEN-SW-POE-5 Manual de usuario

Crestron

Crestron CNX-PVID8x3 Manual de usuario

Crestron

Crestron GreenLight DIN-8SW8 Cómo utilizar

Crestron

Crestron CLW-DIM1 Manual de usuario

Crestron

Crestron DM NVX Director DM-NVX-DIR Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
