Crestron DM-RMC-4K-SCALER-C Manual del propietario

DM-RMC-4K-SCALER-C/-DSP

4K DigitalMedia 8G+®Receivers and

Room Controllers with Scaler

Supplemental Guide

Crestron Electronics, Inc.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at patents.crestron.com.

Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, DigitalMedia, DigitalMedia 8G+, DM, and DM 8G+ are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT is either a trademark or registered trademark

of the HDBaseT Alliance in the United States and/or other countries. HDMI is either a trademark or registered trademark of HDMI Licensing

LLC in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to

refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names

of others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Supplemental Guide – DOC. 7728A Contents

•

Contents

Introduction 1

Physical Description 2

Top View................................................................................................................. 2

Side View, Left ........................................................................................................ 3

Side View, Right ...................................................................................................... 4

Configuration 5

Video Wall Processing............................................................................................. 5

Configuration Using DMTool ...................................................................... 5

Configuration Using SIMPL Windows......................................................... 6

Adjustable Underscan and Overscan ...................................................................... 6

Configuration Using DMTool ...................................................................... 7

Configuration Using SIMPL Windows......................................................... 7

User-Selectable Output Resolution ......................................................................... 7

Configuration Using DMTool ...................................................................... 7

Configuration Using SIMPL Windows......................................................... 8

Standby Timeout..................................................................................................... 8

Configuration Using DMTool ...................................................................... 8

Configuration Using SIMPL Windows......................................................... 9

Display Mode .......................................................................................................... 9

Configuration Using DMTool ...................................................................... 9

Configuration Using SIMPL Windows....................................................... 10

EDID ..................................................................................................................... 10

Connection to a Third-Party HDBaseT Transmitter................................................ 11

HDCP 2.2 Compliance 12

Troubleshooting 13

Appendix: Pin Assignments 15

Supplemental Guide – DOC. 7728A DM-RMC-4K-SCALER-C/-DSP:4K DigitalMedia 8G+ Receivers

•

DM-RMC-4K-SCALER-C/-DSP:

4K DigitalMedia 8G+®Receivers and

Room Controllers with Scaler

Introduction

The DM-RMC-4K-SCALER-C and DM-RMC-4K-SCALER-C-DSP provide advanced

one-box interface solutions for a single display device as part of a complete Crestron®

DigitalMedia™ system. Each device functions as a DM 8G+®receiver, 4K/60 video scaler,

and control interface, providing a single HDMI®output. In addition, an analog audio output,

Ethernet, RS-232, IR, and relay control ports are provided. Built-in scaling enables the

connected display to handle virtually any video signal—including 4K and Ultra HD.

The DM-RMC-4K-SCALER-C-DSP also provides internal surround sound processing.

For additional information about the various features and capabilities of the

DM-RMC-4K-SCALER-C and DM-RMC-4K-SCALER-C-DSP, refer to the product

specification sheet on the corresponding product page of the Crestron website

(www.crestron.com). For installation information, refer to the DM-RMC-4K-SCALER-C/

DM-RMC-4K-SCALER-C-DSP DO Guide (Doc. 7708) at www.crestron.com/manuals.

NOTE:

Throughout the remainder of this guide, all references to the

DM-RMC-4K-SCALER-C apply to both the DM-RMC-4K-SCALER-C and the

DM-RMC-4K-SCALER-C-DSP unless otherwise noted.

This guide provides information about the following:

•Physical description of the top and side views of the DM-RMC-4K-SCALER-C

•Configuration of some of the capabilities of the DM-RMC-4K-SCALER-C, for

example, video processing

•HDCP 2.2. compliance

•Troubleshooting

•Pin assignments

•

DM-RMC-4K-SCALER-C/-DSP:4K DigitalMedia 8G+ Receivers Supplemental Guide – DOC. 7728A

Physical Description

This section provides information about the connectors, controls, and indicators on the top,

left side, and right side of the DM-RMC-4K-SCALER-C.

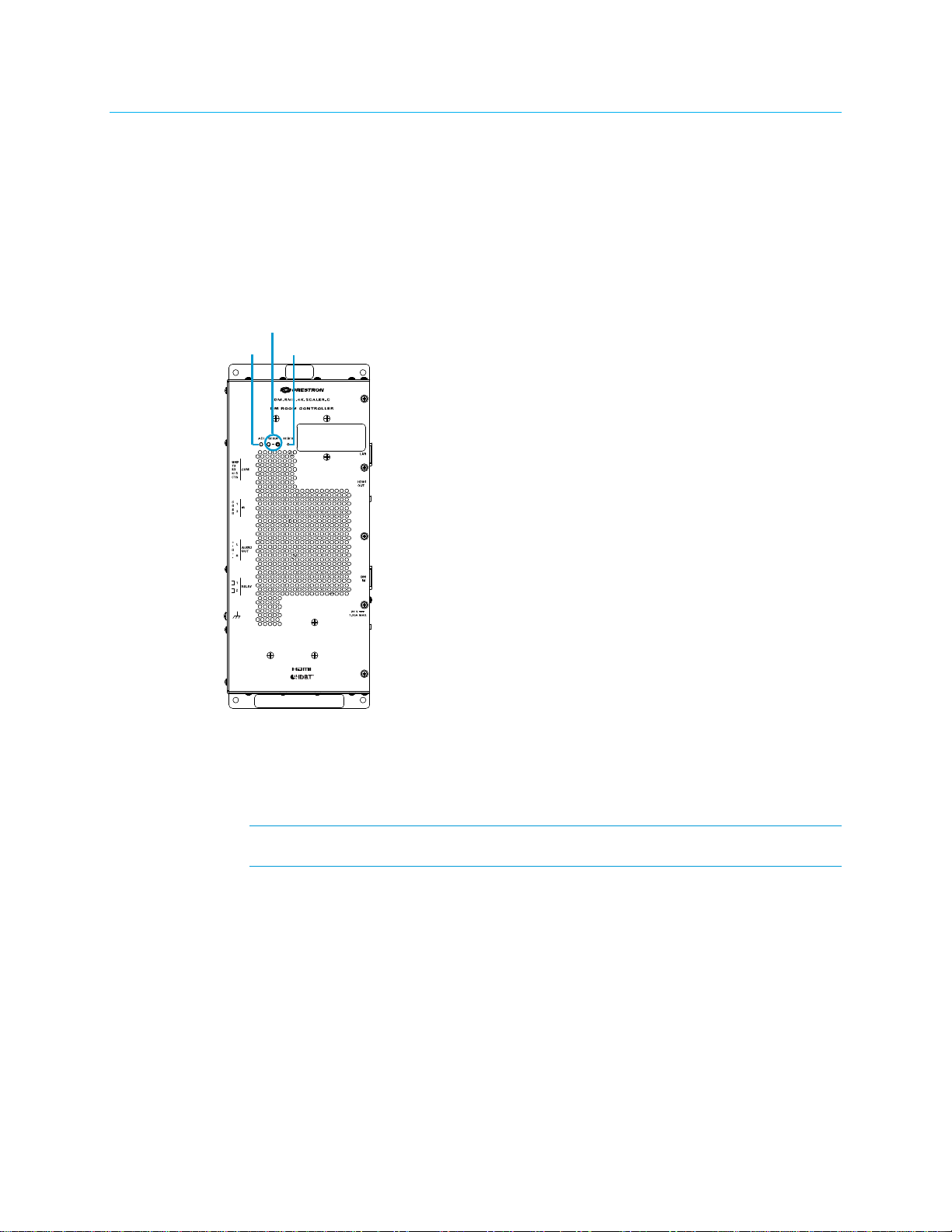

Top View

The following illustration shows the top of the DM-RMC-4K-SCALER-C.

Top View



ACT:

Green LED, indicates activity



SETUP:

(Applicable only to a configuration in which a DigitalMedia switcher is not

used)

Red LED and recessed push button for Ethernet setup of the default static IP

address of the device

NOTE:

The default static IP address of the DM-RMC-4K-SCALER-C is 192.168.1.221.

The default static IP address of the DM-RMC-4K-SCALER-C-DSP is 192.168.1.222.



RESET:

Recessed push button for reboot of the device







Supplemental Guide – DOC. 7728A DM-RMC-4K-SCALER-C/-DSP:4K DigitalMedia 8G+ Receivers

•

Side View, Left

The following illustration shows the left side of the DM-RMC-4K-SCALER-C.

Side View, Left



COM:

5-pin 3.5 mm detachable terminal block;

Bidirectional RS-232 port;

Up to 115.2k baud, hardware and software handshaking support



IR 1-2:

4-pin 3.5 mm detachable terminal block comprising 2 IR/serial ports;

IR output up to 1.1 MHz;

1-way serial TTL/RS-232 (0-5 volts) up to 19200 baud

NOTE:

The IR 1 and IR 2 commands can be sent in parallel but are processed serially.



AUDIO OUT L, R:

5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line level audio output;

Output impedance: 200 ohm balanced or 100 ohm unbalanced;

Maximum output level: 4 Vrms balanced or 2 Vrms unbalanced

NOTE:

The analog stereo audio output is active only when the

DM-RMC-4K-SCALER-C is receiving a 2-channel stereo signal. For applications using a

multichannel surround sound source, use the DM-RMC-4K-SCALER-C-DSP, which

provides a stereo downmix of the multichannel signal.



RELAY 1-2:

4-pin 3.5 mm detachable terminal block comprising 2 normally open,

isolated relays;

Rated 1 amp, 30 Vac/Vdc;

MOV arc suppression across contacts



Ground ( ):

6-32 screw, chassis ground lug











•

DM-RMC-4K-SCALER-C/-DSP:4K DigitalMedia 8G+ Receivers Supplemental Guide – DOC. 7728A

Side View, Right

The following illustration shows the right side of the DM-RMC-4K-SCALER-C.

Side View, Right



LAN:

8-pin RJ-45 female, shielded, with two LEDs;

10BASE-T/100-BASETX Ethernet port;

Green LED indicates Ethernet link status;

Amber LED indicates Ethernet activity

NOTE:

Do not connect the LAN port to an Ethernet switch if the DM IN port connects

to a DigitalMedia switcher.



HDMI OUT:

19-pin Type A HDMI female;

HDMI digital video/audio output (DVI compatible)

NOTE:

HDMI OUT requires an appropriate adapter or interface cable to accommodate

a DVI signal. CBL-HD-DVI interface cable is available separately.



HDMI LED:

Green LED, indicates video signal presence at the HDMI output



DM IN:

8-pin RJ-45 female, shielded, with two LEDs;

DM 8G+ input, HDBaseT®standard compliant;

PoDM+ PD (Powered Device) port;

Connects to the DM 8G+ output of a DM®switcher, transmitter, or other DM device, or

to an HDBaseT device via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA

cable;

Green LED indicates DM link status;

Solid amber LED indicates HDCP video;

Blinking amber LED indicates non-HDCP video

NOTE:

Receiving PODM+ requires connection to a switcher or other equipment that

has a PoDM+ PSE (Power Sourcing Equipment) port. Any wiring that is connected to a

PoDM+ PSE port is for intrabuilding use only and should not be connected to a line that

runs outside of the building in which the PSE is located.













Supplemental Guide – DOC. 7728A DM-RMC-4K-SCALER-C/-DSP:4K DigitalMedia 8G+ Receivers

•



24 VDC 1.25A MAX:

2.1 x 5.5 mm dc power connector;

24 Vdc power input;

Power pack included



Power LED:

Green LED, indicates operating power supplied via PoDM+ or 24 Vdc

local power pack

For pin assignment information, refer to the Appendix on page 15.

Configuration

This section provides configuration information about the following:

•Video wall processing

•Adjustable underscan and overscan

•User-selectable output resolution

•Standby timeout

•Display mode

•EDID

•Connection to a third-party HDBaseT transmitter

Video Wall Processing

Multiple DM-RMC-4K-SCALER-C units can be combined to configure a video wall

composed of up to 64 individual displays (up to eight columns of displays by eight rows of

displays). A separate DM-RMC-4K-SCALER-C is required for each display, and a

DigitalMedia switcher with sufficient DM 8G+ outputs is also required. Each

DM-RMC-4K-SCALER-C provides zoom capability and bezel compensation on its output to

display a portion of the source image.

To configure a video wall, use the Crestron Toolbox™ DMTool or use SIMPL Windows as

discussed in the following sections.

Configuration Using DMTool

An overview of the steps necessary to configure a video wall using DMTool follows.

NOTE:

For detailed information, refer to the Crestron Toolbox help file.

1. Connect to the DigitalMedia switcher.

2. Connect to the desired DM-RMC-4K-SCALER-C.

3. Open the Setup window of the HDMI output.

4. In the Video Settings dialog box, configure the video wall. In addition, configure

bezel compensation to compensate for image loss at the edges of the display.

•

DM-RMC-4K-SCALER-C/-DSP:4K DigitalMedia 8G+ Receivers Supplemental Guide – DOC. 7728A

Video Settings Dialog Box—Video Wall and Bezel Compensation Configuration

5. Repeat steps 2-4 for each DM-RMC-4K-SCALER-C that connects to a display for

inclusion in the video wall.

Configuration Using SIMPL Windows

An overview of the steps necessary to configure a video wall using SIMPL Windows follows.

NOTE:

For detailed information, refer to the SIMPL Windows help file.

1. Configure slot 3 for a DM-RMC-4K-SCALER-C Scaler by setting the

<Scaler_Out_Wall_Mode>

<Scaler_Out_Horizontal_Bezel_Compensation

and

<Scaler_Out_Vertical_Bezel_Compensation>

analog input joins to the

desired values.

2. Repeat step 1 for each DM-RMC-4K-SCALER-C that connects to a display for

inclusion in the video wall.

Adjustable Underscan and Overscan

If content does not fit properly on a display, adjustments to underscan or overscan may be

desired. Adjustments can be made up to 7.5%. Adjusting the underscan reduces the image

size by the specified percentage so that the entire video frame is displayed. Adjusting the

overscan expands the image size by the specified percentage so that extra information

around the edges is not displayed.

To adjust underscan and overscan settings, use DMTool or SIMP Windows as discussed in

the following sections.

Otros manuales para DM-RMC-4K-SCALER-C

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Crestron

Crestron

Crestron AirMedia Series 3 Manual de usuario

Crestron

Crestron PWR-AU-B Manual de usuario

Crestron

Crestron DM-RMC-SCALER-C Cómo utilizar

Crestron

Crestron AirMedia AM-TX3-100 Manual de usuario

Crestron

Crestron AirMedia AM-3000-WF Manual de usuario

Crestron

Crestron HD-XSPA Dibujo dimensional

Crestron

Crestron iMedia IM-RXV1 Cómo utilizar

Crestron

Crestron AirMedia Series 3 Manual de usuario

Crestron

Crestron PWR-EU-B Manual de usuario

Crestron

Crestron iMedia IM-RX1 Cómo utilizar

Crestron

Crestron DM-RMC-200-C Cómo utilizar

Crestron

Crestron CEN-C-TX-F Manual de usuario

Crestron

Crestron QM-FTDC QuickMedia Cómo utilizar

Crestron

Crestron QuickMedia QM-RX1-2G Cómo utilizar

Crestron

Crestron HD-RX-4K-x10-C-E Manual de usuario

Crestron

Crestron HD(I)-XSPA Cómo utilizar

Crestron

Crestron HD-XSPA Manual de usuario

Crestron

Crestron HD-RXC-4KZ-101 Manual de usuario

Crestron

Crestron QM-RMCRX-BA Manual de usuario

Crestron

Crestron HD-MD-400-C-E Manual del propietario

Crestron

Crestron QM-RMCRX Manual de usuario

Crestron

Crestron CNX-PBVR4 Manual de usuario

Crestron

Crestron CNRFGWA Manual de usuario

Crestron

Crestron HD-RXA-4KZ-101 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
