Crestron HD-RX-4K-x10-C-E Manual de usuario

HD-RX-4K-x10-C-E(-SW4)

4K Multiformat AV Switch and Receiver

Web Interface Configuration Guide

Crestron Electronics, Inc.

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Regulatory Model: M1845002

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a

limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating

system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.

Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_

agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, and DM Lite are either trademarks or registered trademarks of Crestron

Electronics, Inc. in the United States and/or other countries. macOS and Safari are either trademarks or registered

trademarks of Apple, Inc. in the United States and/or other countries. Cisco is either a trademark or registered

trademark of Cisco Technology, Inc. in the United States and/or other countries. Chrome is either a trademark or

registered trademark of Google Inc. in the United States and/or other countries. HDMI and the HDMI logo are either

trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries. Internet

Explorer, Microsoft Edge, and Windows are either trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries. Firefox is ether a trademark or a registered trademark of the Mozilla Foundation

in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in

this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any

proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or

photography.

Contents

Introduction 1

Web Interface 1

Access the Web Interface 1

Access Web Interface with a Web Browser 2

Access Web Interface with Crestron Toolbox Application 3

Actions Menu 4

Rebooting the Device 4

Restoring Factory Default Settings 5

EDID Management 5

Loading a Custom EDID File 6

Deleting a Custom EDID File 7

Upgrading Firmware 8

Downloading Device Logs 8

Status 9

General 9

Input/Output Status 11

Network 12

Control System 13

Routing 14

Inputs 15

Global EDID 15

Apply/Send Global EDID 15

Global Inputs 16

HDMI Inputs 18

General Settings 18

EDID 18

Input Signals 19

DM Lite Inputs 21

General Settings 21

Transmitter Inputs Settings 21

EDID 22

Applying EDID to the DM Lite Input 23

Applying EDID to a Transmitter Input 23

Input Signals 24

Audio 26

Web Interface Configuration Guide — Doc. 9211A Contents • i

Output 27

Output Settings 27

Connected Display 29

Output Signal 29

HDMI/Aux 1/Amp Output Audio Settings 30

Aux 2 Output Audio Settings 31

Automatic Power Settings 32

Configuring Power-Off Settings 32

Configuring Power-On Settings 34

Network 38

Device 39

Device Management 40

Firmware 40

Front Panel 41

RS232 Settings 41

Cloud Settings 43

Control System 43

Authentication Management 44

Third-Party Control 44

Generating a Configuration File 45

Enabling Third-Party Control 48

Disabling Third-Party Control 50

ii • Contents Web Interface Configuration Guide — Doc. 9211A

Web Interface Configuration Guide — Doc. 9211A HD-RX-4K-x10-C-E(-SW4) • 1

Introduction

The HD-RX-4K-x10-C-E(-SW4) is a multiformat AV switch and receiver which provides enhanced

remote HDMI video source switching and audio presentation capabilities in areas such as

classrooms and conference rooms. The HD-RX-4K-x10-C-E(-SW4) has two HDMI® inputs and

one scaling HDMI output.

In addition, the HD-RX-4K-410-C-E(-SW4) provides two DM Lite® inputs and the HD-RX-4K-510-

C-E(-SW4) provides three DM Lite inputs for connection to DM Lite transmitters.

The HD-RX-4K-x10-C-E-SW4 models include a 4-port Gigabit Ethernet switch. Two of the ports

(Ports 3 and 4) are PoE+ power sourcing equipment ports that can be connected to two PoE+

powered devices simultaneously.

Web Interface

The web interface of the HD-RX-4K-x10-C-E(-SW4) enables you to view device status

information and configure routing, input, output, network, and device settings.

Access the Web Interface

The web interface is accessed from a web browser. The following table lists various operating

systems and the corresponding supported web browsers.

OPERATING SYSTEM SUPPORTED WEB BROWSERS

Windows® operating system Chrome™ web browser, version 31 and later

Firefox® web browser, version 31 and later

Internet Explorer® web browser, version 11 and later

Microsoft Edge® web browser

macOS® operating system Safari® web browser, version 6 and later

Chrome™ web browser, version 31 and later

Firefox® web browser, version 31 and later

Operating System and Supported Web Browsers

To access the web interface, do either of the following:

lOpen the web interface directly in a web browser.

lOpen a web browser from within the Crestron Toolbox™ application.

2 • HD-RX-4K-x10-C-E(-SW4) Web Interface Configuration Guide — Doc. 9211A

Access Web Interface with a Web

Browser

1. Enter the IP address of the HD-RX-4K-x10-C-E(-SW4) into a web browser.

NOTE: To obtain the IP address, press the Setup button on the HD-RX-4K-x10-C-E(-

SW4) to display the IP address on the HDMI output. The IPaddress is displayed for 20

seconds.

2. Enter your credentials in the Device Administration dialog. The user name and password

are case sensitive. The default user name is

admin

, and the default password is

admin

NOTE: For enhanced security, it is recommended that the default password be changed.

3. Click Sign In.

Web Interface Configuration Guide — Doc. 9211A HD-RX-4K-x10-C-E(-SW4) • 3

Access Web Interface with Crestron

Toolbox Application

To access the web interface by opening a web browser within the Crestron Toolbox application,

do the following:

1. Open the Crestron Toolbox application.

2. From the Tools menu, select Device Discovery Tool. You can also access the Device

Discovery Tool by clicking the Device Discovery Tool button in the Crestron Toolbox

toolbar. The HD-RX-4K-x10-C-E(-SW4) is discovered and is listed in the device list on the

left side of the screen. The associated host name, IP address, and firmware version are

also displayed.

NOTE: If there is security software running on the computer, a security alert might be

displayed when the Crestron Toolbox application attempts to connect to the network.

Make sure to allow the connection so that the Device Discovery Tool can be used.

3. In the Device Discovery Tool list, double-click the HD-RX-4K-x10-C-E(-SW4) device.

4. Enter your credentials in the Authentication dialog that opens, and then click Log In.

5. Click Web Configuration in the Configuration page displayed on the left side of the Device

Discovery Tool.

4 • HD-RX-4K-x10-C-E(-SW4) Web Interface Configuration Guide — Doc. 9211A

Actions Menu

The Actions drop-down menu is displayed at the top right of each page and provides quick

access to common device functionality of the HD-RX-4K-x10-C-E(-SW4), such as:

lRebooting the device

lRestoring factory default settings

lEDID management

lPerforming firmware upgrades

lDownloading logs

The Actions drop-down menu can be accessed at any time by clicking the drop-down arrow of

the Actions drop-down menu.

Rebooting the Device

Certain changes to the settings may require that the HD-RX-4K-x10-C-E(-SW4) be rebooted to

take effect. To reboot the device, do the following:

1. Click Reboot in the Actions drop-down menu. The Confirmation message box appears.

2. Click Yes to reboot the device. The Reboot message box appears.

Wait for the device reboot to complete before attempting to reconnect to the device.

Web Interface Configuration Guide — Doc. 9211A HD-RX-4K-x10-C-E(-SW4) • 5

Restoring Factory Default Settings

1. Click Restore in the Actions drop-down menu to restore the settings of the HD-RX-4K-x10-

C-E(-SW4) to factory defaults.

NOTE: When settings are restored, all settings, including the network settings, will revert

to the factory default. If a static IP address is set, restoring the device to factory default

settings will revert the IP address to the default DHCP mode.

2. Click Yes in the Confirmation dialog to restore the HD-RX-4K-x10-C-E(-SW4) to factory

default settings. Click No to cancel the restore operation.

A dialog is displayed again, indicating that the Restore process was successful and that

the device rebooted.

EDID Management

The EDID Management dialog displays available built-in EDID files and enables loading of a

custom EDID file.

Built-in EDIDs are displayed in the Default List tab of the EDID Management dialog. The

following EDIDs are available:

l01 DM Default

lLaptop 16x9 1080P60 2CH

6 • HD-RX-4K-x10-C-E(-SW4) Web Interface Configuration Guide — Doc. 9211A

lLaptop 16x10 1920x1200 2CH

lLaptop 16x10 1280x800 2CH

lLaptop widescreen 2CH

lLaptop 16x9 1080P50 2CH

lDM default 4k 30Hz 2CH

lDM Default VGA

lDM Default 4k 60Hz 2CH

Loading a Custom EDID File

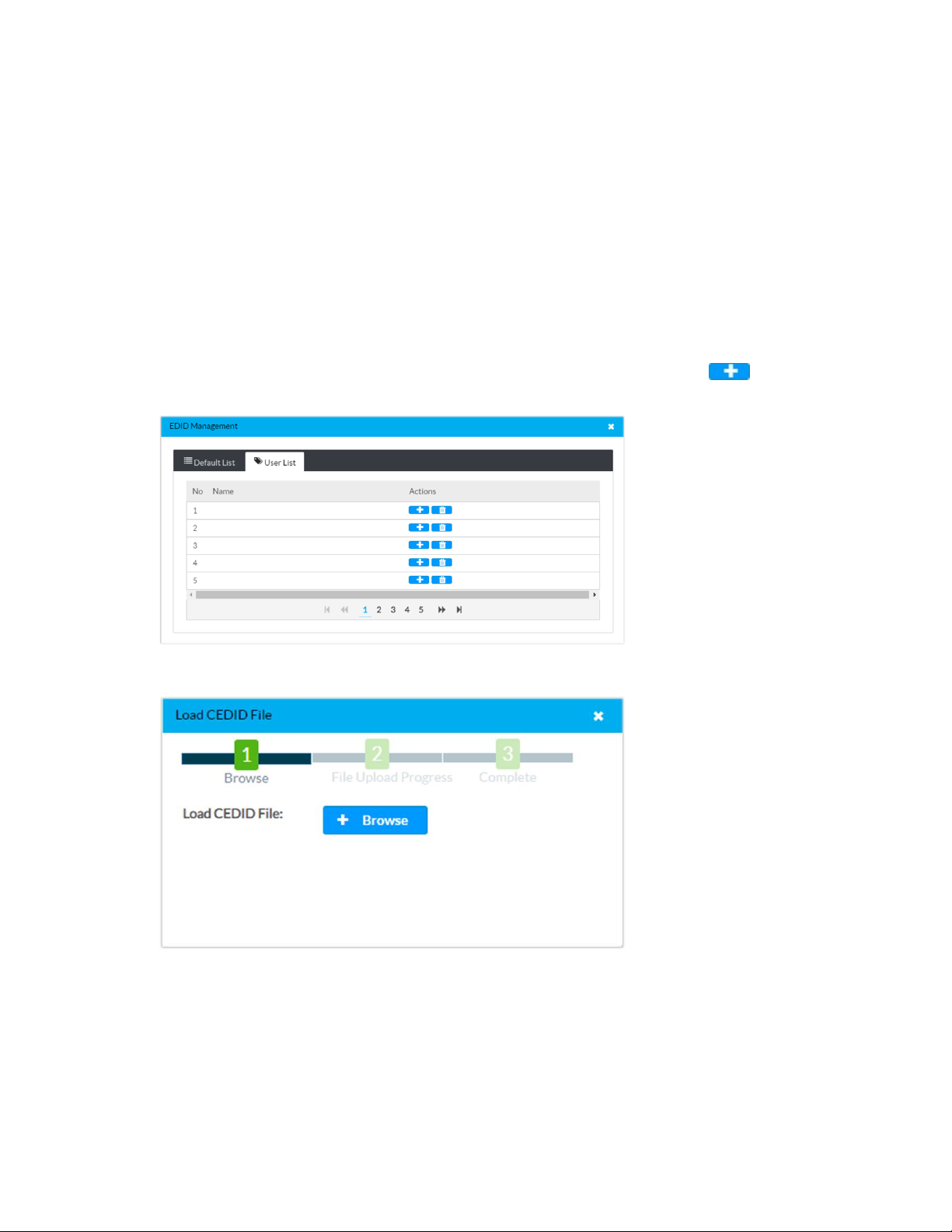

1. In the EDID Management dialog, click the User List tab and then click the button in

any available row of the table.

2. Click + Browse in the Load CEDID File dialog:
