Crestron HD-XSPA Manual de usuario

The Crestron® HD-XSPAand HDI-XSPA provide a professional-grade 7.1

surround sound processor, high-efficiency eight-channel power amplifier,

4K video switcher, 4K DigitalMedia™ receiver, and Crestron control

interface in a compact 2-space package.

The HD-XSPA and HDI-XSPA are functionally identical. For simplicity

within this guide, the term “HD-XSPA” is used except where noted.

In the Box

1 HD(I)-XSPA, 4K Ultra High-Definition 7.1 Surround Sound AV

Receiver

Additional Items

2 Bracket, Rack Ear, 2U (P/N 2034434)

8 Connector, 2-Pin (P/N 2012361)

1 Connector, 4-Pin (P/N 2003576)

3 Connector, 5-Pin (P/N 2003577)

1 Connector, 8-Pin (P/N 2003580)

HD-XSPA Only

1 Power Cord, 6 ft 7 in. (2 m) (P/N 4512528)

1 Fuse, 10.0 A, Time Lag, 1.25 in. x 0.25 in., Ceramic Cartridge,

250 V (P/N 2017577)

HDI-XSPA Only

1 Power Cord (P/NVaries by country)

1 Fuse, 5.0 A, Time Lag, 5 x 20 mm, Ceramic Cartridge, 250 V

(P/N 2017578)

Install

Refer to the Safety Instructions (Doc. 6607) prior to installation.

The HD-XSPA can be installed in a rack or placed on a table.

Rack Installation

NOTE:Four feet are preinstalled for tabletop mounting or stacking. If

the unit is to be rack mounted, the feet are not required and can be

removed with a #1 Phillips screwdriver.

The HD-XSPA occupies 2Uof rack space. Use the three screws from the

front part of each side panel, and a # 1 Phillips screwdriver to attach the

two included rack ears to the device, as shown in the following illustration.

Then mount the device into the rack using four rack mounting screws (not

included).

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Rack Mounting Safety Precautions

Elevated Operating Ambient Temperature: If installed in a closed or multi-

unit rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient temperature. Therefore,

consideration should be given to installing the equipment in an

environment compatible with the maximum ambient temperature (Tma)

specified by the manufacturer.

Reduced Airflow: Installation of the equipment in a rack should be such

that the amount of airflow required for safe operation of the equipment

is not compromised.

Mechanical Loading: Mounting of the equipment in the rack should be

such that a hazardous condition is not achieved due to uneven mechanical

Circuit Overloading: Consideration should be given to the connection of

the equipment to the supply circuit and the effect that overloading of the

circuits might have on overcurrent protection and supply wiring.

Appropriate consideration of equipment nameplate ratings should be

used when addressing this concern.

Reliable Earthing: Reliable earthing of rack-mounted equipment should be

maintained. Particular attention should be given to supply connections

other than direct connections to the branch circuit (e.g., use of power

strips).

Place on a Table

Four feet are preinstalled for placing the device on a flat surface or

stacking on top of another device.

Connect

Connect the device as called out in the following illustrations. Connect

power last.

CAUTION:

lKeep the device unplugged until all of the input, network, and speaker

wiring is complete.

lCheck the speaker wires for shorts and frayed wiring around the

SPEAKER OUTPUTS connectors.

NOTES:

lThe DM® and LAN ports are for intra-building use only and should not

be connected to lines that run outside of the building in which the unit

is located.

lIf the DMport is connected to a DM switch, the LANport should not

be connected to the local area network.

Additionally, the DM switch can be used to configure the network

settings. Refer to the DigitalMedia™ Design Guide (Doc. 4546)

lEnsure the unit is properly grounded by connecting the chassis

ground lug to an earth ground (building steel).

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

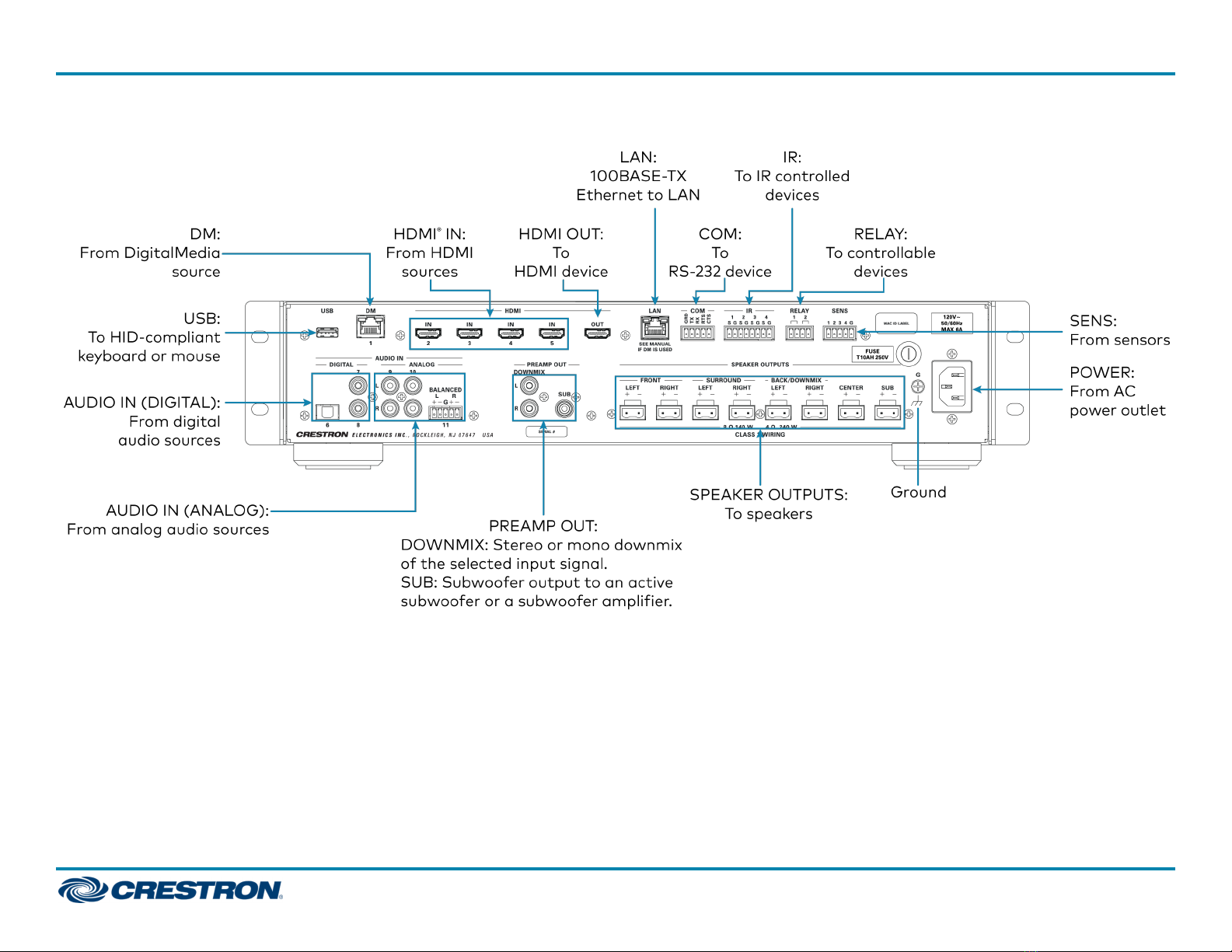

HD-XSPA, rear panel

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

HD-XSPA, front panel

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Connect Audio Sources

The HD-XSPA can receive audio from up to 11 sources.

DigitalMedia Input

Audio from a DigitialMedia source is sent to the HD-XSPAover the DM 1

port.

HDMI Inputs

The HD-XSPAbreaks out the audio from HDMIinputs 2-5.

Digital Audio Inputs

The HD-XSPA receives digital S/PDIF audio from inputs 6 through 8.

Input 6 uses a JIS F05 female (TOSLINK) optical fiber connector while

inputs 7 and 8 use a coaxial RCA connector.

Analog Audio Inputs

The HD-XSPA receives unbalanced analog audio through RCA connectors

on inputs 9 and 10. The HD-XSPA can also receive balanced or unbalanced

audio through a 5-pin terminal block connector on input 11.

Connect Devices

The HD-XSPA can connect to a Crestron control system over

Ethernet.The HD-XSPA also has several device control ports to allow for

programmable control of local AVcomponents and other room devices.

LANPort

Connect the LAN port to a LAN to communicate with a Crestron control

system over Ethernet.

Device Control Ports

RS-232 (COM), infrared (IR), and low-voltage relay (RELAY) ports provide

for control of the display device and AV sources, and may also be used to

control a motorized screen or lift, window treatments, lighting, and other

equipment in the room. Four sensor inputs (SENS) accommodate power

sensors, motion detectors, and other contact closure devices.

Connect Outputs

The HD-XSPA has output connections for a display and speakers, as well

as preamp outputs for a subwoofer and a stereo or mono downmix of

the selected input signal.

HDMI Output

The HD-XSPA has an HDMIoutput for connection to a display.

Speaker Outputs

The SPEAKER OUTPUTS support a variety of speaker configurations up

to 7.1 surround audio.

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Subwoofer Output

The HD-XSPA has speaker level and line-level subwoofer outputs. The

speaker level output (SPEAKEROUTPUTS) can be used with a passive

subwoofer while the line-level output (PREAMPOUT SUB) can be used

with an active subwoofer or a separate subwoofer amplifier.

Preamp Out Downmix

The PREAMP OUT DOWNMIX output can be configured to provide an

unbalanced stereo or mono downmix of the selected input signal to feed a

second listening zone or headphone amp through the left and right

preamp outputs.

When configured for stereo operation, the input signal is downmixed to a

stereo signal with left and right channel separation that is available on the

left and right preamp outputs.

When configured for mono operation, the input signal is downmixed to a

mono signal that is available on both the left and right preamp outputs.

Configure

While the HD(I)-XSPA can be used right out of the box, the device can be

further customized with Crestron Toolbox software or the front panel

controls. For details on using Crestron Toolbox software, refer to the

Crestron Toolbox help file. For details on using the front panel controls,

refer to the HD(I)-XSPA Supplemental Guide (Doc. 7448).

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Operate

Controls

The HD-XSPA can be controlled from the front panel.

The front panel has a Navigation pad and menu buttons to view and

select the content shown on the display. VOL ▲, VOL ▼, and MUTE

buttons control the speaker outputs.

Power Switch

The POWERswitch controls power to the speaker outputs.

lMove the POWER switch to┃to turn on the speaker outputs.

lMove the POWER switch to ;to turn off the speaker outputs.

NOTE: When the POWER switch is set to ;, the speaker outputs

turn off and the HD-XSPA reboots. The front panel controls remain

on to control the device. Output signals are still sent to the HDMIand

PREAMPOUT outputs.

Navigation Pad

The Navigation Pad is used to view and select options shown on the

display.

lPress up on the Navigation Pad to scroll up through the available

selections.

lPress down on the Navigation Pad to scroll down through the available

selections.

lPress right on the Navigation Pad to move the cursor right.

lPress left on the Navigation Pad to move the cursor left.

lPress the center of the Navigation Pad to select a highlighted item.

Menu Buttons

The HOMEand BACKbuttons are used to navigate through the screens

shown on the display.

HOMEButton

Press HOME to display the home screen.

BACKButton

Press BACK to return to the previous screen.

Volume and Mute

lPress VOL ▲ or VOL ▼ to adjust the level of the speaker outputs.

NOTE: The DOWNMIX output's volume level is not controlled by the

VOL ▲ or VOL ▼ buttons. It is adjusted independently via control

system programming.

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

lPress MUTE to mute the speaker outputs.

NOTE:The DOWNMIX output's mute function is not controlled by

the MUTE button. It is controlled from Downmix menu. For details,

refer to the HD(I)-XSPA Supplemental Guide (Doc. 7448).

Select a Source or Decoding Mode

1. Press HOME to display the home screen.

2. Press the center of the Navigation Pad.

3. Press up or down on the Navigation Pad to highlight Source and press

the center of the Navigation Pad.

4. Select a source or a decoding mode.

lSelect a source:

a. Press up or down on the Navigation Pad to highlight Source

Select.

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

b. Press the center of the Navigation Pad.

c. Press up or down on the Navigation Pad to highlight the

desired source and press the center of the Navigation Pad.

lSelect a decoding mode:

a. Press up or down on the Navigation Pad to highlight

Decoding Mode.

b. Press the center of the Navigation Pad.

c. Press up or down on the Navigation Pad to highlight the

desired decoding mode and press the center of the

Navigation Pad.

Other Functions

Other functions are available using the front panel controls. For details,

refer to the HD(I)-XSPA Supplemental Guide (Doc. 7448).

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Visit the Product Page

Scan the QR code to visit the product page.

HD-XSPA

www.crestron.com/model/6505883

HDI-XSPA

www.crestron.com/model/6506418

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, DigitalMedia, and DMare either

trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. Dolby, Dolby Digital, and the double-D symbol are either

trademarks or registered trademarks of Dolby Laboratories in the United States and/or

other countries. DTS, DTS HD, and the DTS logo are either trademarks or registered

trademarks of DTS, Inc. in the United States and/or other countries. The HDBaseT

Alliance logo is either a trademark or registered trademark of the HDBaseT Alliance in

the United States and/or other countries. HDMI and the HDMI Logo are either

trademarks or registered trademarks of HDMI Licensing LLC in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names may

be used in this document to refer to either the entities claiming the marks and names or

their products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.

Doc. 7730C

06/02/20

HD(I)-XSPA QuickStart

4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Otros manuales para HD-XSPA

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Crestron

Crestron

Crestron DM-RMC-200-C Dibujo dimensional

Crestron

Crestron DigitalMedia 8G DM-RMC-100-S Dibujo dimensional

Crestron

Crestron DM-RX1-1G Cómo utilizar

Crestron

Crestron HD-RXC-4KZ-101-1G Manual de usuario

Crestron

Crestron HD-RX-4K-x10-C-E Manual de usuario

Crestron

Crestron AirMedia AM-3000-WF Manual de usuario

Crestron

Crestron HD-XSPA Dibujo dimensional

Crestron

Crestron STR-DA5500ES Manual de usuario

Crestron

Crestron AirMedia Series 3 Manual de usuario

Crestron

Crestron DM Lite HD-RX-4KZ-101 Manual de usuario

Crestron

Crestron CEN-C-TX-F Manual de usuario

Crestron

Crestron DMF-RMC-4K-SFP Dibujo dimensional

Crestron

Crestron AirMedia Series 3 Manual de usuario

Crestron

Crestron CNX-PBVR4 Manual de usuario

Crestron

Crestron DM-RMC-4K-SCALER-C Manual del propietario

Crestron

Crestron QM-RMCRX-BA Manual de usuario

Crestron

Crestron PWR-EU-B Manual de usuario

Crestron

Crestron QM-FTDC QuickMedia Cómo utilizar

Crestron

Crestron DigitalMedia 8G+ DM-RMC-4K-100-C-1G Dibujo dimensional

Crestron

Crestron CNXRMCLV Manual de usuario

Crestron

Crestron DM-RMC-4KZ-SCALER-C Manual de usuario

Crestron

Crestron HD-RXC-4KZ-101 Manual de usuario

Crestron

Crestron AirMedia AM-TX3-100 Manual de usuario

Crestron

Crestron iMedia IM-RX1 Cómo utilizar

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
