Crestron WMKU-4SM
Universal Wall Mount Kit
for TPMC-4SM Series
Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
Regulatory Compliance
As of the date of manufacture, the WMKU-4SM has been tested and found to comply with specifications for CE
marking and standards per EMC and Radiocommunications Compliance Labelling.
All brand names, product names and trademarks are the property of their respective owners.
©2010 Crestron Electronics, Inc.
Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series
Contents
Universal Wall Mount Kit for TPMC-4SM Series: WMKU-4SM 1
Introduction ...............................................................................................................................1
Setup ..........................................................................................................................................2
Supplied Hardware ......................................................................................................2
Installation................................................................................................................... 3
Resources...................................................................................................................................8
Further Inquiries .......................................................................................................... 8
Future Updates ............................................................................................................ 8
Return and Warranty Policies ....................................................................................................9
Merchandise Returns / Repair Service ........................................................................ 9
CRESTRON Limited Warranty...................................................................................9
Installation Guide – DOC. 6978A Contents •i
Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series
Universal Wall Mount Kit for
TPMC-4SM Series: WMKU-4SM
Introduction
The WMKU-4SM is a universal wall mount kit for Crestron®
TPMC-4SM Series touchpanels. It is designed for use with 1-gang and
2-gang U.S. electrical boxes and double gang European electrical boxes.

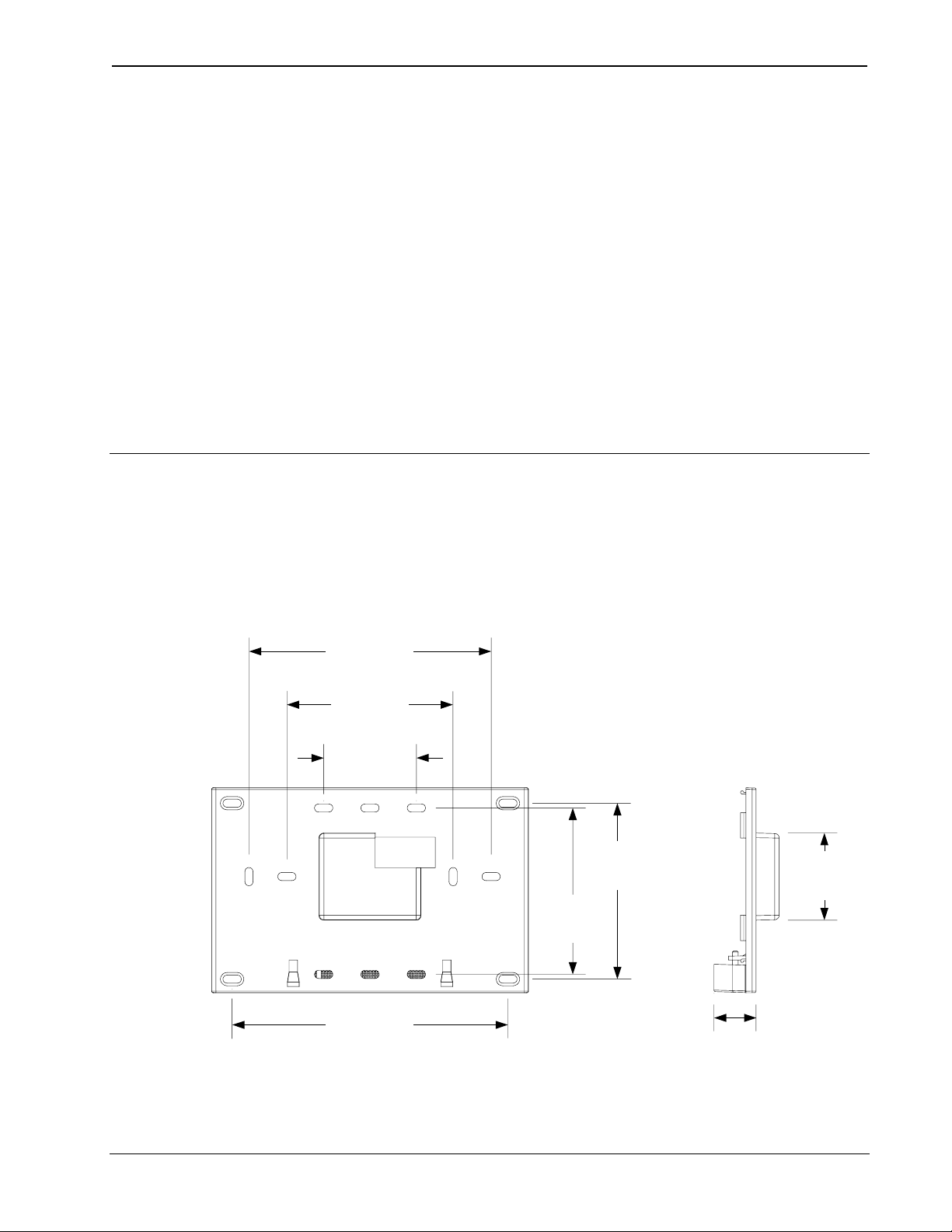

WMKU-4SM Dimensions
0.83 in
(21 mm)
1.70 in
(44 mm)
3.25 in
(83 mm)
3.44 in
(88 mm)
5.40 in
(137 mm)
4.74 in
(121 mm)
3.25 in
(83 mm)
1.82 in
(46 mm)
Installation Guide – DOC. 6978A Wall Mount Kit for TPMC-4SM Series: WMKU-4SM •1
Wall Mount Kit for TPMC-4SM Series Crestron WMKU-4SM
Setup
Supplied Hardware
The hardware supplied with the WMKU-4SM is listed in the following
table.
Supplied Hardware for the WMKU-4SM
DESCRIPTION PART NUMBER QUANTITY
Plastic Enclosure, Black12028284 1
Plastic Enclosure, White22028283 1
Screw, #04-40 x 3/4”, Flat,
Phil, Black1
2029111 2
Screw, #04-40 x 3/4”, Flat,
Phil, Zinc2
2029110 2
Screw, #04-40 x 3/4”, Flat,
Phil, Torx, Black1
2029108 2
Screw, #04-40 x 3/4”, Flat,
Phil, Torx, Zinc2
2029112 2
Screw, #06-32 x 1 1/2”,
Pan, Phil, Zinc
2007254 4
Screw, #M3.5 x 25 mm,
Pan, Phil, Zinc
2028659 2
1. This part comes with WMKU-4SM-B-S (Black).
2. This part comes with WMKU-4SM-W-S (White).
2 •Wall Mount Kit for TPMC-4SM Series: WMKU-4SM Installation Guide – DOC. 6978A
Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series
Installation
Complete the following steps to install the WMKU-4SM. Refer to the
illustrations that follow this procedure.
1. Insert a small slot head screwdriver into the hole shown in the
following illustration and gently separate the back of the
touchpanel.

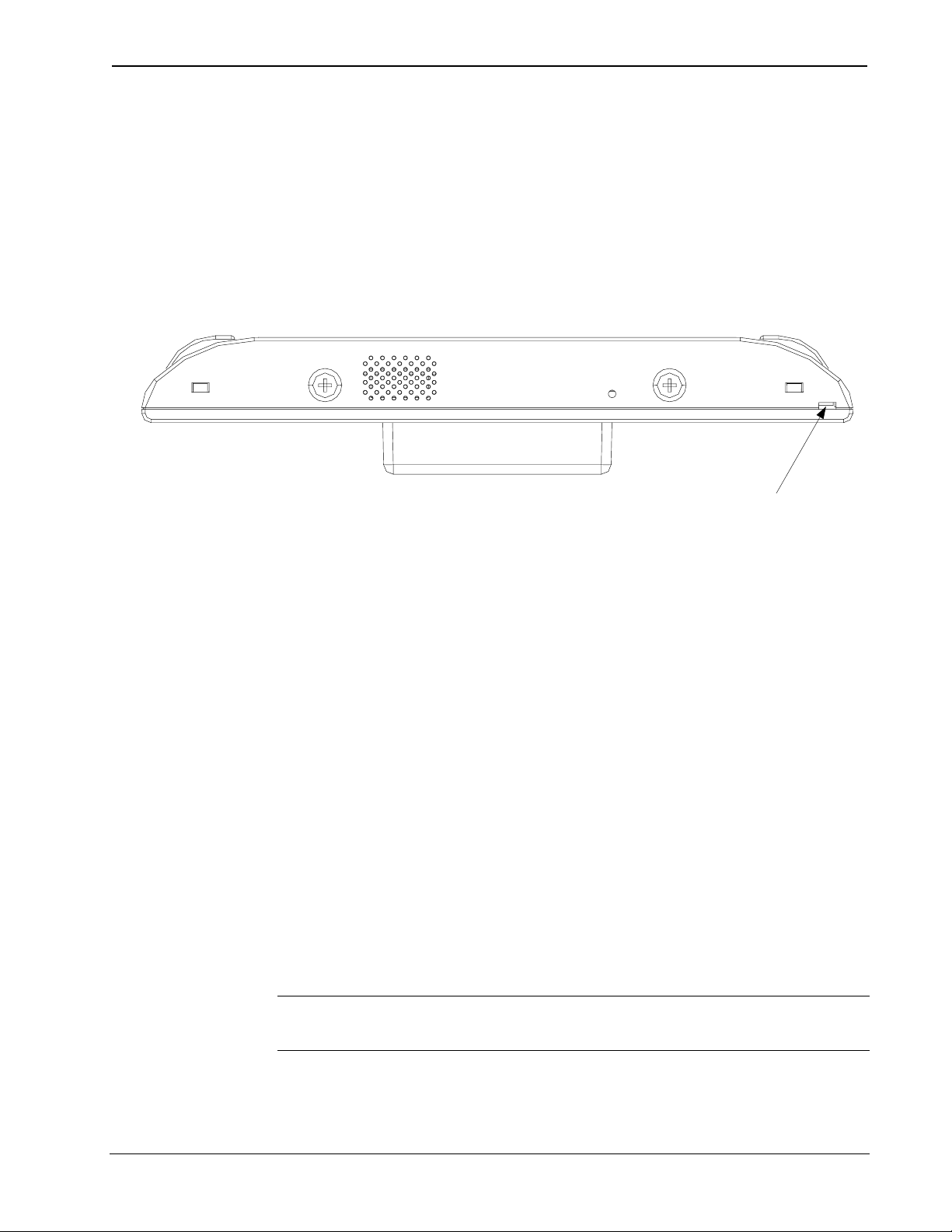

Insert Point for Separation of Back Panel
Insert screwdriver to separate back of touchpanel
2. Use the included screws to attach the WMKU-4SM to the
electrical box. Use two screws for 1-gang electrical boxes; use four
screws for 2-gang electrical boxes.
a. For 1-gang U.S. electrical boxes, use two of the included
#06-32 x 1 1/2” screws. For 2-gang U.S. electrical boxes, use
all four of the included #06-32 x 1 1/2” screws.
b. For double gang European electrical boxes, use the two
included #M3.5 x 25 mm screws.
3. Carefully position the front of the touchpanel over the
WMKU-4SM and gently snap it into place.
4. Use two of the #04-40 x 3/4” screws that came with your
touchpanel to attach the plastic enclosure (the bottom section with
the speaker grill) and secure the touchpanel.
a. For standard applications, use the Phillips screws.
b. For secure applications, use the security type Torx screws along
with the Torx screwdriver bit included with your touchpanel.
NOTE: Parts 2029111 and 2029108 come with black models.
Parts 2029110 and 2029112 come with white modes.
Installation Guide – DOC. 6978A Wall Mount Kit for TPMC-4SM Series: WMKU-4SM •3
Wall Mount Kit for TPMC-4SM Series Crestron WMKU-4SM
Mounting in a Vertically Installed 1-Gang Electrical Box
Screws (2) #06-32 x 1 1/2”
(2007254)
Screws (2) #04-40 x 3/4”
For standard applications: Phillips
(2029111 or 2029110)
For secure applications: security type Torx
(2029108 or 2029112)
4 •Wall Mount Kit for TPMC-4SM Series: WMKU-4SM Installation Guide – DOC. 6978A
Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series
Mounting in a Horizontally Installed 1-Gang Electrical Box
Screws (2) #06-32 x 1 1/2”
(2007254)
Screws (2) #04-40 x 3/4”
For standard applications: Phillips
(2029111 or 2029110)
For secure applications: security type Torx
(2029108 or 2029112)
Installation Guide – DOC. 6978A Wall Mount Kit for TPMC-4SM Series: WMKU-4SM •5
Wall Mount Kit for TPMC-4SM Series Crestron WMKU-4SM
Mounting in a 2-Gang Electrical Box
Screws (4) #06-32 x 1 1/2”
(2007254)
Screws (2) #04-40 x 3/4”
For standard applications: Phillips
(2029111 or 2029110)
For secure applications: security type Torx
(2029108 or 2029112)
