Crestron TSW-550-TTK Manual de usuario

Crestron TSW-550/750/1050-TTK

& TSW-550/750/1050-SMK

TableTop and Swivel Mount Kits

Installation Guide

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United

States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to

refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in

the marks and names of others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Crestron TSW-550/750/1050-TTK & TSW-550/750/1050-SMK Kits

Installation Guide – DOC. 7411C Contents •i

Contents

TableTop and Swivel Mount Kits:

TSW-550/750/1050-TTK & TSW-550/750/1050-SMK 1

Introduction ............................................................................................................................... 1

Specifications ..............................................................................................................2

Physical Description....................................................................................................5

Setup .......................................................................................................................................... 8

Supplied Hardware ......................................................................................................8

Installation ................................................................................................................. 10

Resources................................................................................................................................. 21

Further Inquiries ........................................................................................................ 21

Future Updates .......................................................................................................... 21

Return and Warranty Policies .................................................................................................. 22

Merchandise Returns / Repair Service ...................................................................... 22

Crestron Limited Warranty........................................................................................ 22

Crestron TSW-550/750/1050-TTK & TSW-550/750/1050-SMK Kits

Installation Guide – DOC. 7411C Kits: TSW-550/750/1050-TTK & TSW-550/750/1050-SMK •1

TableTop and Swivel Mount Kits:

TSW-550/750/1050-TTK

& TSW-550/750/1050-SMK

Introduction

The TSW-550-TTK, TSW-750-TTK and TSW-1050-TTK provide

stylish and convenient tabletop enclosures for Crestron®TSW-550,

TSW-750 and TSW-1050 Touch Screens (respectively). The touch

screen is angled when installed in the enclosure. The complete assembly

may be placed on any flat, level surface.

An optional swivel mount accessory (TSW-550/7501050-SMK) is

available separately, providing a means for permanently mounting the

enclosure while retaining the ability to rotate it for optimal positioning.

The swivel range can be customized using optional limit screws, with a

maximum of 330 degree rotation allowed. The swivel mount may be

installed on any flat table, desk or countertop surface with a thickness of

1” (25 mm) minimum to 1 3/8” (35 mm) maximum.

Wiring may be routed through the bottom for a very clean, cordless

appearance or passed out the rear of the enclosure through a grommet and

strain relief. The rear wire opening can accommodate a single cable up to

1/4” (6 mm) diameter such as standard CAT5. The bottom opening

measures 29/32” (23 mm) diameter, while the swivel mount* can

accommodate a bundle of wires up to 11/16” (17 mm) diameter.

The TSW-550-TTK, TSW-750-TTK and TSW-1050-TTK are

functionally identical. For simplicity within this guide, the term

“TSW-550/750/1050-TTK” is used except where noted.

* TSW-550/750/1050-SMK Swivel Mount Kit sold separately.

Kits Crestron TSW-550/750/1050-TTK & TSW-550/750/1050-SMK

2•Kits: TSW-550/750/1050-TTK & TSW-550/750/1050-SMK Installation Guide – DOC. 7411C

Specifications

Specifications for the TSW-550/750/1050-TTK are listed in the

following table.

TSW-550/750/1050-TTK Specifications

SPECIFICATION DETAILS

Enclosure Plastic, black or white; 38º fixed

angle device opening;

freestanding or swivel mount

installation*

Dimensions

TSW-550-TTK

Height 3.11 in (79 mm);

3.24 in (82 mm)

with swivel mount

Width

5.57 in (142 mm)

Depth 3.72 in (94 mm)

TSW-550-TTK

(with TSW-550 installed)

Height

3.64 in (92 mm);

3.77 in (95 mm)

with swivel mount

Width

5.65 in (144 mm)

Depth

4.07 in (104 mm)

TSW-750-TTK

Height 3.25 in (83 mm);

3.38 in (86 mm)

with swivel mount

Width

7.18 in (183 mm)

Depth 4.15 in (106 mm)

(Continued on following page)

Crestron TSW-550/750/1050-TTK & TSW-550/750/1050-SMK Kits

Installation Guide – DOC. 7411C Kits: TSW-550/750/1050-TTK & TSW-550/750/1050-SMK •3

TSW-550/750/1050-TTK Specifications (Continued)

SPECIFICATION DETAILS

Dimensions (Continued)

TSW-750-TTK

(with TSW-750 installed)

Height 3.79 in (97 mm);

3.92 in (100 mm)

with swivel mount

Width 7.59 in (193 mm)

Depth

4.43 in (113 mm)

TSW-1050-TTK

Height

4.01 in (102 mm);

4.14 in (105 mm)

with swivel mount

Width

7.91 in (201 mm)

Depth

5.37 in (136 mm)

TSW-1050-TTK

(with TSW-1050 installed)

Height 4.79 in (122 mm);

4.92 in (125 mm)

with swivel mount

Width

10.13 in (258 mm)

Depth 5.84 in (149 mm)

Available Models

TSW-550-TTK-B-S TableTop Kit for TSW-550,

Black Smooth

TSW-550-TTK-W-S TableTop Kit for TSW-550,

White Smooth

TSW-750-TTK-B-S TableTop Kit for TSW-750,

Black Smooth

TSW-750-TTK-W-S

TableTop Kit for TSW-750,

White Smooth

(Continued on following page)

Kits Crestron TSW-550/750/1050-TTK & TSW-550/750/1050-SMK

4•Kits: TSW-550/750/1050-TTK & TSW-550/750/1050-SMK Installation Guide – DOC. 7411C

TSW-550/750/1050-TTK Specifications (Continued)

SPECIFICATION DETAILS

Available Models

(Continued)

TSW-1050-TTK-B-S TableTop Kit for TSW-1050,

Black Smooth

TSW-1050-TTK-W-S TableTop Kit for TSW-1050,

White Smooth

Available Accessory

TSW-550/750/1050-SMK

Swivel Mount Kit for

TSW-550-TTK, TSW-750-TTK

& TSW-1050-TTK

* TSW-550/750/1050-SMK Swivel Mount Kit sold separately.

Crestron TSW-550/750/1050-TTK & TSW-550/750/1050-SMK Kits

Installation Guide – DOC. 7411C Kits: TSW-550/750/1050-TTK & TSW-550/750/1050-SMK •5

Physical Description

TSW-550-TTK Overall Dimensions (Front View)

4.95 in

(126 mm)

3.12 in

(79 mm)

5.57 in

(142 mm)

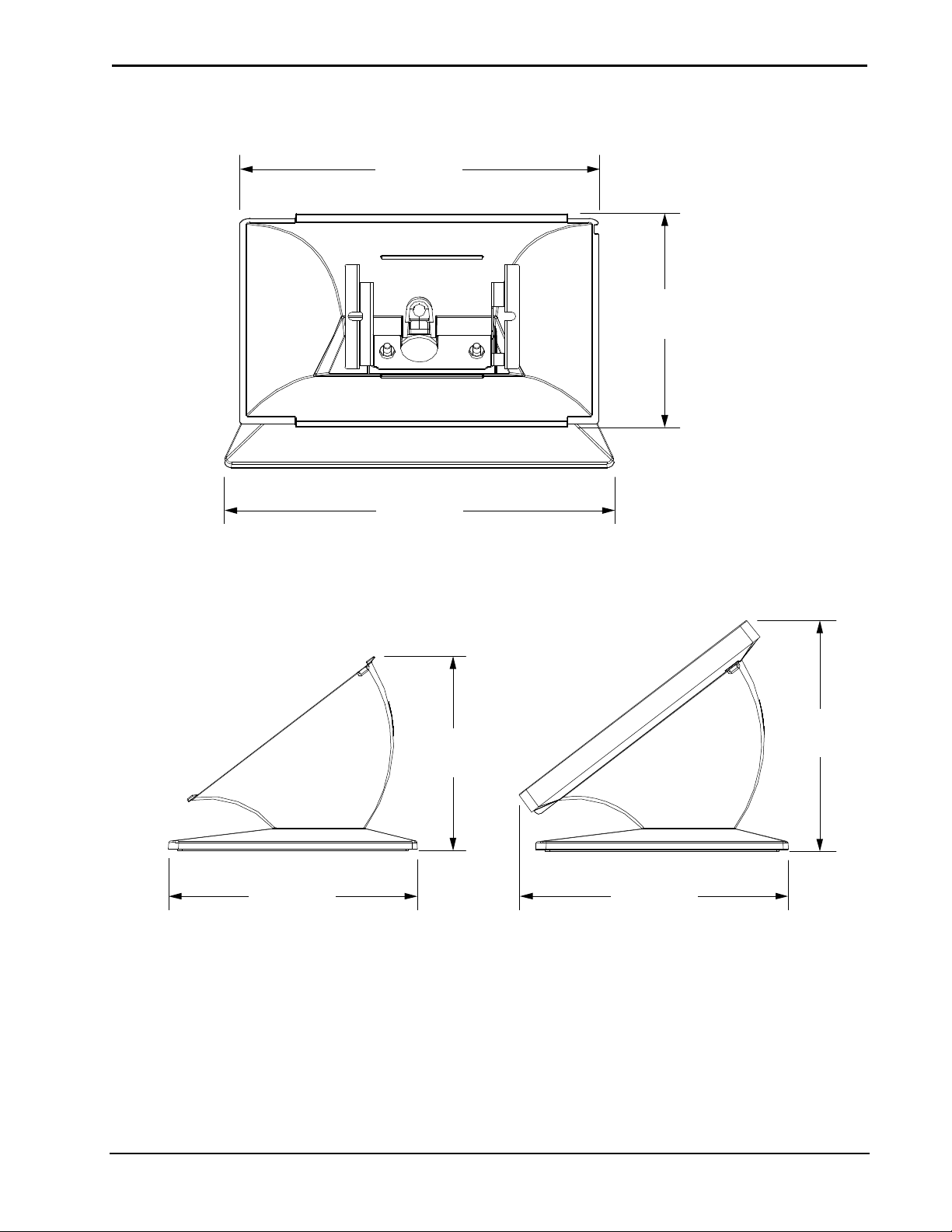

TSW-550-TTK Overall Dimensions

(Side View, Shown Without and With TSW-550 Installed)

3.64 in

(92 mm)

4.07 in

(104 mm)

3.11 in

(79 mm)

3.72 in

(94 mm)

Kits Crestron TSW-550/750/1050-TTK & TSW-550/750/1050-SMK

6•Kits: TSW-550/750/1050-TTK & TSW-550/750/1050-SMK Installation Guide – DOC. 7411C

TSW-750-TTK Overall Dimensions (Front View)

6.63 in

(169 mm)

7.18 in

(183 mm)

3.94 in

(100 mm)

TSW-750-TTK Overall Dimensions

(Side View, Shown Without and With TSW-750 Installed)

3.25 in

(83 mm)

4.15 in

(106 mm)

3.79 in

(97 mm)

4.43 in

(113 mm)
