Crestron TMK-6X-DSW Manual de usuario

CrestronTMK-6X-DSW & WMKT-6X-DSW

TrimRingKitsfortheTPS-6X-DSW

InstallationGuide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron TMK/WMKT-6X-DSW Trim Ring Mount Kits for the TPS-6X-DSW

Contents

Trim Ring Mount Kits for theTPS-6X-DSW:

TMK-6X-DSW & WMKT-6X-DSW 1

Introduction ...............................................................................................................................1

Setup..........................................................................................................................................2

Supplied Hardware......................................................................................................2

Installation...................................................................................................................4

Resources.................................................................................................................................10

Industry Compliance .................................................................................................10

Reference Documents................................................................................................10

Further Inquiries........................................................................................................10

Future Updates ..........................................................................................................10

Return and Warranty Policies..................................................................................................11

Merchandise Returns / Repair Service ......................................................................11

CRESTRON Limited Warranty.................................................................................11

Installation Guide – DOC. 6780A Contents •i

Crestron TMK/WMKT-6X-DSW Trim Ring Mount Kits for the TPS-6X-DSW

Trim Ring Mount Kits

for theTPS-6X-DSW:

TMK-6X-DSW & WMKT-6X-DSW

Introduction

These Trim Ring Mount Kits are the preferred method of mounting the Crestron®

TPS-6X-DSW Wall Mount Docking Station when a finished appearance within a

neatly trimmed cutout is required. This application is perfect for wallpapering.

NOTE: If mounting into a material other than drywall (for example, wood lectern,

concrete, or rock) use the cutout template, available in the post-construction kit

WMKT-6X-DSW. For concrete and rock mounting material, allow for proper

ventilation before mounting the TPS-6X-DSW.

There are two Trim Ring Mount Kits. The TMK-6X-DSW is a pre-construction

accessory. Pre-construction refers to framed walls prior to hanging drywall. This

accessory must be used with either the Pre-Construction Mount Kit (PMK-6X-DSW)

or Wall Mount Back Box (BB-6X-DSW).

The WMKT-6X-DSW is a post-construction kit. Post-construction refers to framed

walls with drywall hung. This accessory is designed with a mounting plate so that it

can be placed anywhere on a wall without the support of a stud. The mounting plate

is also ideal for installing the TPS-6X-DSW in a lectern.

NOTE: Since the TPS-6X-DSW contains moving parts, mounting to a stud offers

more support and is therefore highly recommended. Although Crestron offers the

post-construction WMKM-6X-DSW mounting option, a mounting option that is

secured to a stud, such as the BB-6X-DSW or PMK-6X-DSW is highly

recommended.

NOTE: If necessary, consult the latest revision of the TPS-6X-DSW Operations and

Installation Guide (Doc. 6708) for a complete list of mounting options. The

document is available from the Crestron website (http://www.crestron.com/manuals).

Installation Guide – DOC. 6780A Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW •1

Trim Ring Mount Kits for the TPS-6X-DSW Crestron TMK/WMKT-6X-DSW

Setup

Supplied Hardware

The TMK-6X-DSW consists of a metal trim ring that attaches to the BB-6X-DSW or

PMK-6X-DSW. The WMKT-6X-DSW consists of the trim ring found in the

TMK-6X-DSW as well as a mounting plate, cutout template and mounting screws.

The mounting plate provides the necessary support for post-construction

applications. An overlay cutout template (4506370) is supplied which is similar to a

frame, the inner area of the frame is the shape of the required opening. Remove the

center of the frame in order to use the template, refer to the illustration on page 3.

Supplied Hardware for the TMK-6X-DSW and WMKT-6X-DSW

DESCRIPTION PART NUMBER QUANTITY

Metal, Plate, Trim Ring 2022808 1

Metal, Plate, Mounting

(WMKT-6X-DSW only) 2022811 1

Screw, #06-32 x 1 1/2”, Pan, Phil

(WMKT-6X-DSW only) 2007254 4

Overlay, Template, Wall Cutout

(WMKT-6X-DSW Only) 4506370 1

The dimensions of the TMK-6X-DSW and WMKT-6X-DSW are shown below and

on the next page.

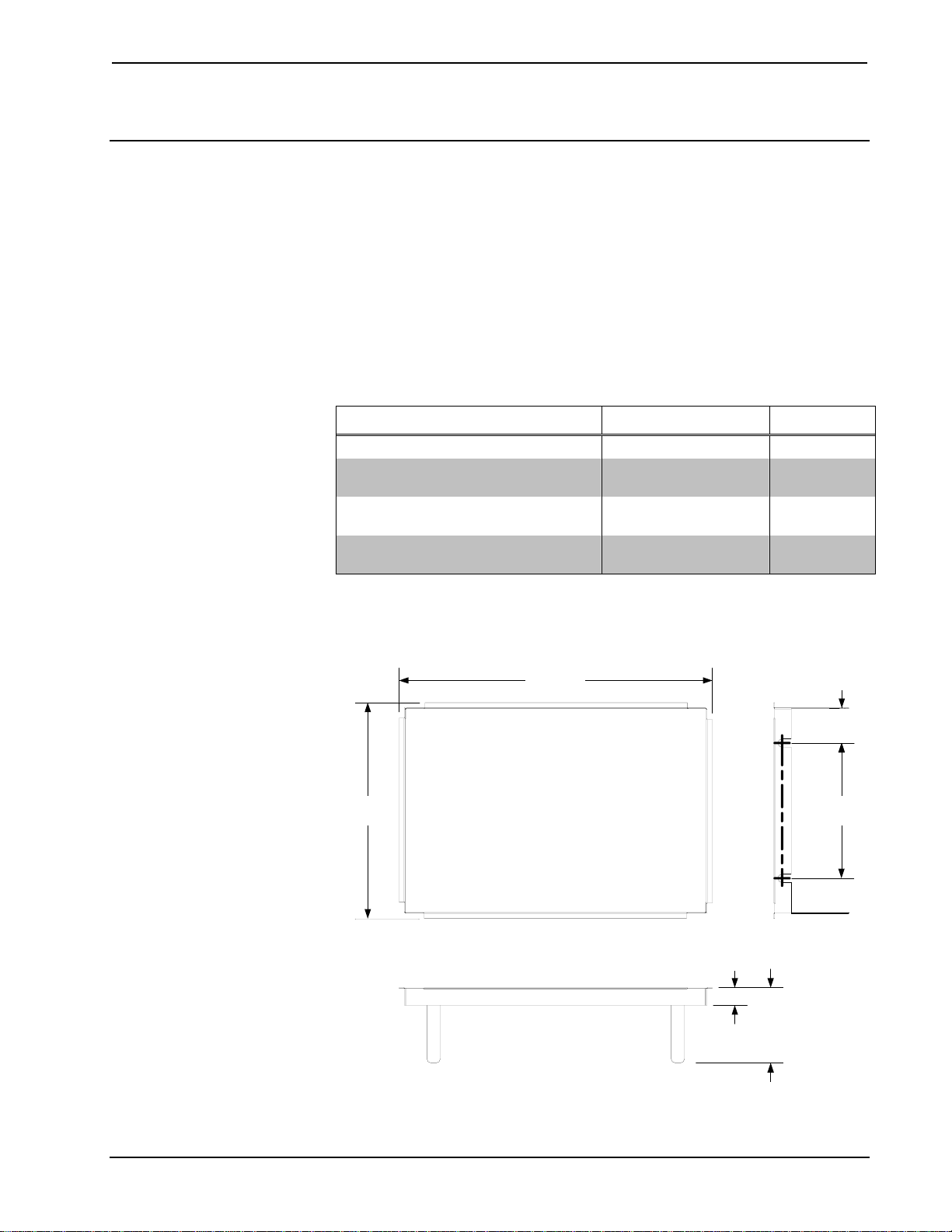

Dimensional Drawing – Trim Ring

9.28in

(23.58cm)

6.39 in

(16.23 cm)

0.52 in

(1.33 cm)

1.04 in

(26.27 cm)

4.00 in

(10.16 cm)

2.23 in

(5.66 cm)

2 •Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW Installation Guide – DOC. 6780A

Crestron TMK/WMKT-6X-DSW Trim Ring Mount Kits for the TPS-6X-DSW

Dimensional Drawing – Mounting Plate

0.06 in

(0.16 cm)

10.31 in

(26.19 cm) 8.00 in

(20.32 cm)

8.16 in

(20.73 cm)

6.35 in

(16.13 cm)

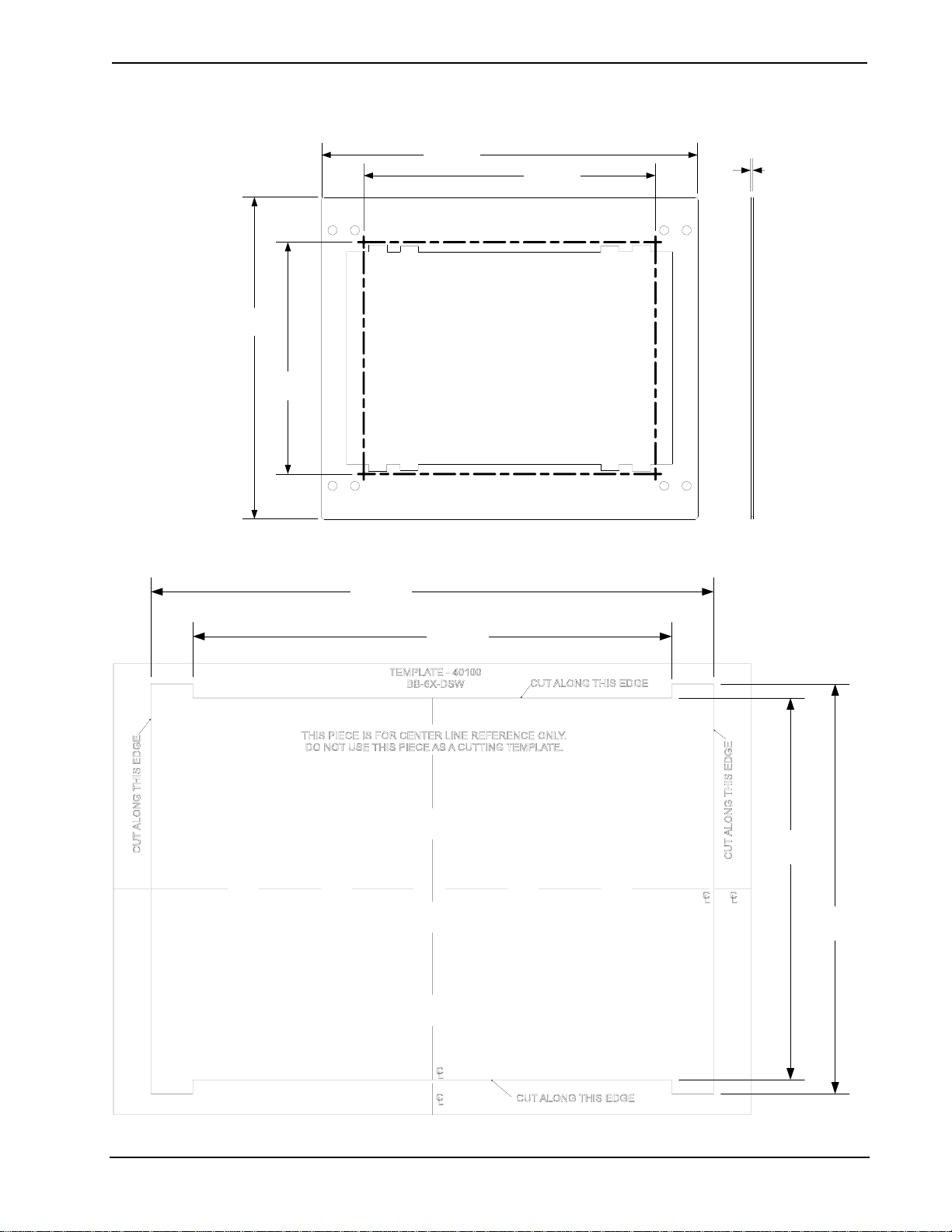

Drywall Cutout Template and Dimensions (supplied with WMKT-6X-DSW only

7 11/16 in

(196 mm)

9 1/16 in

(230 mm)

6 9/16 in

(167 mm)

6 1/8 in

(156 mm)

Installation Guide – DOC. 6780A Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW •3

Trim Ring Mount Kits for the TPS-6X-DSW Crestron TMK/WMKT-6X-DSW

Installation

This section provides an installation procedure for each Trim Ring Mount Kit. The

“TMK-6X-DSW Procedure” starts below and the “WMKT-6X-DSW Procedure”

starts on page 6. Be sure to review each procedure before starting.

TMK-6X-DSW Procedure

This section provides the necessary steps for the assembly of the TMK-6X-DSW

with either the BB-6X-DSW or PMK-6X-DSW. It is assumed that the BB-6X-DSW

or PMK-6X-DSW has been secured to the stud according to the instructions in the

latest revisions of their Installation Guides (Doc. 6728 and Doc. 6778 respectively).

It is also assumed that drywall is in place and a cutout for the TPS-6X-DSW is made

in the drywall.

Complete the steps in the order provided. The only tool required and not supplied is

a level.

CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity

above and below the TPS-6X-DSW for heat dissipation.

NOTE: When installing into the PMK-6X-DSW, verify that the 18 AWG bus wire

securing the cables for the wall mount docking station remains attached.

1. Verify that the cutout in the drywall is as level as possible.

2. Insert the symmetrical trim ring into the opening, as shown in the

illustration below.

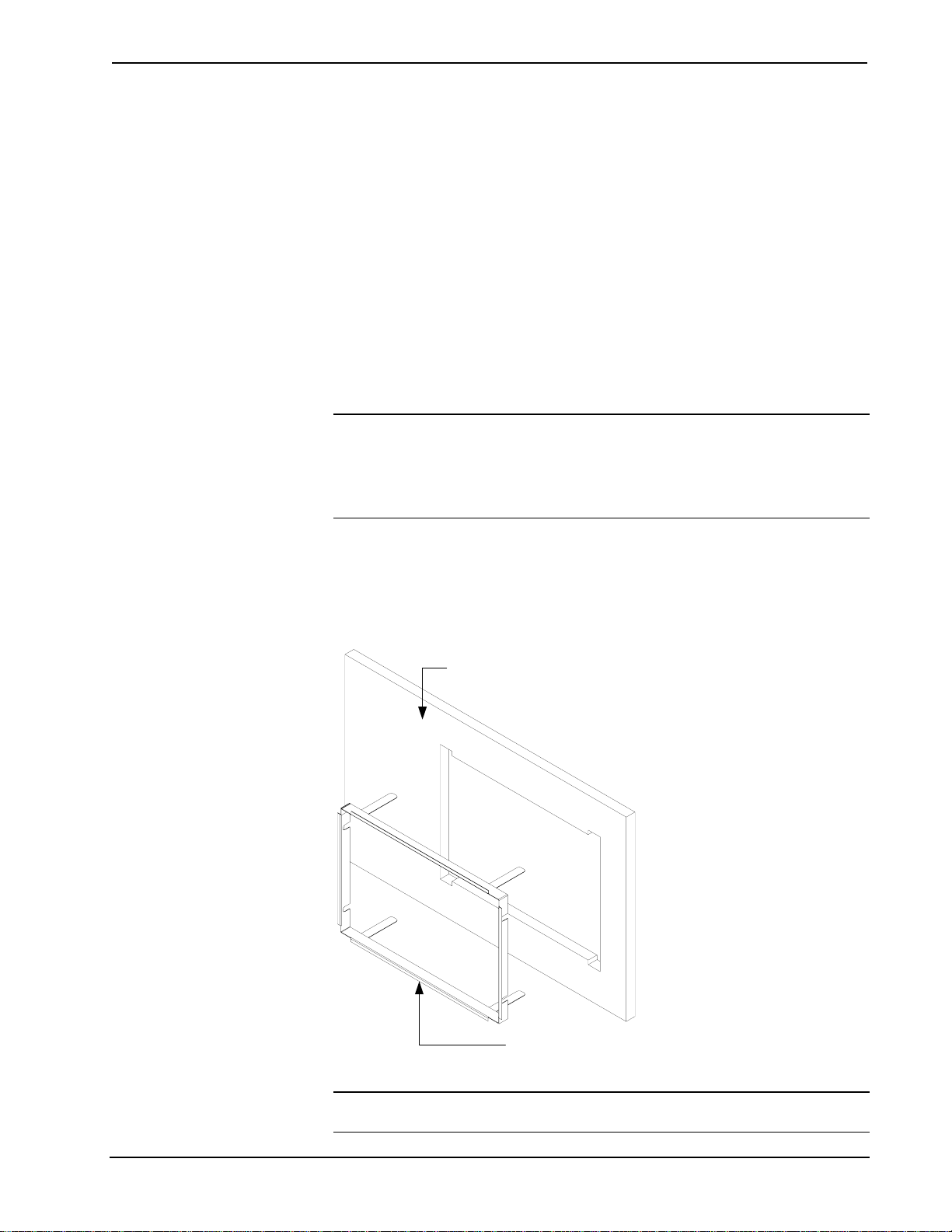

Insert Trim Ring into Opening

DRYWALL

TRIM RING

(2022808 )

IMPORTANT

MAKE DRYWALL CUTOUT

AS LEVEL AND CLEAN AS

POSSIBLE. THE TRIM RING

ONLY ALLOWS MINOR

ADJUSTMENTS OF THE

TPS-6X-DSW.

NOTE: The required PMK-6X-DSW or BB-6X-DSW is not shown in the

illustration above.

4 •Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW Installation Guide – DOC. 6780A

Crestron TMK/WMKT-6X-DSW Trim Ring Mount Kits for the TPS-6X-DSW

3. When the trim ring is in position, bend the top two flanges of the ring

upward and the bottom two flanges downward.

• If mounting into the PMK-6X-DSW, bend the flanges approximately

90 degrees.

• If mounting into the BB-6X-DSW, bend the flanges back as far as they

can go.

4. Run the necessary cables for the TPX-6X-DSW and secure them behind the

drywall.

5. The wall mount docking station can be installed using the four tapped holes

in the PMK-6X-DSW or BB-6X-DSW. Refer to the latest revision of the

TPS-6X-DSW Operations and Installation Guide (Doc. 6708) for details.

Refer also to the comprehensive illustration below.

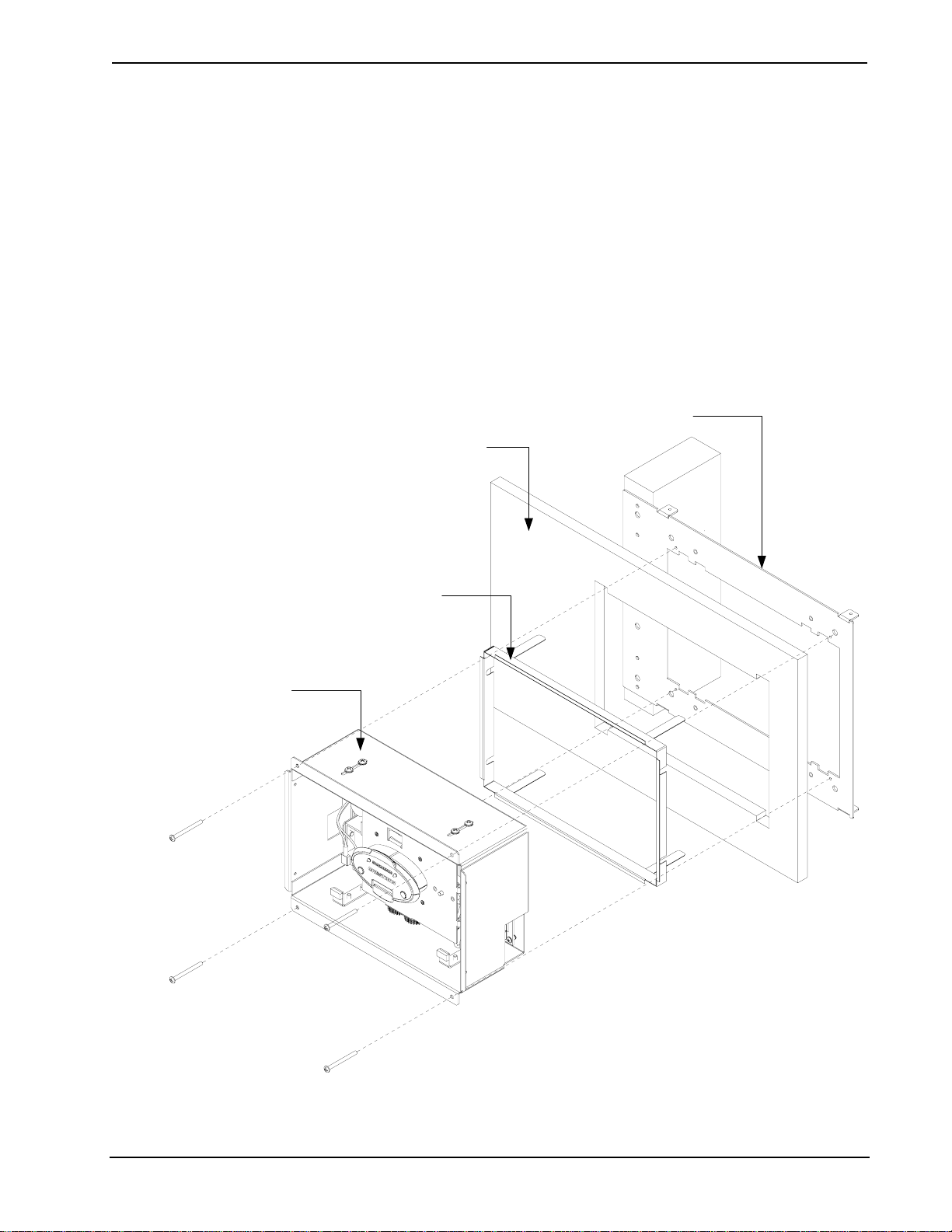

TPS-6X-DSW Mounting Using TMK-6X-DSW – Exploded View

PMK-6X-DSW

DRYWALL

TRIM RING

(2022808 )

TPS-6X-DSW

Installation Guide – DOC. 6780A Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW •5

Trim Ring Mount Kits for the TPS-6X-DSW Crestron TMK/WMKT-6X-DSW

WMKT-6X-DSW Procedure

This section provides the necessary steps for the assembly and installation of the

WMKT-6X-DSW into a wall. Review the procedure and complete the steps in the

order provided. The only tools or materials required and not supplied are a drywall

saw or equivalent and a level.

CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity

above and below the TPS-6X-DSW for heat dissipation.

1. Locate an area on the wall that is free of miscellaneous wiring and

studs.

2. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level and smooth as possible. The mounting plate allows

for only minor leveling adjustments. If a larger cutout is made accidentally, consider

purchasing the Crestron Mud Mount Kit, MMK-6X-DSW. Together with the

mounting plate supplied with the WMKT-6X-DSW, it provides a cost-effective

means of correction. Essentially, the combination of these two kits makes up the

Crestron Mud Mount Kit for the wall, WMKM-6X-DSW. Simply follow the

“WMKM-6X-DSW Procedure” in the latest revision of the Mud Mount Kits

Installation Guide (Doc. 6779).

3. Use the drywall saw or equivalent, the level and the provided cutout

template to produce a level and accurate cutout in the drywall.

4. Insert the trim ring into the opening, as shown in the illustration on the

following page.

6 •Trim Ring Mount Kits for the TPS-6X-DSW: TMK/WMKT-6X-DSW Installation Guide – DOC. 6780A
