Crestron TPS-XDS Docking Station for TPS-XTXRF

Docking Station for TPS-XTXRF:

TPS-XDS

Description

Functional Description

The TPS-XDS is a docking station designed to power the Crestron IsysTM tilt

touchpanel equipped with the optional TPS-XTXRF Two-Way radio frequency (RF)

Transceiver Module. The TPS-XDS charges the TPS-XBTP Battery Pack when the

battery pack is installed in the touchpanel.

NOTE: Throughout this Operations Guide, an IsysTM tilt touchpanel equipped with

the optional TPS-XTXRF Two-Way RF Transceiver Module and TPS-XBTP

Battery Pack is referred to as “touchpanel” except where noted. For related

information, consult the TPS-XTXRF Operations & Installation Guide (Doc. 5844)

and TPS-XBTP Operations Guide (Doc. 5845). The latest versions of the guides are

available from the Downloads | Product Manual section of the Crestron website

(www.crestron.com).

The TPS-XDS powers the touchpanel as long as the electrical contacts of the

touchpanel and the TPS-XDS remain together. Depending on the operating

conditions of the touchpanel, the TPS-XDS will fast charge and/or slow charge the

battery to maintain optimum performance*. Power to the TPS-XDS is supplied by a

provided external power pack and the duration of the charge is continuous as long as

the battery is not fully charged. The touchpanel may be operated during the charging

process but charging time is extended.

* Refer to the latest revision of the TPS-XBTP Operations Guide (Doc. 5845),

Leading Specifications, for battery charging times.

Physical Description

The TPS-XDS (see following illustration) is housed in a black enclosure with

labeling on the left side and touchpanel docking area. On the left side of the unit are

two light-emitting diodes (LEDs). The PWR (GREEN) LED indicates that power is

available to the TPS-XDS, and the CHG (RED) LED indicates charge or touchpanel

in-use status. An external power pack supplies power via a direct current (DC)

power socket connector. Four rubber feet are on the base of the TPS-XDS for

stability and to prevent slippage.

Operations Guide - DOC. 5846 Docking Station for TPS-XTXRF: TPS-XDS •1

Docking Station for TPS-XTXRF Crestron TPS-XDS

TPS-XDS Physical Views

10.89 in

(27.67 cm)

5.37 in

(13.64 cm)

1.26 in

(3.19 cm)

ELECTRICAL CONTACTS

FOR TOUCHPANEL

UNIT WEIGHT:

1.30 lbs (0.51 kg)

CHG

PWR

CRESTRON

Port & Indicators

Two LED indicators and one DC power port are located on the left side of the

TPS-XDS. Refer to the diagram below and the following descriptions.

TPS-XDS Power Port & Indicators

CHG LED

(RED)

PWR LED

(GREEN)

DC POWER

PORT

PWR LED (Power Available)

Illuminates green when power is provided to the TPS-XDS via the external power

pack.

CHG LED (Charge)

Illuminates red when the touchpanel (without a battery pack installed) is docked and

being operated. The LED also illuminates whenever a properly docked touchpanel is

in standby mode and the TPS-XBTP is properly installed in the touchpanel. When

the TPS-XBTP is fully charged and the docked touchpanel is in standby mode or

OFF, the CHG LED goes out. While the touchpanel remains inactive (OFF), the

TPS-XDS automatically recharges the TPS-XBTP within 3-4 hours.

2 •Docking Station for TPS-XTXRF: TPS-XDS Operations Guide - DOC. 5846

Crestron TPS-XDS Docking Station for TPS-XTXRF

DC Power Port (not labeled)

Used to supply power via the external power pack. Crestron recommends specific

power packs for its devices. The provided power pack for the TPS-XDS is Crestron

part number PW-2420RU for non-international and international use. If you want to

use a power pack other than the Crestron model, verify that it meets the following

specifications and polarity.

Power Pack Specifications

POWER REQUIREMENTS OUTPUT

120VAC 60Hz

240 VAC 50Hz

24VDC 2A minimum,

regulated

Power Pack Polarity

Leading Specifications

The following table provides a summary of leading specifications for the TPS-XDS.

Leading Specifications of the TPS-XDS

SPECIFICATIONS DESCRIPTION

Dimensions and Weight

Height: 1.26 in (3.19 cm)

Width: 10.89 in (27.67 cm)

Depth: 5.87 in (13.34 cm)

Weight: 1.30 lb (0.535 kg)

As of the date of manufacture, the TPS-XDS has been tested and found to comply

with specifications for CE marking and standards per EMC and

Radiocommunications Compliance Labelling (N14176).

Operations Guide - DOC. 5846 Docking Station for TPS-XTXRF: TPS-XDS •3

Docking Station for TPS-XTXRF Crestron TPS-XDS

Using the TPS-XDS

WARNING: To avoid possible physical harm, damage to the TPS-XDS or

touchpanel, use only specified external power pack PW-2420RU or equivalent when

charging.

WARNING: Charge the touchpanel in a well-ventilated area away from sparks and

open flame. Do not use the touchpanel near heat sources such as radiators, heat

registers, stoves, or other apparatus.

CAUTION: Avoid accidental shorting of the electrical contacts to prevent possible

damage to the external power pack. If shorted, remove the shorting object(s) and the

power pack will automatically reset within 5-10 seconds.

NOTE: We recommend that instead of removing power from the TPS-XDS by

pulling the power plug out of DC power port, you set the OFF/ON switch on the

power pack to OFF.

NOTE: Make sure that the TPS-XBTP battery pack is properly installed in the

TPS-XTXRF equipped touchpanel.

NOTE: Charging of TPS-XBTP is determined by internal temperature, not voltage.

The TPS-XBTP/touchpanel will not charge if the internal temperature of the battery

pack is too high. Excessive temperature may be produced by high room temperature,

heavy usage of the TPS-XVGA/-BV RGB Computer Interface Card and/or TPS-

VID Video Card, blocked TPS-XTXRF vents, etc. The TPS-XBTP will begin to

recharge when cooled. Refer to the latest revision of the TPS-XBTP (Doc. 5845)

Operations Guide, Leading Specifications, for the battery operating temperature

range.

1. Setup the external power pack according to the Operations Guide

provided with the power pack.

NOTE: The latest version of the PW-2420RU Power Pack Operations Guide (Doc.

5892) can be obtained from the Downloads | Product Manual section of the Crestron

website (www.crestron.com).

2. Set the power pack OFF/ON switch to ON.

3. Place the touchpanel on the TPS-XDS docking area as shown on next

page. The electrical contacts are self-aligning with the touchpanel.

4 •Docking Station for TPS-XTXRF: TPS-XDS Operations Guide - DOC. 5846

Crestron TPS-XDS Docking Station for TPS-XTXRF

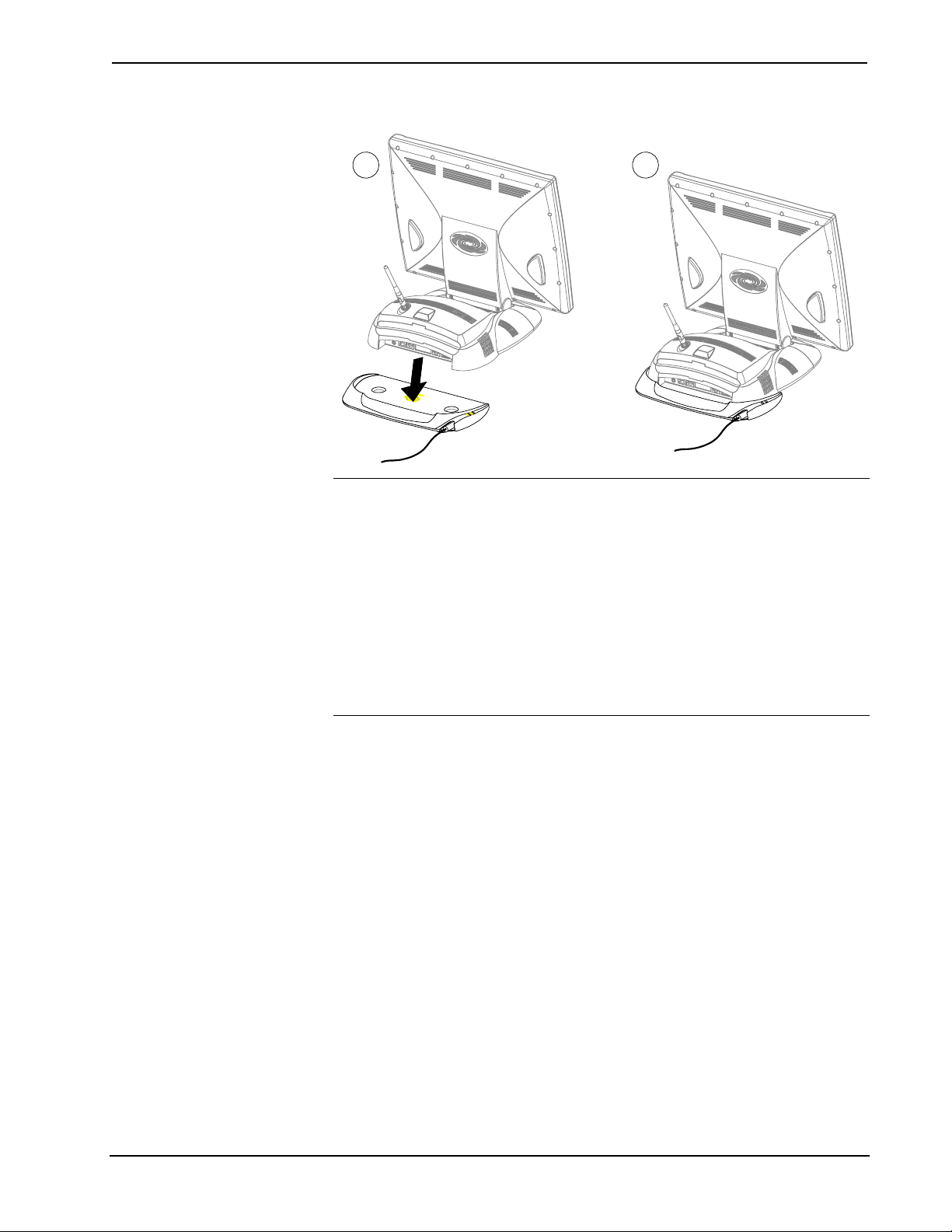

Place Touchpanel on TPS-XDS

1 2

NOTE: The touchpanel may be operated during the charging process but charging

time is significantly extended. Depending on touchpanel model, activity, optional

expansion cards installed, backlight usage/brightness, etc., charge time may be from

8-1/2 to 14 hours. Refer to the latest revision of the TPS-XTXRF (Doc. 5844)

Operations Guide, Leading Specifications for more information on charging times.

NOTE: Operating time for an undocked TPS-XTXRF (battery installed) will vary

depending on touchpanel model, activity, optional expansion cards installed,

backlight usage/brightness, etc. For example, undocked operating time of a

TPS-XTXRF equipped TPS-6000 touchpanel with all optional cards and a new, fully

charged TPS-XBTP is typically 2-hours before charging is required. Refer to the

latest revision of the TPS-XBTP Operations Guide (Doc. 5845), Leading

Specifications, for battery charging times.

Operations Guide - DOC. 5846 Docking Station for TPS-XTXRF: TPS-XDS •5

Docking Station for TPS-XTXRF Crestron TPS-XDS

Problem Solving

Troubleshooting

The table below provides corrective action for possible problems. If further

assistance is required, please contact a Crestron customer service representative.

TPS-XDS Troubleshooting

TROUBLE POSSIBLE

CAUSE(S) CORRECTIVE ACTION

Green PWR

LED does not

illuminate.

TPS-XDS is not

receiving power.

Confirm that external power pack securely

plugged into outlet and that the connector is

properly attached to the TPS-XDS.

Power pack switch

not in ON position.

Position power pack switch to ON.

Allow 5-10 seconds for power pack to

automatically reset.

Disconnect power pack output plug from

TPS-XDS & reconnect.

Disconnect AC input plug from power pack

output & reconnect.

Replace power pack.

Red CHG

LED does not

illuminate.

Touchpanel is fully

charged and in

standby mode or

OFF.

No action is required.

Properly position the touchpanel onto the

TPS-XDS.

The contacts may be dirty. Unplug the external

power pack from the TPS-XDS and clean the

TPS-XDS contacts with a dry, lint-free cloth.

Touchpanel/TPS-

XBTP has been

stored in a cold

environment.

Excessive

Touchpanel/TPS-

XBTP internal

temperature. *

TPS-XBTP will not

charge.

Replace TPS-XBTP.

Allow touchpanel/TPS-XBTP to obtain room

temperature before attempting to charge.

TPS-XDS has

intermittent contact

with the

touchpanel.

Power pack has

been shorted at

output plug. (Power

pack LED not lit.)

TPS-XDS

does not

charge

touchpanel.

* A high internal temperature in the touchpanel may be caused by heavy usage of the TPS-

XVGA/-BV RGB Computer Interface Card and/or TPS-VID Video Card, blocked TPS-

XTXRF vents, high room temperature, etc.

6 •Docking Station for TPS-XTXRF: TPS-XDS Operations Guide - DOC. 5846

Tabla de contenidos

Otros manuales de Estación de acoplamiento de Crestron

Crestron

Crestron TPMC-10-DS Manual de usuario

Crestron

Crestron TSR-310-DS Manual de usuario

Crestron

Crestron TST-600-DS Manual de usuario

Crestron

Crestron DA-1700CW Guía de inicio rápido

Crestron

Crestron ST-DSN Manual de usuario

Crestron

Crestron TPMC-4XG-DS Manual de usuario

Crestron

Crestron IDOC-PAD-LCA-DSC Dibujo dimensional

Crestron

Crestron TPMC-10-DSW Manual de usuario

Crestron

Crestron iPanel IDOC-PAD-LCA-DSWC Dibujo dimensional

Crestron

Crestron Docking Station TPS-6X-DS Manual de usuario

Crestron

Crestron UFO-WPR-3ER-DS Manual de usuario

Crestron

Crestron ST-DS Manual de usuario

Crestron

Crestron Docking Station TPS-6X-DS Manual de usuario

Crestron

Crestron WPR-DS Manual de usuario

Crestron

Crestron DA-1550CW Manual de usuario

Crestron

Crestron iPanel IDOC-PAD2-DSWC Cómo utilizar

Crestron

Crestron TPS-6X-DSW Cómo utilizar

Crestron

Crestron TPMC-8X-DS Manual de usuario

Crestron

Crestron IDOC-PAD-DSWC Cómo utilizar

Crestron

Crestron TPS-6X-DS-C Manual de usuario

Crestron

Crestron IDOC-PAD-DSWC Dibujo dimensional

Crestron

Crestron iPanel IDOC-PAD-LCA-DSWC Series Manual de usuario

Crestron

Crestron FreeSpeech MP-FSDS2 Cómo utilizar

Crestron

Crestron UFO-WPR-3ER-DSCE Cómo utilizar

Manuales populares de Estación de acoplamiento de otras marcas

Sony

Sony Dream Machine XDR-DS12iP Manual de usuario

Acer

Acer USB Type-C Dock II Manual de usuario

ATEN

ATEN UC-2000 Manual de usuario

Xcellon

Xcellon HDD-202 Manual de usuario

Dok

Dok CR09 Manual de usuario

Philips

Philips BTM630/12 Manual de usuario

IOGear

IOGear Travel Pro GUD3C09 Manual de usuario

RKI

RKI SDM-E2 Manual de usuario

iHome

iHome iP15 Manual de usuario

VITURE ONE

VITURE ONE MOBILE DOCK Manual de usuario

Lindy

Lindy 42984 Manual de usuario

CipherLab

CipherLab 8001 Manual de usuario

Pyle

Pyle PIPDSP2 Manual de usuario

Avol

Avol AS2350 Manual de usuario

Datalogic

Datalogic JoyaTouch Manual de usuario

Philips

Philips DC190/79 Manual de usuario

Targus

Targus DOCK315EUZ Manual de usuario

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manual de usuario
