Crestron ST-DS Docking Station/Charger
Operations Guide - DOC. 5738A Docking Station/Charger: ST-DS •• 1
Docking Station/Charger: ST-DS
Description
Functional Description
The ST-DS is a microprocessor-based docking station designed to fast charge the
ST-BTP (rechargeable power pack). A fast charge occurs in one of three possible
configurations and can take between two and three hours (depending on whether the
ST-BTP is fully discharged and the amount of current drawn during the charging
process). Each situation is detailed in “Using the ST-DS to Charge the ST-BTP
(Rechargeable Power Pack)” on page 4.
1. The ST-DS charges the ST-BTP alone.
2. The ST-DS charges the ST-BTP while the rechargeable power pack is
installed in a touchpanel and the touchpanel is not in use.
3. The ST-DS charges the ST-BTP while the rechargeable power pack is
installed in a SmarTouch STS touchpanel and the touchpanel is in use.
NOTE: Configuration 2 and 3 depend on the type of Crestron wireless touchpanel
in use.
A second function of the ST-DS is to preserve the charge of the ST-BTP. As long as
the contacts of the ST-BTP and the ST-DS remain together, the ST-DS “trickle
charges” the ST-BTP in an attempt to maintain the ST-BTP for optimum
performance. The duration of a “trickle charge” is continuous as long as the ST-
BTP is not fully charged.
Docking Station/Charger Crestron ST-DS
2•• Docking Station/Charger: ST-DS Operations Guide - DOC. 5738A
Physical Description
The ST-DS, shown on the next page, is housed in a black enclosure with silk-
screened labels on the front panel and cavity (docking area) of the unit. On the front
panel there are three LEDs for indicating the unit’s current status. The cavity
accommodates either the ST-BTP with optional ST-DS charging guide or, in some
cases, a Crestron wireless touchpanel with ST-BTP installed. The only wired
connection is made to the bottom of the unit. There are four rubber feet on the base
of the ST-DS for stability and to prevent slippage.
ST-DS Physical Views
6.765"
171.83mm
0.935"
23.75mm
SHOWN WITHOUT OPTIONAL
CHARGING GUIDE
6.715"
170.56mm
Crestron ST-DS Docking Station/Charger
Operations Guide - DOC. 5738A Docking Station/Charger: ST-DS •• 3
ST-DS Port
The only port is provided on the bottom of the ST-DS. This DC power socket
connector is used to supply power via the external power pack.
ST-DS Power Port
SIDE VIEW
BOTTOM VIEW
POWER
CONNECTOR
ST-DS Indicators
There are three LED indicators located on the front panel of the ST-DS. Refer to the
illustration and descriptions after this paragraph.
ST-DS Indicators
(External Power)
This green LED illuminates when power is provided to the ST-DS via the specified
external power pack.
CHG (Charge)
This red LED illuminates when a ST-BTP is inserted into the ST-DS cavity and the
contacts of each touch. The LED remains ON while the rechargeable power pack is
charging.
If the CHG LED blinks every second, it is in a "charge pending" state. This state
indicates that the rechargeable power pack may be too hot or cold, or that it has
extremely low voltage and a “trickle charge” is necessary before a fast charge can be
applied. In either case, the ST-DS monitors the ST-BTP status and waits for the
correct conditions to start a fast charge. The LED remains ON during a fast charge.
RDY (Ready)
This red LED illuminates when the ST-BTP in the ST-DS cavity is fully charged.
Docking Station/Charger Crestron ST-DS
4•• Docking Station/Charger: ST-DS Operations Guide - DOC. 5738A
Setup
Power Source
The ST-DS has a DC power socket connector on the bottom of the unit. This power
connector is used to supply power via an external power pack. Crestron
recommends a power pack for the ST-DS. It is available under Crestron part
number PW-1215 (110v USA and Canada) or PWI-1215 (220v International). If an
external power pack other than these Crestron models is obtained, verify that it
meets the required specifications and polarity as shown below.
Power Pack Specifications
CRESTRON POWER PACK INPUT SPECS OUTPUT SPECS
PW-1215 120VAC 60Hz 35W 12VDC 1500mA
PWI-1215 230V~50Hz 35W 12V - - - 1500mA 18VA

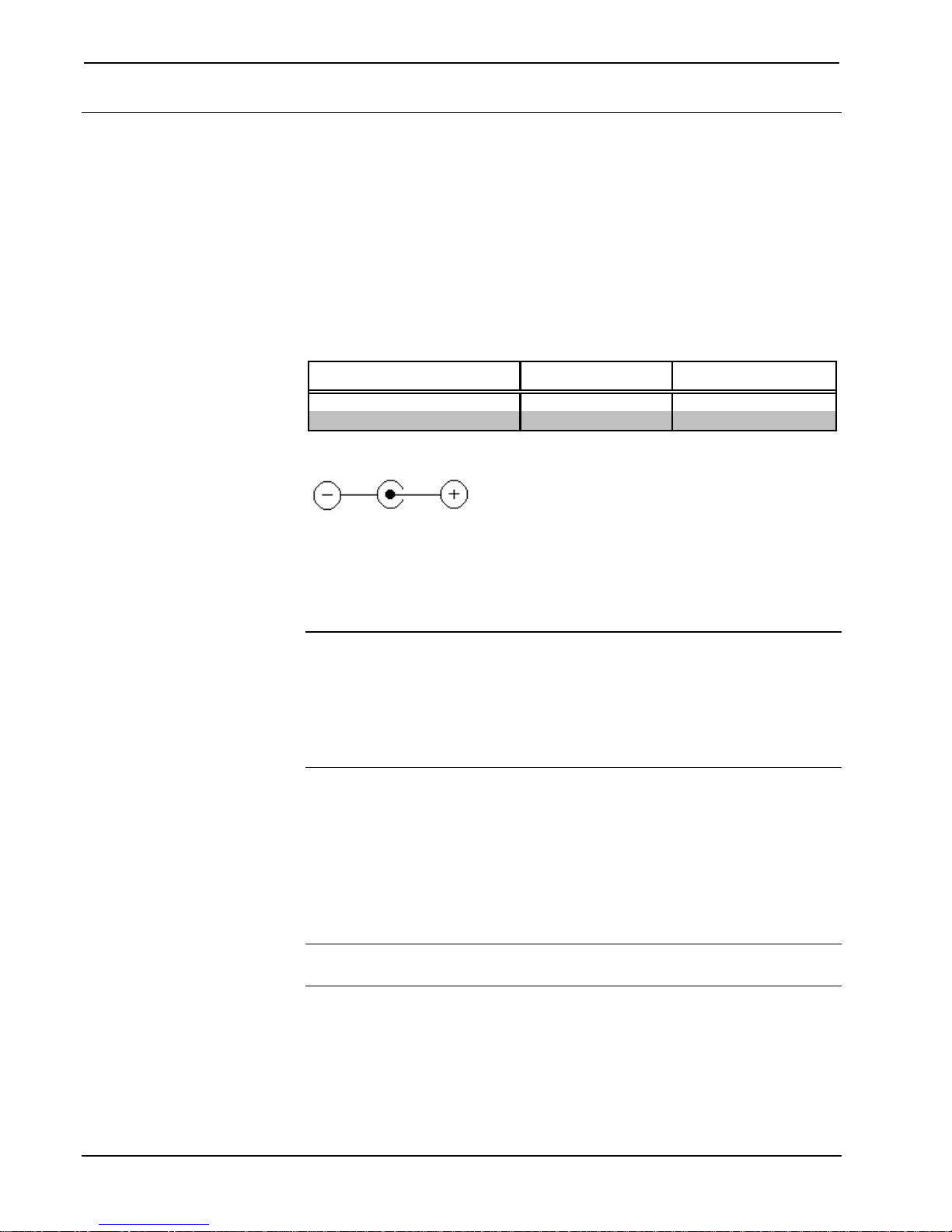

Power Pack Polarity
Using the ST-DS to Charge the ST-BTP
(Rechargeable Power Pack)
WARNING: The ST-BTP is shipped in a discharged condition. Charge the ST-
BTP in a well ventilated area away from sparks and open flame. Do not smoke
while the ST-BTP is being charged.
WARNING: Avoid damage to the ST-BTP and possible physical harm, use only
the specified external power pack PW-1215 (110v) or PWI-1215 (220v) or
equivalent when charging with the ST-DS.
There are three possible methods of charging the ST-BTP with the ST-DS. All
methods are considered fast charging and take between two and three hours for a
fully discharged ST-BTP. Using the touchpanel during charging may take up to
three hours and is only permissible with certain Crestron wireless touchpanel
models.
Method 1: ST-BTP Alone
NOTE: Use the optional charging guide when charging the ST-BTP alone (while
it is not installed in the touchpanel).
Position the charging guide into the ST-DS cavity. Position the ST-BTP, by itself,
into the ST-DS cavity to automatically initiate charging. Be sure that the contacts of
the ST-DS and ST-BTP touch. Refer to the illustration on the next page to confirm
positioning. The CHG LED illuminates while the ST-BTP is charging. When the
ST-BTP is fully charged, the CHG LED extinguishes and the RDY LED
illuminates.
Crestron ST-DS Docking Station/Charger
Operations Guide - DOC. 5738A Docking Station/Charger: ST-DS •• 5
Charging the ST-BTP (Alone)
CONTACTS
RECHARGABLE
POWER PACK
ST-BTP
SHOWN WITH OPTIONAL
CHARGING GUIDE
ST-DS
Method 2: ST-BTP Installed in an Inactive Touchpanel
NOTE: Do not use the optional charging guide when charging the ST-BTP while
installed in the touchpanel.
NOTE: This method only applies to certain Crestron wireless touchpanels.
In this method, the ST-BTP is properly installed into the touchpanel. Position the
touchpanel into the ST-DS cavity, as shown on the next page. Be sure that the
contacts of the ST-DS and ST-BTP touch. The CHG LED illuminates while the
ST-BTP is charging. When the ST-BTP is fully charged, the CHG LED
extinguishes and the RDY LED illuminates. As long as the touchpanel remains
inactive (OFF), a fully discharged ST-BTP fully charges in two hours.
TouchPanel Properly Positioned (ST-1550C shown)
SIDE VIEWTOP VIEW
Docking Station/Charger Crestron ST-DS
6•• Docking Station/Charger: ST-DS Operations Guide - DOC. 5738A
Method 3: ST-BTP Installed in an Active Touchpanel
This method is identical to method 2, except that the touchpanel is active (ON)
while charging. As a result, the time to fully charge a discharged ST-BTP can take
up to three hours.
Fully Discharging the ST-BTP
Due to the memory effect of nickel-cadmium (NiCad) cells, Crestron recommends
that the ST-BTP be fully discharged for every 25 charge/discharge cycles. The
ST-BTP can be fully discharged while in the touchpanel. A button to fully discharge
the touchpanel should be available within a designated screen design. This button
has a special software identity (reserve join number) and can be recreated and
programmed onto any page in the touchpanel project. Consult your Crestron dealer
if this feature cannot be located.
Problem Solving
Troubleshooting
The table below provides corrective action for possible trouble situations. If further
assistance is required, please contact a Crestron customer service representative.
ST-DS Troubleshooting
TROUBLE POSSIBLE
CAUSE(S) CORRECTIVE ACTION
Green PWR
LED does not
illuminate.
ST-DS is not
receiving power. Confirm that power pack securely plugged into
outlet and that the connector is properly attached
to the ST-DS.
Red CHG
LED blinks
once per
second.
ST-DS is in "charge
pending" mode.
The rechargeable power pack is either too hot/cold
or has extremely low voltage. No action is
necessary. The ST-DS monitors the ST-BTP and
begins a fast charge as soon as conditions are
favorable. Charging occurs when the ST-BTP
temperature is between 59-86 °F (15-30 °C).
Red CHG and
ST-DS has
Properly position the ST-BTP in the ST-DS cavity.
RDY LEDs
blink four
times per
intermittent contact
with the ST-BTP. The four contacts may be dirty. Unplug the
external power pack and clean the contacts with a
dry, lint-free cloth.
second. Incorrect external
power pack being
used.
Verify that the external power pack is the
recommended power supply (i.e., Crestron part
no. PW-1215 (110v) or PWI-1215 (210v)).
Red CHG and
RDY LEDs
oscillate back
and forth.
Hardware Error Stop using the ST-DS.
Contact an authorized Crestron Dealer or Crestron
Customer Service.
