Crestron ST-CP SmarTouch™ Control Processor

Contents

SmarTouch™ Control Processor: ST-CP 1

Description.................................................................................................................................1

Functional Description ................................................................................................1

Physical Description....................................................................................................2

Leading Specifications...............................................................................................................5

Preparation for Use ....................................................................................................................5

Programming ............................................................................................................... 5

Operation.....................................................................................................................7

Problem Solving ........................................................................................................................8

Troubleshooting........................................................................................................... 8

Further Inquiries .......................................................................................................... 9

Software License Agreement...................................................................................................10

Return and Warranty Policies ..................................................................................................12

Merchandise Returns / Repair Service ...................................................................... 12

CRESTRON Limited Warranty................................................................................. 12

Operations Guide - DOC. 5820 Contents •i

Crestron ST-CP SmarTouch™ Control Processor

SmarTouch™ Control Processor:

ST-CP

Description

Functional Description

The SmarTouch control processor, part of the SmarTouch STS/STSI, interfaces with

almost all electronic equipment for complete control commands without delay. The

control processor should be located in an area near the A/V equipment that needs to

be controlled. It plays a vital role during programming and operation. The control

processor is hard wired to the user interface and PC when programming. During

operation, it receives RF signals from user interfaces. It then sends the commands to

the appropriate device.

There are two control processor configurations available. Configuration selection is

based on the type of power availability and the communication frequency. Use the

ST-CP with a 120V power supply and a transmission frequency of 433.92 MHz. Use

the ST-CP/UK with a 220V power supply and a transmission frequency of 418 MHz.

For purposes of this Operations Guide, the term ST-CP is used for either

configuration.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. The equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Operations Guide - DOC. 5820 SmarTouch™ Control Processor: ST-CP •1

SmarTouch™ Control Processor Crestron ST-CP

Physical Description

The ST-CP, shown below, is housed in a black enclosure with silk-screened labels on

the front and back of the case. On the front there are 10 LEDs for indicating the

current status of the unit. All connections are made on the back of the unit. There are

four rubber feet on the base of the unit for stability and to prevent slippage.

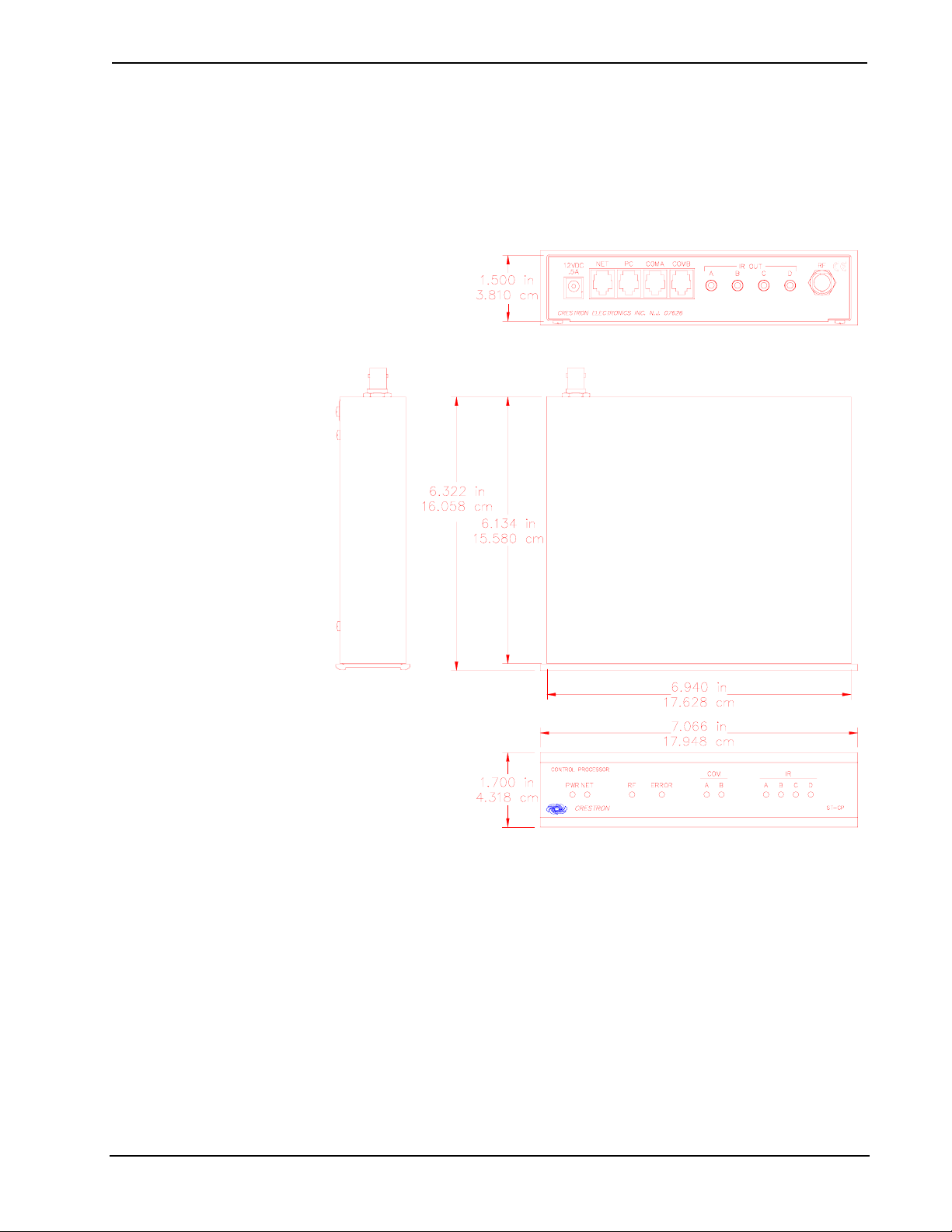

ST-CP Physical Views

2 •SmarTouch™ Control Processor: ST-CP Operations Guide - DOC. 5820

Crestron ST-CP SmarTouch™ Control Processor

ST-CP Ports

A number of ports are provided on the back of the ST-CP. Each has a silk-screened

label. Refer to illustration and descriptions below.

ST-CP Ports

12 VDC .5 A

This DC power socket connector is used to supply power via an external AC power

pack. Crestron recommends specific power packs for its devices. The recommended

power pack for the ST-CP is Crestron part number PW-1205 (PWI-1210 for

international use of the ST-CP/UK). If an external power pack other than this

Crestron model is obtained, verify that it meets the required specifications and

polarity as shown after this paragraph.

AC Power Pack Specifications

CRESTRON POWER PACK INPUT SPECS OUTPUT SPECS

PW-1205 120V~60Hz 12VDC .5 A

PWI-1210 230V~50Hz 12VDC 1A

AC Power Pack Polarity

NET

This 6-pin, 6-position RJ11 modular jack is used for expansion to SmarTouch

peripherals or for programming the touchpanel. For expansion, insert the RJ11

connector end of the cable to a SmarTouch peripheral. When programming, insert

the RJ11 connector end of the touchpanel to control processor cable (CA15710) and

connect to the user interface.

This 6-pin, 6-position RJ11 modular jack is used to communicate with a PC when

programming. Insert the RJ11 connector end of the PC to control processor cable

(64618) and connect to the PC. Refer to the pinout table below.

RJ11 (PC and COM A - B) Pinouts

PIN DESCRIPTION

1CTS

2GND

3RXD

4TXD

5RTS

6 No Connect

NOTE: The maximum baud rate on all RJ11 (PC and COM A - B) connectors is

38400.

Operations Guide - DOC. 5820 SmarTouch™ Control Processor: ST-CP •3

SmarTouch™ Control Processor Crestron ST-CP

COM A - B

These bi-directional 6-pin, 6-position RJ11 modular jacks are used to control

additional audio/visual equipment via their RS-232 ports. Refer to the pinout table on

the previous page.

IR OUT A - D

These 3.5mm mini phone jacks are used to control IR devices. Insert the mono mini

plug of the STIRP and place the STIRP shell over the IR sensor window of the A/V

equipment. Also, the Crestron relay controller (SP-RY) or slide controller (SP-SC)

can be connected to these phone jacks.

This 50 ohm BNC connector attaches to the supplied antenna which is used to

receive RF signals from the user interface. In some installations, the RF reception

range can be increased by mounting the antenna away from the equipment with a

BNC male to BNC female 50 ohm cable (not included).

ST-CP Indicators

There are 10 LED indicators located on the front panel of the ST-CP. Refer to

illustration and descriptions below.

ST-CP Indicators

PWR (Power)

This LED illuminates when power is supplied to the ST-CP.

NET

This LED illuminates either when sending commands to SmarTouch peripheral

equipment or while processing commands from the PC (i.e., when uploading).

This LED illuminates when commands are received from the user interface.

ERROR

This LED illuminates when a programming problem is detected.

COM A - B

These LEDs illuminate when communications is occurring from the corresponding

COM ports.

IR A - D

These LEDs illuminate when commands are transmitted from the associated IR

output ports.

4 •SmarTouch™ Control Processor: ST-CP Operations Guide - DOC. 5820

Crestron ST-CP SmarTouch™ Control Processor

Leading Specifications

The table below provides a summary of leading specifications for the ST-CP.

Dimensions and weight are rounded to the nearest thousandth unit.

Leading Specifications of the ST-CP

SPECIFICATION DETAILS

Power Requirements 12 or 24 VDC

SIMPL™ Windows® Version 1.20.01 or later*

VisionTools™ for Windows® Version 10.7 or later*

VT Pro Version 1.1.7 or later*

ST-CP Operating System Version 4.00.52s or later*

ST-CP Monitor Version 1.36 or later*

Crestron Database Version 11.7.210 or later*

Dimensions & Weight Height: 1.70 in (4.32 cm)

Width: 7.07 in (17.95 cm)

Depth: 6.32 in (16.06 cm)

Weight: 2.00 lb (0.95 kg)

* The latest software versions can be obtained from the Software Downloads page (SIMPLWIN,

TOUCHPNL, OPSYS, and CRESDB Libraries) of Crestron’s website (www.crestron.com). New users

are required to register in order to obtain access to the FTP site.

As of the date of manufacture, the unit has been tested and found to comply with

specifications for CE marking.

Preparation for Use

The ST-CP provides two roles as an integral part of the SmarTouch STS. First, it

stores the project programmed with SmarTouch software via the PC. It also receives

RF signals from the user interface and transmits commands to A/V equipment or

peripheral pieces of SmarTouch equipment, during normal operation. The following

paragraphs detail the connections that must be made to the ST-CP in each role.

Programming

When programming, refer to figure that follows this paragraph for a typical

connection diagram. Complete the following steps in the order provided to ensure

proper connection.

NOTE: The PC to control processor and touchpanel to control processor cables only

need to be attached when programming.

NOTE: The procedure that follows assumes that a touchpanel is being used as the

user interface. No connections to the user interface need to be made, if a wireless

hand-held transmitter is utilized.

Operations Guide - DOC. 5820 SmarTouch™ Control Processor: ST-CP •5

SmarTouch™ Control Processor Crestron ST-CP

Typical Connection Diagram when Programming

15717 (PART OF ST-PK)

15710 (PART OF ST-PK)

CONTROL

SYSTEM

SERIAL

PORT

USE ADAPTER

(PART OF ST-PK)

NOTE:

UNITS IN THIS ILLUSTRATION

ARE NOT DRAWN TO SCALE.

TOUCHPANEL

AC POWER PACK

(CRESTRON MODEL

OR EQUIVALENT)

1. Attach the RJ11 to DB9F adapter (15556, supplied with ST-PK) to one

end of the PC to control processor cable (15717, supplied with ST-PK).

2. Attach the DB9 connector (of the adapter and cable combination) to the

RS-232 port on the PC.

3. Attach the RJ11 connector (of the adapter and cable combination) to

the ST-CP port, labeled PC.

4. Attach the 3.5 mm stereo connector of the touchpanel to control

processor cable (15710, supplied with ST-PK) to the touchpanel.

5. Attach the RJ11 connector of the touchpanel to control processor cable

to the ST-CP port, labeled NET.

6. Attach the 500 mA power pack to ST-CP (1000 mA power pack for

ST-CP/UK) and insert plug into outlet.

7. The touchpanel should either receive power from the supplied power

pack or an internal battery.

In the event that the two cables and adapter required to download a program from the

control processor to the touchpanel are lost or not acquired via the purchase of the

ST-PK, the following two diagrams are provided so that the cables can be made on

site.

PC to Control Processor Cable

6 •SmarTouch™ Control Processor: ST-CP Operations Guide - DOC. 5820

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Crestron

Crestron

Crestron CP4-R Manual de usuario

Crestron

Crestron 3 Series Manual de usuario

Crestron

Crestron C2N-IO Manual de usuario

Crestron

Crestron 4 Series Manual de usuario

Crestron

Crestron CNXIR-8 Manual de usuario

Crestron

Crestron UPX-2 Manual de usuario

Crestron

Crestron CNX-PAD8A Manual de usuario

Crestron

Crestron DIN Rail Control Processor DIN-AP2 Cómo utilizar

Crestron

Crestron DSP-860 Dibujo dimensional

Crestron

Crestron CNXRY-16 Manual de usuario

Crestron

Crestron UPX-2 Manual de usuario

Crestron

Crestron IRP2 Manual de usuario

Crestron

Crestron CNXAO-8 Manual de usuario

Crestron

Crestron DGE-100 Dibujo dimensional

Crestron

Crestron CNXENET+ Cómo utilizar

Crestron

Crestron CNXRY-8 Manual de usuario

Crestron

Crestron CLS-EXP-DIMU Manual de usuario

Crestron

Crestron DIN-AP3 Instrucciones de funcionamiento originales

Crestron

Crestron 3 Series Manual de usuario

Crestron

Crestron CP2 Manual de usuario

Crestron

Crestron Four-Way Coupler SRD-CPL-4 Manual de usuario

Crestron

Crestron C2VEQ-4 Cómo utilizar

Crestron

Crestron PC4-R Manual de usuario

Crestron

Crestron UPX-OS4GB-MSO-2007 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
