Crestron CP4-R Manual de usuario

The Crestron® CP4-R 4-Series control system provides a secure,

high-performance, rack-mountable control processor with an embedded

Crestron Home™ OS operating system. The CP4-R is designed exclusively

to function as the core of a Crestron Home automation system, and

features enhanced processing power to handle larger home automation,

home theater, multiroom video, and MDU (multidwelling unit)

applications.

In the Box

1 CP4-R, 4-Series Control System

AdditionalItems

2 Bracket, Rack Ear (2032122)

4 Foot, Rubber (2002389)

2 Connector, 3-Pin (2003575)

1 Connector, 4-Pin (2003576)

1 Connector, 5-Pin (2003577)

4 Connector, 8-Pin (2003580)

1 Connector, 9-Pin (2003581)

1 Power Cord, 5 ft 10 in (1.78 m) (2042043)

1 Power Pack, 24 VDC, 100–240 VAC(2045873)

4 IREmitter with Terminal Block Connector (4500152)

Install the Device

The CP4-R may be mounted into a rack or placed onto a flat surface.

Rack Mounting

The CP4-Roccupies 1Uof rack space.

1. Use a #1 Phillips screwdriver to remove the six required screws from

the CP4-R assembly (shown in the illustration below).

2. Attach the two included rack ears with the removed screws.

3. Mount the CP4-R into the rack with four mounting screws (not

included).

Surface Placement

1. Attach the four adhesive rubber feet near the corners on the underside

of the CP4-R.

2. Place theCP4-Ronto a flat surface or stack with other equipment.

CP4-R QuickStart

4-Series Control Processor for Crestron Home™ OS

Connect the Device

Make all necessary connections to the CP4-R as shown below.

NOTE:Ensure that the included SD card is seated fully in the MEMORY

slot prior to powering on the CP4-R.

Observe the following when connecting the CP4-R:

lUse Crestron power supplies for Crestron equipment.

lThe CP4-R may be powered with the included 24 VDC power supply or

via Cresnet® network power with the NET port.

lConnect the chassis ground lug to a known earth ground circuit (such

as building steel) to ensure that the CP4-R is grounded properly.

lApply power after all connections have been made.

COM1 Connections

Port RS-232 RS-4221RS-485

GGND GND GND2

TX TX(from CP4-R) TX- (from CP4-R) TX-/RX-

RX RX(to CP4-R) RX+(to CP4-R) Not used

RTS RTS(from CP4-R) TX+(from CP4-R) TX+/RX+

CTS CTS(to CP4-R) RX- (to CP4-R) Not used

1. RS-422 transmit and receive are balanced signals that require two lines plus a ground

in each direction. RXD+ and TXD+ should idle high (going low at start of data

transmission). RXD- and TXD- should idle low (going high at start of data

transmission). If necessary, RXD+/RXD- and TXD+/TXD- may be swapped to maintain

correct signal levels.

2. A ground terminal connection is recommended but not required.

CP4-R QuickStart

4-Series Control Processor for Crestron Home™ OS

Install IREmitters (Optional)

The CP4-R ships with four IR emitters, which adhere to the IR sensor

window of a display, optical disc player, or any other IR-controlled device.

Each IR emitter has a 2-pin terminal block that connects to the

IR-SERIAL port on the CP4-R, providing a one-way IR control interface

to the connected device.

NOTE:The white-traced wire on the IR emitter is positive and connects

to one of the IR - SERIAL port pins labeled “S.”

Position theIREmitter

The IR emitter works best for most devices when positioned directly over

the device IR sensor. However, operation is more consistent for some

devices when the IR emitter is offset one or two inches from the device IR

sensor.

To position the IR emitter, send commands from the CP4-R while moving

the IR emitter around the front panel of the device. When operation is

consistent and reliable, attach the IR emitter using the procedure

described in Attach the IREmitter.

Attach the IRMask

Attach the IR mask (packaged with the IR emitter) when two or more

identical devices are being controlled using IR. The IR mask prevents stray

IR output from controlling another device accidentally.

Place the IRmask over the IR emitter shell as shown in the following

illustration. Do not remove the clear adhesive strips from the IR emitter

shell or the IR mask.

CP4-R QuickStart

4-Series Control Processor for Crestron Home™ OS

Attach the IREmitter

1. Peel off the clear adhesive strip on the back of the IR emitter shell and

the IR mask (if attached).

2. Affix the IR emitter by pressing it firmly to the desired location on the

front panel of the controlled device.

If the IR emitter must be removed and repositioned for any reason, it may

be necessary to replace the adhesive on the IR emitter with a new piece of

two-sided tape.

NOTE: The IR emitter is a pure infrared emitter that does not emit any

visible light. To test that the IR emitter is working properly, trigger an

IR command from the CP4-R. Then, use a digital camera device (such

as a smart phone) to record a video of the IR emitter while it is being

triggered. If the IR signal is visible in the video during playback, the IR

emitter is working properly.

Pair with Apple HomeKit

The CP4-R can be paired with Apple® HomeKit® technology to enable

communication between the Crestron Home system and Apple HomeKit

devices and accessories.

For pairing instructions and to locate the unique QRcode required for

pairing, refer to the CP4-RCompliance document (Doc. 8547)that

shipped with your CP4-R.

Install the Setup App

The Crestron Home Setup app is used to configure the Crestron Home

system. The Crestron Home Setup app is available from the App Store®

online store and may be downloaded onto an Apple® iOS® device such as

an iPad® device. An Apple ID is required to download the Crestron Home

Setup app.

For a comprehensive list of iOS® hardware and software versions that

are compatible with Crestron Home, refer to onlinehelp article 5655.

To install the Crestron Home Setup app:

1. Tap the App Store icon on the iPad device home screen.

2. Tap the search field, and enter the search term "Crestron Home

Setup."

3. Tap Search.

4. Tap the Crestron Home Setup app icon .

5. Follow the prompts to download and install the app to the device.

CP4-R QuickStart

4-Series Control Processor for Crestron Home™ OS

Set Up Crestron Home

Set up the Crestron Home system after all of the Crestron Home devices

and the CP4-R have been installed and connected to the local network.

Once the Crestron Home Setup app is downloaded and installed, system

setup takes place entirely through the app.

NOTE: Ensure that the iPad device, personal computer, and the CP4-R

are placed on the same subnet prior to setup.

To access the setup screens, tap the Crestron Home Setup app icon

on the iPad device home screen. The Crestron Home Setup app connects

to the CP4-Rand a splash screen is displayed.

For detailed instructions on how to set up the Crestron Home system,

refer to the Crestron Home OS3 Product Manual (Doc. 8525) at

www.crestron.com/manuals.

Device Security

The CP4-Ris secured by factory default. The default username is “admin”

and the default password is the serial number of the CP4-R

(case-sensitive). These credentials are required to connect to the CP4-R

using Crestron Toolbox™ software, XPanel, or the Crestron Home app.

The default credentials can be changed using the Crestron Home Setup

app. For more information, refer to the Crestron Home OS3 Product

Manual (Doc. 8525).

Visit the Product Page

Scan the QR code to visit the product page.

CP4-R

https://www.crestron.com/model/6510747

CP4-R QuickStart

4-Series Control Processor for Crestron Home™ OS

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, Cresnet, Crestron Home, and Crestron Toolbox are either

trademarks or registered trademarks of Crestron Electronics, Inc., in the United States

and/or other countries. App Store, Apple, and iPad are either trademarks or

registered trademarks of Apple, Inc. in the United States and/or other countries. IOS

is either a trademark or a registered trademark of Cisco Systems, Inc. in the United

States and/or other countries. Other trademarks, registered trademarks, and trade

names may be used in this document to refer to either the entities claiming the marks

and names or their products. Crestron disclaims any proprietary interest in the marks

and names of others. Crestron is not responsible for errors in typography or

photography.

Doc ID 8415C

(2052936)

03/12/20

CP4-R QuickStart

4-Series Control Processor for Crestron Home™ OS

Otros manuales para CP4-R

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Crestron

Crestron

Crestron CNXVTC-3 Manual de usuario

Crestron

Crestron CNXCPU Cómo utilizar

Crestron

Crestron DVPHD Manual de usuario

Crestron

Crestron C2VEQ-4 Cómo utilizar

Crestron

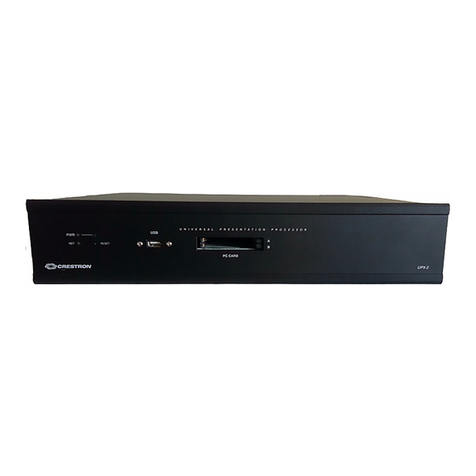

Crestron UPX-2 Manual de usuario
