Crestron C2IR-8 2-Series IR/Serial Output Expansion Card

Contents

2-Series IR/Serial Output Expansion Card: C2IR-8 1

Description.................................................................................................................................1

Functional Description ................................................................................................1

Physical Description....................................................................................................1

Leading Specifications...............................................................................................................2

Setup ..........................................................................................................................................3

Installation...................................................................................................................3

Preparation for Use......................................................................................................3

Programming .............................................................................................................................4

Programming with the Crestron AppBuilder...............................................................4

Programming with SIMPL Windows ..........................................................................4

Problem Solving ........................................................................................................................7

Troubleshooting........................................................................................................... 7

Further Inquiries .......................................................................................................... 7

Future Updates ............................................................................................................ 7

Software License Agreement....................................................Error! Bookmark not defined.

Return and Warranty Policies ....................................................................................................8

Merchandise Returns / Repair Service ........................................................................ 8

CRESTRON Limited Warranty...................................................................................8

Operations & Installation Guide – DOC. 8172 Contents •i

Crestron C2IR-8 2-Series IR/Serial Output Expansion Card

2-Series IR/Serial Output

Expansion Card: C2IR-8

Description

Functional Description

The C2IR-8 Infrared & Serial Output Expansion Card provides eight ports for

infrared (IR), ASCII, or other serial communication and control. IR output is rated

up to 1.2 MHz, at data rates up to 115K. Serial protocols include RS-232. This new

generation card provides consistent IR data and generates output from all eight ports

simultaneously. The Crestron IRP2 Cresnet Infrared Emitter probe is designed to

interface with the C2IR-8 expansion card output connectors.

NOTE: RS-232 levels provide a 0 – 5V range, which may not be compatible with

all devices.

Physical Description

The C2IR-8 is a circuit board fastened to an aluminum faceplate. The card is

manufactured to easily fit into an unoccupied slot in a Crestron 2-Series Control

System.

NOTE: This card is compatible with 2-Series Control Systems only.

The faceplate, shown below, contains two male, 8-pin connectors; each with 4 pairs

of output pins labeled S and G (signal and ground). The pin pairs are labeled A

through D and E through H. Two supplied 8-position connectors can be wired and

attached to the faceplate connectors.

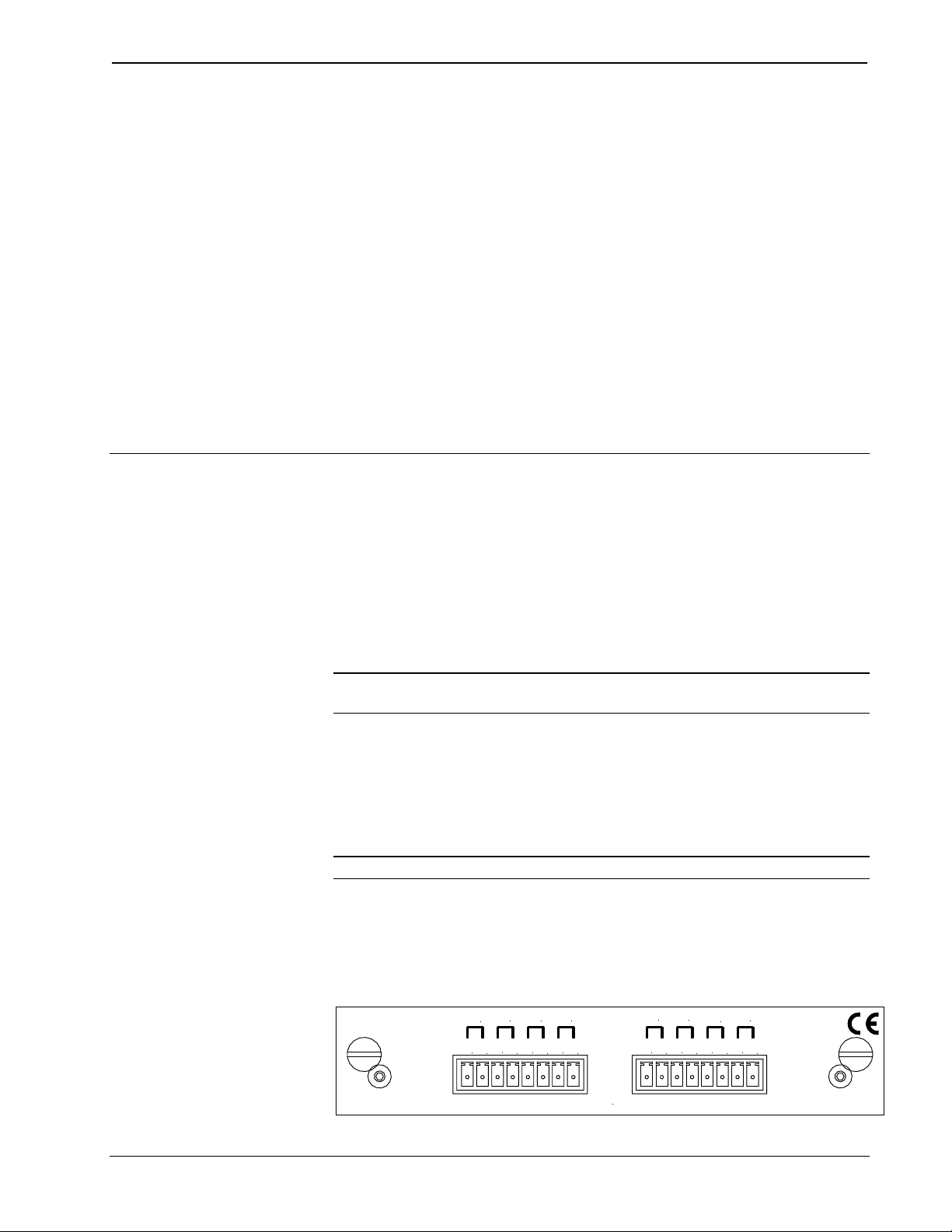

C2IR-8 Faceplate

C2IR-8 INFRARED - SERIAL OUTPUT

Operations & Installation Guide – DOC. 8172 2-Series IR/Serial Output Expansion Card: C2IR-8 •1

2-Series IR/Serial Output Expansion Card Crestron C2IR-8

Leading Specifications

The table below provides a summary of leading specifications for the C2IR-8.

Leading Specifications of the C2IR-8

SPECIFICATION DETAILS

Power Requirements 24 VDC, 0.125 A, 3 Watts

IR Output Up to 1.2 MHz

RS-232 Data Rate Up to 115K baud

Output Signal Levels 0 to 5VDC

(compatible with most RS-232 input devices)

Crestron Application Builder™ Version 1.1 or late

SIMPL™ Windows®Version 2.00 or late

2-Series Control System Update

File3Version 1.000.CUZ or later4

Dimensions Height: 0.980 in (2.490 cm)

Width: 5.000 in (12.700 cm)

Depth: 6.77 in (17.19 cm)

1 The card is supported in the Crestron Application Builder Software, both in the Residential and

Commercial versions. Contact Crestron Customer Service for licensing details.

2 The latest software versions can be obtained from the What's New page (SIMPL Windows section)

or Downloads page (SIMPLWIN Library) of the Crestron website (www.crestron.com). New users

are required to register in order to obtain access to the FTP site.

3 Crestron 2-Series control systems include the AV2, AV2 with Card Cage, CP2, CP2E, PAC2,

PAC2M, PRO2, and RACK2.

4 Filenames for 2-Series control system update files have a CUZ extension and can be obtained from

the What's New page (Control Systems Update Files section) or Downloads page (OPSYS Library)

of the Crestron website.

As of the date of manufacture, the unit has been tested and found to comply with

specifications for CE marking.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) these devices may not cause harmful interference,

and (2) these devices must accept any interference received, including interference

that may cause undesired operation.

2 •2-Series IR/Serial Output Expansion Card: C2IR-8 Operations & Installation Guide – DOC. 8172

Crestron C2IR-8 2-Series IR/Serial Output Expansion Card

Setup

Installation

Items required to install the C2IR-8 are already attached to the unit. The only tools

required are a Phillips screwdriver and a grounding strap. Follow the assembly

procedure below.

CAUTION: The C2IR-8 contains electrostatic sensitive devices (ESD); observe

precautions for handling ESDs to avoid damaging the card.

NOTE: If installing the C2IR-8 into an AV2, it is assumed that CAGE2 has been

installed.

1. Disconnect power from the control system.

2. Use the Phillips screwdriver to remove two screws and blank faceplate

from the desired slot in the control system.

3. Align the C2IR-8 with the card guides in the open slot and slide the

expansion card into position.

4. Firmly press both ends of the C2IR-8 faceplate to seat the expansion

card into the control system connector.

5. Tighten the thumbscrews to secure the C2IR-8 to the control system.

6. Reapply power to the control system.

Preparation for Use

Connections are made to the eight serial outputs for IR, one-way RS-232, Control-S,

or other serial interface. Each output is labeled S (signal) and G (ground). Refer to

the sample hookup diagram below and, aside from reapplying power to the control

system last, complete the connections in any order.

Sample Hookup Connections for C2IR-8

- SERIAL OUTPUT

Earlier versions of the Cresnet

Infrared Emitter probe require

hysical modification to be

compatible with the C2IR-8.

Crestron does not recommend

modifying the probe assembly.

C2IR-8 INFRARED

IRP2

(WHITE-TRACED WIRE

CONNECTS TO S PIN)

TO RX & GND

ON SERIAL DEVICE

Operations & Installation Guide – DOC. 8172 2-Series IR/Serial Output Expansion Card: C2IR-8 •3

2-Series IR/Serial Output Expansion Card Crestron C2IR-8

Programming

The C2IR-8 can be programmed using Crestron programming tools Crestron

Application Builder™ (App Builder) and SIMPL™ Windows®. These tools are

intended for users with different levels of programming knowledge. The flexibility

of each tool is proportional to the degree of programming expertise (i.e., the more

flexible, the more a programmer needs to know and account for). Of course, one can

initiate programming using the easiest method (Crestron AppBuilder) and use

advanced techniques that are available from SIMPL Windows to customize the job.

Programming with the Crestron AppBuilder

Easiest method of programming,

but does not offer as much flexibility

as SIMPL Windows.

The Crestron AppBuilder offers automatic programming for such residential and

commercial applications as audio distribution, home theater, video conferencing, and

lighting. The interface of this tool guides you through a few basic steps for

designating rooms and specifying the control system, touchpanels, devices, and

functionality. The Crestron AppBuilder then programs the system, including all

touchpanel projects and control system logic.

The Crestron AppBuilder is fully integrated with Crestron's suite of software

development tools, including SIMPL Windows, VT Pro-e, Crestron Database, User

IR Database, and User Modules Directory. The Crestron AppBuilder accesses these

tools behind the scenes, enabling you to easily create robust systems.

Programming with SIMPL Windows

SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use

programming language that is completely integrated and compatible with all

Crestron system hardware. The objects that are used in SIMPL are called symbols.

SIMPL Windows offers drag and drop functionality in a familiar Windows

environment.

SIMPL Windows is Crestron's software for programming Crestron control systems.

It provides a well-designed graphical environment with a number of workspaces

(i.e., windows) in which a programmer can select, configure, program, test, and

monitor a Crestron control system.

The next three sections describe a C2IR-8 within SIMPL Windows. The first section

provides initial configuration information, the second section identifies the C2IR-8

symbol and defines its inputs and outputs and the final section provides the location

of an example program.

NOTE: The following descriptions assume that the reader has knowledge of SIMPL

Windows. If not, refer to the extensive help information provided with the software.

Configure C2IR-8 Program

To create a program with a C2IR-8, refer to the table after this paragraph for initial

configuration information.

4 •2-Series IR/Serial Output Expansion Card: C2IR-8 Operations & Installation Guide – DOC. 8172

Crestron C2IR-8 2-Series IR/Serial Output Expansion Card

Configure C2IR-8 Program

DEVICE SYMBOL DROP ADDITIONAL

LIBRARY REQUIRED WHERE SETUP

Control

Systems

Desired control

system

System

Views

Refer to the documentation supplied with

the specific control system for additional

setup information.

Plug-in

Control Card

C2IR-8 System

Views,

Cresnet

Units

CHANGE CARD SLOT (OPTIONAL) -

Double-click on C2IR-8 to open the "Device

Settings" window. Select the CARD SLOT

tab and scroll to the desired slot location.

(

Alternativel

, sin

le-click then ri

ht click

on C2IR-8 and select Configure to open

"Device Settings" window, or simply drag to

the desired location.

)

User Devices

(Crestron or

User

Database)

Desired serial

devices

(drivers are

arranged by

manufacturer

or device)

System

Tree (Ports

A - H of

C2IR-8)

Drivers for IR controlled user devices are

dropped into port A through port H. The

port assignment can be changed by

dragging to a different location.

(Alternatively, in the System Tree, single-

click then right-click on the driver and

select Configure to open the "Device

Settings" window.)

Serial Drivers

(General)

C2IR One-Way

Serial Driver

System

Tree (Ports

A - H of

C2IR-8)

COMMUNICATION PARAMETERS - In the

System Tree, scroll to the desired port in

the C2IR-8 and expand to display the

identification of the installed driver (for

example, Port E.1: C2IR One-way serial

driver). Single-click on the driver, then

right-click and select Configure. Select the

Serial Settings tab to display the window

used to set communication parameters.

SIMPL is Crestron’s object-oriented programming language designated for easy

implementation of the control system requirements. The objects that are used in

SIMPL are called symbols.

C2IR-8 Symbol

Due to the functionality of the C2IR-8, the symbol is defined by one or more IR or

serial drivers assigned to the card’s ports. The diagrams in this section show the

symbols associated with the ports of the C2IR-8 in SIMPL Windows.

IR Driver

The symbols associated with an IR driver vary depending on the IR devices in the

system. As a sample, the illustration after this paragraph is for a system that contains

a Sony DVD player (model DVD-S7000). Typical of all IR devices, it has a number

of inputs to control its many functions. These inputs are driven by a user interface

(i.e., touchpanel or compatible third-party transmitter).

Operations & Installation Guide – DOC. 8172 2-Series IR/Serial Output Expansion Card: C2IR-8 •5

2-Series IR/Serial Output Expansion Card Crestron C2IR-8

Detail View of an IR Device Symbol in SIMPL Windows' Programming Manager

Serial Port

The symbol shown after this paragraph is only used when the card is used to

communicate with a serial device. The port supports baud rates up to 115K. The

tables that follow the symbol diagram list the inputs/outputs and their functional

description. Input and outputs surrounded by brackets ([…]) are optional.

Detail View of the Built-in RS-232 Symbol in SIMPL Windows' Programming Manager

Built-in Serial Port Input Descriptions

INPUTS FUNCTION

(

)

[enable] If a signal is present on this input, it must be high to permit activity of the

symbol. If the signal is low, the symbol is disabled.

[tx$] Variable serial string input. Any data that appears on this input will be

transmitted.

str1 Fixed serial data input. When the corresponding digital input goes high, the

data is transmitted.

NOTE: When present, the delimiter is appended to every string of text in the port

definition.

Example Program

An example program can be obtained from the Downloads page (EXAMPLES

Library) of the Crestron website (www.crestron.com). Search for C2IR-8.SMW.

6 •2-Series IR/Serial Output Expansion Card: C2IR-8 Operations & Installation Guide – DOC. 8172

Tabla de contenidos

Otros manuales de Hardware de computadora de Crestron

Crestron

Crestron UPX-2 Manual de usuario

Crestron

Crestron DIN-AP3 Instrucciones de funcionamiento originales

Crestron

Crestron C2N-IO Manual de usuario

Crestron

Crestron DIN Rail Control Processor DIN-AP2 Cómo utilizar

Crestron

Crestron CNXENET+ Cómo utilizar

Crestron

Crestron DSP-860 Dibujo dimensional

Crestron

Crestron ST-CP Manual de usuario

Crestron

Crestron CNX-PAD8 Manual de usuario

Crestron

Crestron CNX-BIPAD8 Manual de usuario

Crestron

Crestron DVPHD Manual de usuario

Crestron

Crestron CNXIO-16 Manual de usuario

Crestron

Crestron CNX-PAD8A Manual de usuario

Crestron

Crestron CNXCPU Cómo utilizar

Crestron

Crestron C2VEQ-4 Cómo utilizar

Crestron

Crestron 3 Series Manual de usuario

Crestron

Crestron Four-Way Coupler SRD-CPL-4 Manual de usuario

Crestron

Crestron CNXMIDI Manual de usuario

Crestron

Crestron C2COM-2 Cómo utilizar

Crestron

Crestron C2VEQ-4 Manual de usuario

Crestron

Crestron 3 Series Manual de usuario

Crestron

Crestron UPX-OS4GB-MSO-2007 Manual de usuario

Crestron

Crestron CP2 Manual de usuario

Crestron

Crestron UPX-2 Manual de usuario

Crestron

Crestron DigitalMedia DMC-VID4 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
