Crestron CNXIO-16 Manual de usuario

CRESTRON

Operations Guide - DOC. 8125 Contents •• i

Contents

CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 0

Description 0

Functional Description 0

Physical Description 0

Leading Specifications 0

Installation 0

Programming with SIMPL™Windows®0

How the Program Works 0

How to Create the Program 0

Problem Solving 0

Troubleshooting 0

Further Inquiries 0

Return and Warranty Policies 0

Merchandise Returns / Repair Service 0

CRESTRON Limited Warranty 0

CRESTRON

Operations Guide - DOC. 8125 CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 •• 1

CNX Analog/Digital Input/Output

Expansion Card: CNXIO-16

Description

Functional Description

The CNXIO-16 Analog/Digital Input/Output Expansion Card provides 16 analog

inputs or digital input/output connections. All pins pull up to +5V. The digital

output is rated for 250 mA sync from maximum 24 VDC with catch diodes for use

with ‘real world’ loads. The digital input is rated for 0 to 24 VDC. There is a 20K

Ohm input impedance; programmable 2K Ohm pullup resistor (per pin, software

reference to ground or closure to ground). To enable a 0K pull-up resistor, assign a

logic “1” to the corresponding “pu#” pin in the software. The input logic threshold

is 1.25 VDC. Analog input is rated for 0 to 10 VDC, protected to 24 VDC,

maximum.

Physical Description

The CNXIO-16, shown below, is a circuit board fastened to an aluminum faceplate.

The card is manufactured to easily fit into an unoccupied slot in a Crestron CNX

Generation Control System.

CNXIO-16 Faceplate

5.000 in

(127.00 mm)

0.980 in

(24.89 mm)

The faceplate contains two identical male, 9-pin connectors. There are eight

analog/digital input/output pins and one common ground pin per connector. Silk

screening is applied to the faceplate; pins are labeled A1 through A8 and B1

through B8. Common ground pins are labeled with a C. Two supplied 9-position

connectors can be wired and attached to connectors A and/or B.

CRESTRON

2•• CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 Operations Guide - DOC. 8125

Leading Specifications

The table below provides a summary of leading specifications for the CNXIO-16.

Dimensions and weight are approximations rounded to the nearest hundredth unit.

Leading Specifications of the CNXIO-16

DETAILS

Connectors (2) 9-pin terminal block

Power Requirements 24VDC, network power; 2 Watts

Ratings:

Digital Output 250mA sync from maximum 24VDC

Digital Input 0-24VDC

Input Impedance 20K Ohm

Input Logic Threshold 1.25VDC

Analog Input 0-10VDC, protected to 24VDC maximum

SIMPL™ Windows® Version 1.20.04 or later

CNX Operating System Version 5.01.21X or later

CNX Monitor Version 2.05X or later

Dimensions:

Height 0.98 in (2.49 cm)

Width 5.00 in (12.70 cm)

SPECIFICATIONS

As of the date of manufacture, the unit has been tested and found to comply with

specifications for CE marking.

Installation

Items required to install the CNXIO-16 are already attached to the unit. The only

tools required are a Phillips tip screwdriver and a grounding strap. Follow the

assembly procedure below.

CAUTION: The CNXIO-16 contains electrostatic sensitive devices (ESD); observe

precautions for handling ESDs to avoid damaging the card.

NOTE: If installing the CNXIO-16 into a CNMSX-AV, it is assumed that the

CNXCAGE has been installed.

1. Disconnect power from the CNMSX.

2. Use the Phillips tip screwdriver and remove two screws and blank

faceplate from the control system.

3. Align the CNXIO-16 with the card guides in the open slot and slide

the expansion card into position.

4. Firmly press both ends of the CNXIO-16 faceplate to seat the

expansion card into the control system connector.

5. Tighten the thumb screws to secure the CNXIO-16 to the control

system.

6. Reapply power to the CNMSX.

CRESTRON

Operations Guide - DOC. 8125 CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 •• 3

Programming with SIMPL™Windows®

SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use

programming language that is completely integrated and compatible with all

Crestron system hardware. The objects that are used in SIMPL are called symbols.

SIMPL Windows offers drag and drop functionality in a familiar Windows®

environment.

SIMPL Windows is Crestron Electronics' software for programming Crestron

control systems. It provides a well-designed graphical environment with a number

of workspaces (i.e., windows) in which a programmer can select, configure,

program, test, and monitor a Crestron control system.

The next two subsections describe a sample SIMPL Windows program that utilizes

the CNXIO-16. The first subsection details how the sample program works with a

textual description and block diagram. The second subsection provides a broad

description of how to actually create the SIMPL Windows program.

NOTE: The following description assumes that the reader is familiar with SIMPL

Windows. If not, please refer to the extensive help information provided with the

software.

NOTE: There is no need to recreate the sample SIMPL Windows program. A copy

of this program is available from Crestron’s ControlCD (Version 5.1 or later).

Search for the CNXIO-16.SMW project in the SIMPL Windows Example Base.

How the Program Works

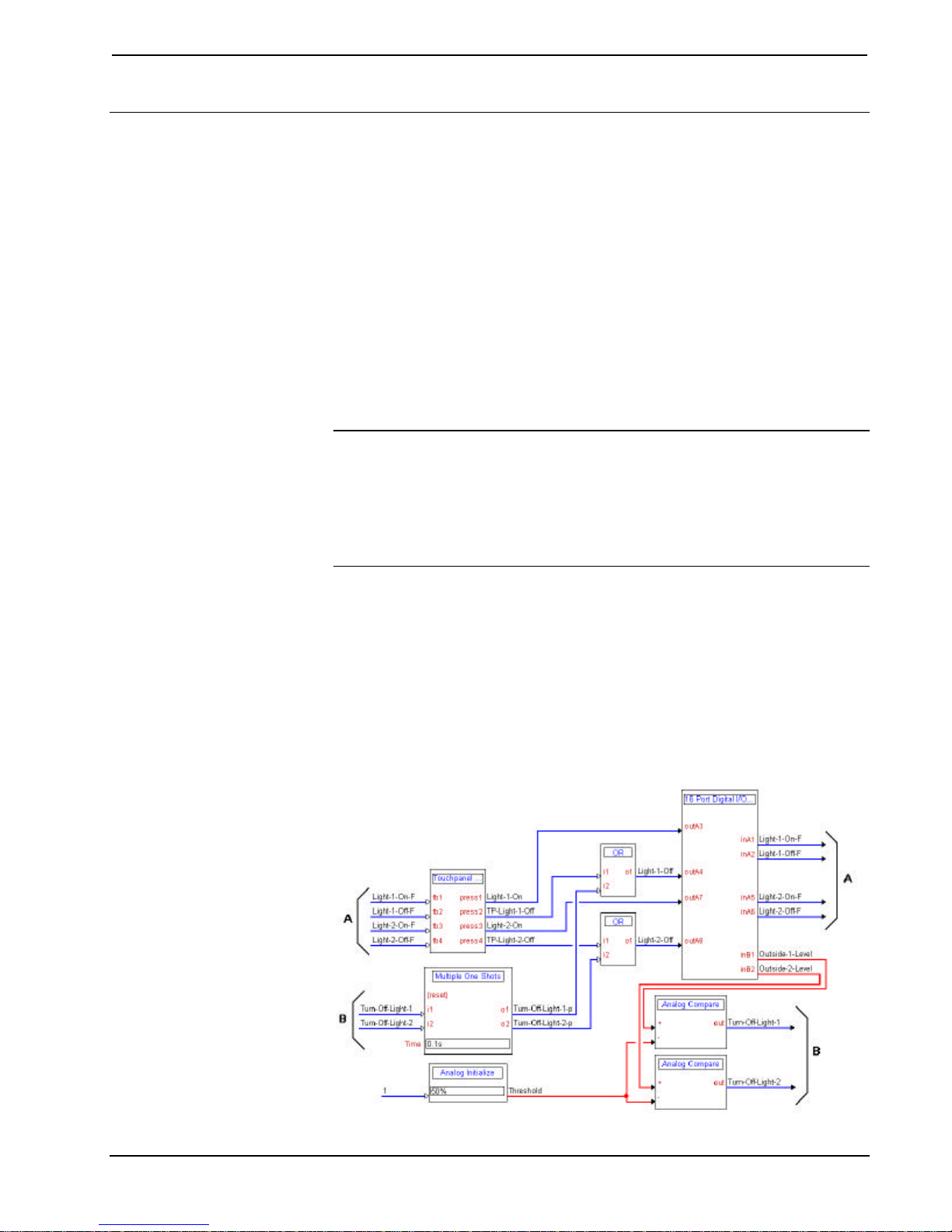

A basic CNXMIDI SIMPL program is shown in block diagram form below. For this

example, the CNXIO-16 occupies slot#1 of a CNMSX-PRO. Assume that the

touchpanel is used to control the state of lights1 and lights2 in a typical application.

Input/outputs on the CNXIO-16 (inA1,outA1 through inA8,outA8) in SIMPL

Windows correspond to the CNXIO-16 physical pins A1 through A8. Similarly,

inB1,outB1 through inB8,outB8 corresponds to pins B1 through B8.

Block Diagram of CNXIO-16

CRESTRON

4•• CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 Operations Guide - DOC. 8125

How to Create the Program

Configuration Manager

Use the Configuration Manager workspace in SIMPL Windows to select and

configure all the devices that need to be included into the system. For this example,

add a CNXIO-16 to slot #1 of the control system, shown below.

NOTE: SIMPL Windows v1.20.04 or later is required to program the CNMSX-

PRO with a CNXIO-16 card. If using an earlier version of SIMPL Windows,

Crestron recommends a SIMPL Windows and operating system upgrade. The latest

version can be obtained from the Software Downloads page of Crestron’s website

(www.crestron.com). New users are required to register in order to obtain access to

the FTP site.

Graphical System View of CNXIO-16 in SIMPL Windows’ Configuration Manager

Programming Manager

Use the Programming Manager workspace in SIMPL Windows to select symbols

and assign their respective signals. For this example, a touchpanel and CNXIO-16

symbols were added automatically when the devices were added to the system in the

Configuration Manager workspace. Expand the Network Module folder and double

click on the touchpanel for a detail view (alternatively CTRL+D or drag and drop

into Detail View). Assign the signals as shown on the next page.

CRESTRON

Operations Guide - DOC. 8125 CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 •• 5

Graphical Detail View of Touchpanel in SIMPL Windows’ Programming Manager

Expand the Central Control Modules folder. Double click on Port 1 to display the

CNXIO-16 in Detail View (alternatively CTRL+D or drag and drop into Detail

View). Assign the signals as shown below.

Graphical Detail View of CNXIO-16 in SIMPL Windows’ Programming Manager

NOTE: Each port on the CNXIO-16 can be assigned as either an input or output,

but not both. For example, although the software permits the user to assign two

independent signals to i1 and o1, it is improper.

Expand the Logic folder to display the logic symbols used in this program. They

include Analog Compare, Analog Initialize, Multiple One Shots, and OR symbols.

View the symbol in detail view (alternatively CTRL+D or drag and drop into Detail

View). Some logic symbols are shown in optional sub system folders. Assign the

signals as shown below.

Graphical Detail View of Analog Compare Symbols in SIMPL Windows’ Programming

Manager

CRESTRON

6•• CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 Operations Guide - DOC. 8125

Graphical Detail View of Analog Compare Symbols in SIMPL Windows’ Programming

Manager (Continued)

Graphical Detail View of Analog Initialize in SIMPL Windows’ Programming Manager

Graphical Detail View of Multiple One Shots symbol in SIMPL Windows’ Programming

Manager

Graphical Detail View of Multiple OR symbols in SIMPL Windows’ Programming Manager
