Product Description

When the Creality Sonic Pad is connected to the FDM printer via a USB cable, it becomes

the core system of the printer.

Hardware Specifications

CPU

T800

RAM

2GB

ROM

8GB

USB 2.0 interface

Screen resolution & size

1024x600 & 7 Inch

Wi-Fi protocol

IEEE 802.11b/g/n

LAN interface

100M

Gsensor interface

PS/2

Power interface

DC 2.5

Input voltage

12V

Packing list

•Creality Sonic Pad x1

•12V power adapter (including adapter) x1

•G-sensor data cable x1

•G-sensor x1

•USB cable x1

•USB drive x1

•Micro USB to Mini USB connector x1

•Micro USB to Type-C connector x1

•Instructions x1

•Screw Pack x1

M3*8 self-tapping screw X2

M3*8 machine screw X2

M3*6 machine screw X2

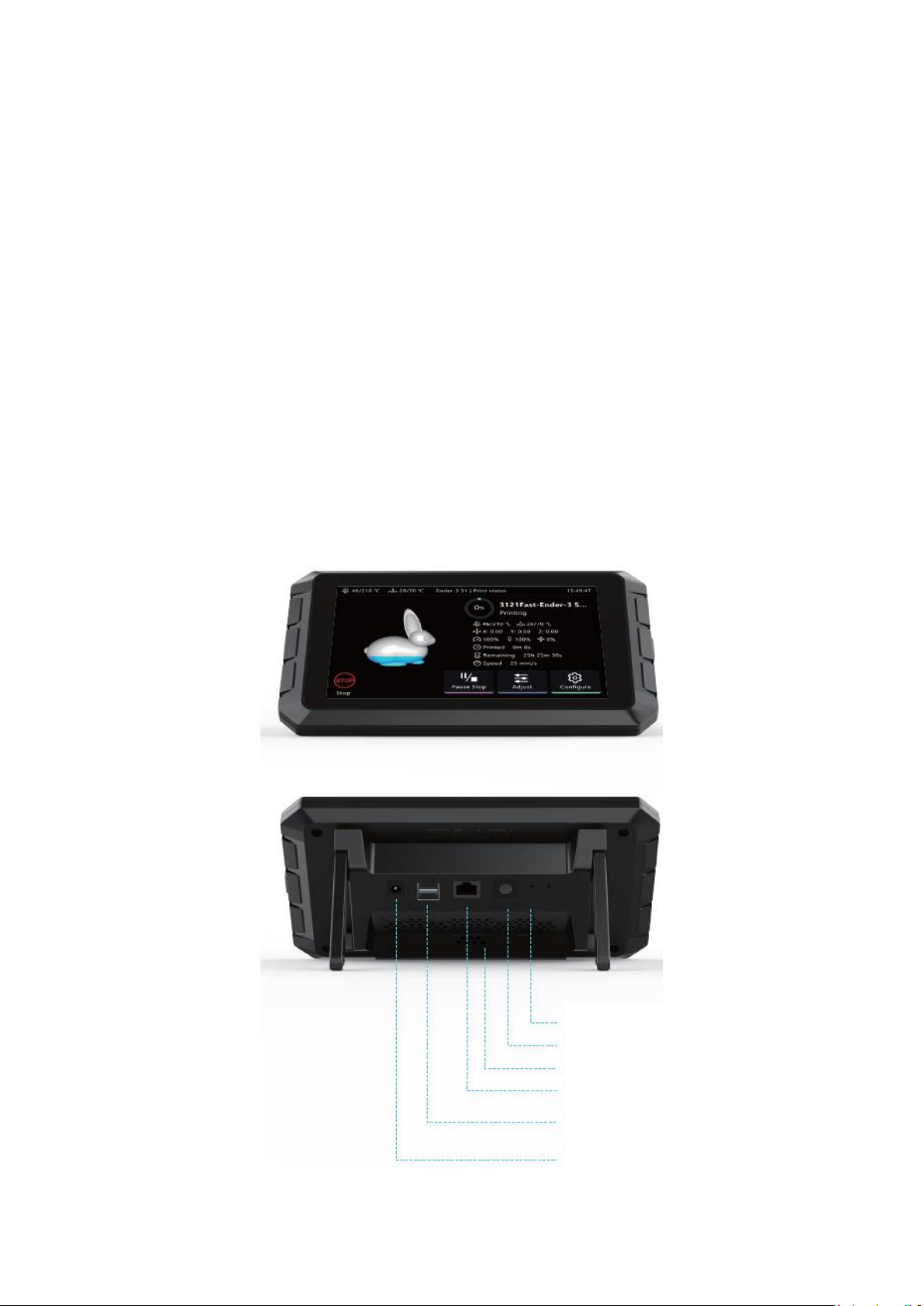

Interface and button description

Reset

G-sensor interface

Speaker

Lan interface

USB 3

USB 4

12V power interface

Operation Precautions

•Please use the product strictly in accordance with this manual to avoid personal

injury and property damage.

•Do not place the machine near any heat source or flammable or explosive

objects. We suggest placing it in a well-ventilated, low-dust environment.

•Please use the power adapter that comes with the machine to prevent damage to

the machine.

•Do not place this product in a vibration or unstable environment.

•Please power off to clean the product regularly.

•Users should comply with the laws and regulations of the corresponding

countries and regions where the equipment is located (used), abide by

professional ethics, pay attention to safety obligations, and strictly prohibit the

use of our products or equipment for any illegal purposes. Creality will not be

responsible for any violations legal liability under any circumstance.

System status light

Power indicator

Power button

M3 mounting holes

USB 1

M3 mounting

holes

USB 2

First use

1. Device connection

2. Connect the Creality Sonic Pad to the AC110V/220V power supply using the

power adapter.

3. Connect the Creality Sonic Pad and 3D printer with a USB cable to your printer

(Use the correct adapter if necessary).

4. Boot Settings

After the connection is completed, press the power button of the Creality Sonic

Pad to enter the boot-up operation (follow the order of the guide instructions to

configure the product).

1. Startup screen

2. Select language

3. Select region

4. Network settings (optional)¨

5. Add a network (optional)

6. The network connection

completed (optional)

7. Privacy setting, click next after

reading and agree by selecting the

checkbox

8. Device Rename

9. Printer firmware flashing (upgrade via SD/TF card)

10. Select printer model (users need to open up the printer to check the

motherboard chip model.)

11. Taking the model Ender-3 S1 as an example, after selecting the model, you will

enter the flashing guide page. Please prepare a card reader and memory card for

the printer flashing.

12. Write the firmware to the SD/TF card, then insert the SD/TF card into the printer,

click Next step.

13. After the printer is powered on, the Creality Sonic Pad will automatically connect

to the printer. (the firmware in SD/TF will be automatically flashed after the

printer is powered on)
