Corsair 230T Manual de usuario

230T

GRAPHITE SERIES

230T MID-TOWER PC CASE

INSTALLATION GUIDE

CONGRATULATIONS!

Thank you for purchasing

a Graphite Series®230T

mid-tower PC case.

At Corsair, we believe that no matter

your budget, building your own PC

should be easy, and have great looking

results. You've made a good choice

with the Graphite Series 230T. Whether

you’re planning a gaming PC or just a

replacement for a boring oce-grade

box, you'll enjoy the unique pride of

ownership that comes with a system

that you’ve built yourself. And if you

run into any trouble along the way, our

technical support team is within

easy reach.

GraphiteSeries 230T

mid-towerPCcase

with 120mm rear

exhaustfanand

120mm front intake

fan

InstallationGuide

AccessoryKit

MaximumGPUlength

Topslots mm

Lowerslots mm

MaximumCPU

coolerheight

mm

mm mm

mm

GRAPHITE SERIES®

230T

CONTENTS

Rubber fan mounts Fan screws (short) Fan screws (long)

x x x

MBD/HDD screws ODD/SSD screws Cable ties

x x x

GRAPHITE SERIES® 230T MID-TOWER PC CASE GRAPHITE SERIES® 230T MID-TOWER PC CASE

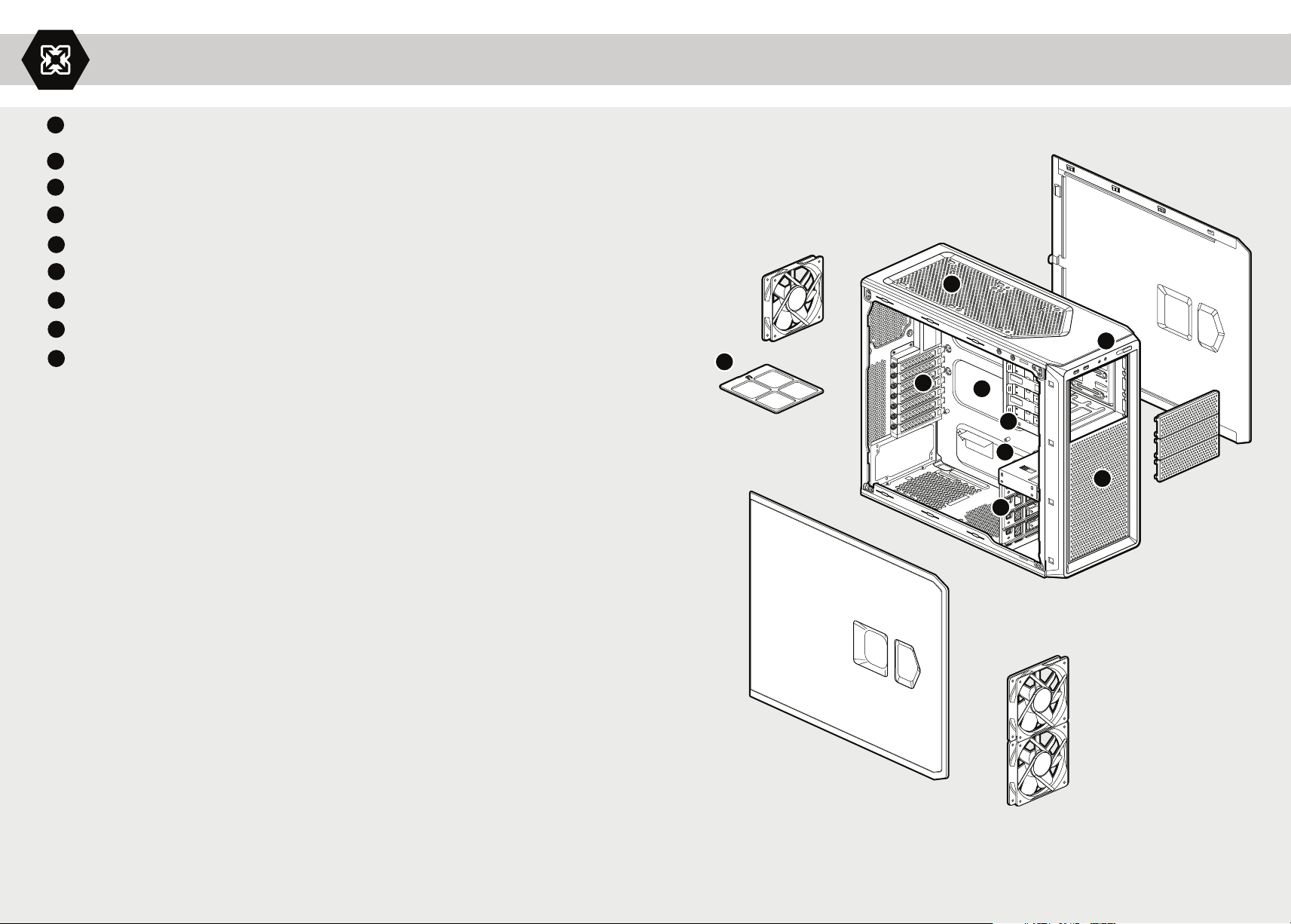

Dual 120mm/140mm fan mounts

compatible with 240mm/280mm radiators

Built-in cable routing cutouts

(x2) USB 3.0, Headphone/Mic, Power/Reset

Dual 120mm fan mounts

CPU backplate cutout

Removable dust filters

(x3) Tool-free optical drive bays

Tool-free 3.5" hard drive cage with 2.5" compatibility

Seven expansion slots for GPUs









> Install your motherboard's I/O shield

(see your motherboard’s manual for guidance).

> Align the motherboard with the standos in the case.

> Secure with the included screws (MBD/HDD screws).

Installing the motherboardRemoving the side panels

> Remove the thumbscrews and slide the side panel forward toward

the front of the case to remove.

Note: Corsair recommends that both side panels are completely removed

and set aside when building your system to avoid accidental damages.









> Remove thumbscrews and corresponding slot cover(s).

> Install the add-on card and secure with thumbscrews.

Installing the PCI-E/PCI cardsInstalling the power supply (PSU)

> Unscrew and remove the PSU mounting bracket.

> Place the PSU on the bottom of the case with the fan side facing outwards.

> Align holes and secure with screws.







Installing a 5.25" drive/devices (ODD)

> Remove the front panel 5.25" drive bay cover.

> Insert the ODD into the drive bay until the tool-free

latch clicks, securing the drive.

> To remove the drive, push the tool-free tab to release.



> Place the drive into the tool-free cage until you feel it secure.

> To remove the drive, pull the tabs to release.

Installing a 3.5" HDD/ 2.5" SSD

USB 3.0

HD AUDIO RESET SW POWER LED +

POWER LED –POWER SW HDD LED





> See your motherboard manual for front panel header locations and pin-outs.

Installing the front I/O connectorsAttach case fan cables to motherboard headers

> See your motherboard manual for fan header locations.
