CommScope OSP-CLPFEC-LG Manual de usuario

1443888 Rev B Page 1

Installation

Instructions

THREE-TIER CABLE CLAMP KIT

(OSP-CLPFEC-LG)

Content Page

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 One Cable Per Entry Port With Possible Future Cable Addition (Figure 2A) . . . . . 4

2.2 Two Cables Per Entry Port (Figure 2B). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Three Cables Per Entry Port (Figure 2C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3 CUSTOMER INFORMATION AND ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INTRODUCTION

These instructions provide procedures for installing cable clamps in a stacked

(Three Tier) arrangement. Up to three cable clamps can be assembled together for

securing up to three cables in a Fiber Entrance Cabinet (FEC).

Revision History

ISSUE DATE REASON FOR CHANGE

1 05/1997 Original.

1 05/1999 Updated to current format (1999).

1 06/2008 Updated to current format (2007).

Rev B April 2018 Updated to CommScope format and contact info updated.

Related Publications

Listed below are related manuals and their publication numbers. Publications can be

downloaded from the CommScope web site at 

http://www.commscope.com/SupportCenter

Title/Description ADCP Number

Fiber Entrance Cabinet (FEC) User Manual 93-031

Trademark Information

CommScope (logo) and Commscope are trademarks.

ADCP-93-080 Rev B April 2018

ADCP-93-080 • Rev B • April 2018

Page 2

1GENERAL

The Three Tier Clamp kit (OSP-CLPFEC-LG) is designed for use in the Fiber Entrance

Cabinet (FEC). The FEC uses a water resistant grommet with three cutouts to

accommodate multiple and various sized cables in each entry port. The OSP-

CLPFEC-LG kit covers cable with outside diameters from 0.80 inch to 1.2 inches (20

mm to 30 mm). Table 1 lists the kit components.

Table 1. OSP-CLPFEC Kit Components

ITEM QUANTITY

Split Grommets (0.80, 0.90, 1.00 and 1.10 inch) 3 each size

Clamp Yokes 6

Male/Female bolt 6

Spacer bracket 2

The OSP-CLPFEC LG kit uses special male/female bolts and spacer plates to provide

for three tier stacking. Male/female bolts thread into each other to accomplish the

stacking. The spacer plates have two cutout slots the size of the bolt head. The

slots keep the bolts from turning as the next bolt is threaded into it.

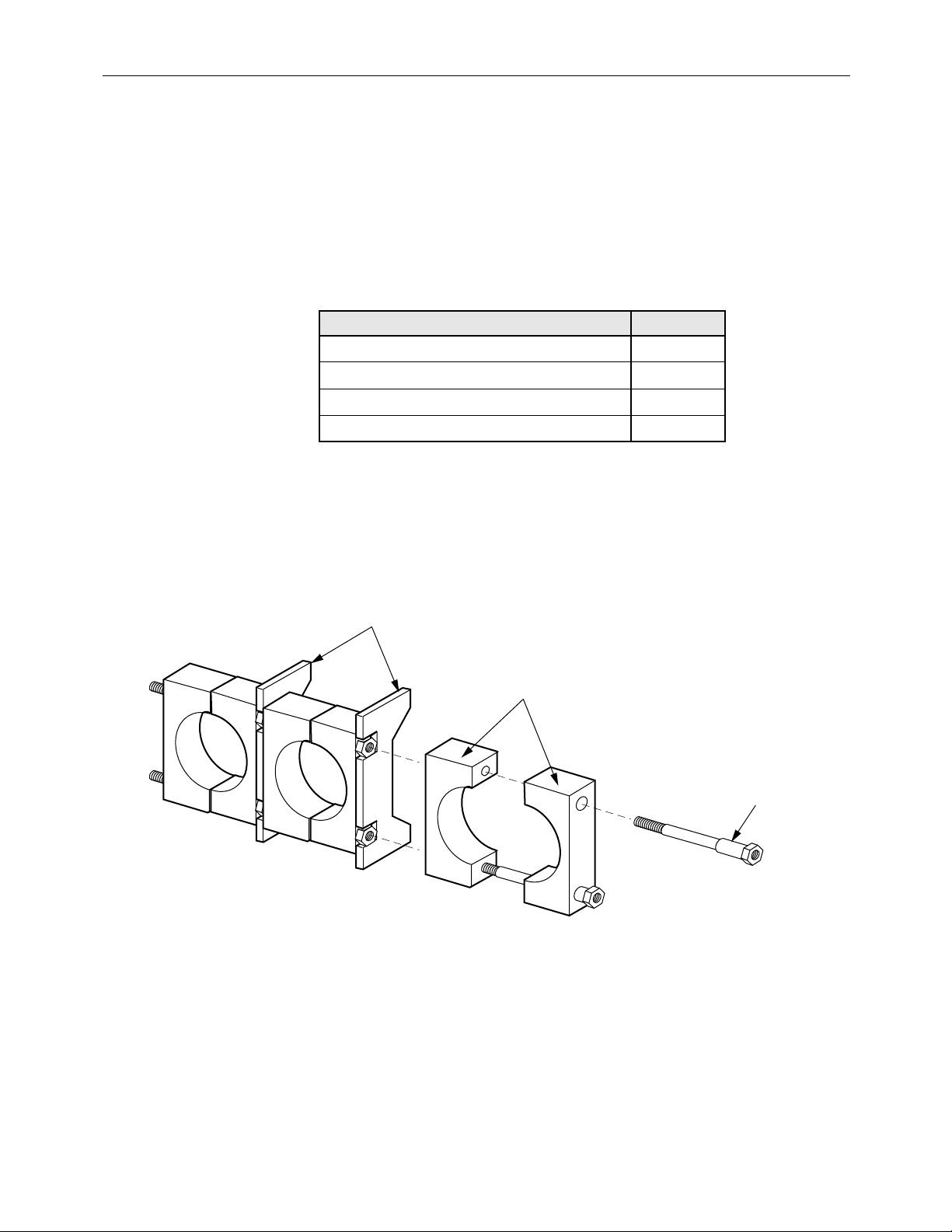

Figure 1 shows the kit components in an exploded view.

SPACER

BRACKETS

CLAMP

YOKES

MALE/FEMALE

BOLTS

9662-A

Figure 1. Three-Tier Cable Clamp Exploded View

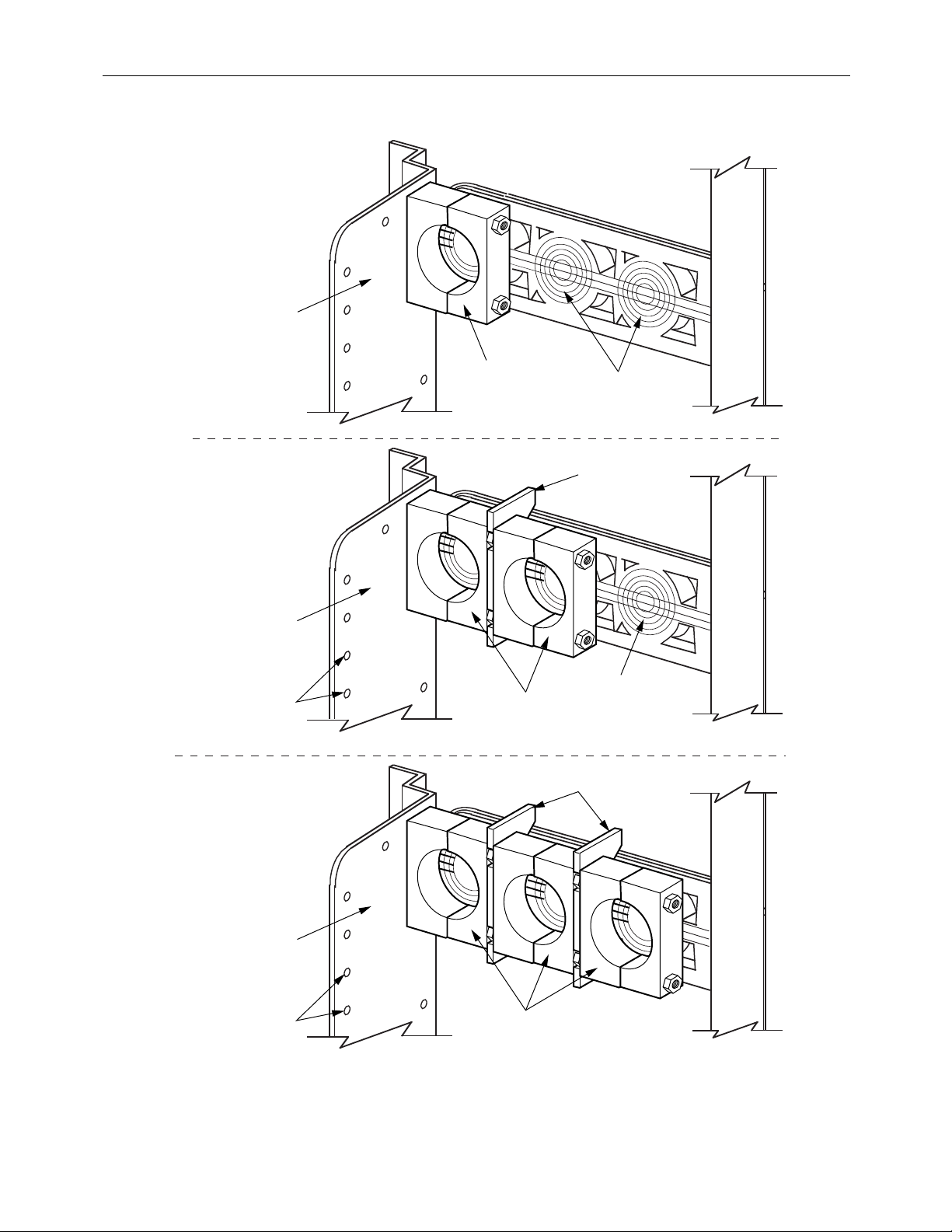

Figure 2 shows the kit components in the configurations used for one, two, and

three cables per entry port.

A. ONE CABLE PER ENTRY PORT

9665-A

C. THREE CABLES PER ENTRY PORT

B. TWO CABLES PER ENTRY PORT

CABLE TERMINATING

AND GROUNDING PLATE

CABLE TERMINATING

AND GROUNDING PLATE

SPACER

BRACKETS

SPACER

BRACKET

CABLE

CLAMPS

CABLE

CLAMPS

CABLE

CLAMP

GROMMET

CUTOUT

(NOT USED)

GROMMET

CUTOUTS

(NOT USED)

GROUND

TERMINATION

POINTS

CABLE TERMINATING

AND GROUNDING PLATE

GROUND

TERMINATION

POINTS

ADCP-93-080 • Rev B • April 2018

Page 3

Figure 2. Three-Tier Clamp Configurations

ADCP-93-080 • Rev B • April 2018

Page 4

2 INSTALLATION

The cable clamps are installed after the cable ground clamp and moisture blocking

has been completed. The cable entry port grommet is removed for the ground

clamp and moisture blocking procedures. After those operations are complete,

install the cable clamps as described below.

2.1 One Cable Per Entry Port With Possible Future Cable Addition

(Figure 2A)

Use this procedure to install the first cable.

1. Cut out an appropriate size opening in the grommet that is the closest in size

to the outside diameter for the cable being installed.

2. Insert the grommet into the cable entryslot. Start with the top groove first

and press the grommet into the slot.

3. Attach a set of clamp yokes to the cable termination and grounding plate with

male/female bolts. Thread in the top bolt only at this time. Do not tighten.

4. Route the cable through the hole cut in the grommet and into the cable clamp.

Use split grommets as required to assure a tight fit. Thread in the lower bolt

and tighten both bolts.

5. Connect the ground straps to the cable terminating and grounding plate as

shown in Figure 3.

9666-A

GROUND

STRAP

GROUNDING

BLOCK

SPLIT

GROMMET

CABLE

CLAMP

CABLE TERMINATING

AND GROUNDING PLATE

SUB-

UNITS

OSP

CABLE

Figure 3. Three-Tier Clamp

ADCP-93-080 • Rev B • April 2018

Page 5

2.2 Two Cables Per Entry Port (Figure 2B)

Use this procedure to install a second cable.

1. Cut out the appropriate size openings in the grommet that is the closest in size

to the outside diameter for the cable being installed.

2. Attach the second set of clamp yokes to the clamp already in position.

a. Place the spacer bracket over the bolt heads of the first clamp. Ensure the

bolt heads are aligned to allow the bracket to slide over the bolt heads.

b. Thread a male/female bolt through the top holes of the second set of clamp

yokes into the top male/female bolt of the first clamp. Do not tighten at

this time.

3. Route the cable through the hole cut in the grommet and into the cable clamp.

Use split grommets as required to assure a tight fit. Thread the lower bolt

through the bottom holes of the clamp yokes. Check that the spacer bracket is

in place and tighten both bolts.

Note: Do not remove the spacer bracket after the bolts are tightened.

4. Connect the ground straps to the cable terminating and grounding plate as

shown in Figure 3.

2.3 Three Cables Per Entry Port (Figure 2C)

Use this procedure to install a third cable.

1. Cut out the appropriate size openings in the grommet that is the closest in size

to the outside diameter for the cable being installed.

2. Attach the third set of clamp yokes to the clamp already in position.

a. Place the spacer bracket over the bolt heads of the second clamp. Ensure

the bolt heads are aligned to allow the bracket to slide over the bolt heads.

b. Thread a male/female bolt through the top holes of the third set of clamp

yokes into the top male/female bolt of the second clamp. Do not tighten at

this time.

3. Route the cable through the hole cut in the grommet and into the cable clamp.

Use split grommets as required to assure a tight fit. Thread the lower bolt

through the bottom holes of the clamp yokes. Check that the spacer bracket is

in place and tighten both bolts.

Note: Do not remove the spacer bracket after the bolts are tightened.

4. Connect the ground straps to the cable terminating and grounding plate as

shown in Figure 3.

ADCP-93-080 • Rev B • April 2018

Page 6

3 CUSTOMER INFORMATION AND ASSISTANCE

To find out more about CommScope® products, visit us on the web at

www.commscope.com

For technical assistance, customer service, or to report any missing/damaged parts, visit us at

http://www.commscope.com/SupportCenter
