Comica BoomX-D Manual de usuario
User Manual
2.4G Digital 1-Trigger-2 Wireless Microphone
Foreword
Main Features
Thanks for purchasing COMICA BoomX-D 2.4G Digital 1-Trigger-2 Wireless Microphone.
To ensure bring you a good using experience, please read this manual book carefully before using and correctly install and operate.
. 2.4G Digital Wireless, Global Free Frequency
. Dual Transmitters Triggered by One Receiver
. Visual Power, Audio Dynamic Monitor and Other Display Functions
. Internal and External MIC Two Input Modes
. Mono/Stereo Switchable Output Modes
. Real-time Audio Monitor
. Broadcasting Quality Audio
. RF Technology, Auto Freq. Adjustment, Stable Transmission
. Low Latency < 20ms
. Working Range Up to 50m
. Designed with Multi-functional Belt Clip and Compact
Notice
Due to 2.4G wireless characteristics, please keep face to face when use it, and don’t turn your back to the receiver, otherwise it is easy
to generate breakpoints, which is a normal phenomenon.
Don't block the antenna position to avoid any poor signal generated.
Please attention that it can not realize STEREO function when in one-trigger-one mode.
When using on mobile phone, please turn o WIFI and Bluetooth to avoid 2.4G wireless interference.
This product belongs to high-precision instruments, please avoid falling, collision or pounding.
Do not use this equipment in the vicinity of heat source or interference source, such as radiator, oven, refrigerator or air conditioner,
smartphone or next to the WIFI AP.
If the pick-up distance is close or when used outdoors, please put on the wind mu to prevent sound burst or reduce wind noise.
Do not use the equipment in rain or in a damp environment to avoid short-circuit danger.
Please keep the product in a dry environment. 1
UC Receiver (UC RX)Receiver (RX)Transmitter(TX)
Please keep face to face when use it, and don’t turn your back to the receiver, otherwise it is easy to generate breakpoints.
Don't block the antenna position to avoid any poor signal generated.
Face to receiver (correct)
Antenna position Antenna position
Antenna position
Back to receiver (incorrect)
2
Packing List

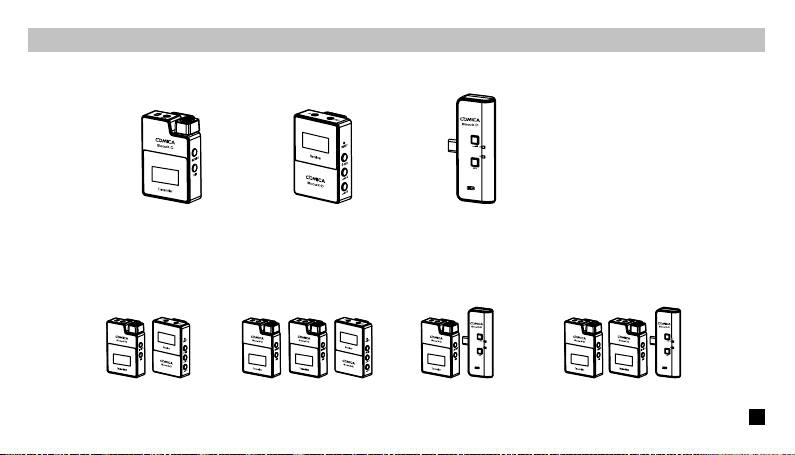

D1 = TX + RX D2 = TX + TX + RX UC1 = TX + UC RX UC2 = TX + TX + UC RX
UC Receiver (UC RX)Receiver (RX)Transmitter(TX)
Multiple Selections:
Main Parts:
3
3.5mm Mic Audio Input Cable
Wind Mu
3.5mm TRS-TRRS Audio Cable
3.5mm TRS-TRS Audio Cable
USB A-USB C Charging Cable
Reset Pin
User Manual
Warranty Card
The accessories of each combination include:
Accessories:
① + ② + ③ + ④ + ⑤ + ⑥ + ⑦ + ⑧
D1=
①x2 + ②x2 + ③ + ④ + ⑤ + ⑥ + ⑦ + ⑧
D2=
① + ② + ⑤ + ⑥ + ⑦ + ⑧
UC1=
①x2 + ②x2 + ⑤ + ⑥ + ⑦ + ⑧
UC2=
7 86543
21
1
2
3
4
5
6
7
8
User Manual
2.4G Digital 1-Trigger-2Wireless Microphone
4
Components and Instruction
Transmitter (TX)
1. External Mic Locking Buckle
2. 3.5mm TRS Port of External Mic
3. Internal Mic
4. Power / Muting Button
5. Pair Button
6. Belt Clip
7. USB-C Charging Port
8. Reset Hole
2
3
6
4
7
8
5
1
5
Receiver (RX)
1. 3.5mm TRS/TRRS Monitoring Headphone Port
2. 3.5mm TRS Audio Input Port
3. Reset Hole
4. Power and M/S Button
5. A Channel Output Gain Control Button
6. B Channel Output Gain Control Button
7. Belt Clip
8. USB-C Charging Port
2
3
6
4
7
8
5
1
6
UC Receiver (UC RX)
1. USB-C Connector
2. Output Volume Adjustment Button
3. Group A Working Status Indicator
4. Group B Working Status Indicator
5. M/S Adjustment Button
6. 3.5mm TRS/TRRS Monitoring Headphone Port
2
3
4
5
6
1
7
Installation
Transmitter (TX)
1.Use internal microphone :
Install the transmitter on the collar through the belt clip so that the internal microphone points in the direction of the sound source.
Internal Mic
Belt Clip
For better concealment during use, it is recommended that the belt clip be fixed and used outwards.
8
2.Use external microphone:
Insert the 3.5mm TRS microphone input cable into the transmitter's 3.5mm TRS external microphone port and tighten it, then clip the
transmitter to the belt through the belt clip and clip the lavalier microphone to your collar.
When using an external microphone, the internal microphone is automatically turned o.
9
