Comeup H-2500 Manual de usuario

CABLE PULLER

Model: H-2500

PN:487265 220V/50Hz、486122 230V/50Hz、489635 110V/50Hz

483636 240V/50Hz、483958 240V/50Hz、482316 220V/60Hz

487655 110V/50Hz

Introduction

Feature

Unpacking

．Rope arm 1pc

．Base plate,except for PN:489635 1pc

．Wire rope 8 mm x 50 m, except for PN:489635 483958 1pc

．Detachable rope storage roller 1pc

．Foot control kit with 2.0 mm2

x 3C x 2 m lead 1pc

．Power lead 1.5 mm2

x 3C x 3 m and plug 1pc

Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

Information requesting or parts ordering

Please specify the followings information:

．Winch PN ．Serial number

．Part description ．Replacement part number

．Quantity for each part

Drum type Large Drum Small Drum

Pulling capacity kg 1,500 2,500

50 Hz 4.0 2.5

Rope speed m / min 60 Hz 5.0 3.0

Gear train hypoid gear plus spur gears

Gear ratio 154:1

Motor rating IP44 , kw x p 0.6 x 4

width 124 104

drum dia. 110 74

Drum dimension mm flange dia. 166 94

Percentage Duty Cycle 25% ED

Installation

1. Install this machine on the ground horizontally.

2. Confirm that the machine voltage complies with the power source.

3. Connect the power cord with the power source, set the over – load

protection switch in to the “RESET” position.

4. Press the “Foot Control” down, the drum rotates in a clockwise direction and

make sure there is no noisy sound level or malfunction.

5. Release the “Foot Control” to have an emergency stop. The brake performs

inter – locked and motor has instantly hold the load while power failure.

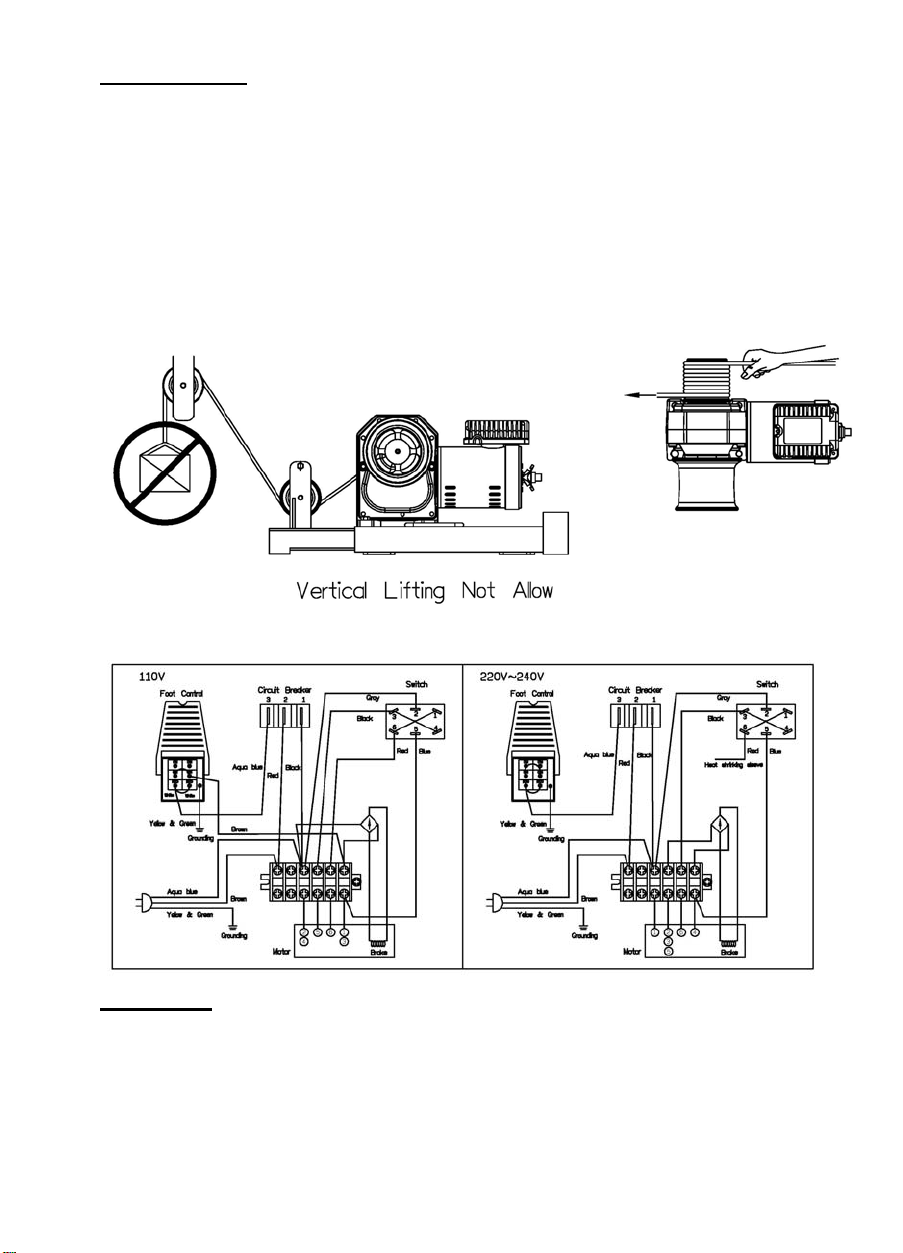

Wiring Diagram

Warning

．The cable puller is not intended to be used in any manner for the movement or

lifting of personnel

．The rated capacity shown is based on the first layer of rope on the drum

．The rope winding on the drum shall remain 5 wraps from the drum

Parts List

Ref No. Description Part Number Qty

1 Drum A kit 880873 1

Motor kit, 110V/220V, 60Hz 880896 1

Motor kit, 110V/220V/230V, 50Hz 880897 1

Motor kit, 120V/240V, 50Hz 880898 1

3 2nd shaft 880874 1

4 1st gear 880875 1

5 3rd shaft 880876 1

6 2nd gear 880877 1

7 4th gear 880878 1

8 Output shaft 880879 1

9 4th shaft 880880 1

10 3rd gear 880881 1

11 Gearbox cover kit 880882 1

12 Drum B kit 880883 1

13 Base plate kit 880884 1

14 Sheave guider kit 880885 1

15 Divertor kit 880886 1

16 Drum bracket 880887 1

17 Foot pad 880888 1

18 Rope wheel kit 880889 1

19 Pulley block 880890 1

20 Fix shaft 880891 1

21 Wing nut kit 880892 1

22 Wire rope 880893 1

Terminal box kit, 110V, 50Hz 880899 1

Terminal box kit, 220V/230V, 50/60Hz 880901 1

Terminal box kit, 240V, 50Hz 880902 1

24 Foot control kit 880894 1

Power lead, 3 flat pins plug 880904 1

25 Power lead, 3 round pins plug 880905 1

Winch Assembly
