Coleman EAGLE ROCK 9277F950 Manual de usuario

Connect Frame to Tent

– Insert one pin into the end of main tent

pole at tent corner. (illus. 3, illus. 4)

– Go to opposite end of pole and

gradually apply pressure to the pole

forming an arch until you are able to

insert the pin into the pole end.

– Repeat for second pole.

– Insert pin into the end of side pole, go to

opposite end of pole and apply pressure

until you arch the pole and can insert

the pin into the pole. (illus. 3, illus. 4)

– Repeat for other side pole.

Eagle Rock™9’6”x7’

1Layout & Positioning

of Tent, Pole Assembly

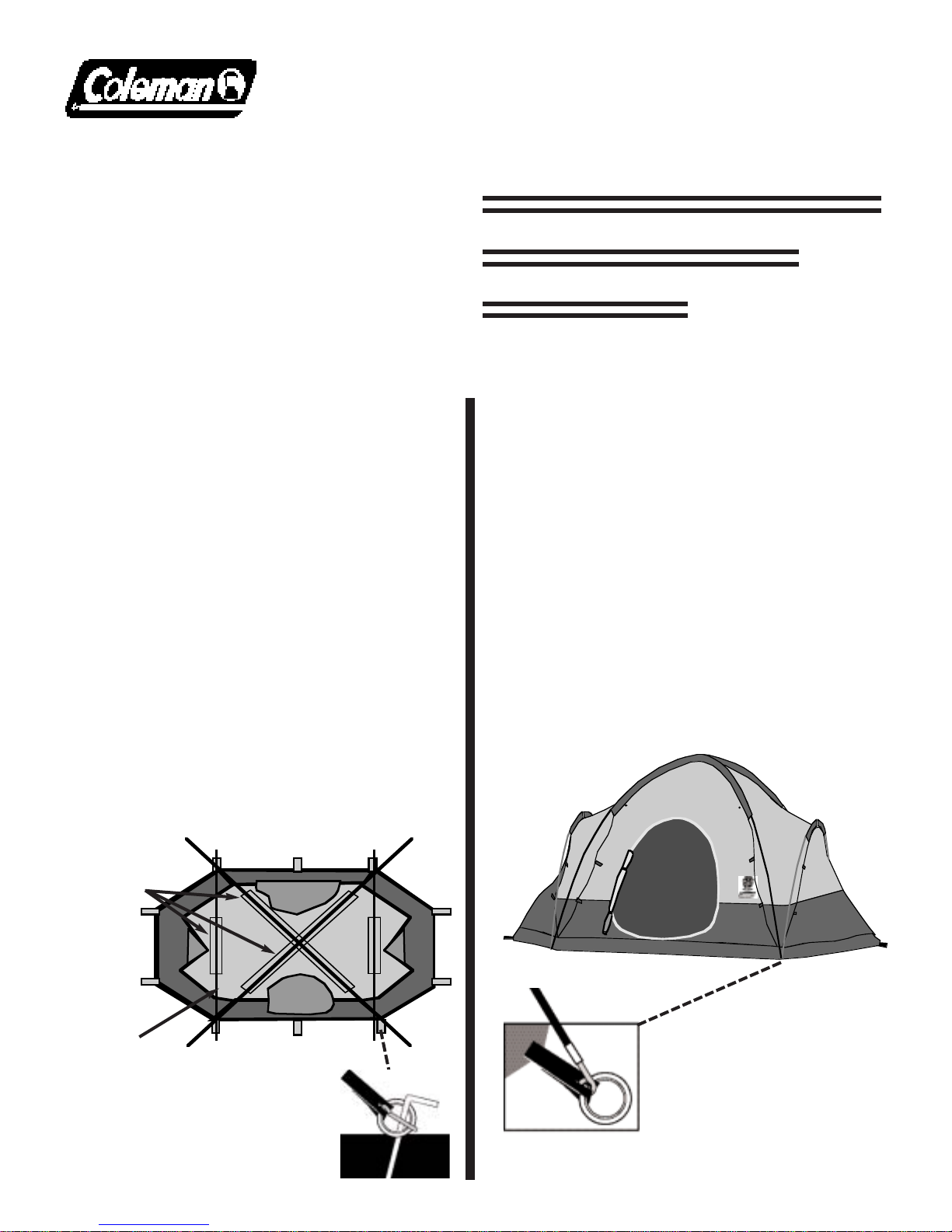

– Layout and position tent with door facing

desired direction. (illus. 1)

– Unzip door.

– Stake down tent corners only, using the

stake loops. Keep the floor taut.

(Intermediate loops will be staked later.)

– Assemble frame poles by interlocking

shock-corded poles. (four poles)

– Insert the poles into pole sleeves.The

longer black poles should cross forming

an “X” in the middle of tent. The shorter

side gray poles insert into sleeves

running front to back. (illus. 1)

When You Are Ready

To Set Up Your Tent

– Select a level campsite clear

of rocks, branches and other

hard or sharp objects.

– Do not set up your tent

under trees.

– For best results in windy

conditions position the end

of tent into the wind.

Part No. 9277F950

Front Door

Side Poles

Assembled

poles

inserted

through

pole

sleeves

Instructions apply to Part Number 9277F957

illus. 1

illus. 2

Tent stake

through ring

on stake loop

illus. 4

Tent frame

set-up

Part No. 9277F953

Part No. 9277F952

illus. 3

Insert pin into pole end

Rainfly

Part No. 9277F951

(2) Main Tent Poles

(2) Side Poles

(2) Rainfly Pole

3Attach Tent to Frame

Using Frame Clips

– Attach frame clips along the

edges of tent to frame poles.

(illus. 5), (illus. 6)

– Make any adjustments to the

tent corner stakes, if needed.

– Stake out remainder of

intermediate loops.

4Attach Rainfly

– Assemble rainfly poles, by interlocking

shock-corded poles.

– Insert rainfly pole through the pole

sleeves located at the center edges

of the underside of rainfly. (illus. 7)

– Drape rainfly over tent frame, pole side

down. Rainfly poles go over door and

rear window.

– Connect the four elastic loops with

“S” hooks, (found at the rainfly

corners) to the fabric loops near

frame clips.

– Insert tip of rainfly pole into the

grommet on the front of the tent and

gently arch the pole until you can insert

the opposite end in the other grommet.

Repeat for back side of tent.

– Secure rainfly with hook & loop and

ties located on underside of fly. (illus. 8)

– Attach and stake out guylines.

illus. 6

Assembled tent without rainfly. Note the frame clips

located on edge of tent.

illus. 5

Frame Clips

illus. 8 Completed tent with rainfly.

illus. 7

Underside

of rainfly

attaches to

frame poles

Rainfly Pole

Sleeves

Guyline

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN KOREA, ASSEMBLED IN CHINA

PRINTED IN KOREA Rev. 7/04

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.)

condensation will form on the inside surfaces of your tent. Condensation is

caused by water vapor from your breath, perspiration, or any wet clothing

inside your tent. It is NOT LEAKAGE through the tent fabric. It can be

minimized by removing wet clothing from your tent and by providing good

ventilation through the tent.

• Never store tent, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles inside

your tent. Use separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED

TOGETHER DURING STORAGE.

• Seam sealer has not been provided with your tent. For additional protection

we recommend seam sealing your tent prior to camping. Seam sealer may be

purchased through your local retailer or at your local sporting goods store.

• Do not leave your tent set-up for weeks at a time, be aware that

exposure to the ultraviolet rays of the sun can seriously damage nylon

material and/or cause it to become discolored.

WARNING: KEEPALL FLAMEAND HEAT SOURCES

AWAY FROMTHISTENT FABRIC. This tent meets the flammability

requirements of CPAI-84.The fabric will burn if left in continuous

contact with any flame source.The application of any foreign substance

to the tent fabric may render the flame-resistant properties ineffective.
