Assemble Frame

– Insert one end of the Main Tent Pole tips into

the grommet on the same webbing located at

the corner of the tent. (illus. 3), (illus. 4)

– Go to opposite end of the Main Tent Poles and

gradually apply pressure to the poles, forming

an arch, until you are able to insert the pole tips

into the grommet. This is easiest if you insert

them in the same order back to front. (illus. 4)

– Insert end of Cross Pole into grommet at the

corner of tent and go to opposite end

of the Cross Pole and gradually apply

pressure to the pole, forming an arch,

until you are able to insert the pole

tips into the grommet. (illus. 4)

ascend

™

part number 9840-230

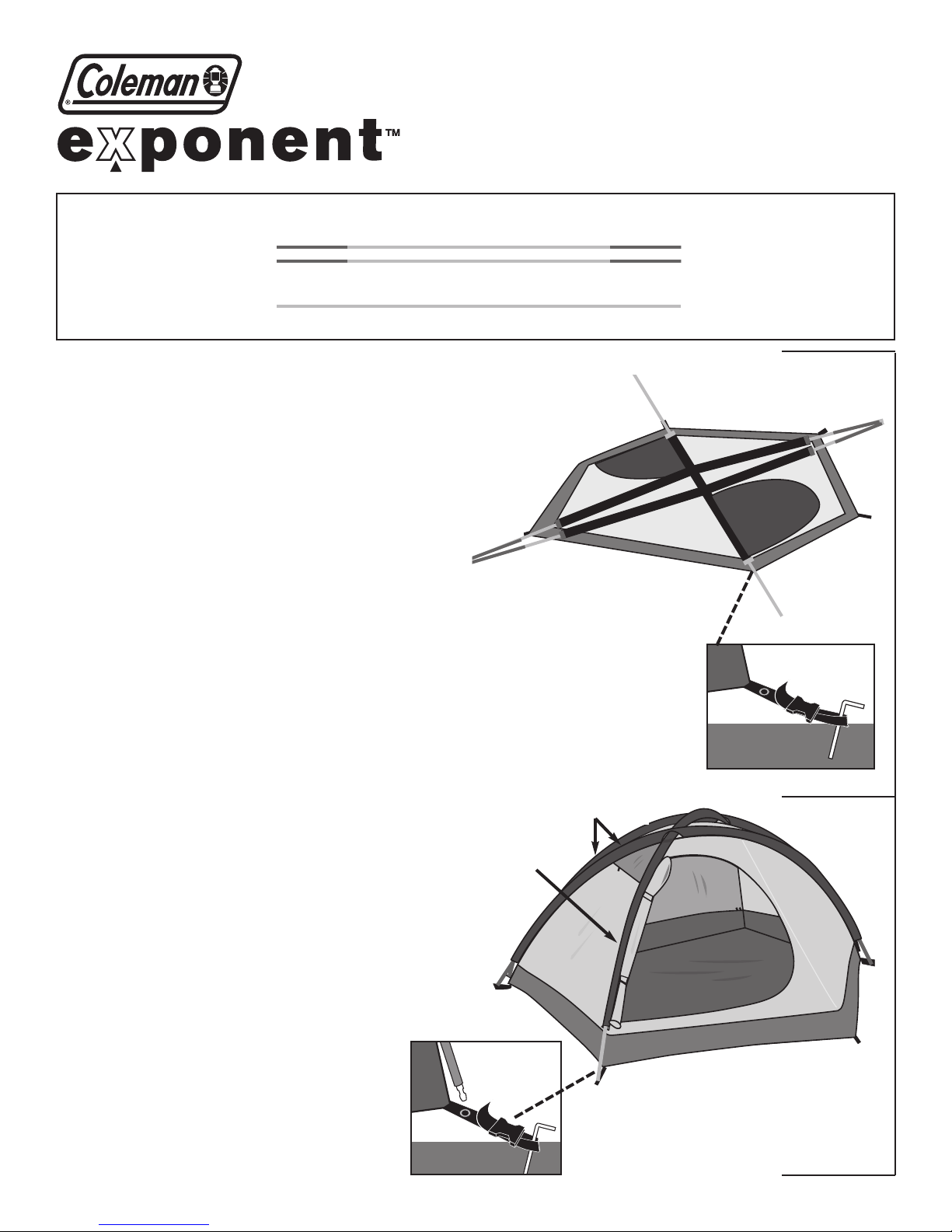

Layout & Positioning

of Tent, Pole Assembly

– Layout and position tent with doors facing

desired direction. (illus. 1) Unzip doors.

– For best results in windy conditions, position

door or back of tent into the wind.

– Stake down tent corners. Keep the floor

taut. (illus. 2)

– Assemble Frame Poles by interlocking the

shock-corded sections. This will make two

long red tipped Main Tent Poles and one long

silver Cross Pole.

– Insert the two Main tent Poles through the pole

sleeves with the red trim.

– Insert the silver Cross Pole through the pole

sleeve with the silver trim.

Main Tent Poles (Red Tip)

Part No. 9840-101

Cross Pole (Silver)

Part No. 9840-102

Rainfly

Part No. 9840-110

illus. 1

illus. 2

Tent stake

through Loop

illus. 3

Insert Pole Tip on

stake loop into pole.

illus. 4 Tent frame up

POLE ASSEMBLY PARTS

Main Tent Poles

Cross Pole

Pro-Tips

• Under certain conditions (cold weather, high humidity, etc.) condensation will form on the inside surfaces of your tent.

Condensation is caused by water vapor from your breath, perspiration, or any wet clothing inside your tent. It is NOT LEAKAGE

through the tent fabric. Opening the interior access zippers and adjusting the vents on the rainfly, allowing good ventilation

through the tent, can minimize condensation.

• Never store tent, even for a short period of time, without

drying it thoroughly and brushing off caked dirt. Do not pack

stakes or poles inside your tent. Use separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE

ITSELF. NEVER PULL ON THE TENT FABRIC OR TENT STAKE

LOOP TO REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER

DURING STORAGE. 3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

3Attach Rainfly

– Drape Rainfly over tent frame, with

rainfly doors lining up over tent doors.

(illus. 8)

– Connect the four clips (found at the

Rainfly corners) to the clips located at

the corners of the tent. (illus. 9)

– Stake out rainfly doors, keep rainfly taut.

(illus. 7)

– Attach Guy Lines to Guy Wings on

the sides of the Rainfly and stake out

(illus.10).

illus. 5

Rainfly

illus. 7

Completed tent

with Rainfly.

Guy Line

Guy Wings

illus. 6

Rainfly clips

onto pole

stake loop

PRINTED IN CHINA
