Coleman 9192-142 Manual de usuario

Pole Assembly

–Assemble and connect one pole at a

time to the hub.

–Do not assemble poles completely.

–Go to the end of pole with the

spring clip and assemble all but the last

shock corded section.The pole should

curve down plus one section. (illus. 2)

–Insert the end with the spring clip into

one of the hub ports until it clicks into

position. (illus. 1, 2)

–Repeat for each of the five remaining

poles. (illus. 2)

14’x12’ Screen Lodge

WhenYou Are ReadyTo Set UpYour

Shelter

–Select a level campsite clear of rocks,

branches and other hard or sharp objects.

–Do not set up your shelter under trees.

–For easier set up, two or more people

are recommended.

POLE ASSEMBLY PARTS

Instructions apply to Part Number 9192-142

Poles Part No. 9191-101

Hub Part No. 9191-102

Illus. 2

Partially assembled

frame locked into hub

Illus. 1

Poles inserted

into hub

Hub

Things You Should Know

• Never store tent, even for a short period of time, without drying it thorough-

ly and brushing off caked dirt. Do not pack stakes or poles inside your tent.

Use separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED

TOGETHER DURING STORAGE.

• Do not leave your tent set-up for weeks at a time, be aware that exposure

to the ultraviolet rays of the sun can seriously damage material and/or cause

it to become discolored.

WARNING: KEEP ALL FLAME AND HEAT SOURCES

AWAY FROM THIS TENT FABRIC. This tent meets the flammability

requirements of CPAI-84. The fabric will burn if left in continuous contact

with any flame source. The application of any foreign substance to the tent

fabric may render the flame-resistant properties ineffective.

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN SRI LANKA

Attach Shelter to Frame

–Drape the shelter over the frame,

positioning doors in the desired

direction.

–Position each corner over the

curve portion of the pole.

–Fully extend each pole by

completing the interlocking of the

shock corded pole sections.

–Insert the brass hook into the hole

near the base of the pole (illus. 4, 5)

–From the inside of the shelter secure

the pole frame to the shelter with the

hook and loop closures. (illus. 6)

–Adjust poles to pull the shelter

taut and stake down through

the fabric loops at the end of

each pole (illus. 5)

–Adjust hook straps to increase

tautness (illus. 5)

–Attach guy lines to fabric

guy loops at each corner

and stake out (illus. 6)

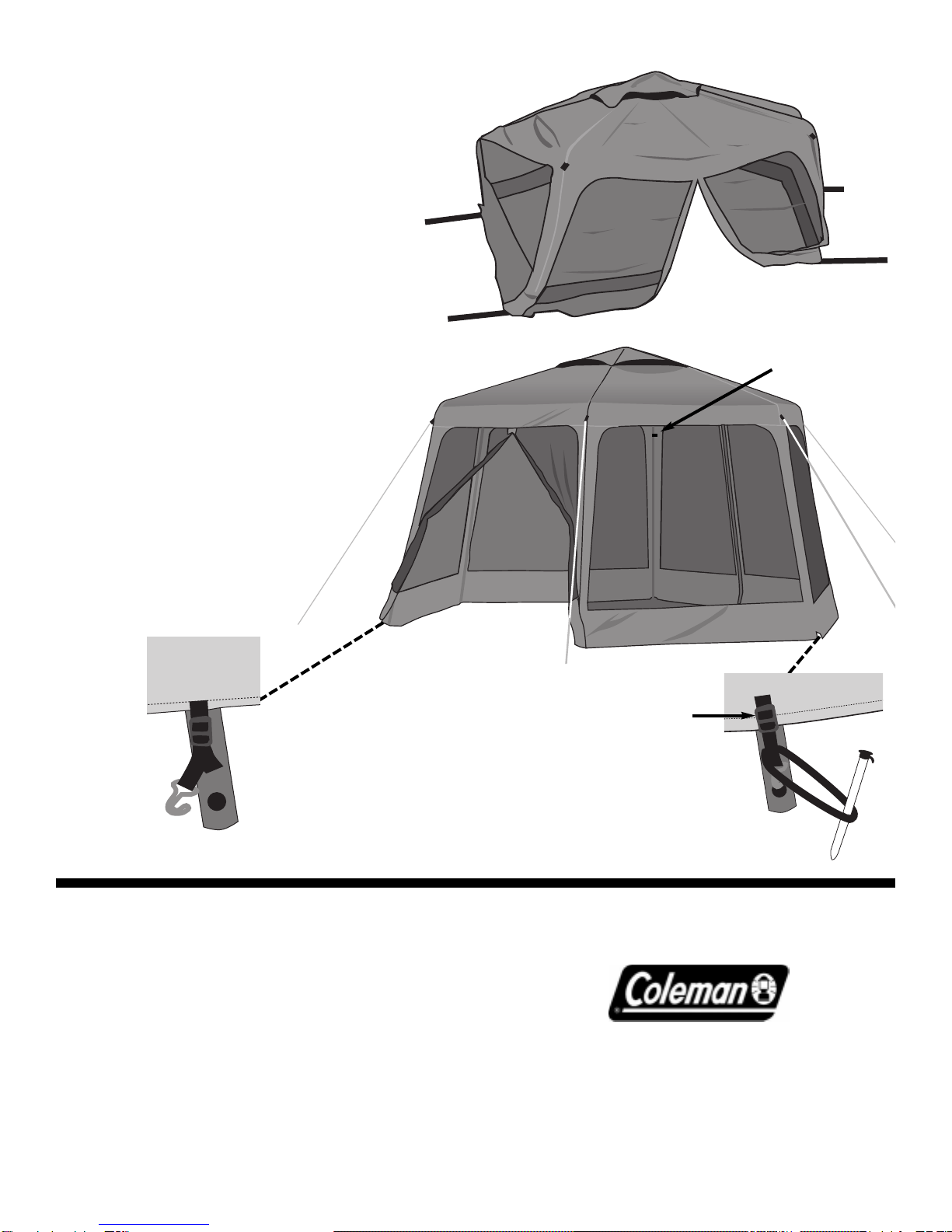

illus. 3 Fabric draped over

partially assembled frame

illus. 6

Completed shelter

with guy lines

illus. 4

Insert Brass Hook

into hole near the

base of the pole

illus. 5

Stake through

Stake Loop

Use to adjust or

tighten canopy

Inside hook & loop
