Cognex DataMan 260 Series Manual de usuario

DataMan®260 Series

Quick Reference Guide

04/24/2017

Version:5.7.0.218

Precautions

Observe these precautions when installing the Cognex product, to reduce the risk of

injury or equipment damage:

lThis device requires the use of an LPS or NEC class 2 power supply (non-

PoE device) or the use of a PoE Class 1 (PoE device).

lDo not connect or disconnect this device from the I/O module or 15-pin USB

adapter cable while the I/O module or adapter cable is connected to a PC .

lTo reduce the risk of damage or malfunction due to over-voltage, line noise,

electrostatic discharge (ESD), power surges, or other irregularities in the

power supply, route all cables and wires away from high-voltage power

sources.

lChanges or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the

equipment.

lCable shielding can be degraded or cables can be damaged or wear out

more quickly if a service loop or bend radius is tighter than 10X the cable

diameter. The bend radius must begin at least six inches from the

connector.

lThis device should be used in accordance with the instructions in this

manual.

lAll specifications are for reference purpose only and may be changed

without notice.

Product Overview

1 Illumination LEDs

2 LED aimers

3-4* Mounting holes (M3 x 3.5mm)

5Trigger button

6Power indicator

7 Train status/Trigger status indicator

8 Good/bad read indicator

9 Network status indicator

10 Error indicator

11 Tune button

12 Power, I/O and RS-232 connector

13 Ethernet connector

Note: *Use only one set of mounting holes (either 3 OR 4) for mounting.

Note: The five status LEDs together also function as a peak meter using an orange light.

DataMan 260 Accessories

LENS OPTIONS, COVERS, ILLUMINATIONS AND FILTERS

6.2 mm lens kit DM150-LENS-62

IR 6.2 mm lens kit, 3 -position with IR LED DMA-KIT-IR-62

IR16 mm lens kit DMA-KIT-IR-16

16 mm lens with extended optics mount (requires the

use of an extended front cover and high-powered red

LED)

DM260-LENS-16

Liquid Lens Module (LLM) to be used with 6.2 mm lens

or 16 mm lens

DMA-LLM-150-260

ImageMax kit DM260-KIT-16LL

Clear lens cover* DM150-CVR-CLR

Clear lens cover,ESD safe* DM150-CVR-ESD

Polarized front cover* DM260-LENS-62CVR-

F***

Extended lens cover, un-polarized**

Extended lens cover, half-polarized **

Extended lens cover, fully polarized**

DM260-LENS-16CVR***

DM260-LENS-16CVR-

P***

DM260-LENS-16CVR-

F***

C-mount adaptor, IP40 DM260-CMNT-00

C-mount adaptor, IP65 DM260-CMNT-CVR

Blue bandpass filter DM150-BP470

Red bandpass filter DM150-BP635

Red LED illumination*

White LED illumination*

Blue LED illumination*

DM150-LED-RED

DM150-LED-WHT

DM150-LED-BLU

High Powered red LED illumination** DM260-LED-RED-HP

Note: *Use with a 6.2 mm lens only!

**Use with a 16 mm lens only!

***ESD safe

CABLES ANDOTHER

Connection cable 24V, I/O, RS-232 CCBL-05-01

CCB-M12x12Fy-xx (y=S:

straight / y=A: angled *, xx

specifies length)

Connection cable RS-232 CCB-M12xDB9Y-05

Adapter cable, M12x12 to M8x4/M8x5, 0.5 m DM260-ADAP-M12M8

X-Coded to RJ45 Ethernet Cable CCB-84901-2001-xx,

where xx can be 02, 05, 10,

15 or 30, indicating length

in meters

Adapter cable, ETH, M12, X-CODED/A-CODED, 0.5 m CCB-M12x8MS-XCAC

Universal Mounting Bracket DM100-UBRK-000

Pivot Mounting Bracket DM100-PIVOTM-00

DataMan 362 to DataMan 262 adapter kit DM-ADAP-PLT

Dimensional Drawings

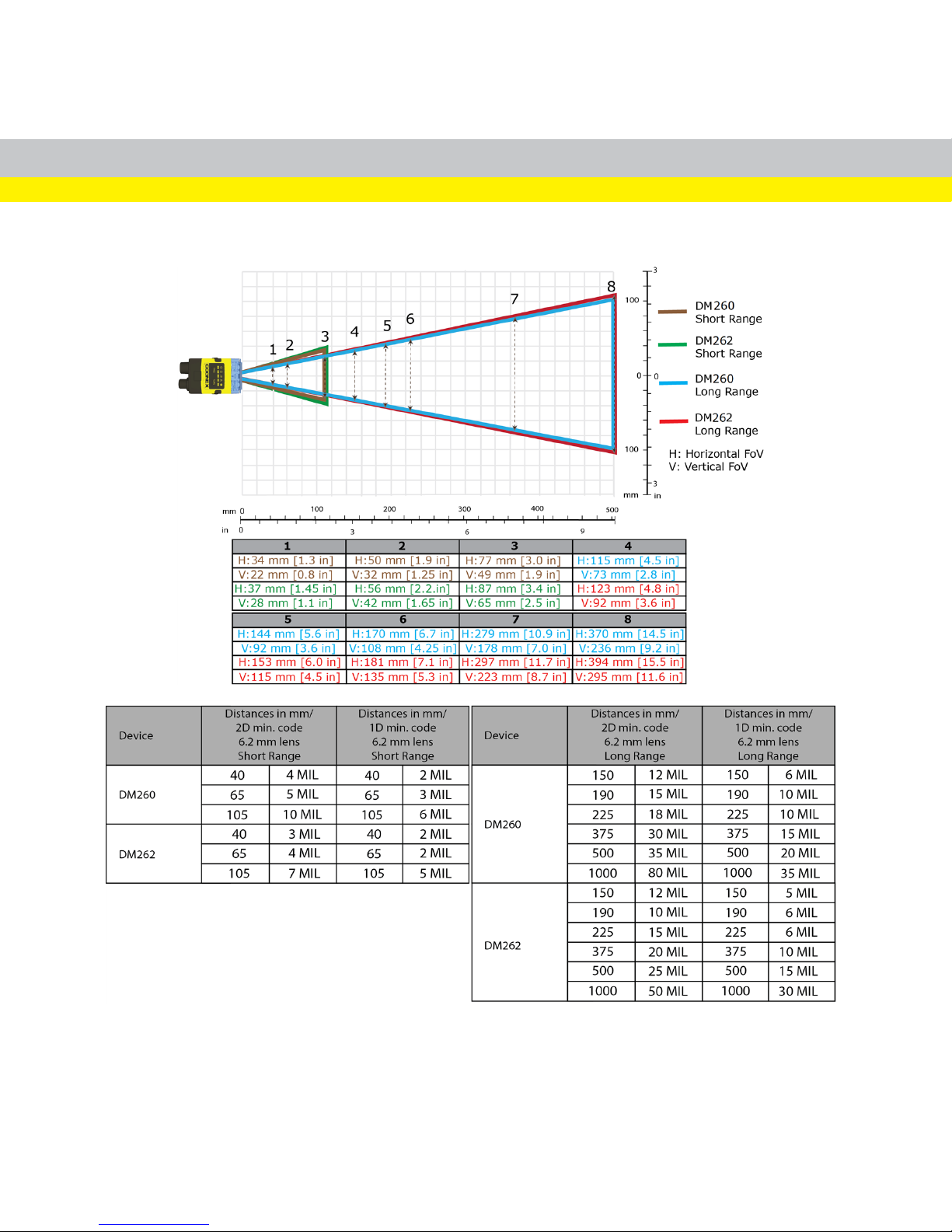

Field of View and Reading Distances

Connecting the Reader

Installation

Installation procedures and specifications are presented in detail in the DataMan®

260 Reference Manual, which is installed with the DataMan Setup Tool. From the

Windows Start menu, select the following to access the manual: All Programs >

Cognex > DataMan Software vx.x.x > Documentation.

Note:

lCables are sold separately.

lIf any of the standard components appear to be missing or damaged,

immediately contact your Cognex Authorized Service Provider (ASP)

or Cognex Technical Support.

CAUTION:All cable connectors are “keyed” to fit the connectors on the

reader; do not force the connections or damage may occur.

Mounting

Mounting the DataMan 260 at a slight angle (15°) can reduce reflections and

improve reader performance.

Use the set of mounting holes on the rear part to mount the DataMan reader.
