Cognex DataMan 100 Manual de usuario

COGNEX®

DataMan™ 100

Quick Reference Guide

Getting Started

Setting up your DataMan

Connect your DataMan

Using your Dataman

Product contents • Accessories • Mechanical specications •

Product features • Software Installation Page 2

Page 8

Page 14

Page 18

Setting the DataMan focus position • Working distance (scan

maps) • Mounting options and guidelines

Connection types • Wiring discrete inputs • Wiring discrete

outputs • Examples

Trigger types • Training • Using the Setup Tool

Reference Information Page 24

Specications • Precautions • Support Information

COGNEX

DO NOT HOT PLUG

DM100 IOBOX

IOB10 200-3001-R1R

RS232 USB24VDC

— +

OUTPUT

0 1 C 0 1 C

INPUT

DataMan 100 Systems

DataMan 100 with IDQuick

(DMR-100Q-00)

DataMan 100 Accessories

CD-ROM (Setup Tool and Drivers)

(206-6400-220)

Quick Reference Guide

(590-7013)

DataMan I/O Module

(DM100-IOBOX-000)

Mounting bracket

(DM100-UBRK-000)

RS-232 adapter cable with power tap

(DM100-RS232-000)

Power supply

(DM100-PWR-000)

USB adapter cable with power tap (DM100-

USB-000)

DataMan 100 with IDMax

(DMR-100X-00)

Basic Accessory Kit (DM100-BAK-000)

19.5

22.1

22.7

43.5

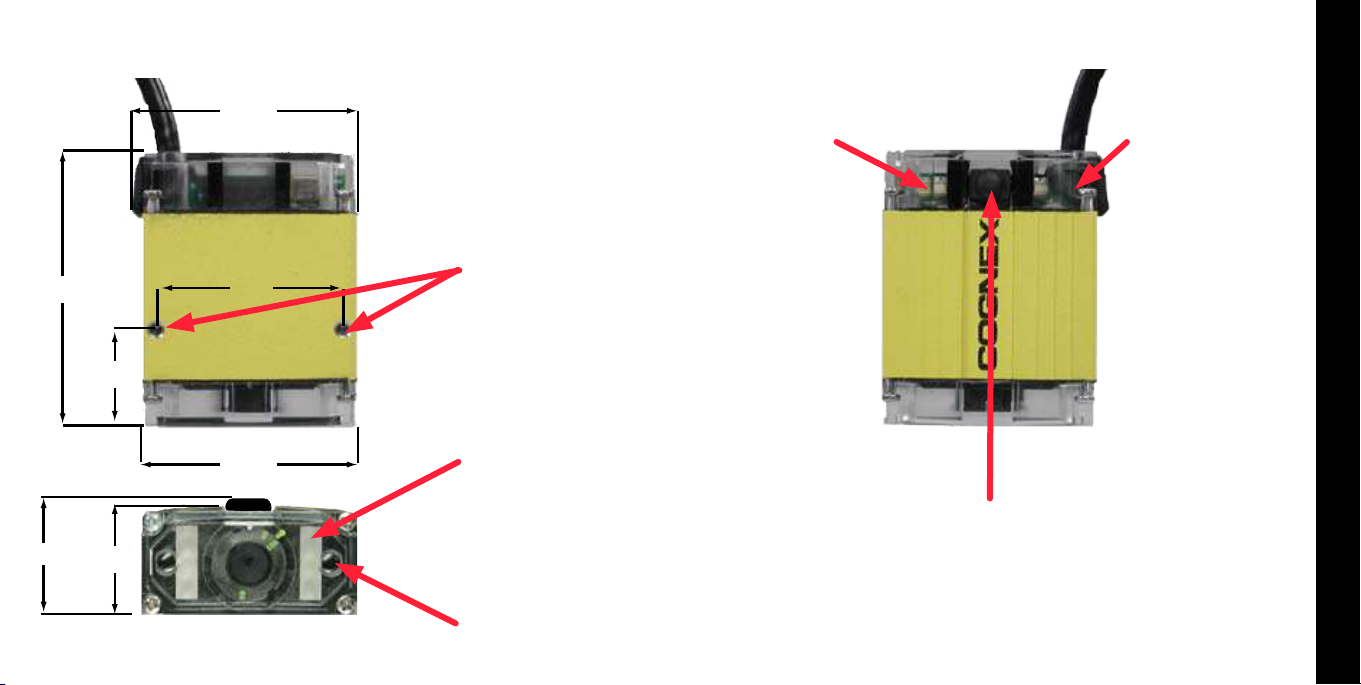

DataMan 100 Product Overview

Aiming LED

Illumination LED

Mounting holes

(M3 x 3.5)•

Status LED

Red: no read

Green: read

•

Pushbutton

Push to read

Push and hold 3 seconds to train

•

System LED

Green: Trained

Yellow: Untrained

Steady: System

Slow blink:

Connected to setup

tool

Fast blink: Data

transfer

•

Install DataMan 100 Software

Make sure your PC meets these system requirements:

Microsoft® Windows XP

Pentium CPU 500 MHz or faster

.NET 1.1 SP1 (installed automatically)

Insert CD-ROM and follow the on-screen prompts.

Connect the DataMan 100 to your PC using the supplied USB cable.

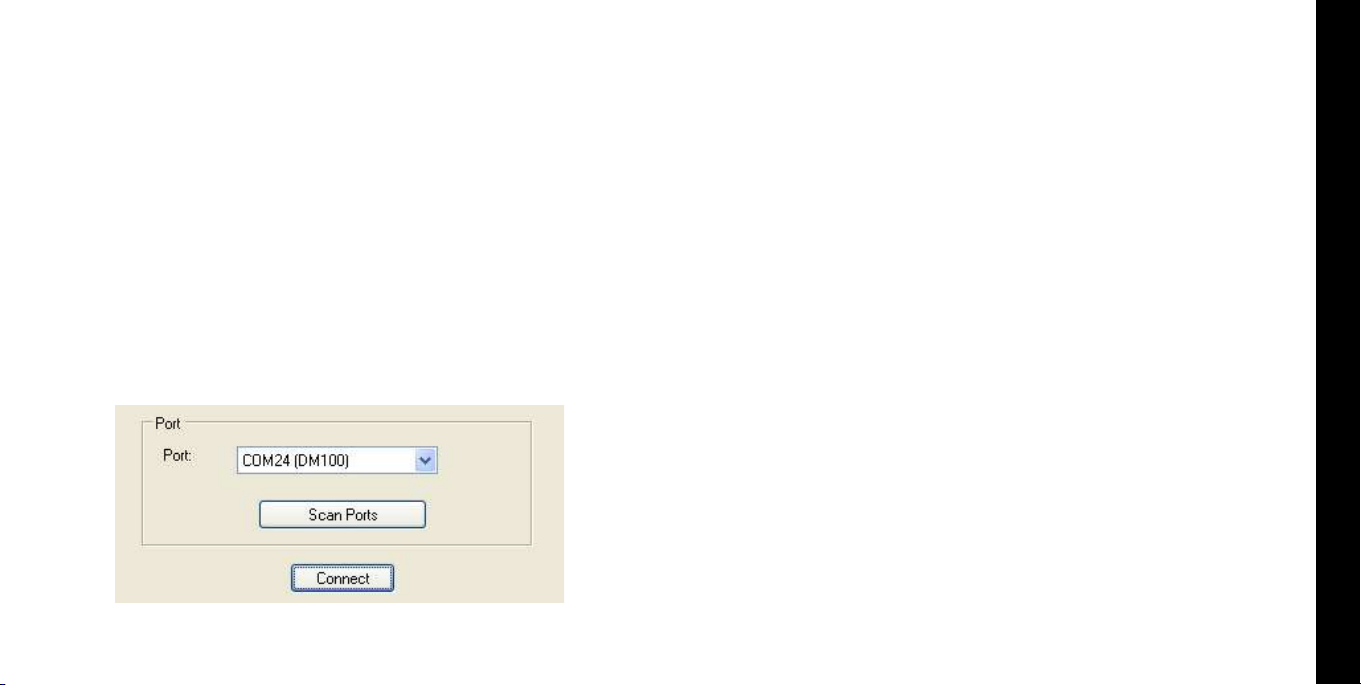

Launch the Setup Tool. Select the Connect to Reader step, then

click Scan Ports. Make sure a port that says (DM100) is selected,

then click Connect.

•

Reading your First Code

The DataMan 100 is pre-congured for Manual triggering and symbology

discrimination. To verify that your reader is operational, click on the

Results Display step in the Setup Tool, place a code in front of the reader,

and press the black trigger button. The Setup Tool should display the

image and the decoded string.

Troubleshooting

If you are unable to read a code, verify that

You have scanned the correct connection code on page 14.

If you are using your PC’s USB to power the DataMan 100, make sure

that your PC’s USB port can supply enough power (2.5W peak). Connect

the DataMan 100 power supply (DM100-PWR-000) to the USB adapter

cable if needed.

If you are using a direct USB connection, make sure that the USB

adapter cable is connected to the DataMan 100 before you connect the

USB cable to your PC. Connecting or disconnecting the 15-pin plug from

the USB cable while the PC is connected may cause a USB driver crash

on the PC.

If you are using a USB connection with the I/O module, make sure that

the DataMan 100 is connected to the I/O module before you connect

the I/O module to your PC. Connecting or disconnecting the 15-pin plug

from the I/O module while the PC is connected may cause a USB driver

crash on the PC.

•

COGNEX

5 mil: 34-50 mm

10 mil: 21-56 mm

15 mil: 11-70 mm

20 mil: 8-75 mm

105

(40 mm) 50

100 150 200

Setting DataMan 100 Focus Position

DataMan can operate in one of three distance ranges. To set the focus position:

Reading Distances (40 mm)

Remove screws

and lens cover.

Set focus

position.

Replace lens

cover and

screws.

COGNEX

10 mil: 32-88 mm

15 mil: 28-105 mm

20 mil: 18-115 mm

30 mil: 10-140 mm

105

(65 mm) 50

100 150 200

COGNEX

(105 MM) 50

100 150 200

15 mil: 35-170 mm

20 mil: 27-185 mm

30 mil: 15-225 mm

105

10 mil: 61-131 mm

Reading Distances (65 mm) Reading Distances (105 mm)

M3 x 5

15°

Universal Mounting Bracket Optimizing Lighting

Mounting the DataMan 100 at

a slight angle (15°) can reduce

reections and improve reader

performance.

COGNEX

DO NOT HOT PLUG

DM100 IOBOX

IOB10200-3001-R1R

RS232 USB24VDC

— +

OUTPUT

0 1 C 0 1 C

INPUT

COGNEX

DO NOT HOT PLUG

DM100 IOBOX

IOB10200-3001-R1R

RS232 USB24VDC

— +

OUTPUT

0 1 C 0 1 C

INPUT

USB Connections

When connected to a PC over USB, the DataMan 100 appears as either a

COM port or as a standard USB keyboard. You control the connection type by

scanning the appropriate connection code

NOTE: DataMan PC software

must be installed for this

connection type!

Connect direct to PC using

cable

DM100-USB-000.

Connect to PC through

I/O module

DM100-IOBOX-000.

Scan desired connection code:

RS-232 Connections

You can connect the DataMan 100 to a PC or other device over a standard

RS-232 serial connection. NOTE: You must supply external power to use

this connection type.

USB Serial USB Keyboard

NOTE: You cannot use

the setup tool with this

connection type.

Connect direct to PC or

other device using cable

DM100-RS232-000.

Connect to through I/O

module

DM100-IOBOX-000.

RS-232 Serial

Scan connection code:

See page 27 for codes to set baud rate

and other RS-232 parameters.

Optional

power

supply

COGNEX

DO NOT HOT PLUG

DM100 IOBOX

IOB10 200-3001-R1R

RS232 USB24VDC

— +

OUTPUT

0 1 C 0 1 C

INPUT

1 2 3 4

COGNEX

DO NOT HOT PLUG

DM100 IOBOX

IOB10 200-3001-R1R

RS232 USB24VDC

— +

OUTPUT

0 1 C 0 1 C

INPUT

24V

–

COGNEX

DO NOT HOT PLUG

DM100 IOBOX

IOB10 200-3001-R1R

RS232 USB24VDC

— +

OUTPUT

0 1 C 0 1 C

INPUT

24V

–

Wiring DataMan 100

Input Wiring Example

Output Wiring Example

Power: 5–24 VDC, 2.5W peak. Connect either ground pin to chassis

ground.

Discrete Output: Current sink only; must connect logical ground to

common. Outputs are opto-isolated and protected against reverse

polarity. Max current 50 mA @ 24 VDC. Output 1 used for external

illumination control by default.

Trigger Input: Opto-isolated, polarity-independent, current source

or sink. Input 0 is dedicated trigger line; Input 1 is not used.

RS-232 and USB: If USB connection is detected, USB

communications is automatically selected; otherwise RS-232

connection is used.
