Clevertronics TS Trade Series Instrucciones de instalación y funcionamiento

1945028

V1.1

12 January 2022

Instruction Sheet Template - V1.2 –Updated 06/10/2021

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK

Trade Series LIFELIGHT Surface Mount Emergency

Luminaire

Installation & Maintenance Instruction Leaflet

Victoria (Head Office & Manufacturing)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

New South Wales

Phone: +61 2 8805 6400

Fax: +61 2 8805 6444

Queensland

Phone: +61 7 3442 9700

Fax: +61 7 3442 9777

South Australia/Northern Territory

Phone: +61 8 8301 8800

Fax: +61 8 8351 8286

Western Australia

Phone: +61 8 9207 0000

Fax: +61 8 9207 0088

New Zealand

Phone: +64 800 548 448

Designed in Australia to comply with the requirements

of AS2293.3: 2005 and AS/NZS CISPR15: 2017

Models:

ELIFE-X-I-SM

Spare Parts:

1560160

BATT:EcoLith 3.2V 3.0Ah 170mm lead,NoBKT

8050176

HWSUB: CT10696-D1

8002986

PCA: ELIFE-X-SM-LI CT10614-L2

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant Australian and International Standards.

1945028

V1.1

12 January 2022

Instruction Sheet Template - V1.2 –Updated 06/10/2021

Installation:

The ELIFE-X-LI-SM is a Non-Maintained Surface Mount (SM) fitting that can be attached directly to any

solid surface (use appropriate fixings to suit the mounting surface). Please follow the steps below to install

the ELIFE- X-LI-SM:

•Remove the Lid from the Base by using a flat screwdriver to release the snap fits (see below)

•Cut/Drill out Cable Entry points (see image below)

•Drill out the required fixing holes on the Base (see image below)

•Mark holes on mounting surface (use drilled out holes on the Base as a template)

•Mount Base using appropriate fixings to ensure a secure installation (pre-drill holes if required)

•Insert Mains Cables through Cable Entry

•Terminate the Mains Cables into terminal block. Ensure Active, A & Neutral, N wires are connected

as per Terminal Block Label.

•Re-attach Lid Assembly, ensuring to align Mains Connector Pins into Terminal Block

Networking:

When installing the product on a monitored network, (ZONEWORKS, DATA, DALI) simply insert the

relevant Smart Node PCA.

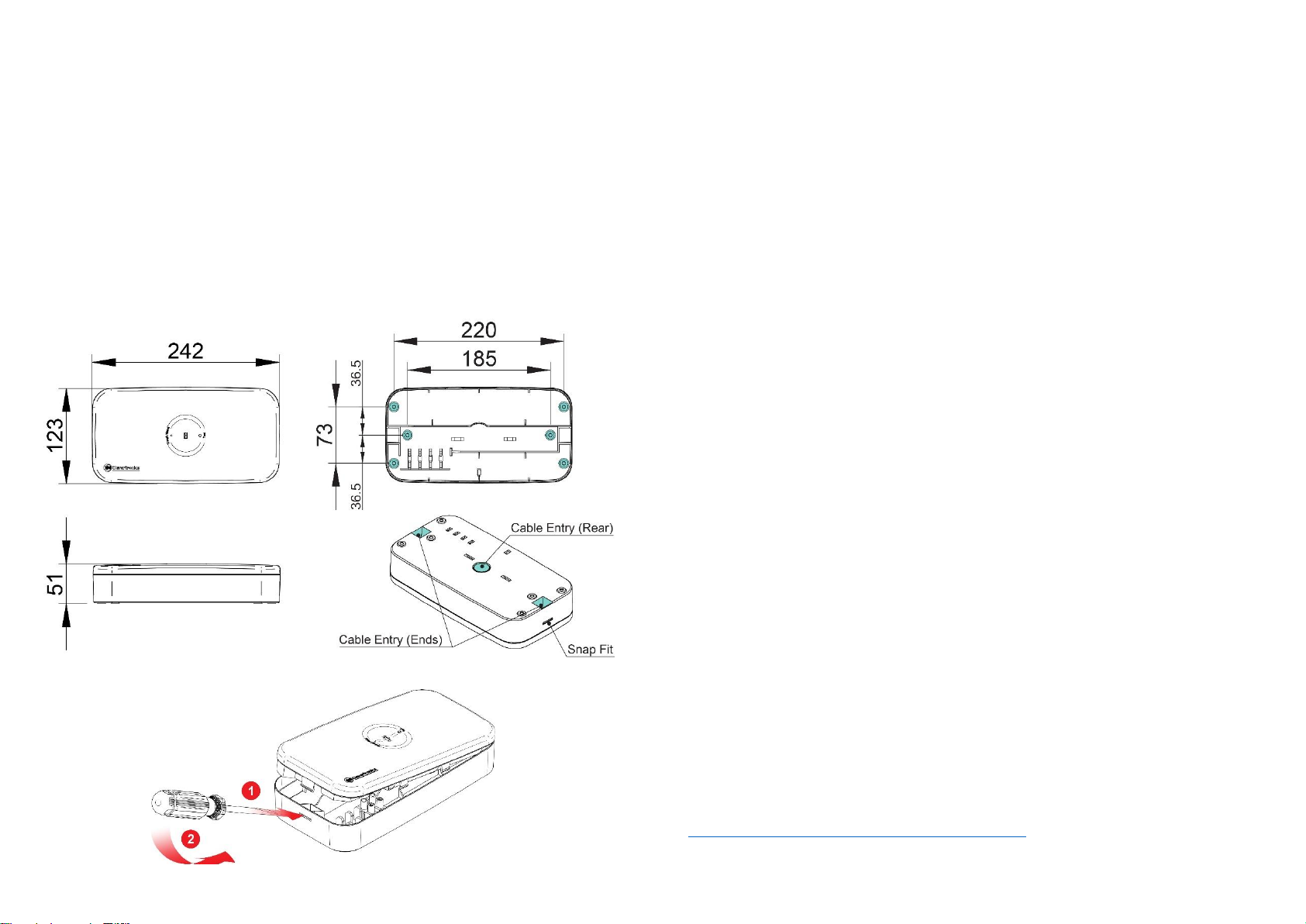

Dimensions:

Lid Removal:

Testing:

When the unit is connected to the un-switched active, it must be allowed to charge the battery for at

least 24hours. The emergency lamp only illuminates during a power fail. Conduct the following tests:

•The emergency lamp must illuminate for at least 2 hours after disconnection from the mains. The

results of all tests are required to be recorded in a service logbook, which is to be kept on-site at all

times. If the unit fails to illuminate for the requisite time, remedial action must be taken to repair the

situation and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non

maintained operation)

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Green LED Test Switch indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Fault: Green LED flashes once every 5 seconds-Battery is disconnected

Check: Battery is connected

Fault: Green LED blinks off once every 5 seconds-Charging very flat battery

Check: Allow 20min to recover battery then re-check

Fault: Green LED flashes at 2Hz (Fast Flash)-Faulty Battery

Check: Replace battery

Rated Emergency Lumen Output in accordance with AS2293.1, not applicable

for –TH (theatre) version (refer to spacing tables for installation positions):

Refer to the Technical Label for classification information.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries

discharged or “cycled”. The battery in this fitting has been selected to give excellent long-life

performance in a controlled AS2293 testing environment. Excessive battery cycling will reduce through-

life performance and may lead to premature battery failure. Battery warranty claims, as a result of such

abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

http://clevertronics.com.au/terms-conditions-sale-australia-nz/
