Clarke CSB10 Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0513

SIPHON FEED SANDBLASTER

MODEL NO: CSB10

PART NO: 7640117

INTRODUCTION

Thank you for purchasing this Clarke siphon feed sandblaster.

Before you try to use this product, read this manual and follow the instructions

carefully. In doing so you will ensure your safety and the safety of others

around you. You can also look forward to a purchase that gives you long and

satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

CONSUMABLES

Please be aware that certain parts of this sandblaster will wear, requiring

replacement and that these parts may not be covered by your guarantee.

The wear on certain parts depends on the abrasiveness of the materials used.

Replacement parts are available from your nearest Clarke International

dealer.

GENERAL SAFETY RULES

1. Read this instruction manual before connecting this device to the

compressor.

2. Do not use any silica based abrasives with this sandblaster. Silica based

abrasives have been linked to severe respiratory disease. Always use

recommended abrasives. Abrasives used in this sandblaster may be

covered by COSHH Regulations.

3. Safety glasses, hood, long-sleeve shirt, gloves and a NIOSH/MSHA

approved respirator must be worn during operation and clean up.

4. During operation, do not expose the hands or skin directly in the line of the

Sandblasting Gun nozzle.

5. After assembly, inspect to make sure all components seal properly.

6. Everyone in the blasting area must also wear protective gear.

7. Check hoses and air lines for weak or worn condition before each

use.Make sure all connections are secure before use.

8. Products used in this unit may be covered by COSHH Regulations.

9. ALWAYS make sure there is adequate ventilation. Do not spray in confined

or enclosed areas.

10. ALWAYS disconnect the gun from the air supply when it is not in use, and

before any disassembly.

11. ALWAYS thoroughly clean the gun after use. See ‘Maintenance’

12. ALWAYS turn OFF the air supply at the compressor outlet, and expel all air

from the air hose and gun, BEFORE disconnecting the Sandblasting Gun

from the air hose.

Warning: Compressed air can be dangerous. Ensure that you are

thoroughly familiar with all precautions relating to the use of

compressors and compressed air supply.

Warning: Disconnect the abrasive blaster from the air supply before

changing accessories or attempting to install, service, relocate or

perform any maintenance.

Warning: Do not point the abrasive blaster gun at anyone or objects

other than the intended work object.

13. ALWAYS use appropriate air hoses and couplings and ensure that they are

in good condition. If any parts are worn or damaged, they should be

replaced immediately.

14. ALWAYS hold the tool firmly and maintain good balance.

15. ALWAYS ensure hose couplings are secure before use.

16. NEVER carry the gun by the hose. Keep hoses away from heat, oil and

sharp edges.

17. NEVER use wet or even damp grit. Ensure the grit is completely dry,

18. Never direct the Grit Spray at people or animals. In the case of injury, seek

expert medical advice immediately.

19. NEVER allow children to use or play with this appliance.

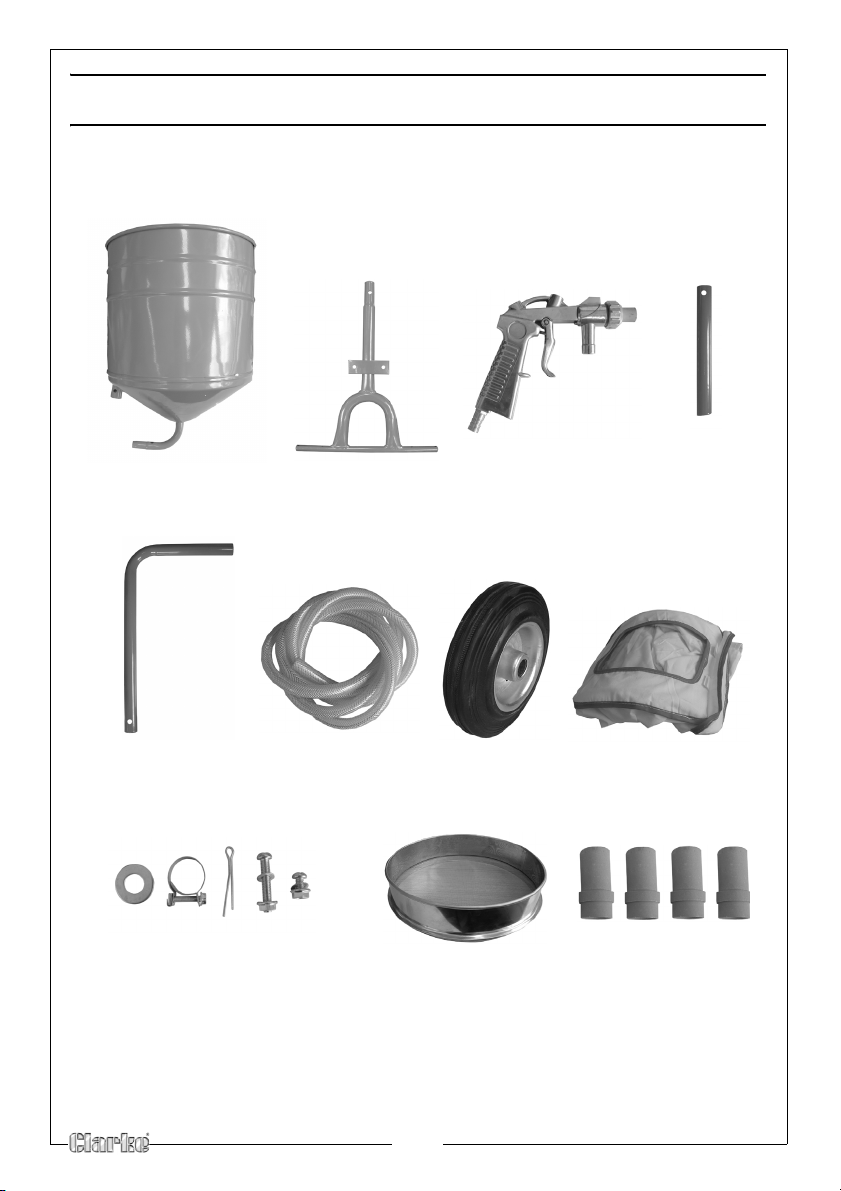

UNPACKING

Unpack your sand blaster and its accessories and make sure that the following

items are present. Should there be any damage caused during transit contact

your Clarke dealer immediately.

Drum Assembly Lower Handle/

2 x WheelsUpper Handle

Sandblasting Gun

Delivery Hose

1 x Fixings Pack

Axle Assembly

Leg/Prop

Stand

Combination

Mesh Filter

Ceramic

Hood & Mask

Sandblasting

Nozzles

(HTCBS1001)

(HTCBS1002)

(HTCBS1003)

(HTCB104)

(HTCBS1005) (HTCBS1006) (HTCBS1007

(HTCBS1008)

(HTCBS1009) (HTCBS1010)

(HTCBS11)

Please dispose of any packaging responsibly. The cardboard packaging can

be recycled.

ASSEMBLY

Split Pin

Wheel

Washer

Split Pin

Insert the split pin into the lower

handle/axle assembly as shown

on the right.

2. Slide a washer, the wheel, and

another washer onto the axle.

3. Secure in place using a second

split pin.

Leg/Prop Stand

Fit the leg/prop stand to the drum

and secure in place using 1 long

bolt, 1 washer and 1 nut.

5. Attach the lower handle/axle

assembly to the drum and use 2

short bolts, 2 washers and 2 nuts to

secure into place.

6. Place the upper handle onto the

top of the lower handle/axle

assembly as shown and use 1 long

bolt, 1 washer and 1 nut to lock it

into place.

7. Place a jubilee clip onto each

end of the hose.

8. Firmly push the end of the hose

onto the abrasive inlet on the

sandblasting gun.

9. Slide one of the jubilee clips so

that it is overlapping both the

hose and the abrasive inlet of the

sandblasting gun.

10. Tighten the jubilee clip with a

screwdriver.

11. Firmly push the opposite end of

the hose onto the abrasive outlet,

located at the base of the drum.

NOTE: there is an air hole in the

abrasive outlet - do not

cover this air hole with

abrasive hose.

12. Position the remaining jubilie clip

so that it is overlapping both the

hose and the abrasive outlet of

the drum.

13. Tighten the jubilee clip with a screwdriver.

OPERATION

USING YOUR SANDBLASTER

Connect your sandblasting gun to a compressor (minimum 3hp) via the 3/8”

hose adaptor located at the base of the handle.

Set the air pressure on your air compressor to 100 -150 psi.

1. Connect a air hose (sold separately) between your air compressor, and the

hose fitting on the sandblasting gun.

2. Make sure air hole located on the base of the abrasive tank is not covered.

3. Place the mesh filter on top of the drum and pour the blasting medium

through the filter into the drum (max 50 lbs)

4. Start compressor.

5. Check for leaks along all hoses and fittings. if leaks are found, turn off the

air compressor, disconnect the hose and repair immediately.

6. Point the sandblasting gun in a safe direction away from people, pets or

anything around you that may be damaged by direct or indirect abrasive

spray.

7. Press and hold the sandblasting gun trigger until abrasive media is flowing

through the nozzle.

TO STOP BLASTING

1. Release the trigger on the sandblasting gun.

MAINTENANCE

REPLACING NOZZLE

After 10-12 hours of blasting time the nozzle should be checked for wear. The

nozzle will wear out overtime and should be replaced when the hole is no longer

round or the abrasive media does not flow smoothly through it.To replace the

nozzle:

1. Disconnect the sandblasting gun from the air hose.

Nozzle

Unscrew the nozzle adapter,

located at the front of the

sandblasting gun.

3. Remove the old nozzle.

4. Insert new nozzle.

5. Replace the nozzle adapter and

firmly screw it onto sandblasting

gun.

• Keep your sandblaster clean,

and protect it from damage.

• Check for worn abrasive hose and fittings. Watch for leaks, blistering,

bulging or thinning of the hose.

• Replace any parts which appear worn.

PARTS AND SERVICING

For Parts & Servicing, please contact your nearest dealer, or

CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: 020 8988 7400

PARTS & SERVICE FAX: 020 8558 3622

or e-mail as follows:

PARTS: [email protected]

SERVICE: Service@clarkeinternational.com

SPECIFICATIONS

CSB10

Sand Grade Type Up to 60 Grit (Clarke AOP60)

Abrasive Material Aluminium Oxide, Garnet Powder,

Glass Bead

Drum Capacity: (gallons) 3.7 UK

Sand Capacity: (kg/lbs) 22.6/50

Operating Pressure: (psi) 100-150

Flow Rate Req. (cfm) 10-16

Compressor Size Hp (Minimum) 3

Gun Inlet Size: 3/8” hose adaptor fitted

Air Inlet Hose Diameter: 3/8” (10mm)

Nozzle Sizes: (mm) 4, 5, 6, 7 (Ceramic)

Dimensions (Length x Width x Height) 744 mm x 279 mm x 378 mm

Weight 4.4 Kg
