Quick Start Guide Cisco Aironet 1130AG Access Point
Read This First
You should review this table and the instructions for opening the top cover.
The table contains important information you need to know so you can
successfully configure your access point.
Setting Default
Login Cisco (case sensitive)
Password Cisco (case sensitive)
IP address Determined by DHCP server. See
the “Obtaining an IP Address” on
page 16 for additional information.
Service Set Identifier (SSID) None assigned
Status LED Status Description
Blue Normal operating condition, and at
least one client device is associated
with the access point.
Light green Normal operating condition, no
client devices are associated.
Amber or red Error condition. See the “Checking
the Access Point LEDs” section on
page 38.
278-15955-02
Radio and IP Address Configuration
The access point ships with its radio disabled.You must enable them when
you configure the access point for the first time. Also, the access point no
longer is assigned an IP address. It is configured to obtain an IP address using
a DHCP server. If your network does not use a DHCP server, you must
connect to the access point’s console port and assign a static IP address (See
the “Assigning an IP Address Using the CLI” section on page 17.
How to Open the Top Cover
The top cover provides access to the cable and power connections.
Caution Do not open the access point top cover as you would a hatch or
door. You could damage the cover by doing so. An instruction
label is attached to the access point. Take time to read the label
before you open the access point cover.
When you have familiarized yourself with the opening procedure, we
recommend that you remove the label, putting it in a safe place, such as inside
the cover of this guide.
3
Quick Start Guide Cisco Aironet 1130AG Access Point
Note Status LED indications are not visible when the top cover is open.
Follow these steps to open the top cover:

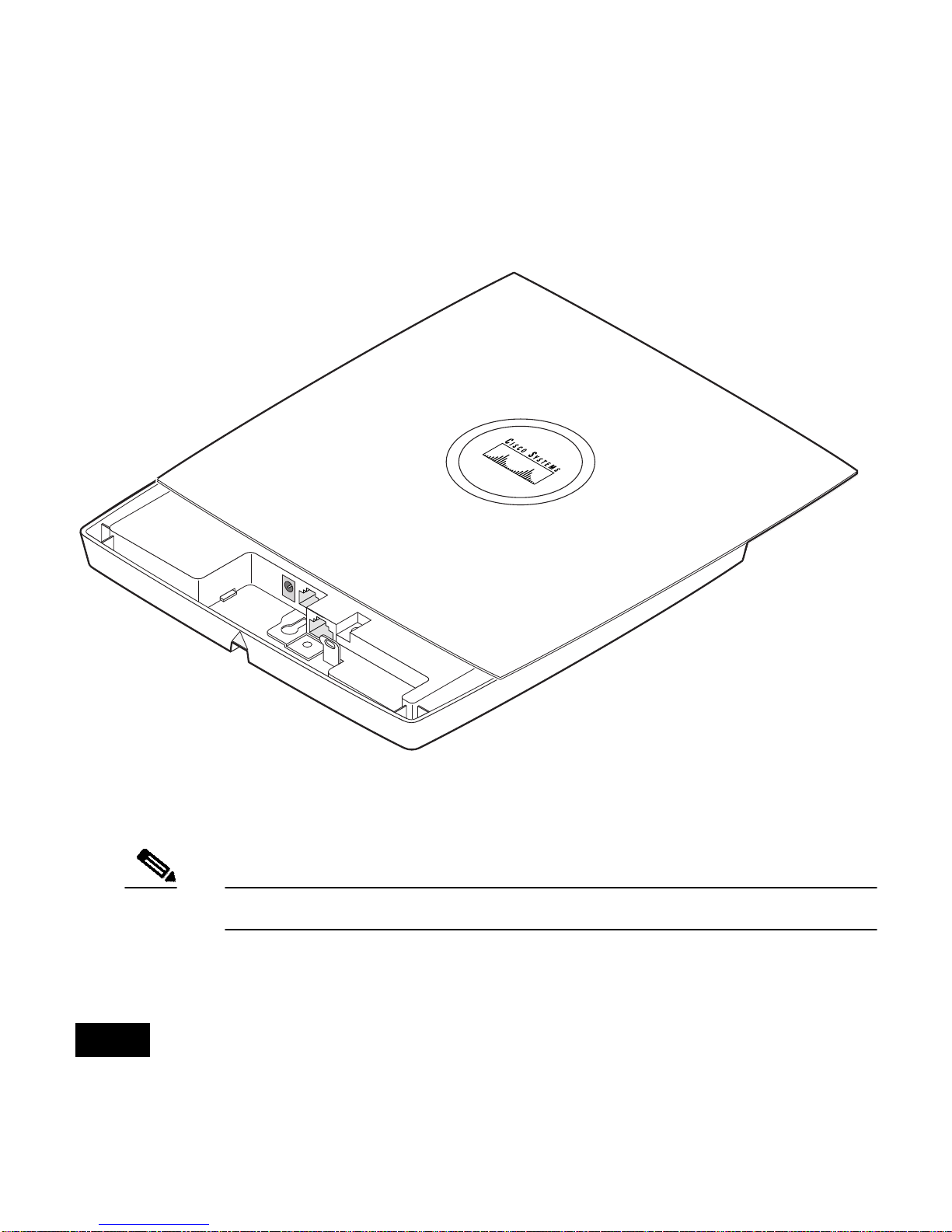

1. Put the access point on a flat surface, and grasp it with both hands, as
shown in this illustration.
121061
Cable access notch
and arrow
478-15955-02

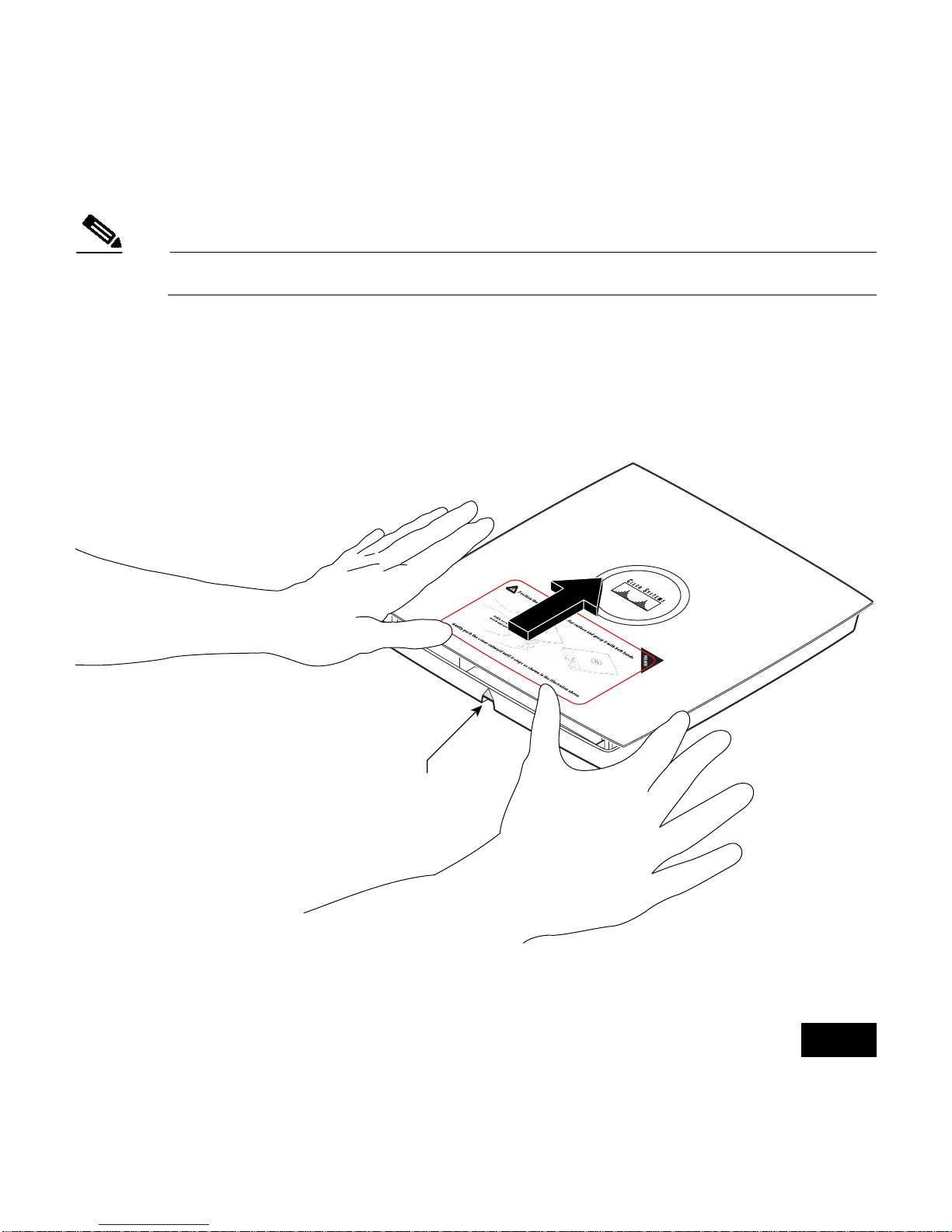

2. Gently push the cover away from you until it stops, as shown in this
illustration.
3. Remove the opening instruction label from the top cover.
Note We recommend that you save the label for reference.
121423
5
Quick Start Guide Cisco Aironet 1130AG Access Point
Safety Information
The FCC, with its action in ET Docket 96-8, has adopted a safety standard for
human exposure to RF electromagnetic energy emitted by FCC-certified
equipment. When used with approved Cisco Aironet antennas, Cisco Aironet
products meet the uncontrolled environmental limits found in OET-65 and
ANSI C95.1, 1991. Proper operation of this radio device according to the
instructions in this document and the installation and configuration guide will
result in user exposure substantially below the FCC recommended limits.
•Do not hold any component containing a radio such that the antenna is
very close to or touching any exposed parts of the body, especially the
face or eyes, while transmitting.
•The use of wireless devices in hazardous locations is limited to the
constraints posed by the safety directors of such environments.
Warnings
Translated versions of these safety warnings are provided in the Cisco Aironet
1130AG Series Access Point Hardware Installation Guide.
678-15955-02
Warning
This product must be connected to a Power-over-Ethernet
(PoE) IEEE 802.3af compliant power source or an IEC60950
compliant limited power source.
Warning
In order to comply with FCC radio frequency (RF) exposure
limits, antennas should be located a minimum of 7.9 in. (20cm)
or more from the body of all persons.
Warning
Do not operate your wireless network device near unshielded
blasting caps or in an explosive environment unless the
device has been modified to be especially qualified for such
use.
Warning
Do not work on the system or connect or disconnect cables
during periods of lightning activity.
7
Quick Start Guide Cisco Aironet 1130AG Access Point
Warning
Read the installation instructions before you connect the
system to its power source.
Warning
This product relies on the building’s installation for
short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: 20A.
Overview
This guide is designed to help you minimally configure a Cisco Aironet
1130AG Series Access Point using the access point graphical user interface
(GUI) through your web browser. The GUI is the primary-configuration tool.
Configuration can also be performed using the command line interface (CLI).
For instructions on using the CLI, see the Cisco IOS Software Configuration
Guide for Cisco Aironet Access Points.
878-15955-02
Note Configuring your access point using Cisco’s Structured
Wireless-Aware Network (SWAN) or Cisco’s Wireless LAN
Solution Engine (WLSE) is not covered in this guide. Refer to the
appropriate SWAN or WLSE documentation for configuration
information. These documents are also available on Cisco.com.
This guide provides an overview of the access point, but does not discuss
mounting it. Those instructions are in the Cisco Aironet 1130AG Series
Access Point Hardware Installation Guide, which is available on Cisco.com.
Note Do not attempt to connect a cable with a protective boot to the access
point Ethernet or console port. Because of limited space in the
connection area, booted connectors will not fit.
9
Quick Start Guide Cisco Aironet 1130AG Access Point
This table lists documents related to the 1130AG series access point.
These documents are on Cisco.com. Follow these steps to access them:
1. Browse to http://www.cisco.com.
2. In the Quick Links section, click Products & Solutions. The Cisco
Products page appears.
3. Click Wireless. A small window appears containing a partial listing of
wireless products.
4. Click All Wireless Products. The Wireless Products page appears.
Topic Document
Performing an advanced
configuration Cisco IOS Software Configuration Guide for
Cisco Aironet Access Points
Cisco Aironet Command Reference for Cisco
Aironet Access Points and Bridges
Mounting the access point Cisco Aironet 1130AG Series Access Point
Hardware Installation Guide
System requirements,
important notes,
limitations, and
last-minute updates
Release Notes for Cisco Aironet 1130AG
Series Access Points for Cisco IOS Release
12.3(2)JA (or later)
10 78-15955-02
5. Scroll down to the Product Portfolio section of the page and find the
Wireless LAN subsection.
6. Click Cisco Aironet 1130AG Series. A list of Cisco Aironet 1130AG
Series Access Points documents appears.
7. Click the appropriate document.
Unpacking the Access Point
Each access point package contains the following items:
•Cisco Aironet 1130AG Series Access Point
•Optional—Cisco Aironet 1130AG Series Power Module (universal
power supply)
•Mounting hardware kit
–
One mounting plate
–
Two suspended ceiling adjustable T-rail clips
–
One security hasp adapter
–
Four 6 x 32 x -inchflat head Phillips head machine screws
–
One 8 x 32 x3 /16-inch pan head Phillips head machine screws
–
2 #8 plastic wall anchors
–
2 #8 x 32 x 1-inch pan head screws
