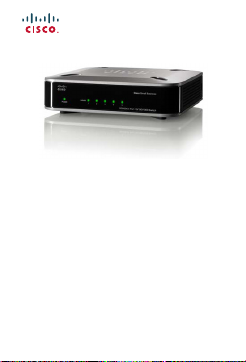

Quick Start Guide

Cisco Small Business

Model SD2005

5-Port 10/100/1000 Switch

Package Contents

•SD2005 Switch

•Power Adapter

•Quick Start Guide

Product Overview

Thank you for choosing the Cisco 5-Port 10/100/1000 Switch. The Switch

provides non-blocking, wire speed switching for your 10, 100, and 1000 Mbps

network clients.

Front Panel

The LEDs are located on the front panel of the Switch.

System—(Green) This LED lights up and remains lit when the Switch is

powered on.

Link/ACT (Ports 1-5)—(Green) Each LED lights up when a connection is made

through its corresponding port. It flashes when the corresponding port is active.

Back Panel

The Power Port and Ethernet network ports are located on the back panel of the

Switch. All ports are auto-negotiating and have automatic MDI/MDI-X crossover

detection.

1-5 —These ports connect the Switch to network devices, such as computers.

Power—External power adapter with 12V/0.5A DC output must support 100/

240 V and 50/60 Hz inputs.

The power port is where you will connect the power adapter.

Side Panels

There is a physical security slot located on the side of the Switch. The security

slot is where you can attach a lock to protect the Switch from theft.

Placement Options

Set the Switch on its four rubber feet, or mount the Switch on a wall.

The Switch offers two wall-mount slots, which are the two crisscross slots on

the bottom panel. The measurement between the two slots is 2.52 inches

(64 mm).

Before mounting the switch onto a wall, it is important to consider the following:

•Ensure the wall is strong enough to support the switch, a minimum of 1/2” of

sheet rock is recommended.

•Do not operate the switch in an area that has reduced air flow, or exceeds

an ambient temperature of 104º (40ºC).

•The switch can be mounted either horizontal or vertical.

•Mounting screws should have a head 5.5mm wide, 2mm deep, and the shaft

of the screw should be at least 13mm long and 2.9mm wide.

To use the wall-mount option, follow these instructions:

STEP 1The wall-mount slots are two crisscross slots on the Switch’s

bottom panel. Attach two screws to the wall 64mm apart.

STEP 2Maneuver the Switch to insert the screws into the two slots, then slide

the switch downward onto the screws.

Quick Start Guide

Cisco Small Business

Model SD2005

5-Port 10/100/1000 Switch

Package Contents

•SD2005 Switch

•Power Adapter

•Quick Start Guide

Product Overview

Thank you for choosing the Cisco 5-Port 10/100/1000 Switch. The Switch

provides non-blocking, wire speed switching for your 10, 100, and 1000 Mbps

network clients.

Front Panel

The LEDs are located on the front panel of the Switch.

System—(Green) This LED lights up and remains lit when the Switch is

powered on.

Link/ACT (Ports 1-5)—(Green) Each LED lights up when a connection is made

through its corresponding port. It flashes when the corresponding port is active.

Back Panel

The Power Port and Ethernet network ports are located on the back panel of the

Switch. All ports are auto-negotiating and have automatic MDI/MDI-X crossover

detection.

1-5 —These ports connect the Switch to network devices, such as computers.

Power—External power adapter with 12V/0.5A DC output must support 100/

240 V and 50/60 Hz inputs.

The power port is where you will connect the power adapter.

Side Panels

There is a physical security slot located on the side of the Switch. The security

slot is where you can attach a lock to protect the Switch from theft.

Placement Options

Set the Switch on its four rubber feet, or mount the Switch on a wall.

The Switch offers two wall-mount slots, which are the two crisscross slots on

the bottom panel. The measurement between the two slots is 2.52 inches

(64 mm).

Before mounting the switch onto a wall, it is important to consider the following:

•Ensure the wall is strong enough to support the switch, a minimum of 1/2” of

sheet rock is recommended.

•Do not operate the switch in an area that has reduced air flow, or exceeds

an ambient temperature of 104º (40ºC).

•The switch can be mounted either horizontal or vertical.

•Mounting screws should have a head 5.5mm wide, 2mm deep, and the shaft

of the screw should be at least 13mm long and 2.9mm wide.

To use the wall-mount option, follow these instructions:

STEP 1The wall-mount slots are two crisscross slots on the Switch’s

bottom panel. Attach two screws to the wall 64mm apart.

STEP 2Maneuver the Switch to insert the screws into the two slots, then slide

the switch downward onto the screws.

Quick Start Guide

Cisco Small Business

Model SD2005

5-Port 10/100/1000 Switch

Package Contents

•SD2005 Switch

•Power Adapter

•Quick Start Guide

Product Overview

Thank you for choosing the Cisco 5-Port 10/100/1000 Switch. The Switch

provides non-blocking, wire speed switching for your 10, 100, and 1000 Mbps

network clients.

Front Panel

The LEDs are located on the front panel of the Switch.

System—(Green) This LED lights up and remains lit when the Switch is

powered on.

Link/ACT (Ports 1-5)—(Green) Each LED lights up when a connection is made

through its corresponding port. It flashes when the corresponding port is active.

Back Panel

The Power Port and Ethernet network ports are located on the back panel of the

Switch. All ports are auto-negotiating and have automatic MDI/MDI-X crossover

detection.

1-5 —These ports connect the Switch to network devices, such as computers.

Power—External power adapter with 12V/0.5A DC output must support 100/

240 V and 50/60 Hz inputs.

The power port is where you will connect the power adapter.

Side Panels

There is a physical security slot located on the side of the Switch. The security

slot is where you can attach a lock to protect the Switch from theft.

Placement Options

Set the Switch on its four rubber feet, or mount the Switch on a wall.

The Switch offers two wall-mount slots, which are the two crisscross slots on

the bottom panel. The measurement between the two slots is 2.52 inches

(64 mm).

Before mounting the switch onto a wall, it is important to consider the following:

•Ensure the wall is strong enough to support the switch, a minimum of 1/2” of

sheet rock is recommended.

•Do not operate the switch in an area that has reduced air flow, or exceeds

an ambient temperature of 104º (40ºC).

•The switch can be mounted either horizontal or vertical.

•Mounting screws should have a head 5.5mm wide, 2mm deep, and the shaft

of the screw should be at least 13mm long and 2.9mm wide.

To use the wall-mount option, follow these instructions:

STEP 1The wall-mount slots are two crisscross slots on the Switch’s

bottom panel. Attach two screws to the wall 64mm apart.

STEP 2Maneuver the Switch to insert the screws into the two slots, then slide

the switch downward onto the screws.

Quick Start Guide

Cisco Small Business

Model SD2005

5-Port 10/100/1000 Switch

Package Contents

•SD2005 Switch

•Power Adapter

•Quick Start Guide

Product Overview

Thank you for choosing the Cisco 5-Port 10/100/1000 Switch. The Switch

provides non-blocking, wire speed switching for your 10, 100, and 1000 Mbps

network clients.

Front Panel

The LEDs are located on the front panel of the Switch.

System—(Green) This LED lights up and remains lit when the Switch is

powered on.

Link/ACT (Ports 1-5)—(Green) Each LED lights up when a connection is made

through its corresponding port. It flashes when the corresponding port is active.

Back Panel

The Power Port and Ethernet network ports are located on the back panel of the

Switch. All ports are auto-negotiating and have automatic MDI/MDI-X crossover

detection.

1-5 —These ports connect the Switch to network devices, such as computers.

Power—External power adapter with 12V/0.5A DC output must support 100/

240 V and 50/60 Hz inputs.

The power port is where you will connect the power adapter.

Side Panels

There is a physical security slot located on the side of the Switch. The security

slot is where you can attach a lock to protect the Switch from theft.

Placement Options

Set the Switch on its four rubber feet, or mount the Switch on a wall.

The Switch offers two wall-mount slots, which are the two crisscross slots on

the bottom panel. The measurement between the two slots is 2.52 inches

(64 mm).

Before mounting the switch onto a wall, it is important to consider the following:

•Ensure the wall is strong enough to support the switch, a minimum of 1/2” of

sheet rock is recommended.

•Do not operate the switch in an area that has reduced air flow, or exceeds

an ambient temperature of 104º (40ºC).

•The switch can be mounted either horizontal or vertical.

•Mounting screws should have a head 5.5mm wide, 2mm deep, and the shaft

of the screw should be at least 13mm long and 2.9mm wide.

To use the wall-mount option, follow these instructions:

STEP 1The wall-mount slots are two crisscross slots on the Switch’s

bottom panel. Attach two screws to the wall 64mm apart.

STEP 2Maneuver the Switch to insert the screws into the two slots, then slide

the switch downward onto the screws.

Quick Start Guide

Cisco Small Business

Model SD2005

5-Port 10/100/1000 Switch

Package Contents

•SD2005 Switch

•Power Adapter

•Quick Start Guide

Product Overview

Thank you for choosing the Cisco 5-Port 10/100/1000 Switch. The Switch

provides non-blocking, wire speed switching for your 10, 100, and 1000 Mbps

network clients.

Front Panel

The LEDs are located on the front panel of the Switch.

System—(Green) This LED lights up and remains lit when the Switch is

powered on.

Link/ACT (Ports 1-5)—(Green) Each LED lights up when a connection is made

through its corresponding port. It flashes when the corresponding port is active.

Back Panel

The Power Port and Ethernet network ports are located on the back panel of the

Switch. All ports are auto-negotiating and have automatic MDI/MDI-X crossover

detection.

1-5 —These ports connect the Switch to network devices, such as computers.

Power—External power adapter with 12V/0.5A DC output must support 100/

240 V and 50/60 Hz inputs.

The power port is where you will connect the power adapter.

Side Panels

There is a physical security slot located on the side of the Switch. The security

slot is where you can attach a lock to protect the Switch from theft.

Placement Options

Set the Switch on its four rubber feet, or mount the Switch on a wall.

The Switch offers two wall-mount slots, which are the two crisscross slots on

the bottom panel. The measurement between the two slots is 2.52 inches

(64 mm).

Before mounting the switch onto a wall, it is important to consider the following:

•Ensure the wall is strong enough to support the switch, a minimum of 1/2” of

sheet rock is recommended.

•Do not operate the switch in an area that has reduced air flow, or exceeds

an ambient temperature of 104º (40ºC).

•The switch can be mounted either horizontal or vertical.

•Mounting screws should have a head 5.5mm wide, 2mm deep, and the shaft

of the screw should be at least 13mm long and 2.9mm wide.

To use the wall-mount option, follow these instructions:

STEP 1The wall-mount slots are two crisscross slots on the Switch’s

bottom panel. Attach two screws to the wall 64mm apart.

STEP 2Maneuver the Switch to insert the screws into the two slots, then slide

the switch downward onto the screws.

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registered trademarks or

trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other

countries. All other trademarks mentioned in this document or Website are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0705R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

78-18926-01

Typical Installation Scenario

The application diagram shown here is an example of a typical network

configuration.

When you connect your network devices, make sure you don’t exceed the

maximum cabling distances, which are listed in the following table:

From To Maximum Distance

Switch Switch 100 meters (328 feet)

Switch Computer 100 meters (328 feet)

Installation

Perform the steps in this section to install the hardware.

STEP 1Connect a Category 5 Ethernet network cable to one of the

numbered ports on the Switch. Connect the other end to a

computer or other network device.

STEP 2Repeat step 1 to connect additional devices.

STEP 3Connect the supplied power adapter to the power port on the Switchs

back panel. Plug the other end of the adapter into an electrical outlet.

CAUTION Make sure you use the power adapter included with the

Switch. Using a different power adapter may damage the

Switch.

STEP 4Power on the devices connected to the Switch. LEDs will come on for

ports connected to powered devices.

Congratulations! The installation of the 10/100/1000 Switch is complete!

Specifications

The following table lists the specifications for the SD2005 10/100/1000

Ethernet Switch.

Item Specification

Model SD2005

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 5 RJ-45 10/100/1000 Mbps ports

Cabling Type Cat5e

LEDs System, Link/Act 1 through 5

Security Feature Security Slot

Dimensions WxHxD

5.51" x 1.31" x 5.51"

140x33.35x140 mm

Unit Weight 0.606 lbs (0.275 kg)

Power DC12V/.5A

Certification FCC Class B, CE

Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity 20 to 95% Non-Condensing

Storage Humidity 5% to 90% Non-Condensing

Where to Go From Here

Resource Location

Customer Support www.cisco.com/web/products/

linksys/index.html

End User License Agreement www.cisco.com/web/products/

linksys/index.html

Regulatory Compliance and Safety

Information

www.cisco.com/web/products/

linksys/index.html

Warranty Information www.cisco.com/web/products/

linksys/index.html

Cisco Partner Central site for Small

Business

http://www.cisco.com/web/partners/

sell/smb/

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registered trademarks or

trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other

countries. All other trademarks mentioned in this document or Website are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0705R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

78-18926-01

Typical Installation Scenario

The application diagram shown here is an example of a typical network

configuration.

When you connect your network devices, make sure you don’t exceed the

maximum cabling distances, which are listed in the following table:

From To Maximum Distance

Switch Switch 100 meters (328 feet)

Switch Computer 100 meters (328 feet)

Installation

Perform the steps in this section to install the hardware.

STEP 1Connect a Category 5 Ethernet network cable to one of the

numbered ports on the Switch. Connect the other end to a

computer or other network device.

STEP 2Repeat step 1 to connect additional devices.

STEP 3Connect the supplied power adapter to the power port on the Switchs

back panel. Plug the other end of the adapter into an electrical outlet.

CAUTION Make sure you use the power adapter included with the

Switch. Using a different power adapter may damage the

Switch.

STEP 4Power on the devices connected to the Switch. LEDs will come on for

ports connected to powered devices.

Congratulations! The installation of the 10/100/1000 Switch is complete!

Specifications

The following table lists the specifications for the SD2005 10/100/1000

Ethernet Switch.

Item Specification

Model SD2005

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 5 RJ-45 10/100/1000 Mbps ports

Cabling Type Cat5e

LEDs System, Link/Act 1 through 5

Security Feature Security Slot

Dimensions WxHxD

5.51" x 1.31" x 5.51"

140x33.35x140 mm

Unit Weight 0.606 lbs (0.275 kg)

Power DC12V/.5A

Certification FCC Class B, CE

Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity 20 to 95% Non-Condensing

Storage Humidity 5% to 90% Non-Condensing

Where to Go From Here

Resource Location

Customer Support www.cisco.com/web/products/

linksys/index.html

End User License Agreement www.cisco.com/web/products/

linksys/index.html

Regulatory Compliance and Safety

Information

www.cisco.com/web/products/

linksys/index.html

Warranty Information www.cisco.com/web/products/

linksys/index.html

Cisco Partner Central site for Small

Business

http://www.cisco.com/web/partners/

sell/smb/

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registered trademarks or

trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other

countries. All other trademarks mentioned in this document or Website are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0705R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

78-18926-01

Typical Installation Scenario

The application diagram shown here is an example of a typical network

configuration.

When you connect your network devices, make sure you don’t exceed the

maximum cabling distances, which are listed in the following table:

From To Maximum Distance

Switch Switch 100 meters (328 feet)

Switch Computer 100 meters (328 feet)

Installation

Perform the steps in this section to install the hardware.

STEP 1Connect a Category 5 Ethernet network cable to one of the

numbered ports on the Switch. Connect the other end to a

computer or other network device.

STEP 2Repeat step 1 to connect additional devices.

STEP 3Connect the supplied power adapter to the power port on the Switchs

back panel. Plug the other end of the adapter into an electrical outlet.

CAUTION Make sure you use the power adapter included with the

Switch. Using a different power adapter may damage the

Switch.

STEP 4Power on the devices connected to the Switch. LEDs will come on for

ports connected to powered devices.

Congratulations! The installation of the 10/100/1000 Switch is complete!

Specifications

The following table lists the specifications for the SD2005 10/100/1000

Ethernet Switch.

Item Specification

Model SD2005

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 5 RJ-45 10/100/1000 Mbps ports

Cabling Type Cat5e

LEDs System, Link/Act 1 through 5

Security Feature Security Slot

Dimensions WxHxD

5.51" x 1.31" x 5.51"

140x33.35x140 mm

Unit Weight 0.606 lbs (0.275 kg)

Power DC12V/.5A

Certification FCC Class B, CE

Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity 20 to 95% Non-Condensing

Storage Humidity 5% to 90% Non-Condensing

Where to Go From Here

Resource Location

Customer Support www.cisco.com/web/products/

linksys/index.html

End User License Agreement www.cisco.com/web/products/

linksys/index.html

Regulatory Compliance and Safety

Information

www.cisco.com/web/products/

linksys/index.html

Warranty Information www.cisco.com/web/products/

linksys/index.html

Cisco Partner Central site for Small

Business

http://www.cisco.com/web/partners/

sell/smb/

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registered trademarks or

trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other

countries. All other trademarks mentioned in this document or Website are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0705R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

78-18926-01

Typical Installation Scenario

The application diagram shown here is an example of a typical network

configuration.

When you connect your network devices, make sure you don’t exceed the

maximum cabling distances, which are listed in the following table:

From To Maximum Distance

Switch Switch 100 meters (328 feet)

Switch Computer 100 meters (328 feet)

Installation

Perform the steps in this section to install the hardware.

STEP 1Connect a Category 5 Ethernet network cable to one of the

numbered ports on the Switch. Connect the other end to a

computer or other network device.

STEP 2Repeat step 1 to connect additional devices.

STEP 3Connect the supplied power adapter to the power port on the Switchs

back panel. Plug the other end of the adapter into an electrical outlet.

CAUTION Make sure you use the power adapter included with the

Switch. Using a different power adapter may damage the

Switch.

STEP 4Power on the devices connected to the Switch. LEDs will come on for

ports connected to powered devices.

Congratulations! The installation of the 10/100/1000 Switch is complete!

Specifications

The following table lists the specifications for the SD2005 10/100/1000

Ethernet Switch.

Item Specification

Model SD2005

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 5 RJ-45 10/100/1000 Mbps ports

Cabling Type Cat5e

LEDs System, Link/Act 1 through 5

Security Feature Security Slot

Dimensions WxHxD

5.51" x 1.31" x 5.51"

140x33.35x140 mm

Unit Weight 0.606 lbs (0.275 kg)

Power DC12V/.5A

Certification FCC Class B, CE

Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity 20 to 95% Non-Condensing

Storage Humidity 5% to 90% Non-Condensing

Where to Go From Here

Resource Location

Customer Support www.cisco.com/web/products/

linksys/index.html

End User License Agreement www.cisco.com/web/products/

linksys/index.html

Regulatory Compliance and Safety

Information

www.cisco.com/web/products/

linksys/index.html

Warranty Information www.cisco.com/web/products/

linksys/index.html

Cisco Partner Central site for Small

Business

http://www.cisco.com/web/partners/

sell/smb/

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registered trademarks or

trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other

countries. All other trademarks mentioned in this document or Website are the property of their

respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0705R)

Printed in the USA on recycled paper containing 10% postconsumer waste.

78-18926-01

Typical Installation Scenario

The application diagram shown here is an example of a typical network

configuration.

When you connect your network devices, make sure you don’t exceed the

maximum cabling distances, which are listed in the following table:

From To Maximum Distance

Switch Switch 100 meters (328 feet)

Switch Computer 100 meters (328 feet)

Installation

Perform the steps in this section to install the hardware.

STEP 1Connect a Category 5 Ethernet network cable to one of the

numbered ports on the Switch. Connect the other end to a

computer or other network device.

STEP 2Repeat step 1 to connect additional devices.

STEP 3Connect the supplied power adapter to the power port on the Switchs

back panel. Plug the other end of the adapter into an electrical outlet.

CAUTION Make sure you use the power adapter included with the

Switch. Using a different power adapter may damage the

Switch.

STEP 4Power on the devices connected to the Switch. LEDs will come on for

ports connected to powered devices.

Congratulations! The installation of the 10/100/1000 Switch is complete!

Specifications

The following table lists the specifications for the SD2005 10/100/1000

Ethernet Switch.

Item Specification

Model SD2005

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 5 RJ-45 10/100/1000 Mbps ports

Cabling Type Cat5e

LEDs System, Link/Act 1 through 5

Security Feature Security Slot

Dimensions WxHxD

5.51" x 1.31" x 5.51"

140x33.35x140 mm

Unit Weight 0.606 lbs (0.275 kg)

Power DC12V/.5A

Certification FCC Class B, CE

Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity 20 to 95% Non-Condensing

Storage Humidity 5% to 90% Non-Condensing

Where to Go From Here

Resource Location

Customer Support www.cisco.com/web/products/

linksys/index.html

End User License Agreement www.cisco.com/web/products/

linksys/index.html

Regulatory Compliance and Safety

Information

www.cisco.com/web/products/

linksys/index.html

Warranty Information www.cisco.com/web/products/

linksys/index.html

Cisco Partner Central site for Small

Business

http://www.cisco.com/web/partners/

sell/smb/

Otros manuales para SD2005

Tabla de contenidos

Otros manuales de Cambiar de Cisco

Cisco

Cisco ME 3400 Series Manual

Cisco

Cisco Nexus 7000 Series Manual de instalación

Cisco

Cisco MS200X-24 Manual de usuario

Cisco

Cisco Catalyst Series Switch 2940 Manual de usuario

Cisco

Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Manual de usuario

Cisco

Cisco Catalyst X4232 Guía rápida

Cisco

Cisco 6503 - Catalyst Firewall Security Sys Manual de usuario

Cisco

Cisco UCS 6100 Series Manual del sistema

Cisco

Cisco Nexus 4001I Manual de usuario

Cisco

Cisco Nexus 7000 Series Manual de usuario

Cisco

Cisco Catalyst 6500-E Series Manual de usuario

Cisco

Cisco ME-3600X-24CX Series Manual de usuario

Cisco

Cisco CBS 350 Series Hoja de especificaciones

Cisco

Cisco AJ732A - MDS 9134 Fabric Switch Manual de instrucciones

Cisco

Cisco MDS 9000 Series Manual de usuario

Cisco

Cisco WS-C6506 Guía de inicio rápido

Cisco

Cisco SLM248P Manual de usuario

Cisco

Cisco WS-X6066-SLB-APC - Content Switching Module Manual de instalación y operación

Cisco

Cisco WS-C2955T-12 Guía de inicio rápido

Cisco

Cisco Nexus 7000 Series Manual de instalación

Cisco

Cisco Nexus 7000 Series Manual de usuario

Cisco

Cisco Nexus 3548 series Manual de usuario

Cisco

Cisco 1548M Cómo utilizar

Cisco

Cisco Catalyst 3040 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
