Cisco MERAKI MS355 Series Manual de usuario

MS355 Series Installation Guide

About this Guide

This guide provides instruction on how to install and configure your MS355 series switch. This guide also provides

mounting instructions and limited troubleshooting procedures. For more switch installation guides, refer to the

switch installation guides section on our documentation website.

Product Overview

Physical Specifications

MS355-24X MS355-24X2 MS355-48X MS355-48X2

1Gbe RJ45 16 -32 24

mGbe RJ45 8 24 16 24

10Gbe SFP+ 4444

40Gbe QSFP+ 2222

100G Hardware

Stack Port 2222

Dedicated

Mgmt Interface 1111

UPoE Capable Yes, 740W Yes, 740W Yes, 740W Yes, 740W

Hot Swap Power

Supply Yes, Dual Yes, Dual Yes, Dual Yes, Dual

Hot Swap Fans Yes, 3x Yes, 3x Yes, 3x Yes, 3x

Power Input 100 - 240 VAC, 47-63 100 - 240 VAC, 47-63

100 - 240 VAC, 47-63

Hz Hz

Power

Consumption

110 - 1793W 110 - 1793W 110 - 1793W 110 - 1793W

Operating

Temperature

32°F - 113 °F

0°C - 45°C

32°F - 113 °F

0°C - 45°C

32°F - 113 °F

0°C - 45°C

32°F - 113 °F

0°C - 45°C

Storage and

Transportation Temperature

-4°F - 158°F

-20°C - 70°C

-4°F - 158°F

-20°C - 70°C

-4°F - 158°F

-20°C - 70°C

-4°F - 158°F

-20°C - 70°C

Humidity 5% to 95% 5% to 95% 5% to 95% 5% to 95%

Mounting 1U Rack Mount 1U Rack Mount 1U Rack Mount 1U Rack Mount

Product View and Physical Features

Front Panel

MS355-24X Series Front Panel

MS355-24X2 Series Front Panel

MS355-48X Series Front Panel

MS355-48X2 Series Front Panel

Back Panel

MS355 Series Back Panel

Ports and Status Indicators

The MS uses LEDs to inform the user of the device's status. When the device powers on, all the Internet LEDs flash

twice. Additional functions are described below, from left to right.

Front Panel Components

Item Function LED Status Meaning

1 Power Solid orange Switch is unable to connect to the Meraki cloud

Flashing white Firmware upgrade in process

Solid white Switch is fully operational and connected to the Meraki cloud

Off Switch does not have power

2 Switch Ports Off No client connected

Solid orange 10/100 Mbps (1000 Mbps on SFP+)

Solid green 1000/2500/5000/10000 Mbps (10000 Mbps on SFP+)

Additionally, there is a RESTORE button available on the back panel.

Insert a paperclip if a restore is required.

• A brief, momentary press: To delete a downloaded configuration and reboot.

• Press and hold for more than 10 sec: To force the unit into a full factory restore.

Back Panel Components

Item Function LED

Status Meaning

1 Restore N/A Restore button to clear switch IP and local configuration

settings

2 Management Interface Green Connected, used for easy access to the local status page

3 Stack Ports N/A Stack Cables are connected here

4 Redundant Fans Green Active and operational

5Redundant Power

Supplies Green Active and functional power supplies

Power cords may be ordered separately.

Equipment is to be used only in a restricted access location and installed/operated only by trained service personnel.

Package Contents

In addition to the MS switch, the following are provided (mounting kit provided with 1U models only):

• 4-post Rack Mount it includes:

◦ US 12-24 mounting screws and cage nuts, 10 of each

◦ INTL M5 mounting screws and cage nuts, 10 of each

◦ INTL M6 mounting screws and cage nuts, 10 of each

◦ Mounting washers

◦ 2 Rack mount rails

◦ Rail kit screws

• 1025WAC Power Supply Unit

• 3 Pre-installed Fans

Safety and Warnings

These operations are to be taken with respect to all local laws. Please take the following into consideration for safe

operation:

• Power off the unit before you begin. Read the installation instructions before connecting the system to the power

source.

• Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with

standard practices for preventing accidents.

• Read the mounting instructions carefully before beginning installation. Failure to use the correct hardware or to

follow the correct procedures could result in a hazardous situation to people and damage to the system.

• This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective

device is rated not greater than: 15 A, 125 Vac, or 10A, 240 Vac.

• Please only power the device with the provided power cables to ensure regulatory compliance.

Pre-install Preparation

You should complete the following steps before going on-site to perform an installation.

Configure your Dashboard Network

The following is a brief overview only of the steps required to add a switch to your network. For detailed instructions

about creating, configuring and managing Meraki networks, refer to the online documentation

(documentation.meraki.com).

1. Login to http://dashboard.meraki.com. If this is your ﬁrst time, create a new account.

2. Find the network to which you plan to add your switches or create a new network.

3. Add your switches to your network. You will need your Meraki order number (found on your invoice) or the serial

number of each switch, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need

your Enterprise license key, which you should have received via email.

4. Go to the map / ﬂoor plan view and place each switch on the map by clicking and dragging it to the location where

you plan to mount it.

Check and Set Firmware

To ensure your switch performs optimally immediately following installation, it is recommended that you facilitate a

ﬁrmware upgrade prior to mounting your switch.

1. Attach your switch to power and a wired Internet connection.

2. The switch will turn on and the power LED will glow solid orange.

3. If the unit requires an upgrade, the power LED will begin blinking white until the upgrade is complete, at which

point the LED will turn solid white. You should allow at least a few minutes for the ﬁrmware upgrade to complete,

depending on the speed of your internet connection.

Check and Configure Upstream Firewall Settings

If a ﬁrewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most

current list of outbound ports and IP addresses for your particular organization can be found on the firewall configuration

page in your dashboard.

Assigning an IP Address

All switches must be assigned routable IP addresses. These IP addresses can be dynamically assigned via DHCP or

statically assigned.

Dynamic Assignment

When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC address

belonging to a Meraki switch. Other features of the network, such as 802.1X authentication, may rely on the property

that the switches have static IP addresses.

Static Assignment

Static IPs are assigned using the local web server on each switch. The following procedure describes how to set the

static IP:

1. Using a client machine (e.g., a laptop), connect to the switch over a wired connection.

2. Using a web browser on the client machine, access the switch’s built-in web server by browsing

to http://my.meraki.com. Alternatively, browse to http://1.1.1.100

3. Click on the “Uplink Conﬁguration” tab. Log in. The default login is the serial number (e.g. Qxxx-xxxx-xxxx), with no

password (e.g., Q2DD-551C-ZYW3).

4. Configure the static IP address, net mask, gateway IP address and DNS servers that this switch will use on its

management connection.

5. If necessary, reconnect the switch to the LAN.

Static IP via DHCP Reservations

Instead of associating to each Meraki switch individually to configure static IP addresses, an administrator can assign

static IP addresses on the upstream DHCP server. Through “DHCP reservations,” IP addresses are “reserved” for the

MAC addresses of the Meraki switches. Please consult the documentation for the DHCP server to conﬁgure DHCP

reservations.

Installation Instructions

Note: Each MS355 comes with an instruction pamphlet within the box. This pamphlet contains detailed step by step

guides and images to assist in the physical install of the switch.

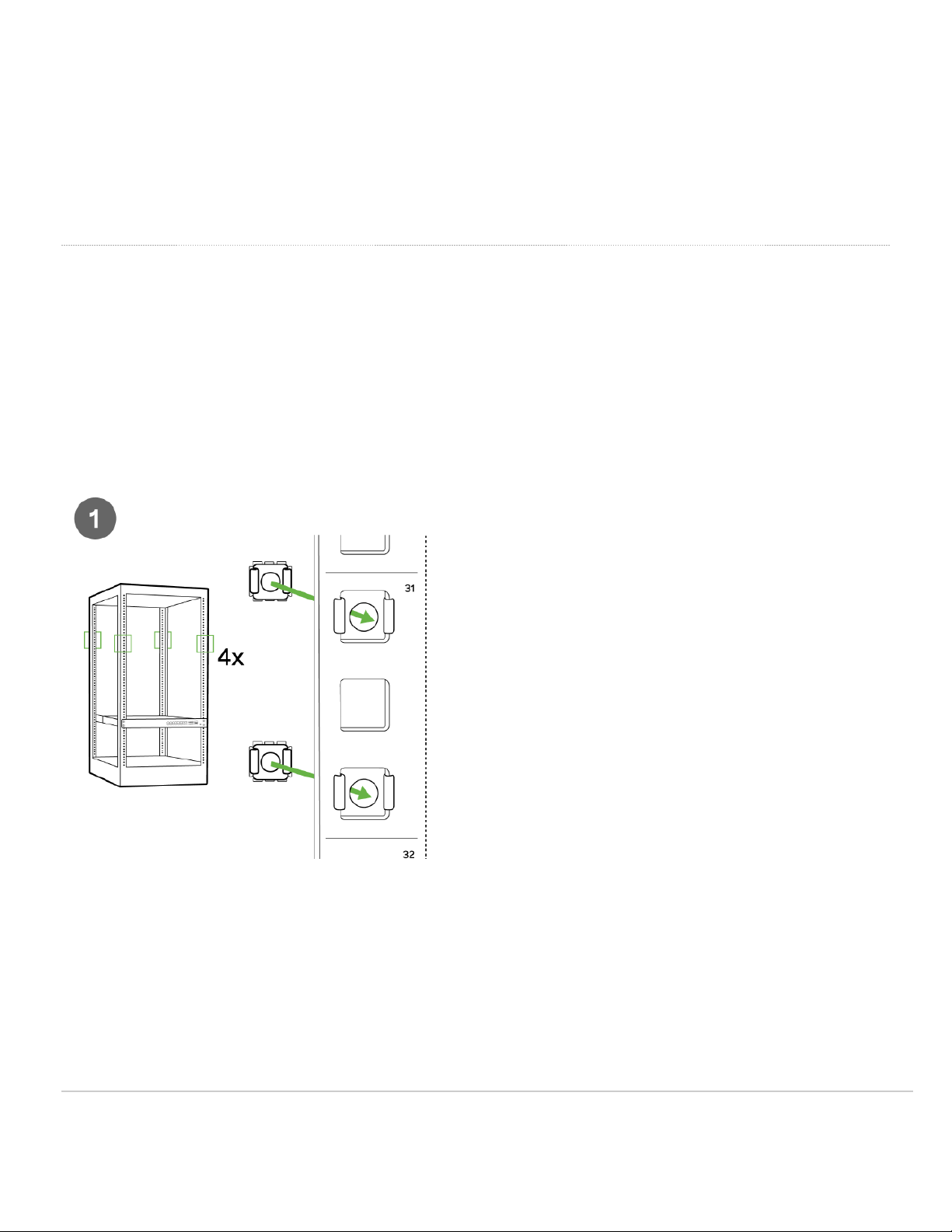

1. Install the mounting cage nuts in the rack being used for the switch.

2. Separate the rack mount rails, and install the rack mount rails channel onto the rack.

3. Attach the rack mount rail to the sides of the switch.

4. Insert the rack mount rail into the rack mount rail channel.

5. Attach the switch face plate to the cage nuts on the rack.

6. Secure the rack mount rail to the rack mount rail channel.

7. Insert the power supply unit into the back of the switch. After it has been securely installed, you can connect power to

the power supply unit.

8. (Optional) Install additional SFP+, QSFP+ or QSFP28 units as needed, depending on the compatibility of your model.

Basic Troubleshooting

The following steps can be used for troubleshooting basic connectivity issues with your switch.

• Reset the switch

• Factory reset the switch by holding the factory reset button for 5 seconds
