Installation guide

for Cisco TelePresence MX700 Single Camera

mounted on the wall

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 2

This guide covers the MX700 with single camera, mounted on the wall.

Safety information

Due to the size and mass of this product it is important

that the wall-mounted system is safely installed

according to these installation instructions.

The wall and mounting hardware must be able to safely

support the product.

The wall-mounted system must be installed by qualified

personnel, in accordance with state and local building

regulations.

Manpower

We recommend three

people working together

to mount this system.

Follow local regulations.

Dimensions

Height: 1071mm / 42.2in.

Width: 2517 mm / 99.1in.

Depth: 148 mm / 5.9in.

Weight: 161 kg / 355lb

Room setup

Explore the Cisco Project Workplace website to

find inspiration and guidelines when preparing your

office or meeting room for video conferencing,

http://www.cisco.com/go/projectworkplace

Documentation

Cisco Spark: Visit the Cisco Spark help site to find

more information about Spark registered room

systems, http://help.ciscospark.com

Other services: Visit the Cisco web site

to find user guides and compliance and

safety information for the video system,

http://www.cisco.com/go/mx-docs

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 3

Packaging

1Open the plastic snap locks and remove the

side walls.

Lift off box L/M. Lay box A flat on the floor

and remove the lid.

L/M

Boxes are labeled A to M. This

guide refers to the labels.

A M

...

B+E-G Shows which boxes are inside.

Tools and screws are in this box.

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 4

Tools

Allen key, 4 mm

Allen key, 2.5mm

Torx T20

Screws

The screw kit may contain more screws than you need,

because the same kit is shipped with all mounting options.

M6x90, countersunk

Tool: Allen key, 4mm

M6x35, countersunk

Tool: Allen key, 4mm

M6x12, countersunk

Tool: Allen key, 4mm

M6x12, pan

Tool: Allen key, 4mm

M4x8, pan

Tool: Allen key, 2.5 mm

PT4x10, pan

Tool: Tor x T20

M6x100, pan

Tool: Allen key, 4mm 声

明

此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种

情况下，可能需要用户对其干扰采取切实可行的措施。

WARNING: This is a class A product. In a domestic environment

this product may cause radio interference in which case the user

may be required to take adequate measures.

EMC Class A declaration

WARNING: This is a class A product. In a domestic environment this

product may cause radio interference in which case the user may

be required to take adequate measures.

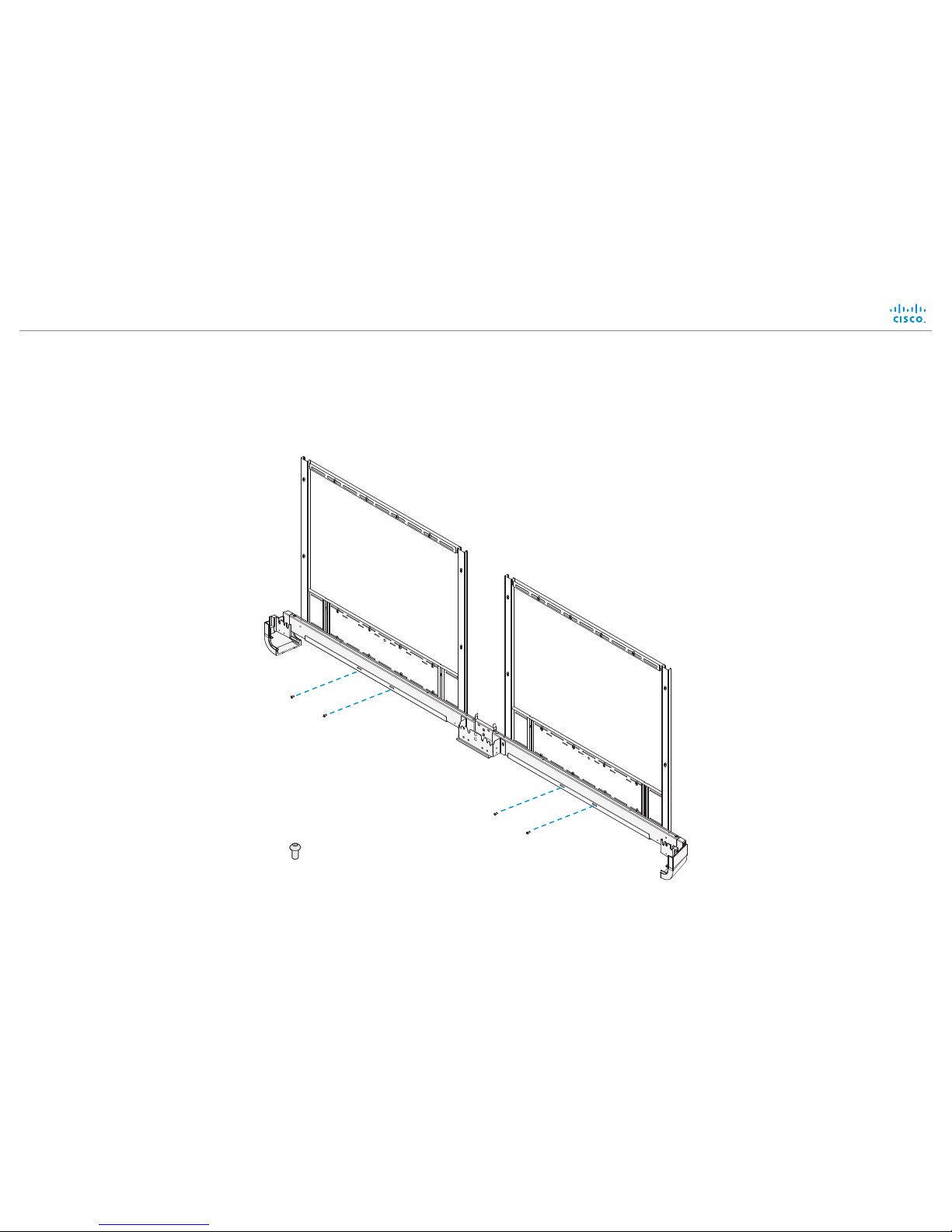

1 Assemble lower frame

A, B

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 5

Six screws from the back

and two from the top.

8 × M6x12, countersunk

2 Fasten center bracket

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 6

2 × M6x12, pan

3 Mount left wall bracket

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 7

Check that the wall bracket is level and mark the required

screw hole positions on the wall. Use at least four screws

when fastening the wall bracket. The wall bracket can be

fastened through any of the horizontal slots.

Fasten the wall bracket in a secure manner ensuring that

the wall’s structure is sufficient to support the system load

(screws and mounting hardware not provided; not shown in

illustration).

The lower edge of the screen

image will be at the height of

these horizontal slots.

We recommend that the

distance from the floor to this

line is 70 cm / 27.6in.*

*If you mount the system higher, note the following consequences:

- You may need to increase the distance between the video system and the table in

order for the camera to capture the closest participants.

- The camera gives an elevated view of the room. This view is not optimal for video

conferencing.

Further information: http://www.cisco.com/go/projectworkplace

2D CAD drawings with measurements: http://www.cisco.com/go/mx-docs (Technical

References)

4 Mount right wall bracket

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 8

You may use the lower frame to check that the

two brackets are level.

Follow the same instructions for mounting the left

wall bracket. Refer to step 3.

254 mm

(10 in.)

5 Mount spacers and top wall brackets

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 9

Snap the top wall brackets onto

the spacers. Face the narrow slots

against the wall.

Fasten the top wall brackets in a secure

manner ensuring that the wall’s structure

is sufficient to support the system

(screws and mounting hardware not

provided; not shown in illustration).

1Mount spacers onto the

wall brackets.

Fasten each spacer with

two screws (not provided;

not shown in illustration).

6 Fasten lower frame

Installation guide for Cisco TelePresence MX700 Single camera - Wall mount

Page 10

4 × M6x12, pan
