Cisco 6020 Manual de usuario

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco Video Surveillance 6020 IP Camera

Installation Guide

Text Part Number: OL-28120-02

NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED

WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at

www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1005R)

Cisco Video Surveillance 6020 IP Camera Installation Guide

iii

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

CONTENTS

Preface v

Overview v

Organization v

Obtaining Documentation, Obtaining Support, and Security Guidelines v

CHAPTER

1Overview 1-1

Introduction 1-1

Package Contents 1-2

IP Camera Physical Details 1-3

General Purpose I/O Terminal Block 1-5

CHAPTER

2Camera Installation 2-1

Installation Guidelines 2-1

Warnings Before Installation 2-1

IP Camera Installation 2-4

Mounting the IP Camera Directly to a Surface 2-4

Mounting the IP Camera Flush with a Surface 2-7

Mounting the IP camera with a Vandal Resistant Enclosure 2-10

CHAPTER

3Performing the Initial Setup of the IP Camera 3-1

CHAPTER

4Camera Management 4-1

Understanding the IP Camera User Interface 4-1

IP Camera Window Links 4-1

IP Camera Windows 4-2

Adjusting the IP Camera Focus and Zoom 4-3

Powering the IP Camera On or Off 4-4

Resetting the IP Camera 4-4

Viewing Live Video 4-4

Managing the Local Storage 4-12

Downloading and Installing the Cisco SD Utility 4-13

Formatting the SD Memory Card 4-13

Downloading Encrypted Video Files from the SD Memory Card 4-14

Contents

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

Deleting Encrypted Video Files from the SD Memory Card 4-14

Decrypting Encrypted Video Files 4-15

NDEX

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

Preface

Overview

This document, Cisco Video Surveillance 6020 IP Camera Installation Guide, provides information

about installing and deploying the Cisco Video Surveillance 6020 IP Camera.

Organization

This manual is organized as follows:

Obtaining Documentation, Obtaining Support, and Security

Guidelines

For information about obtaining documentation, submitting a service request, and gathering additional

information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and

revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed

and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free

service and Cisco currently supports RSS version 2.0.

Chapter 1, “Overview” Provides an overview of the IP camera and its features.

Chapter 2, “Camera Installation” Provides instructions for physically installing the IP camera.

Chapter 3, “Performing the Initial

Setup of the IP Camera”

Provides instructions for performing the initial network setup of

the IP camera.

Chapter 4, “Camera Management” Provides instructions for accessing and understanding the

IP camera user interface, adjusting its focus and, powering the IP

camera on and off, and resetting the IP camera.

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

Preface

CHAPTER

1-1

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

Overview

This chapter describes the Cisco Video Surveillance 6020 IP Camera, and includes the following topics:

• Introduction, page 1-1

• Package Contents, page 1-2

• IP Camera Physical Details, page 1-3

Introduction

The Cisco Video Surveillance 6020 IP camera is an indoor, high definition, professional fixed dome

IP camera with industry-leading image quality and processing power. The 2 megapixel (MP) IP camera

offers 1080p full HD resolution with superb image quality up to 30 frames per second (fps) while

optimizing network usage with either H.264 or MJPEG compression. It can capture a much more

comprehensive area than a standard VGA model, significantly reducing the number of units required. It

is especially suitable for monitoring indoor spaces such as building entrances, retail spaces or

applications requiring accurate identification.

For installers, properly adjusting the focus of an HD IP camera can be difficult due to the image detail.

To make installation and adjustment easier, the 6020 IP camera incorporates built-in stepping motors that

the installer can use to remotely control the focal length and precisely adjust the camera focus, offering

hassle-free installation and maintenance.

For complete installation and tampering prevention, the 6020 IP camera also allows for different

mounting options such as surface, vandal-resistant, and flush mount. Additionally, the metal

vandal-resistant housing option effectively provides robust protection against vandalism.

With other advanced features such as 802.3af compliant PoE, micro SD/SDHC card for local storage,

and e-PTZ functionality, the 6020 IP camera provides the most robust solution suitable for any

demanding indoor environment.

1-2

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

Chapter 1 Overview

Package Contents

The Cisco Video Surveillance 6020 IP Camera package includes the following items:

• Cisco Video Surveillance 6020 IP Camera (1)

• Installation template and alignment sticker (1)

• Wall anchors (3)

• Screws (3)

• Black cover (1)

• Ethernet cable (1)

• RJ45 coupler (1)

• Extra set of labels (3)

• Cisco documentation pointer card (1)

• Cisco RoHS document (1)

1-3

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

Chapter 1 Overview

IP Camera Physical Details

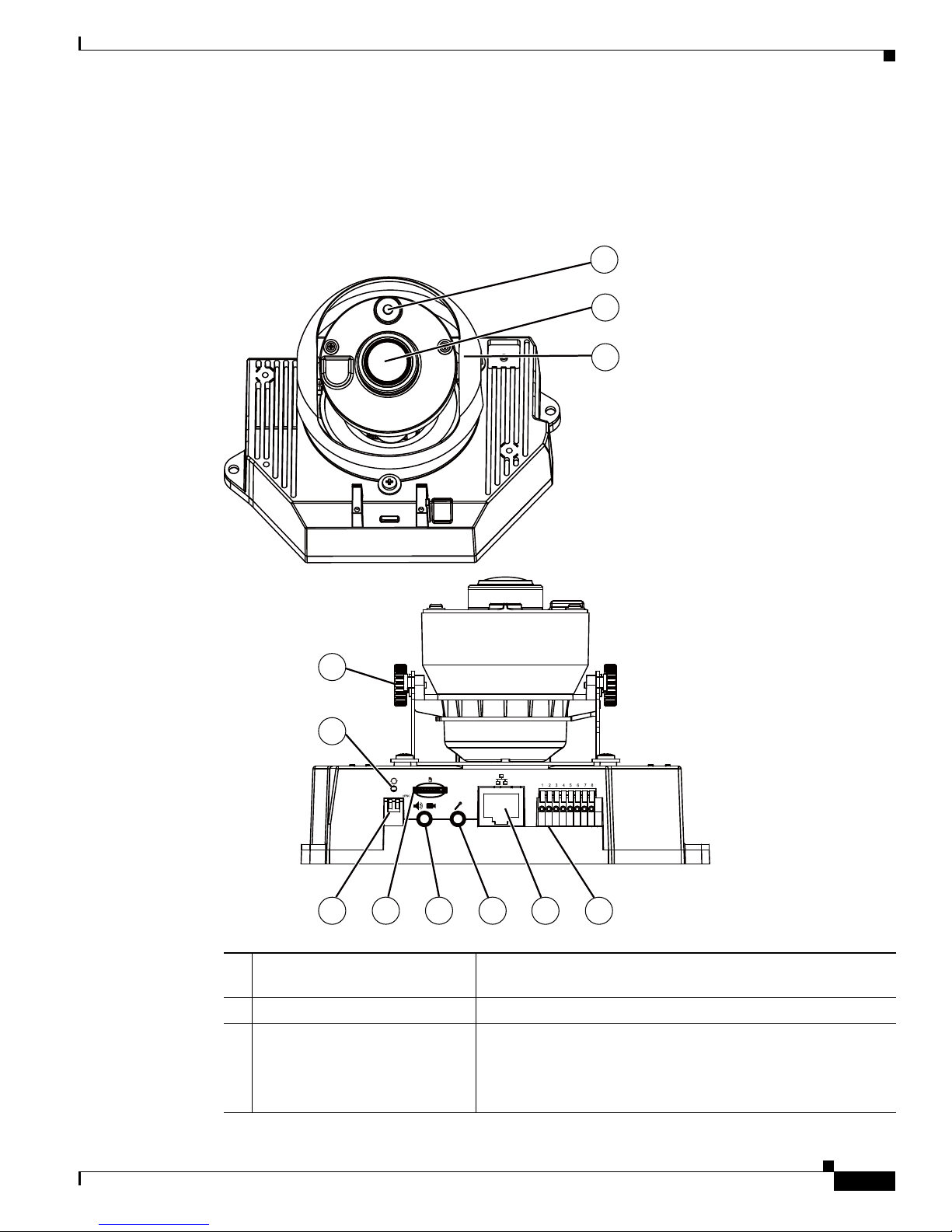

Figure 1-1 and the table that follows describe the physical features of the 6020 IP camera.

Figure 1-1 IP Camera Details

1Light sensor Senses the level of ambient light to determine when to switch

day/night mode.

2Varifoc a l l e ns IP camera lens that changes focus as the focal length changes.

3Black cover A dark cover with a cutout for the camera lens that makes it

difficult to see where the IP camera is pointed.

Note You must temporarily remove the black cover when

adjusting the camera field of view.

67 8

10 11

1-4

Cisco Video Surveillance 6020 IP Camera Installation Guide

OL-28120-02

Chapter 1 Overview

IP Camera Physical Details

4Tilt adjustment screw Used when tilting the camera to set the field of view.

5Recessed Reset button Recessed button that reboots the IP camera or resets it to a

default state. You can use a pin or paper clip to depress it. It can

be used any time that the IP camera is on and can have various

effects, as described in the “Resetting the IP Camera” section

on page 4-4.

6Microphone and Video Output

switches

Microphone

• Off (up)—Disables an external microphone connected to

the IP camera.

• On (down)—Enables an external microphone connected to

the IP camera.

Video Output

• NTSC 60Hz (up)—Switches camera operation to the

National Television System Committee (NTSC) standard.

• PAL 50Hz (down)—Switches camera operation to the

Phase Alternating Line (PAL) standard.

7micro SD card slot Supports up to 8 GB of video data on a micro SD memory card

when the camera loses network connectivity.

8Audio/Video out (green) Allows the connection of an optional Y cable or mini cable with

BNC connector. You can connect a video monitor to the mini

cable with BNC connector. Both cables are included in the

optional audio/video cables accessory kit can be purchased

from Cisco (Cisco part number CIVS-AVCABLE).

9Microphone In (pink) Connection for an external microphone.

10 Ethernet 10/100 RJ45 socket Accepts a standard LAN cable to connect the IP camera to a

10/100BaseT router or switch.

11 GPIO Terminal Block General purpose input/output (GPIO) terminal block that is

used to connect external input and output devices. For more

information, see Figure 1-2.
